DAZZLEEX Pool Cleaner Drive Belts RCX23002 Instruction Manual

1. Introduction

This manual provides essential information for the installation, maintenance, and compatibility of your DAZZLEEX RCX23002 Pool Cleaner Drive Belts. These high-quality replacement belts are designed to restore optimal performance to your automatic pool cleaner.

Package Contents:

• 2 x DAZZLEEX RCX23002 Pool Cleaner Drive Belts

2. Product Overview & Features

The DAZZLEEX RCX23002 drive belts are crucial components for the efficient movement and operation of your pool cleaner. They are engineered for durability and effective traction across various pool surfaces.

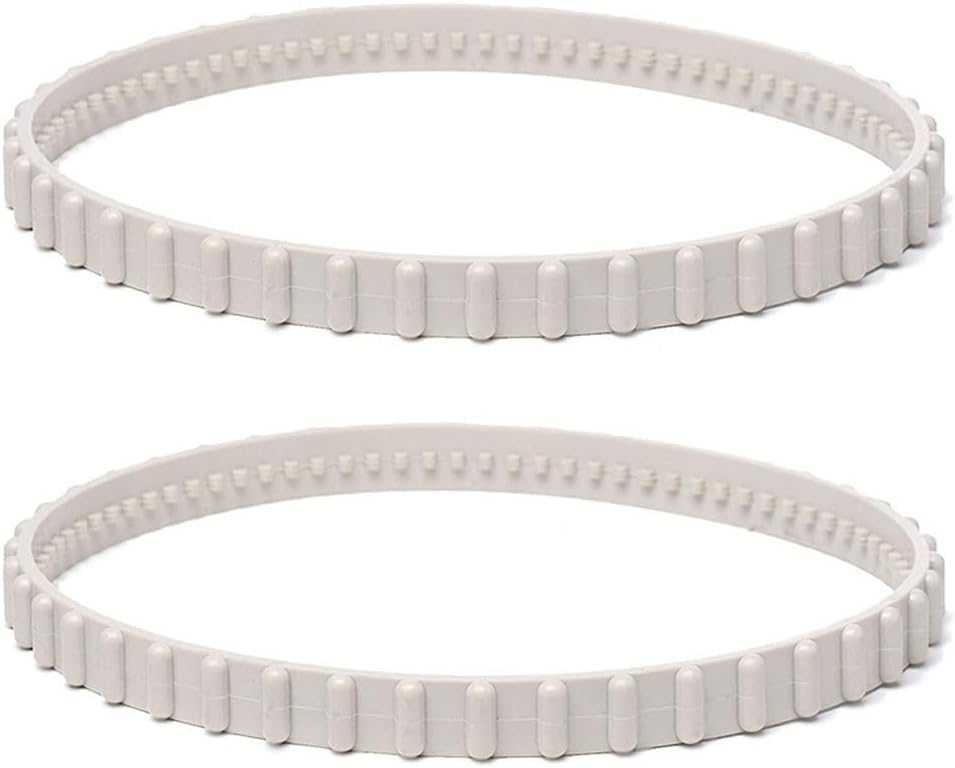

Figure 2.1: DAZZLEEX RCX23002 Pool Cleaner Drive Belts.

Key Features:

• High Quality Construction: Manufactured from robust rubber, ensuring long-lasting performance and resistance to wear in pool environments.
• Optimal Traction: Designed to provide maximum grip for your pool cleaner without causing scratches or damage to the pool surface.
• Versatile Application: Suitable for a wide range of pool surfaces including fiberglass, gunite, pebble, tile, and vinyl.
• Easy Installation: Engineered for straightforward replacement, requiring no specialized tools.

Figure 2.2: Detail of the belt's textured surface for enhanced traction.

3. Compatibility

These replacement drive belts (part number RCX23002) are specifically designed to be an exact fit for various Hayward and SharkVac automatic pool cleaner models. Ensure your pool cleaner model is listed below for proper compatibility.

Compatible Pool Cleaner Models:

• Hayward Aquavac
• Hayward Aquavac QC
• SharkVac Pool Cleaner Models
• Hayward RC9950
• Hayward RC9950CUB
• Hayward RC9955CUB
• Hayward RC9950GR
• Hayward RC9956GRCC
• Hayward RC9990CUB QC
• Hayward RC9965 Plus
• Hayward RC9975 2 Plus
• Hayward RC97400 CUB
• Hayward RC9740WCCUB VAC
• Hayward RC9742CUBY
• Hayward RC9742WCCUBY VAC

4. Setup & Installation

Replacing the drive belts on your pool cleaner is a straightforward process. Follow these steps carefully to ensure proper installation and functionality.

Installation Steps:

1. Prepare the Pool Cleaner:

   First, ensure your pool cleaner is disconnected from any power source and removed from the pool. Place it on a clean, flat surface to work on.

2. Access the Drive Mechanism:

   Depending on your specific pool cleaner model, you may need to remove covers or access panels to expose the drive belt mechanism. Refer to your pool cleaner's original manual for detailed instructions on accessing these components.

3. Remove Old Belts:

   Carefully remove the worn or broken drive belts from their pulleys. Note how the old belts were routed to assist with the installation of the new ones.
4. Install New Belts:

   Position the new DAZZLEEX RCX23002 drive belts onto the pulleys. Ensure they are seated correctly and have proper tension. The belts are designed to fit snugly.

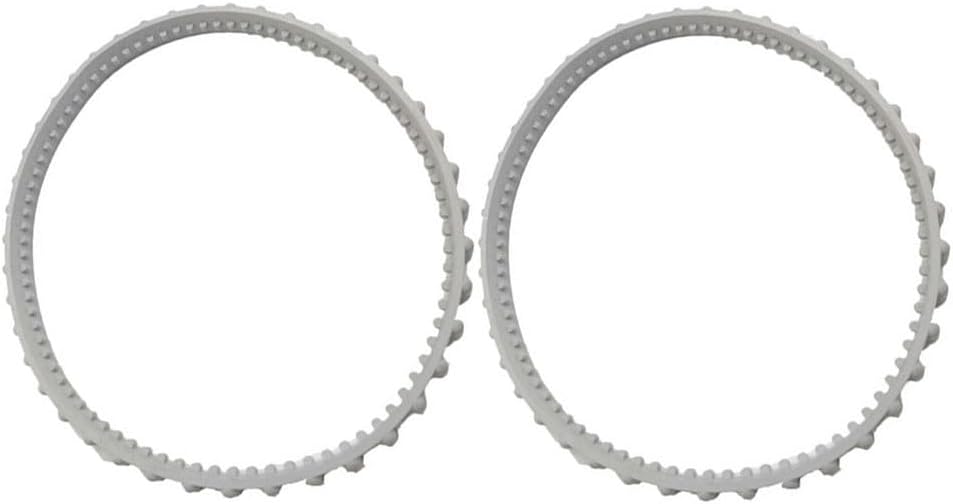

   Figure 4.1: New drive belts ready for installation.

5. Reassemble the Cleaner:

   Once the new belts are securely in place, reattach any covers or panels that were removed. Ensure all screws and fasteners are tightened appropriately.
6. Test Functionality:

   Before placing the cleaner back into the pool, perform a quick test to ensure the belts are moving freely and the drive mechanism operates as expected. You may need to briefly connect it to power for this test, following all safety precautions.

Note: While no special tools are required, a small flathead screwdriver or pry tool might be helpful for gently prying off old belts or guiding new ones onto tight pulleys. Always refer to your specific pool cleaner's service manual for model-specific instructions.

5. Operating

The DAZZLEEX RCX23002 drive belts are passive components that facilitate the movement of your pool cleaner. Once installed, their operation is integrated with the cleaner's normal function. Ensure your pool cleaner is operated according to its manufacturer's instructions.

• Proper Pool Cleaner Operation: For optimal performance of the new belts, ensure your pool cleaner's wheels and brushes are clean and free of debris.
• Surface Compatibility: These belts are designed for maximum traction on fiberglass, gunite, pebble, tile, and vinyl surfaces.

6. Maintenance

Regular inspection and basic maintenance can extend the lifespan of your DAZZLEEX drive belts and ensure continuous efficient operation of your pool cleaner.

• Regular Inspection: Periodically inspect the belts for signs of wear, cracking, fraying, or stretching. Replace them if any significant damage is observed.
• Cleanliness: Ensure that no debris, hair, or other foreign objects are wrapped around the belts or pulleys, as this can cause premature wear or slippage.
• Storage: When the pool cleaner is not in use for extended periods, store it in a cool, dry place away from direct sunlight and harsh chemicals to preserve the integrity of the rubber belts.

7. Troubleshooting

If your pool cleaner is not moving correctly after belt replacement, consider the following common issues:

For issues not resolved by these steps, consult the original manufacturer's manual for your pool cleaner or contact a qualified service technician.

8. Specifications

9. Warranty & Support

Information regarding specific warranty terms for DAZZLEEX RCX23002 Pool Cleaner Drive Belts is not available in the provided product details. For warranty claims or technical support, please refer to the retailer or the official DAZZLEEX website if available.

Spare parts availability information is currently unavailable.
