1. Product Overview
The EXTRASTAR 24W Square LED Ceiling Light is a modern and energy-efficient lighting solution designed for various indoor spaces such as bathrooms, offices, bedrooms, kitchens, and living rooms. This fixture provides a bright, natural white light at 4200K with a high luminous flux of 2640 lumens, ensuring excellent illumination and color rendering.
A clear view of the EXTRASTAR 24W Square LED Ceiling Light, showcasing its modern, minimalist design and bright, uniform illumination.
Key Features:
- Power: 24W, equivalent to 159W traditional halogen.
- Brightness: 2640 lumens.
- Color Temperature: 4200K (Natural White).
- High CRI: ≥80 for accurate color rendering.
- Long Lifespan: Approximately 20,000 hours.
- Slim Design: 30x30x3.3 cm dimensions.
- Energy Efficient: Up to 85% energy saving.
- Non-Dimmable: Provides consistent light output.
2. Safety Information
Please read all safety instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- Always disconnect power at the circuit breaker before installation, maintenance, or cleaning.
- Installation should be performed by a qualified electrician or a person with adequate knowledge of electrical wiring.
- Ensure the supply voltage matches the product's requirements (65-265V AC, 50/60Hz).
- Do not modify the product in any way.
- This product is rated IP20, suitable for indoor use only. Do not expose to water or high humidity.
- Keep away from flammable materials.
3. Package Contents
Verify that all components are present and undamaged before proceeding with installation.
- 1 x EXTRASTAR 24W Square LED Ceiling Light
- 1 x Mounting Bracket
- Screws and Wall Plugs
- Instruction Manual
This image displays the physical dimensions of the LED ceiling light (305mm x 305mm x 32mm) and lists key specifications: Power 24W, Lumen 2640Lm, Fluent 166mA, Color Temperature 4200K, Lifetime 20000H, Not Dimmable. It also shows the included mounting accessories.
4. Setup and Installation
Follow these steps for safe and proper installation. Tools required: screwdriver, drill, wire strippers.
- Turn off Power: Before starting, ensure the main power supply to the installation area is switched off at the circuit breaker.
- Prepare Mounting Surface: Mark the desired position for the ceiling light. Use the mounting bracket as a template to mark the drill holes.
- Drill Holes: Drill holes at the marked positions and insert the wall plugs (if necessary for your ceiling type).
- Attach Mounting Bracket: Secure the mounting bracket to the ceiling using the provided screws.
- Connect Wiring: Connect the household electrical wires to the LED driver's input terminals. The LED driver has an input range of 65-265V AC, 50/60Hz. Connect the output wires of the LED driver (80-80V, 220mA) to the light fixture. Ensure all connections are secure using the flame-retardant plastic connectors. This fixture does not require a ground wire connection.
- Mount the Light Fixture: Align the light fixture with the mounting bracket and secure it in place.
- Restore Power: Once the installation is complete and all connections are secure, restore power at the circuit breaker.
This image shows the LED driver, which ensures stable current and constant brightness without flicker. It also features the easy-to-install flame-retardant plastic connectors for secure and safe wiring.
5. Operating Instructions
The EXTRASTAR LED Ceiling Light operates simply via your standard wall switch.
- Turning On/Off: Use the wall switch connected to the light fixture to turn the light on or off.
- Brightness: This fixture provides a fixed brightness of 2640 lumens and is not dimmable.
- Light Quality: Enjoy uniform brightness with a 120-degree beam angle and natural white light (4200K) with high color rendering (CRI ≥80).

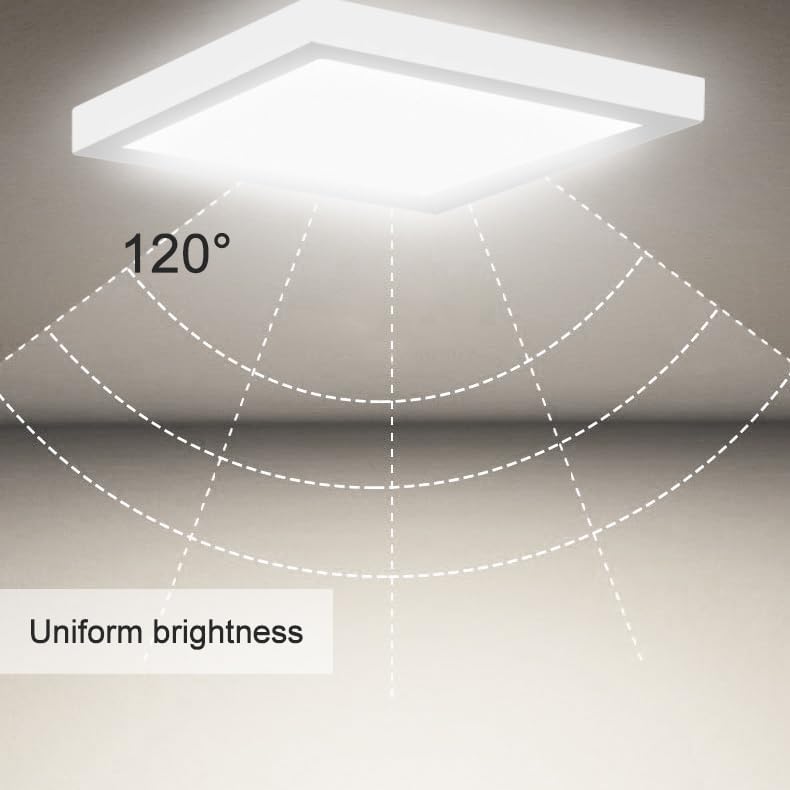

A diagram illustrating the 120-degree beam angle of the LED ceiling light, indicating its ability to provide wide and uniform illumination across a room without dark spots.
This visual comparison illustrates the benefit of a high Color Rendering Index (CRI). The EXTRASTAR LED ceiling light has a CRI ≥ 80, ensuring that colors appear vibrant and true to life, unlike lower CRI lights which can make colors look dull.
6. Maintenance
The EXTRASTAR LED Ceiling Light requires minimal maintenance.
- Cleaning: Ensure the power is off before cleaning. Wipe the fixture with a soft, dry, or slightly damp cloth. Do not use abrasive cleaners or solvents.
- Lamp Replacement: The LED light source is integrated and not user-replaceable. The fixture has a long lifespan of approximately 20,000 hours.
7. Troubleshooting
If you encounter any issues, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power supply Loose wiring connection Faulty switch | Check circuit breaker and wall switch. Ensure all wires are securely connected (with power off). Test the switch with another device. |
| Light flickers | Unstable power supply Loose wiring Incompatible dimmer (this light is non-dimmable) | Ensure stable power. Check wiring connections. Do not connect to a dimmer switch. |
| Insufficient brightness | Room size too large for wattage Dust/dirt on diffuser | Ensure the light wattage is appropriate for the room area. Clean the diffuser gently. |
8. Specifications
| Attribute | Value |
|---|---|
| Brand | EXTRASTAR |
| Model | CM300N-IT |
| Power Consumption | 24 Watts |
| Luminous Flux | 2640 Lumens |
| Color Temperature | 4200 Kelvin (Natural White) |
| Color Rendering Index (CRI) | ≥80 |
| Input Voltage | AC 65-265V, 50/60Hz |
| Dimensions (L x W x H) | 30 x 30 x 3.3 cm |
| Weight | 940 grams |
| Material | Metal |
| IP Rating | IP20 (Indoor use only) |
| Average Lifespan | 20,000 Hours |
| Dimmable | No |
| Energy Efficiency Class | E |
| Energy Consumption (1000h) | 24 kWh |
The EU energy label for the Extrastar CM300N-IT LED light, indicating an energy efficiency class of E and an energy consumption of 24 kWh/1000h. For more product information, scan the QR code or visit eprel.ec.europa.eu/qr/1642425.

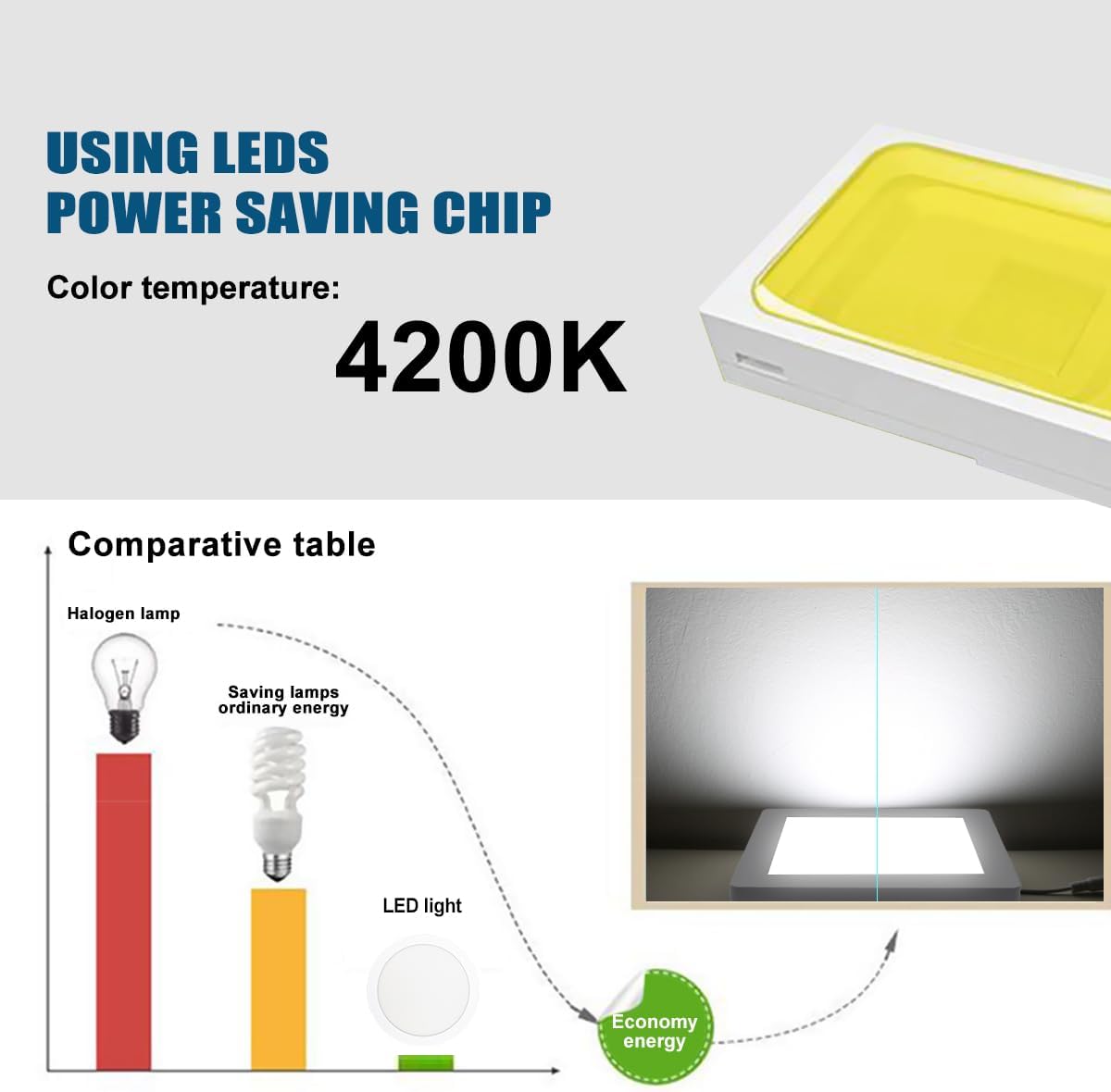

A comparative table demonstrating the significant energy savings achieved by using LED technology. The EXTRASTAR LED light consumes considerably less energy compared to traditional halogen lamps and even older energy-saving lamps.
9. Warranty and Support
The EXTRASTAR LED Ceiling Light is designed for durability with an average lifespan of 20,000 hours.
For any inquiries, technical assistance, or after-sales support, please contact EXTRASTAR customer service through your purchase platform. Please have your model number (CM300N-IT) and purchase details ready for faster service.
