ANPABO 24V 4x4 Ride On Toy Instruction Manual

1. Introduction

Thank you for choosing the ANPABO 24V 4x4 Ride On Toy. This manual provides essential information for the safe assembly, operation, and maintenance of your new ride-on vehicle. Please read it thoroughly before use and retain it for future reference.

Figure 1: ANPABO 24V 4x4 Ride On Toy (Red)

2. Safety Information

Your child's safety is paramount. Always ensure proper supervision during operation. This product is made from non-toxic and odorless materials, certified with Children's Product Certificate (CPC) and Lead and Phthalates Testing (CPSIA).

• Always use the provided seatbelt.
• For younger children, utilize the 2.4G parental remote control for steering and emergency stops.
• Ensure the power switch is in the 'off' position when not in use or when towing.
• Do not exceed the maximum load capacity of 130 lbs.
• Recommended age for use is 3 years and up.

3. Setup and Assembly

Follow these steps carefully for proper assembly. Refer to the installation video for visual guidance.

3.1 Unboxing and Initial Inspection

Carefully remove all components from the packaging. Verify all parts are present according to the packing list in your manual. The main body of the vehicle will be partially assembled.

3.2 Battery Connection

Locate the battery compartment, typically under the seat or hood. Connect the battery terminals as instructed in the manual. Ensure a secure connection.

3.3 Wheel and Motor Installation

Attach the four large wear-resistant wheels. Each wheel is driven by a 200W motor. Ensure correct motor placement (front/rear, left/right) as indicated by labels (e.g., 'L' for left, 'R' for right, 'FR' for front right).

Figure 2: Vehicle in action, demonstrating 4x200W motors.

3.4 Front and Rear Bar Attachment

Securely attach the front and rear protective bars using the provided screws and tools. These bars contribute to the vehicle's robust metal frame construction.

3.5 Seat and Steering Wheel Installation

Install the wide adjustable seat. The seat can be adjusted back and forth with 3 different positions, offering a 3.14-inch adjustable range. Attach the steering wheel, ensuring all connections are firm.

Figure 3: Wide and Adjustable Seat for comfort.

3.6 Installation Video Guide

For a detailed visual guide on the assembly process, please watch the official installation video:

4. Operating Instructions

Familiarize yourself with the vehicle's controls before operation.

4.1 Power On/Off

Locate the main power switch, typically near the charging port. Flip it to the 'On' position to activate the vehicle.

4.2 Driving Controls

• Foot Pedal: Press down to accelerate. Release to brake.
• Steering Wheel: Turn left or right to change direction.
• Forward/Reverse Switch: Located on the control panel, select 'Forward' or 'Reverse' as needed.

4.3 Drive Modes and Speed

The vehicle offers versatile driving options:

• 2WD/4WD Selection: Use the switch on the control panel to toggle between 2-wheel drive (rear wheels) and 4-wheel drive for enhanced traction on rough terrains.
• Speed Settings: Select between low and high speed modes (3.1-4.5 mph range) using the dedicated switch.

Figure 4: Manual and Remote Control Mode.

4.4 Parental Remote Control

The included 2.4G remote control allows parents to control the vehicle, especially for younger drivers. It features an emergency 'P' button to stop the car instantly.

4.5 Entertainment Features

• Music: The vehicle comes with pre-loaded music.
• Bluetooth & USB: Connect your mobile device via Bluetooth or USB to play your child's favorite music.
• Headlights: The cool bright headlights enhance visibility and aesthetics.

Figure 5: Drive with Music feature.

4.6 Towing Feature

A front handle is provided for easy towing if the battery runs out. Remember to turn the power switch to the 'off' position before dragging.

Figure 6: Front handle for easy towing.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your ride-on toy.

• Charging: A battery indicator on the music board will remind you to charge the car in time. Charge the 24V battery fully before first use and after each play session.
• Cleaning: Wipe the vehicle with a damp cloth. Avoid using harsh chemicals or abrasive cleaners.
• Storage: Store the vehicle in a dry, cool place away from direct sunlight and moisture.
• Shock Absorbers: The 4 large spring suspensions are designed for durability. Periodically check them for any signs of wear or damage.

Figure 7: Shock Absorbers and 14-inch Wear-Resistant Wheels.

6. Troubleshooting

If you encounter issues, refer to the following common problems and solutions:

For persistent issues or complex repairs, please contact ANPABO customer support.

7. Specifications

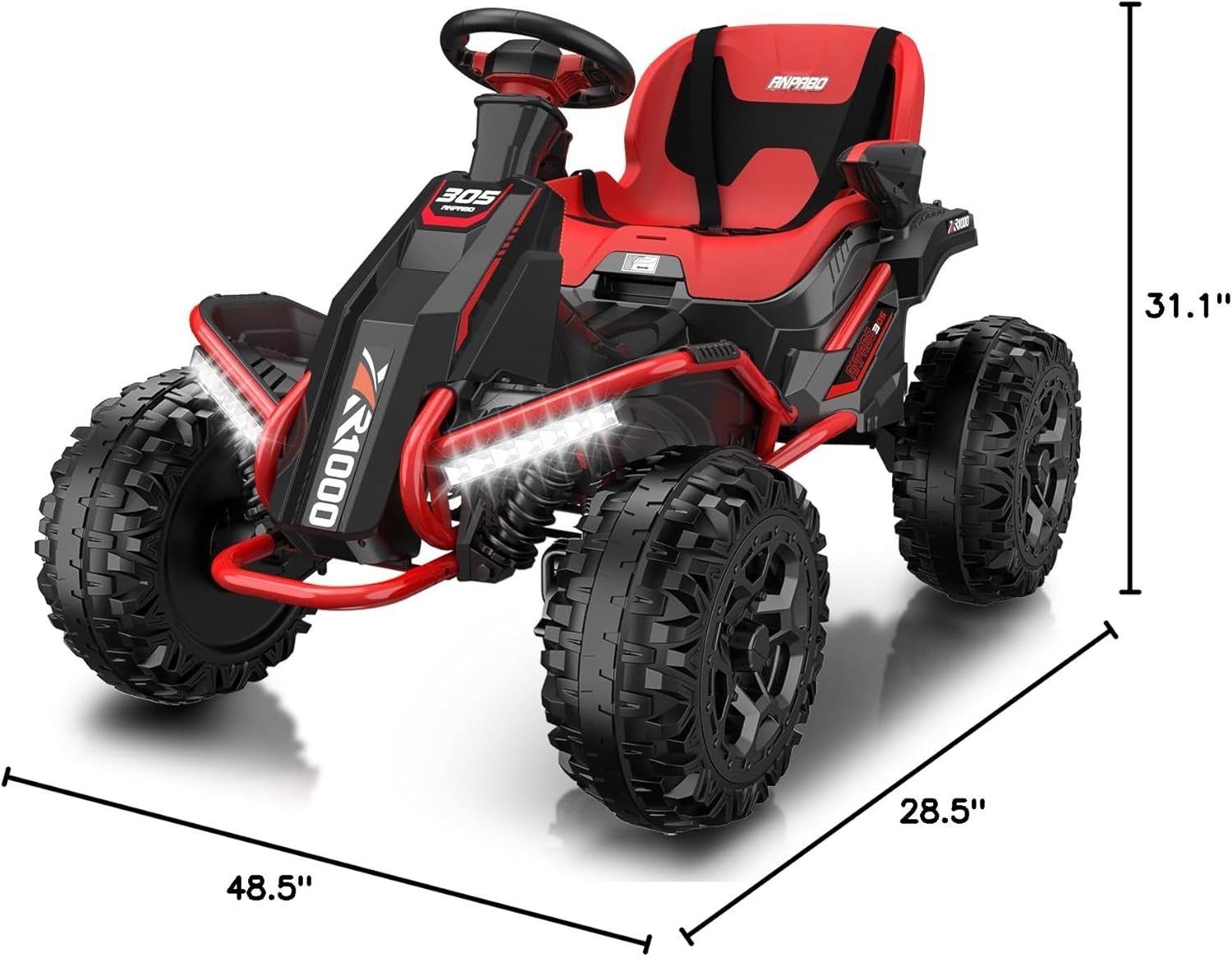

Figure 8: Product Dimensions.

8. Warranty and Support

For warranty information, product support, or to inquire about replacement parts, please contact ANPABO customer service directly. Refer to the contact information provided with your purchase or on the official ANPABO website.
