1. Introduction
Thank you for choosing the ADO A20F XE Electric Assist Fat Bike. This manual provides detailed instructions for the safe operation, assembly, maintenance, and troubleshooting of your new e-bike. Please read this manual thoroughly before using the bicycle to ensure proper function and safety. Keep this manual for future reference.
The ADO A20F XE is a versatile electric assist fat bike designed for various uses, including daily commuting, shopping, city riding, cycling, fitness, and outdoor adventures. It features a removable 10Ah battery, a smart folding design, and comfortable riding characteristics.

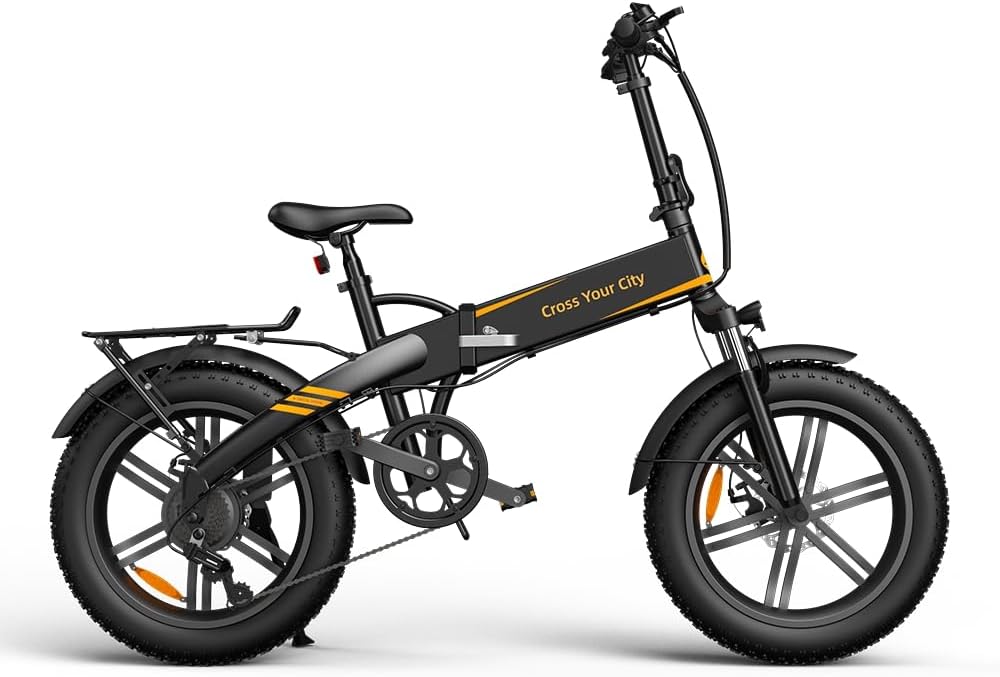

Image: The ADO A20F XE Electric Assist Fat Bike in black, showcasing its robust fat tires and folding frame.
2. Safety Information
WARNING: Always wear a helmet when riding. Obey all local traffic laws and regulations. Do not ride under the influence of alcohol or drugs. Regular maintenance is crucial for safe operation.
- Perform a pre-ride inspection before each use, checking brakes, tires, battery, and lights.
- Ensure all quick releases and folding mechanisms are securely locked before riding.
- Be aware of your surroundings and ride defensively.
- Do not exceed the maximum load capacity of 120 kg.
- Avoid riding in heavy rain or through deep puddles, as the bike is IPX5 water-resistant, not fully waterproof.
- Familiarize yourself with the electric assist levels and braking system before riding in traffic.
3. Assembly and Setup
Your ADO A20F XE comes mostly pre-assembled. Follow these steps to prepare your bike for its first ride:
Unfolding the Bicycle
Carefully unfold the main frame and handlebar stem. Ensure all folding latches are securely engaged and locked. You should hear a click or feel a firm lock.

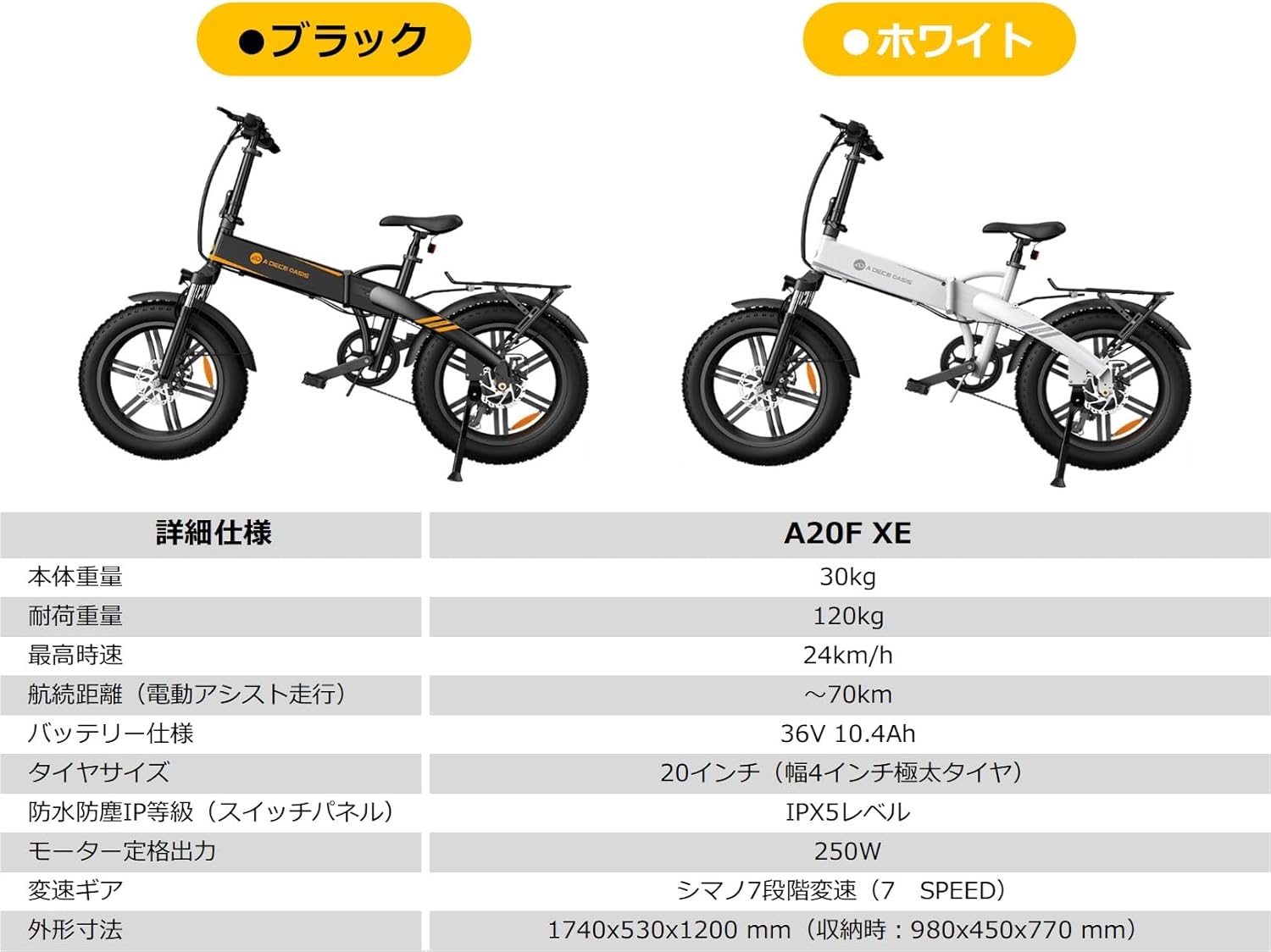

Image: The ADO A20F XE in both black and white, showing the bike in its unfolded state and a smaller image of it folded. This image also contains a specifications table.
Handlebar and Seat Adjustment
Adjust the handlebar height and angle for a comfortable riding position. Adjust the seat post height so that your leg has a slight bend at the knee when the pedal is at its lowest point. Secure all quick-release levers firmly.
Battery Installation and Initial Charge
The 10Ah battery is removable. Ensure it is properly inserted and locked into the frame. For the first use, fully charge the battery. Refer to the "Charging the Battery" section for detailed instructions.
Pre-Ride Checks
Before your first ride and every subsequent ride, perform the following checks:
- Check tire pressure (fat tires require specific pressure, refer to tire sidewall).
- Test front and rear brakes for proper function.
- Ensure all lights are working.
- Verify that the quick releases and folding mechanisms are secure.
- Check that the battery is fully charged and securely in place.
4. Operating Instructions
Familiarize yourself with the controls and functions of your ADO A20F XE for an optimal riding experience.
Powering On/Off
Press and hold the power button on the display panel to turn the bike on or off. The LCD display will illuminate.

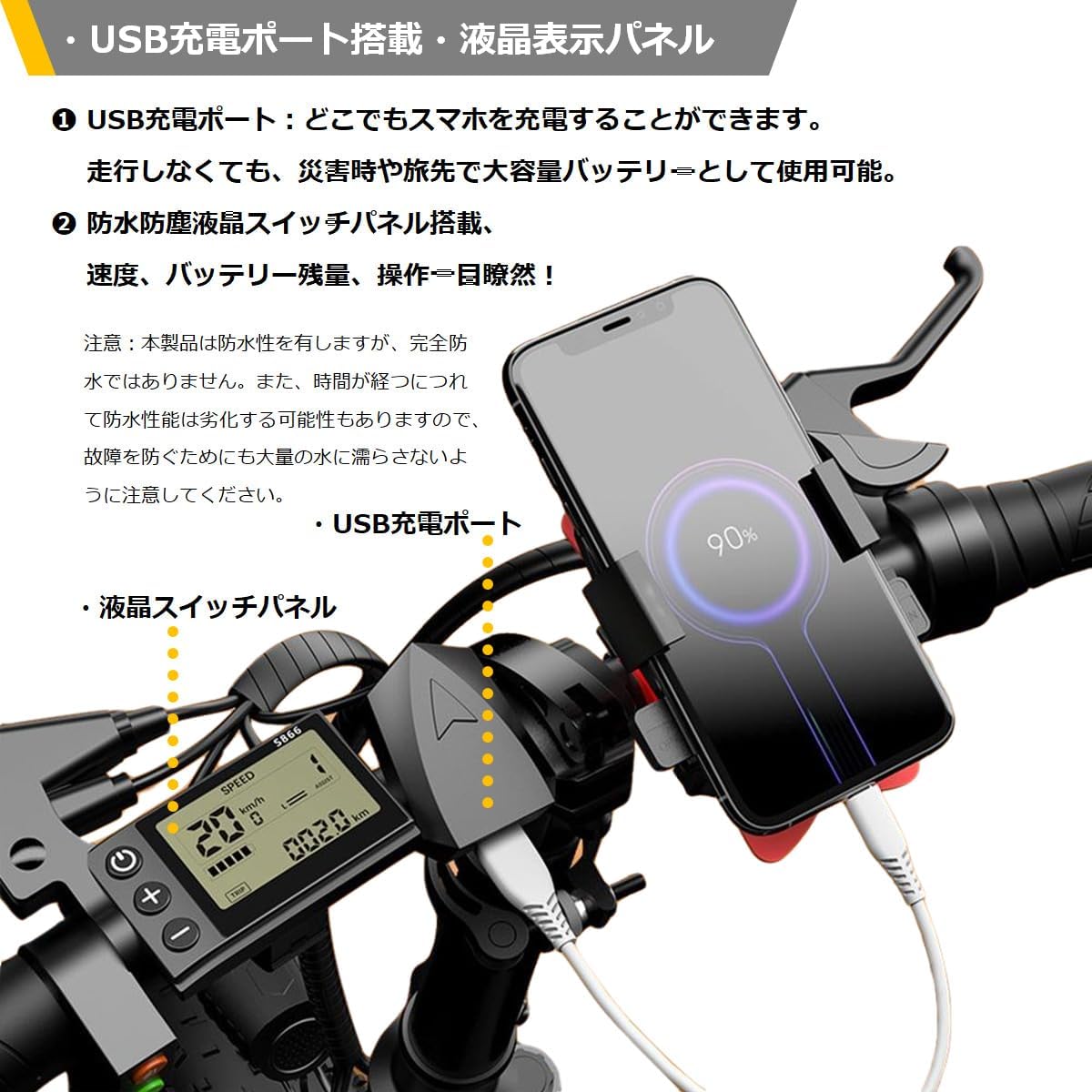

Image: A detailed view of the bike's LCD display panel, showing speed, battery level, and distance. Below it, the USB charging port is visible with a smartphone connected, illustrating its charging capability.
Electric Assist Modes
Use the '+' and '-' buttons on the control panel to cycle through different levels of electric assist. Higher levels provide more motor assistance, while lower levels require more pedal effort. The current assist level is shown on the LCD display.
Gear Shifting
The ADO A20F XE is equipped with a Shimano 7-speed gear system. Use the shifter on the handlebar to change gears according to terrain and desired speed. Shift gears smoothly to avoid strain on the drivetrain.
Braking System
The bike features front and rear disc brakes for reliable stopping power. Apply both brakes simultaneously for effective and safe stopping. Avoid sudden, hard braking, especially at high speeds.
Lights
The bike is equipped with front and rear LED lights for visibility. Turn them on when riding in low light conditions or at night.
Charging the Battery
The ADO A20F XE offers two charging methods:
- Direct Charging: Connect the charger directly to the charging port on the bike frame.
- Removable Battery Charging: Remove the battery from the frame and charge it separately. This is convenient if you need to charge indoors or away from the bike.
Image: An illustration demonstrating the two ways to charge the ADO A20F XE's battery: either by plugging the charger directly into the bike or by removing the battery and charging it independently.
Note: The display panel is IPX5 water-resistant, meaning it can withstand splashes but is not fully waterproof. Avoid submerging it or exposing it to large amounts of water.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your ADO A20F XE.
Battery Care
Charge the battery regularly, even if not in use, to maintain its health. Store the battery in a cool, dry place. Avoid fully discharging the battery frequently.
Tire Maintenance
Check tire pressure before each ride. Fat tires typically operate at lower pressures than standard bike tires; refer to the tire sidewall for recommended PSI. Inspect tires for wear, punctures, or damage.
Brake System
Regularly check the brake pads for wear and replace them if necessary. Ensure brake levers are firm and responsive. Adjust brake cables if there is too much slack.
Cleaning
Clean your bike regularly with a damp cloth. Avoid using high-pressure washers directly on electrical components. Dry the bike thoroughly after cleaning.
General Inspection
Periodically check all bolts, nuts, and fasteners for tightness. Lubricate the chain regularly to ensure smooth operation and prevent rust.
6. Troubleshooting
This section addresses common issues you might encounter with your ADO A20F XE.
| Problem | Possible Cause | Solution |
|---|---|---|
| Bike does not power on. | Battery not charged or not properly installed. Loose connections. | Ensure battery is fully charged and securely seated. Check all visible cable connections. |
| Electric assist not working. | Low battery. Incorrect assist level selected. Sensor issue. | Charge the battery. Increase assist level on the display. Check for any obstructions around the pedal assist sensor. |
| Battery not charging. | Charger not connected properly. Faulty charger or battery. | Ensure charger is firmly plugged into both the wall and the bike/battery. Try charging the battery removed from the bike. Contact support if issue persists. |
| Brakes feel weak. | Worn brake pads. Loose brake cable. | Inspect and replace brake pads if worn. Adjust brake cable tension. |
7. Specifications
Detailed technical specifications for the ADO A20F XE Electric Assist Fat Bike:
| Feature | Specification |
|---|---|
| Model | ADO A20F XE |
| Color | Black (also available in White) |
| Wheel Size | 20 inches (4-inch fat tires) |
| Bike Type | Folding Electric Assist Fat Bike |
| Gears | Shimano 7-speed |
| Motor Output | 250W |
| Battery | 36V 10.4Ah (Removable) |
| Max Speed (Electric Assist) | 24 km/h |
| Range (Electric Assist) | Approx. 70 km |
| Net Weight | 30 kg |
| Max Load Capacity | 120 kg |
| Waterproof Rating (Switch Panel) | IPX5 Level |
| Unfolded Dimensions (L x W x H) | 1740 x 530 x 1200 mm |
| Folded Dimensions (L x W x H) | 980 x 450 x 770 mm |
| Target Age | Adult |
Image: Visual representation of the ADO A20F XE's dimensions when unfolded and folded, highlighting its compact storage capability, including an example of it fitting into a car trunk.
8. Warranty and Support
Your ADO A20F XE Electric Assist Fat Bike comes with a 1-year long-term warranty from the date of purchase. This warranty covers manufacturing defects and significant malfunctions under normal use conditions.
For warranty claims, technical support, or any questions regarding your product, please contact your retailer or the official ADO customer service. Please have your purchase receipt and product model number (A20F XE) ready when contacting support.
Keep your original packaging for potential returns or servicing.
