Nitigo Fuel Transfer Pump with Auto-Stop Sensor

1. Introduction

This manual provides comprehensive instructions for the safe and efficient operation of your Nitigo Fuel Transfer Pump. Designed for transferring gasoline, diesel, kerosene, or non-potable water, this portable pump features an auto-stop sensor to prevent overflow and multiple power supply options for convenience.

Please read this manual thoroughly before use to ensure proper handling and to maximize the product's lifespan.

2. What's in the Box

• 1 × Fuel Transfer Pump
• 4 × Can Adapters
• 2 × Power Supply Cables (DC 12V with battery clips, Car Cigarette Lighter)
• 1 × Storage Bag
• 1 × User Guide

3. Safety Information

WARNING:

• Do not use with corrosive liquids or for drinking water.
• Do not use if the pump is hot.
• Do not pump used, dirty oil.
• Do not use near open flame or heat sources.
• Do not turn the pump upside down after use.
• Ensure adequate ventilation when transferring flammable liquids.
• The output nozzle CANNOT be in contact with the fuel, otherwise the transfer pump will automatically stop.
• Before use, place the pumping port into the liquid before switching ON the machine. Do not idle the pump machine.
• Do not mix old and new batteries.
• Do not use swollen or leaking batteries.

CAUTION:

• Inspect before every usage. Do not use if parts are loose or damaged.
• Remove batteries when not in use.
• Drain the pump of any remaining liquid after each use.

4. Setup

1. Choose Power Supply: Select your preferred power source.
   • For 4xAA batteries (not included): Open the battery compartment on the pump head and insert four AA batteries, ensuring correct polarity.
   • For DC 12V cable with battery clips: Connect the red clip to the positive (+) terminal of a 12V battery and the black clip to the negative (-) terminal. Plug the DC connector into the pump body.
   • For Car Cigarette Lighter: Plug the cigarette lighter adapter into your vehicle's 12V outlet and connect the other end to the pump body.
2. Attach Adapter (if needed): If your fuel can opening requires it, screw on one of the provided universal adapters to the pump head for a secure fit.
3. Position Pump: Securely place the pump head onto your fuel can. The built-in clip on the discharge nozzle can be used to secure it to the receiving container's filler neck for hands-free operation.

Image: Nitigo Fuel Transfer Pump with all components, including adapters and power cables.

5. Operating Instructions

1. Insert the suction tube (inlet hose) into the liquid to be transferred. Ensure the liquid covers the motor position for normal operation.
2. Place the discharge hose into the receiving container. Use the built-in clip to secure the nozzle to the container's filler neck.
3. Press the ON button on the pump head to start the transfer. The battery indicator lights will show the remaining power.
4. Monitor the transfer process. The auto-stop sensor will automatically stop the flow when the liquid reaches the sensor in the receiving container.
5. After automatic stopping, or when you wish to stop manually, press the OFF button.
6. Bring the discharge hose up above the tank to drain any excess fuel or liquid back into the supply tank.

Image: Nitigo Fuel Transfer Pump in operation, demonstrating hands-free fueling of a car from a red fuel can.

6. Power Supply Options

The Nitigo Fuel Transfer Pump offers versatile power options:

• 4xAA Battery Power: For portable use, insert four AA batteries (not included) into the designated compartment.
• DC 12V Cable with Battery Clips: Connect directly to a car battery for a reliable power source.
• Car Cigarette Lighter Cable: Conveniently power the pump using your vehicle's cigarette lighter outlet.

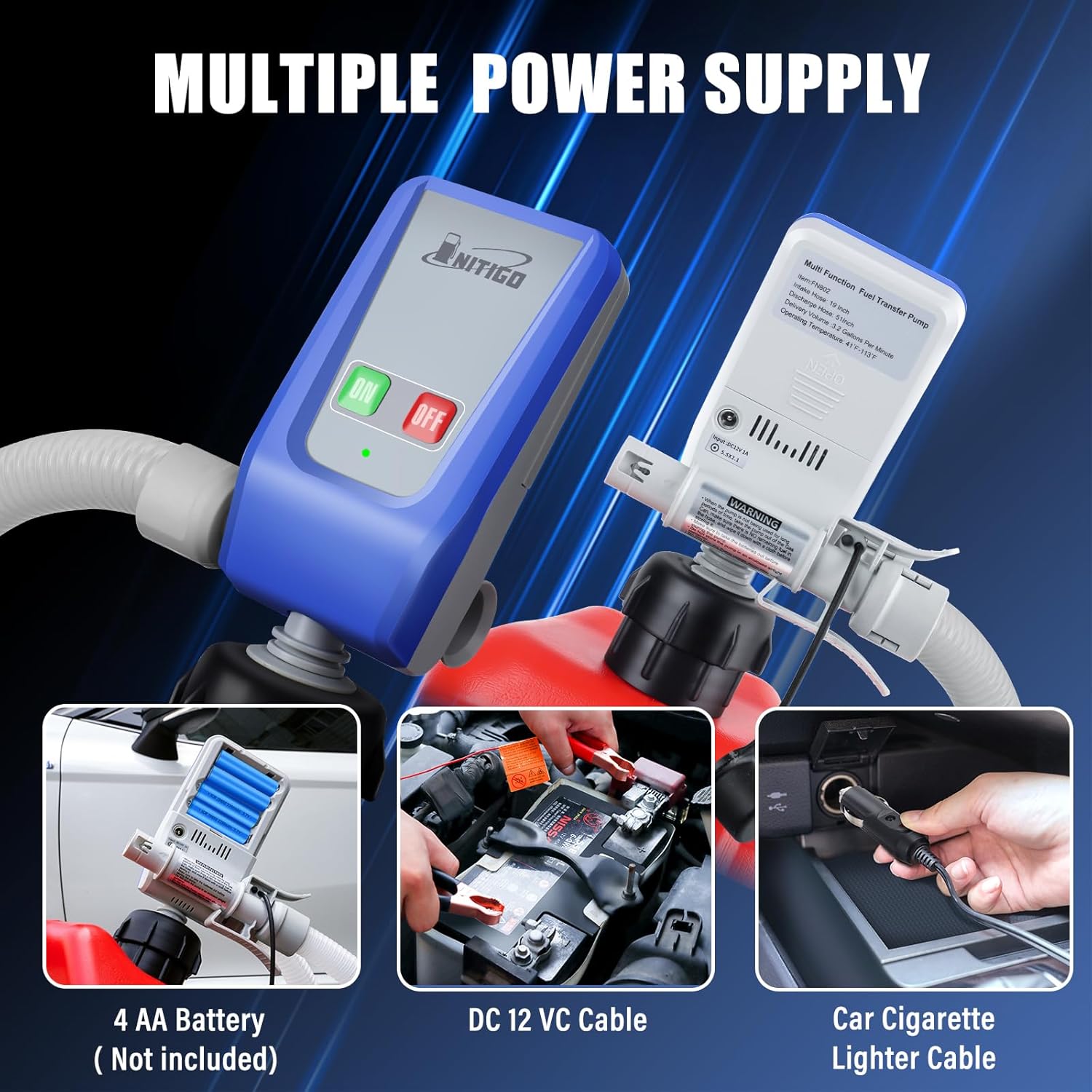

Image: Visual representation of the three power supply options for the Nitigo Fuel Transfer Pump: 4 AA batteries, DC 12V cable with battery clips, and car cigarette lighter cable.

7. Auto-Stop Sensor

The pump is equipped with an advanced auto-stop sensor located at the tip of the output nozzle. This sensor automatically detects when the receiving tank is full and stops the fuel flow, preventing spills and overfilling. This feature ensures a clean and safe transfer process.

Important Note:

• The output nozzle must NOT be submerged in the liquid being transferred. If the nozzle is in contact with the fuel, the pump's auto-stop function may activate prematurely.

Image: Detailed view of the auto-stop sensor and nozzle sleeve on the Nitigo Fuel Transfer Pump, illustrating how it prevents overfilling.

8. Adapters

The Nitigo Fuel Transfer Pump comes with four universal adapters (2 inch, 2.1 inch, 2.75 inch, and 3.75 inch) to fit most standard North American fuel cans. These adapters ensure a secure, leak-proof connection between the pump and your fuel container, facilitating no-spill siphoning.

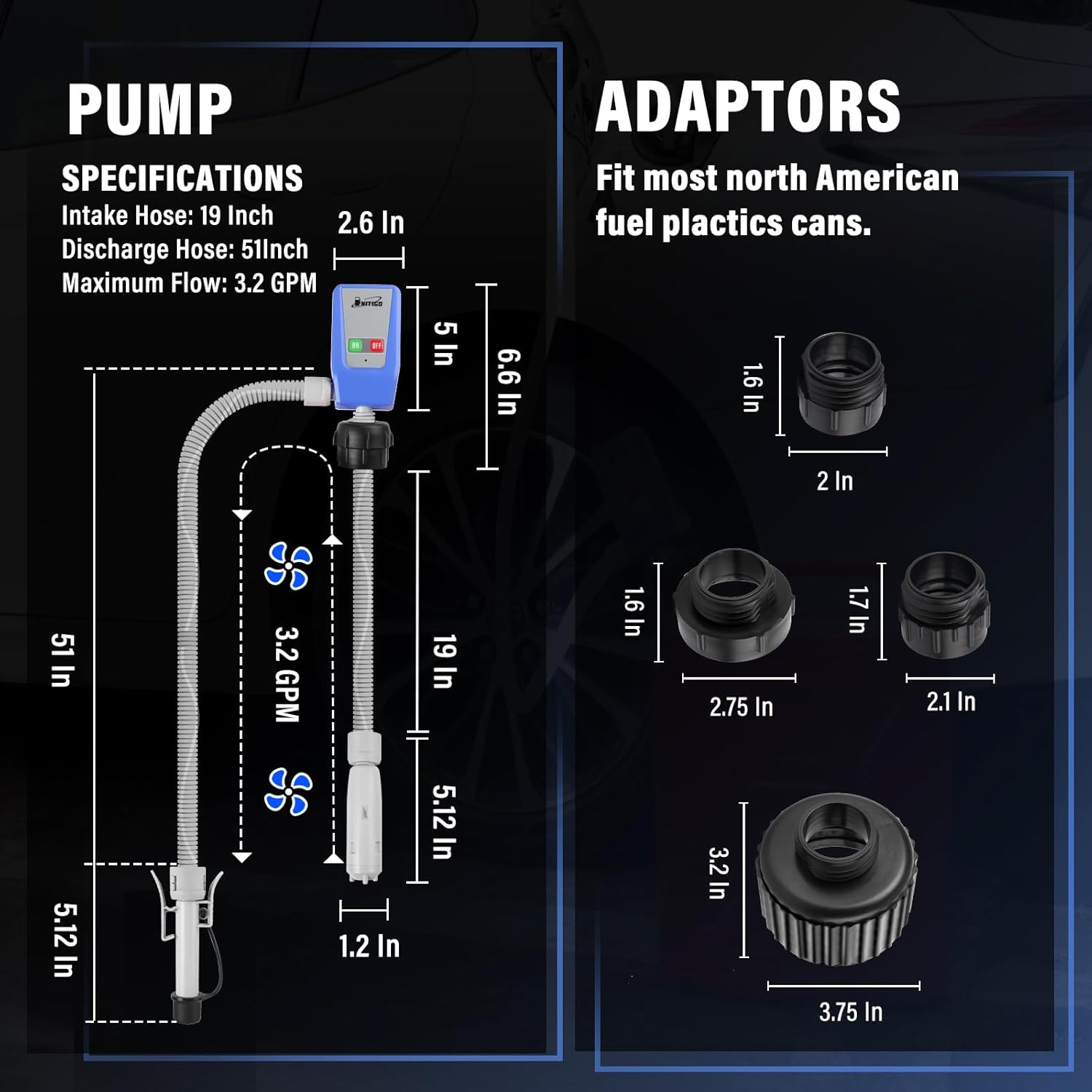

Image: Diagram showing the pump specifications and the four different size adapters included to fit various fuel cans.

9. Maintenance

• After each use, drain any remaining liquid from the pump and hoses.
• Clean the pump body and hoses with a dry, clean cloth.
• Store the pump in the provided storage bag in a dry, cool place, away from direct sunlight and heat sources.
• Remove batteries if the pump will not be used for an extended period.

10. Troubleshooting

• Pump not starting: Check battery installation and charge level. Ensure power cables are securely connected.
• Pump stops prematurely: Ensure the output nozzle is not submerged in the liquid. Check for any obstructions in the hoses.
• Slow flow rate: Verify that the suction tube is fully submerged in the liquid. Check for kinks or blockages in the hoses.
• Leakage: Ensure all connections, especially adapters, are tightly secured. Check O-rings for damage.

11. Specifications

12. Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Nitigo website. Keep your proof of purchase for any warranty claims.
