KING BIRD 10' x 15' Round Style Garage Shelter Instruction Manual

1. Product Overview

The KING BIRD 10' x 15' Round Style Garage Shelter is a heavy-duty, portable canopy designed for various outdoor storage needs, including vehicles, boats, patio furniture, and lawn mowers. It features an upgraded oval steel tube frame for enhanced stability and durability, a three-zipper door for increased access height, and roll-up ventilated windows for improved air circulation.

• Upgraded Oval Shape Steel Tube: Constructed with heavy-duty oval steel pipes (1.15MM thickness) for maximum stability.
• Three-Zipper Door: Provides an 8.2 FT door height, accommodating various vehicles including SUVs and full-size trucks.
• Round Style Roof: Designed to prevent water and snow accumulation, extending the shelter's lifespan.
• Reinforced Ground Bars: Includes 6 top beams and 10 ground bars for improved structural stability.
• Extra-thick Fabric: Made from reinforced 200G PE material that is tear-proof, waterproof, and UV-resistant.
• Roll-up Ventilation Windows: Two mesh windows on each sidewall promote efficient air circulation and reduce wind resistance.

2. Safety Information

Adhering to safety guidelines is crucial for the proper and safe use of your garage shelter. Failure to follow these instructions may result in damage to the product or personal injury.

• Always anchor the shelter securely to the ground using all provided anchoring hardware.
• Avoid using the shelter in extreme weather conditions, including high winds, heavy snow, or severe thunderstorms.
• Protect the shelter from prolonged direct UV exposure when not in use to extend the lifespan of the fabric.
• Keep the shelter away from all fire sources and open flames.
• Regularly inspect the frame and cover for any signs of wear or damage.
• Ensure proper ventilation, especially when storing items that may emit fumes.

3. Setup and Assembly

Assembly of the KING BIRD garage shelter typically requires two people. Follow these general steps for proper installation. Refer to the detailed assembly diagram included in your product packaging for specific part identification and connection points.

3.1 Frame Assembly

Begin by laying out all frame components and identifying each part according to the assembly diagram. Connect the oval steel tubes to form the arched roof sections and then connect these sections with the horizontal ground bars and top beams. Ensure all connections are secure.

3.2 Cover Installation

Carefully drape the reinforced PE cover over the assembled frame. Ensure the cover is centered and evenly distributed. Secure the cover to the frame using the provided clips and bungee balls. Pay attention to the orientation of the cover, ensuring the door panels are correctly positioned.

3.3 Anchoring the Shelter

Proper anchoring is critical for the stability and safety of your shelter. Use the provided rope tighteners and ground anchors to secure the shelter firmly to the ground. Ensure the cover is taut to prevent flapping in the wind and to allow for proper water and snow shedding.

Using the Ratchet Strap (Orange)

Using the Ratchet Strap (Black)

4. Operating Instructions

The KING BIRD garage shelter is designed for ease of use and versatility.

4.1 Door Operation

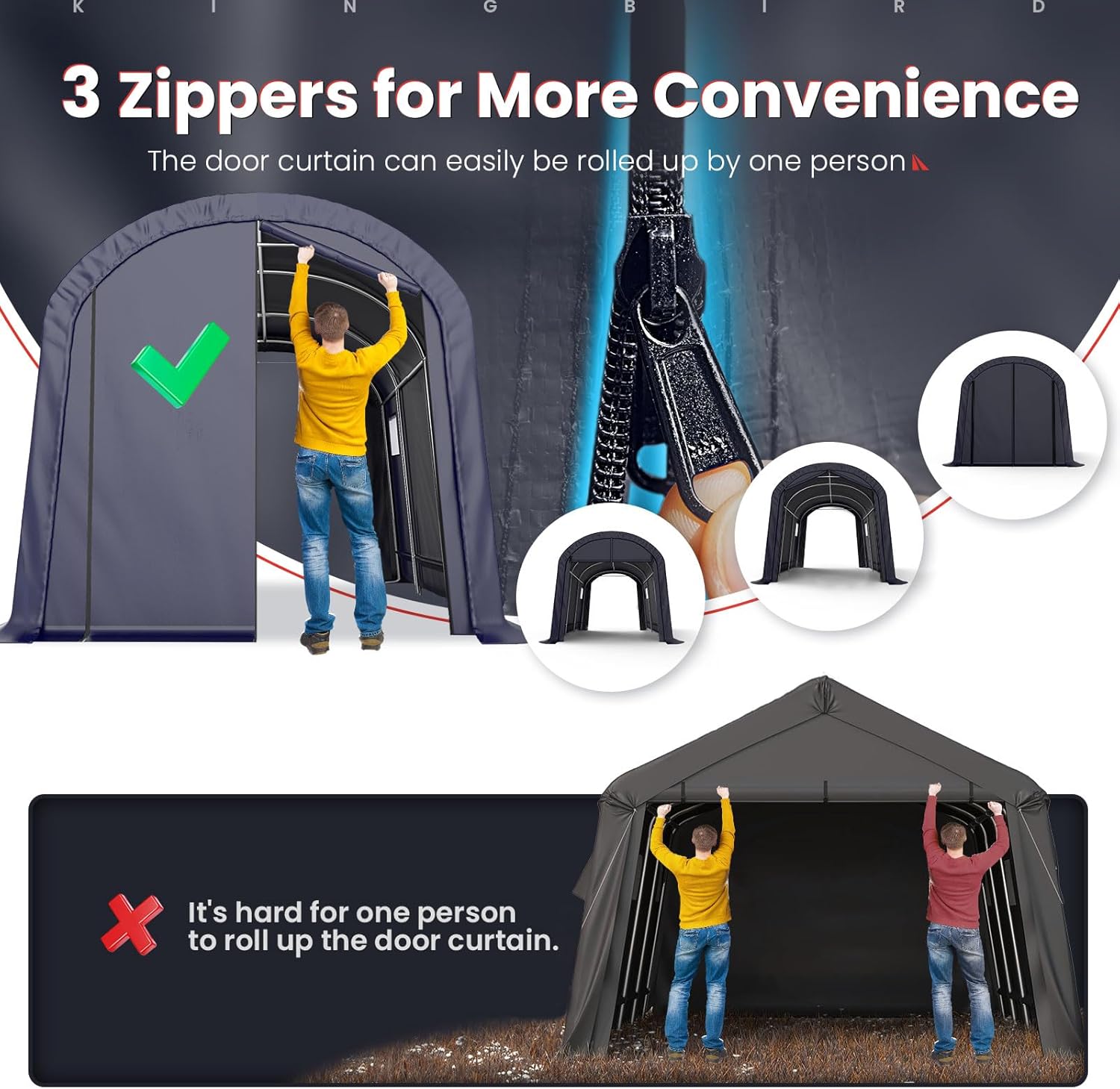

The shelter features a three-zipper door design, allowing for flexible access. The door curtain can be easily rolled up by one person and secured in an open position, providing ample clearance for vehicles and equipment.

4.2 Ventilation Windows

Each sidewall is equipped with two mesh roll-up windows. These windows can be opened to provide cross-ventilation, which is beneficial for air circulation, reducing internal temperatures, and minimizing condensation. This also helps reduce wind resistance.

4.3 Versatile Use

The shelter's spacious design allows for multiple applications, including:

• Car Parking: Protects vehicles from weather elements.
• Boat Parking: Suitable for storing small boats.
• Garden Tools Storage: Provides a secure space for gardening equipment.
• Patio Furniture Storage: Keeps outdoor furniture protected during off-seasons.

5. Maintenance

Regular maintenance will ensure the longevity and optimal performance of your KING BIRD garage shelter.

• Cleaning: Clean the cover periodically with mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the PE material.
• Inspection: Regularly inspect the frame for any loose connections, rust, or damage. Check the cover for tears, holes, or signs of wear. Address any issues promptly to prevent further damage.
• Snow Removal: While the round style roof is designed to shed snow, it is recommended to remove heavy snow accumulation promptly to prevent excessive stress on the frame and cover.
• Anchoring Check: Periodically verify that all anchoring points are secure and tight, especially after strong winds or heavy rain.

6. Troubleshooting

This section addresses common issues that may arise during the use of your garage shelter.

• Cover Does Not Fit Properly: Ensure the cover is oriented correctly. Some users have reported installing the cover backwards. Verify the front and back panels match the frame's design.
• Shelter Collapsed Under Snow Load: While the round roof is designed for snow shedding, extreme or prolonged heavy snow accumulation can exceed the shelter's capacity. It is crucial to regularly clear snow from the roof, especially wet, heavy snow. Ensure the shelter is securely anchored.
• Poles Bending or Damaged: This can occur due to improper assembly, insufficient anchoring, or extreme weather conditions (high winds, heavy snow). Always ensure all frame connections are tight and the shelter is adequately anchored. Avoid placing excessive weight on the frame.
• Water Leaks: Check for any tears or punctures in the cover. Ensure the cover is taut and properly secured to the frame, allowing water to run off effectively.
• Poor Ventilation: Ensure the roll-up mesh windows are open when ventilation is desired. Clear any obstructions around the windows.

7. Specifications

8. Warranty and Support

For warranty information or product support, please refer to the documentation included with your purchase or contact KING BIRD customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.

You can typically find contact information on the manufacturer's official website or through the retailer where the product was purchased.
