Introduction
This manual provides essential information for the safe and efficient operation of your Godrej 7 Kg 5 Star Fully-Automatic Top Loading Washing Machine, Model WTEON VLVT 70 5.0 FDTN MTBK. Please read these instructions carefully before installation and use, and retain them for future reference.
Key features of your washing machine include a 7 kg capacity, 5-star energy rating for efficiency, a 360W PowerMaxx motor, and 26 customizable Flexi Wash Programs. It also features Roller Coaster Wash technology, an advanced digital display, and a durable metallic cabinet with a toughened glass lid.
Important Safety Information
- Ensure the washing machine is properly grounded to prevent electric shock.
- Do not operate the machine with a damaged power cord or plug. Contact qualified service personnel for repairs.
- Keep children and pets away from the washing machine during operation.
- Do not wash items that are soiled with flammable substances (e.g., gasoline, solvents) as this may cause fire or explosion.
- Always unplug the machine before cleaning, performing maintenance, or if it will be unused for an extended period.
- Do not attempt to repair or modify the washing machine yourself. Refer all servicing to authorized Godrej service technicians.
- Ensure the water supply hoses are securely connected to prevent leaks.
Setup and Installation
1. Unpacking
Carefully remove all packaging materials, including the base packaging and any protective films. Inspect the machine for any damage incurred during transit. Keep packaging materials away from children.
2. Placement
Place the washing machine on a firm, level surface. Ensure there is adequate space around the machine for ventilation and access. The dimensions of the machine are approximately 56 cm (Depth) x 56 cm (Width) x 97 cm (Height).

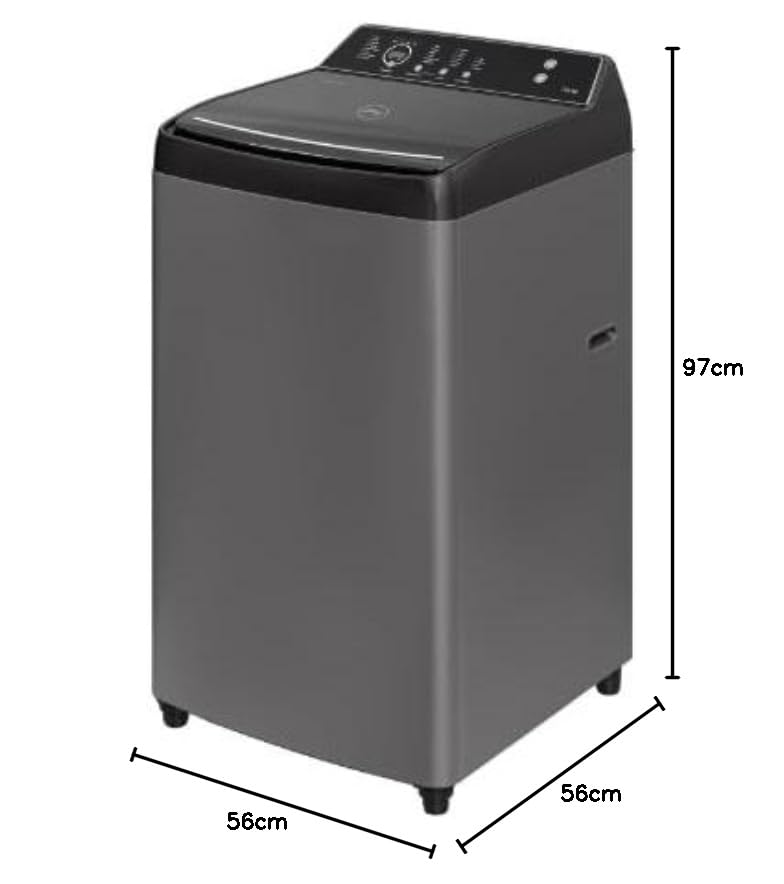

Image: The Godrej washing machine shown with its approximate dimensions: 56 cm depth, 56 cm width, and 97 cm height.
3. Leveling
Adjust the leveling feet at the bottom of the machine to ensure it is perfectly stable and level. An unlevel machine can cause excessive vibration and noise during operation.
4. Water Connection
Connect the inlet hose to a cold water tap with a 3/4-inch thread. Ensure the connection is tight to prevent leaks. Place the drain hose into a suitable drain pipe or sink, ensuring it is securely positioned to prevent dislodging during draining.
5. Power Connection
Plug the power cord into a grounded electrical outlet. Ensure the voltage and frequency of your power supply match the specifications of the washing machine.
Image: Rear view of the Godrej washing machine, illustrating the power cord and water hose connections.
Operating Instructions
1. Control Panel Overview
The washing machine features an advanced digital display and push-button controls for easy program selection and monitoring.
Image: A close-up view of the washing machine's control panel, showing the digital display and various program selection buttons.
2. Loading Laundry
Open the top lid and load clothes loosely into the drum. Do not overload the machine; ensure there is enough space for clothes to move freely during the wash cycle. The machine has a 7 kg capacity.
Image: The Godrej washing machine with its top lid open, revealing the washing drum.
Image: An inside view of the washing machine drum, highlighting the pulsator at the base.
3. Adding Detergent
Pull out the detergent dispenser drawer located on the top panel. Add the appropriate amount of detergent and fabric softener to their respective compartments. Refer to your detergent packaging for recommended dosages.
Image: A close-up view of the detergent dispenser drawer on the washing machine.
4. Selecting a Wash Program
Your washing machine offers 26 customizable Flexi Wash Programs. Use the control panel to select the desired wash program based on the fabric type and soil level. You can customize combinations of pre-soak, wash, rinse, spin, time, and water level operations.
5. Starting a Wash Cycle
After loading laundry, adding detergent, and selecting the program, press the 'Start/Pause' button to begin the wash cycle. The digital display will show the remaining program time.
6. Special Functions
- Roller Coaster Wash: This technology combines a Gravity drum, Aquajet pulsator, and Cascade Waterfall for effective cleaning. The Gravity drum ensures all-round fabric movement, the Aquajet Pulsator creates strong turbulence for scrubbing, and the Cascade Waterfall cleanses dirt with water housing from both sides.
- Hygiene Rinse: An additional rinse cycle for enhanced hygiene.
- Zero Pressure Technology: Ensures efficient washing even with low water pressure.
- Tub Clean: A dedicated program for cleaning the washing machine drum.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your washing machine.
1. Cleaning the Drum (Tub Clean)
Use the dedicated 'Tub Clean' program periodically to remove detergent residue and prevent odor buildup in the drum. Follow the instructions on the control panel for this cycle.
2. Cleaning the Detergent Dispenser
Remove the detergent dispenser drawer and rinse it under running water to clear any accumulated detergent or softener residue. Clean the housing of the dispenser with a damp cloth.
3. Cleaning the Exterior
Wipe the exterior surfaces of the washing machine with a soft, damp cloth. Avoid using abrasive cleaners or solvents that could damage the finish.
4. Water Inlet Filter Cleaning
Periodically check and clean the filter at the water inlet hose connection to prevent blockages from sediment. Turn off the water supply and disconnect the hose before cleaning.
Troubleshooting
Before contacting service, please refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord not plugged in; Lid not closed properly; Power outage. | Check power connection; Ensure lid is fully closed; Check household power supply. |
| Water not filling | Water tap closed; Water inlet hose kinked or blocked; Water pressure too low. | Open water tap; Straighten hose; Clean inlet filter; Check water supply pressure. |
| Water not draining | Drain hose kinked or blocked; Drain pump filter clogged. | Straighten drain hose; Clean drain pump filter (refer to service manual if needed). |
| Excessive vibration/noise | Machine not level; Load unbalanced; Transit bolts not removed. | Adjust leveling feet; Redistribute laundry evenly; Ensure all transit bolts are removed during installation. |
| Detergent residue on clothes | Too much detergent used; Water temperature too low; Overloading. | Reduce detergent amount; Use appropriate water temperature; Do not overload. |
If the problem persists after attempting these solutions, please contact authorized Godrej service personnel.
Specifications
| Feature | Detail |
|---|---|
| Model Name | WTEON VLVT 70 5.0 FDTN MTBK |
| Capacity | 7 Kilograms |
| Energy Star Rating | 5 Star |
| Product Dimensions (D x W x H) | 56D x 56W x 97H Centimeters |
| Max Rotational Speed | 670 RPM |
| Operation Mode | Fully Automatic |
| Access Location | Top Load |
| Controls Type | Push Button, Dial |
| Special Feature | High Efficiency |
| Finish Types | Glass, Metallic |
| Colour | Metallic Black |
| Manufacturer | Godrej & Boyce Mfg. Co. Ltd |
Warranty and Support
Warranty Information
Your Godrej washing machine comes with a 12-year warranty on the Wash Motor and a 3-year warranty on the product from the date of purchase. Please retain your purchase receipt for warranty claims.
Customer Support
For any service requests, technical assistance, or warranty claims, please contact Godrej customer support. Manufacturer contact information: Godrej & Boyce Mfg. Co. Ltd.
Please refer to the official Godrej website or your purchase documentation for the most current contact details and service procedures.
