1. Product Overview
This manual provides instructions for the installation, maintenance, and troubleshooting of the Samoser Dishwasher Water Inlet Valve. This component is designed as a replacement part for various dishwasher models from brands including Kenmore, KitchenAid, Whirlpool, and Jenn-Air.

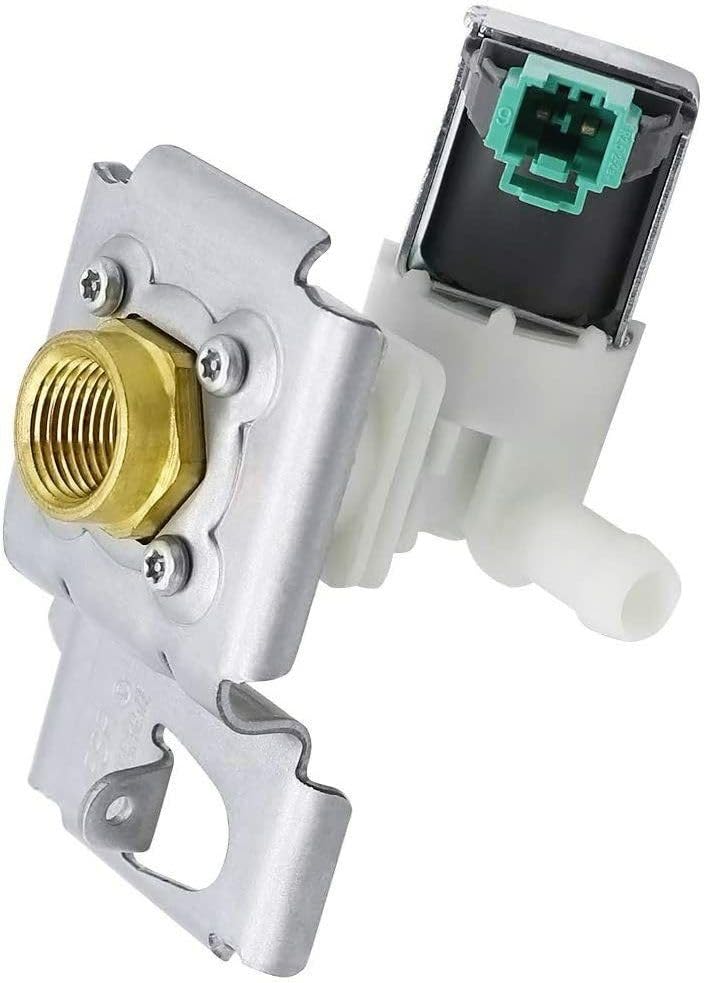

Figure 1: Front view of the Samoser Dishwasher Water Inlet Valve, showing the brass water inlet fitting and electrical connector.
2. Safety Information
WARNING: Before attempting any repair or installation, ensure all power and water supplies to the dishwasher are disconnected. Failure to do so may result in electric shock, water damage, or personal injury.
- Always disconnect the dishwasher from the electrical power supply before servicing.
- Turn off the water supply valve to the dishwasher.
- Wear appropriate personal protective equipment, such as gloves and eye protection.
- If you are unsure about any step, consult a qualified appliance technician.
- Keep children and pets away from the work area.
3. Package Contents
- 1 x Samoser Dishwasher Water Inlet Valve
No additional tools or accessories are included with this package.
4. Compatibility
This water inlet valve is an aftermarket replacement part compatible with a wide range of dishwasher models from the following brands:
- Kenmore
- KitchenAid
- Whirlpool
- Jenn-Air
Specific compatible model numbers include, but are not limited to:
- 665.13853K602
- 665.13852K600
- 665.13852K601
- 665.13852K602
- 665.13853K600
- 665.13853K601
- 665.13853K603
- 665.13854K600
- 665.13854K601
- 665.13854K602
- 665.13112K700
- 665.13113K700
- 665.13114K700
- 665.13119K700
- 665.13122K700
- 665.13122K701
- 665.13123K700
- 665.13123K701
- 665.13124K700
- 665.13124K701
- 665.13129K700
- 665.13129K701
- 665.13132K700
- 665.13132K701
- 665.13133K700
- 665.13133K701
- 665.13139K700
- 665.13139K701
- 665.13152K700
- 665.13152K701
- 665.13153K700
- 665.13153K701
- 665.13154K700
- 665.13154K701
- 665.13159K700
- 665.13159K701
- 665.13163K700
- 665.13163K701
- 665.13169K700
- 665.13169K701
- 665.13173K700
- 665.13173K701
- 665.13182K800
- 665.13183K800
- 665.13189K800
- 665.13189K800
- 665.13802K600
- 665.13803K600
- 665.13809K600
- 665.13812K600
- 665.13812K601
- 665.13814K600
- 665.13814K601
- 665.13819K600
- 665.13819K601
- 665.13822K600
- 665.13822K601
- 665.13823K600
- 665.13823K601
- 665.13824K600
- 665.13824K601
- 665.13829K600
- 665.13829K601
- 665.13832K600
- 665.13833K600
- 665.13834K600
- 665.13839K600
- 665.13842K600
- 665.13843K600
- 665.13844K600
- 665.13849K600
- 665.13852K600
- 665.13852K601
- 665.13852K602
- 665.13853K600
- 665.13853K601
- 665.13853K602
- 665.13853K603
- 665.13854K600
- 665.13854K601
- 665.13854K602
- 665.13854K603
- 665.13859K600
- 665.13859K601
- 665.13859K602
- 665.13859K603
- 665.13862K600
- 665.13862K601
- 665.13862K602
- 665.13863K600
- 665.13863K601
- 665.13864K600
- 665.13864K601
- 665.13864K602
- 665.13869K600
- 665.13869K601
- 665.13869K602
- 665.13869K603
- 665.13873K600
- 665.13873K601
- 665.13873K602
- 665.13873K603
- 665.13882K800
- 665.13883K800
- 665.13889K800
- 665.13892K800
- 665.13893K800
- 665.13899K800
- 665.13852K603
- 665.13862K603
- 665.13863K603
- 665.13864K603
- 665.13702K600
- 665.13703K600
- 665.13709K600
- 665.13712K600
- 665.13712K601
- 665.13714K600
- 665.13714K601
- 665.13719K600
- 665.13719K601
- 665.13722K600
- 665.13722K601
- 665.13723K600
- 665.13723K601
To confirm compatibility, please refer to your dishwasher's original parts list or consult a qualified technician.
5. Installation Instructions
The following steps outline the general procedure for replacing a dishwasher water inlet valve. Specific steps may vary depending on your dishwasher model. Always refer to your dishwasher's service manual for detailed instructions.
- Disconnect Power and Water: Locate your dishwasher's circuit breaker and turn off the power. Turn off the water supply valve to the dishwasher, typically found under the sink or behind the dishwasher.
- Access the Valve: Depending on your dishwasher model, you may need to pull the dishwasher out from under the counter or remove a lower access panel to reach the water inlet valve.
- Drain Residual Water: Place a shallow pan or towels under the valve area to catch any residual water when disconnecting hoses.
- Disconnect Water Line: Use a wrench to disconnect the main water supply line from the old inlet valve.
- Disconnect Internal Hoses/Tubing: Disconnect any internal hoses or tubing connected to the old valve. Note their positions for reassembly.
- Disconnect Electrical Wiring: Carefully disconnect the electrical connector(s) from the old valve. It may have a locking tab that needs to be pressed.
- Remove Old Valve: Unmount the old water inlet valve from its bracket or mounting points.
- Install New Valve: Position the new Samoser water inlet valve in the same location and secure it using the existing mounting hardware.
- Reconnect Electrical Wiring: Connect the electrical connector(s) to the new valve, ensuring a secure fit.
- Reconnect Internal Hoses/Tubing: Reconnect all internal hoses and tubing to their correct ports on the new valve.
- Reconnect Water Line: Connect the main water supply line to the brass fitting on the new valve. Hand-tighten, then use a wrench for a final snug turn, being careful not to overtighten.
- Restore Water Supply: Slowly turn on the main water supply valve to the dishwasher. Check for any leaks around the connections. Tighten if necessary.
- Restore Power and Test: Restore electrical power to the dishwasher. Run a short cycle to confirm proper operation and check for any leaks during the fill cycle.
Figure 2: Side view of the water inlet valve, illustrating the mounting bracket and solenoid assembly, important for correct installation.
6. Operating Principle
The water inlet valve is an electrically controlled solenoid valve that regulates the flow of water into the dishwasher. When the dishwasher's control board signals for water, the solenoid activates, opening the valve to allow water to enter the wash tub. Once the required water level is reached, the control board deactivates the solenoid, closing the valve and stopping the water flow.
7. Maintenance
The Samoser Water Inlet Valve is designed for durability and typically requires minimal maintenance. However, regular checks can help ensure its longevity and proper function:
- Leak Inspection: Periodically inspect the connections around the water inlet valve for any signs of leaks or drips. Address any leaks immediately to prevent water damage.
- Filter Screen: Some water inlet valves include a small filter screen at the water inlet port to prevent debris from entering. If your valve has one, check it periodically for clogs and clean if necessary (after disconnecting power and water).
- General Cleanliness: Keep the area around the valve clean and free of dust or debris that could interfere with its operation.
8. Troubleshooting
If your dishwasher is experiencing water-related issues after valve replacement, consider the following troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Dishwasher not filling with water. | Water supply valve closed, kinked water line, electrical connection issue, clogged filter screen. | Ensure water supply is fully open. Check water line for kinks. Verify electrical connector is secure. Inspect and clean filter screen if present. |
| Dishwasher fills too slowly. | Low water pressure, partially closed water supply valve, partially clogged filter screen. | Check household water pressure. Ensure water supply valve is fully open. Inspect and clean filter screen. |
| Dishwasher continuously fills or overflows. | Defective water inlet valve (stuck open), float switch issue. | If the valve is new and this occurs, it may be defective. Disconnect power and water immediately. Consult a technician. Also check the float switch for proper movement. |
| Water leaks around the valve. | Loose connections, damaged O-rings/gaskets, cracked housing. | Ensure all connections are tight. Check O-rings and gaskets for damage and replace if necessary. If the housing is cracked, the valve needs replacement. |
If these steps do not resolve the issue, it is recommended to contact a qualified appliance repair technician.
9. Specifications
| Feature | Detail |
|---|---|
| Brand | Samoser |
| Part Number (Example) | 66513853K602, 66513852K600 |
| Item Model Number (Example) | 66513852K601, 66513852K602 |
| Material | Brass (inlet fitting) |
| UPC | 734665749652 |
10. Support
For further assistance or inquiries regarding compatibility, installation, or troubleshooting, please refer to the seller's contact information or consult a professional appliance technician.
