Introduction
The Coolado tPump XL + SUP Adapter is a versatile and powerful portable air pump designed for a wide range of inflation needs. This device features a patented 2-cylinder compressor, an 8000 mAh battery, and comes with various adapters, making it suitable for bicycle tires, car tires, kites, wingfoils, inflatable tents, SUPs, kayaks, and more. This manual provides detailed instructions on how to safely and effectively use, maintain, and troubleshoot your Coolado tPump XL + SUP Adapter.
Safety Instructions
Please read all safety instructions carefully before using the Coolado tPump XL + SUP Adapter. Failure to follow these instructions may result in injury or damage to the device.
- Keep the device away from children and pets.
- Do not operate the pump in wet conditions or immerse it in water.
- Ensure the device is fully charged before first use and recharge it regularly.
- Do not over-inflate items. Always refer to the recommended pressure for the item you are inflating.
- Avoid exposing the device to extreme temperatures or direct sunlight for prolonged periods.
- Use only the provided charging cables and adapters.
- Do not attempt to disassemble or repair the device yourself. Contact customer support for assistance.
- Ensure proper ventilation during operation to prevent overheating.
Package Contents
Verify that all the following items are included in your package:
- Coolado tPump XL Pump
- 1 SUP adapter with 5 universal nozzles
- User Manual
- Adapter for inflatable toys
- tClamp adapter with aeration button
- Water-resistant protective cover
- USB-C charging cable
- AC wall charger cable 17.5V/1A
- DC car socket charger
- Air hose with Schrader adapter
- Presta/Dunlop adapter
- Needle adapter for sports balls

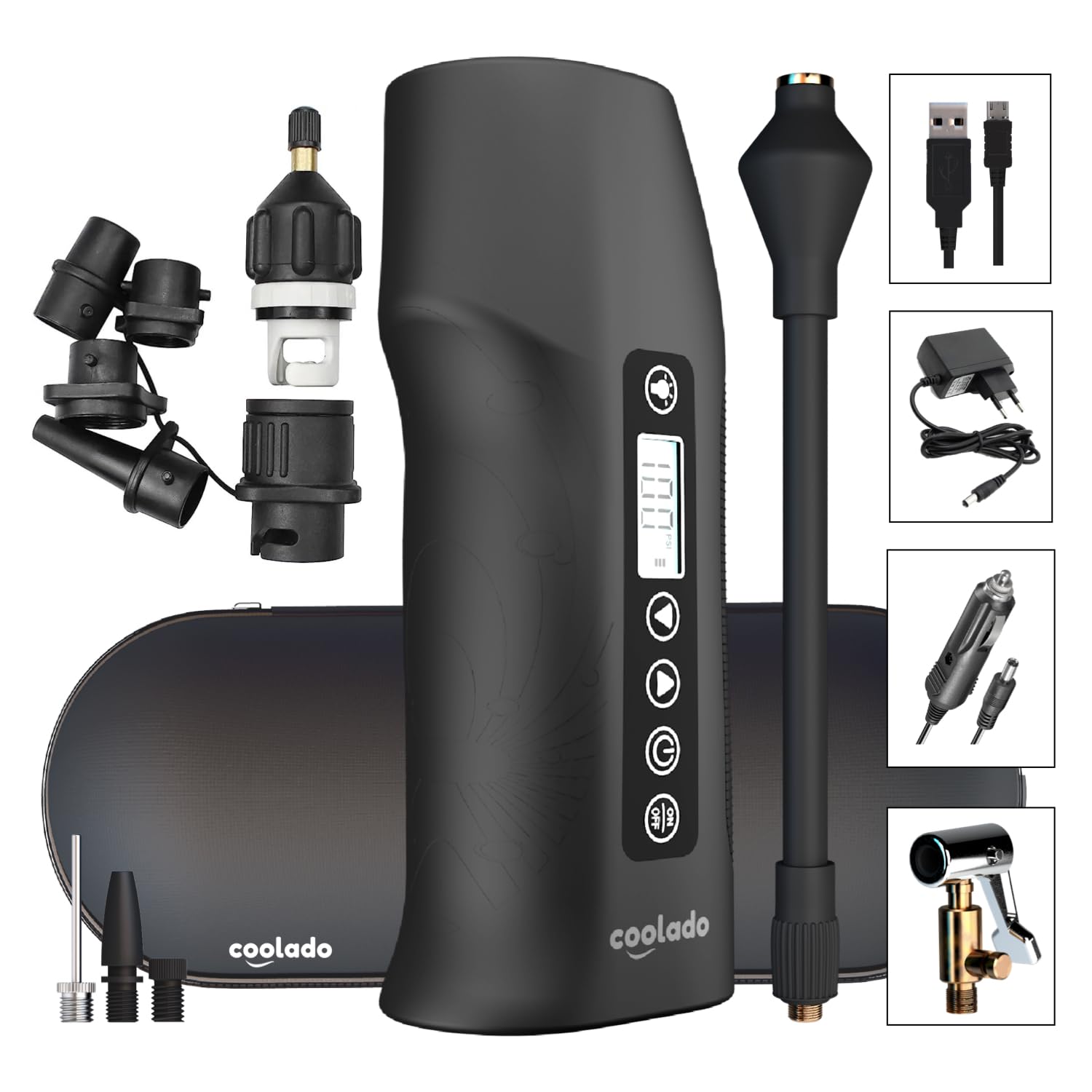

Image: The Coolado tPump XL main unit with its various adapters, charging cables, and protective cover laid out.
Setup
Charging the Device
- Before first use, fully charge the Coolado tPump XL.
- Connect the USB-C charging cable to the pump's charging port.
- Connect the other end of the USB-C cable to the AC wall charger or the DC car socket charger.
- Plug the charger into a suitable power outlet or car socket.
- The charging indicator will show the charging status. Once fully charged, disconnect the charger. A full charge takes approximately two hours.
Attaching the Air Hose and Adapters
- Screw the air hose securely onto the pump's air outlet.
- Select the appropriate adapter for the item you wish to inflate (e.g., Schrader for car/bicycle tires, Presta/Dunlop for specific bicycle valves, needle for sports balls, SUP adapter for SUPs/kites/tents).
- Attach the selected adapter firmly to the end of the air hose.
Operating Instructions
The Coolado tPump XL offers various modes for different inflation tasks.
General Operation
- Power On: Press and hold the power button to turn on the pump. The display will show the current pressure.
- Select Mode: Use the mode button to cycle through different preset modes (e.g., car, bicycle, motorcycle, ball). Each mode has a default pressure setting.
- Set Target Pressure: Use the '+' and '-' buttons to adjust the desired target pressure. The pump will automatically stop once this pressure is reached.
- Start Inflation: Press the power button to start inflation.
- Stop Inflation: Press the power button again to manually stop inflation, or it will stop automatically when the target pressure is reached.
- Power Off: Press and hold the power button to turn off the pump.
Inflating Bicycle Tires
- Attach the appropriate bicycle valve adapter (Schrader, Presta, or Dunlop) to the air hose.
- Connect the adapter to the bicycle tire valve.
- Select the bicycle mode or set the desired pressure (e.g., 0 to 3 bars).
- Start inflation. The pump can inflate a bicycle tire from 0 to 3 bars in approximately 12 seconds.
Inflating Car Tires
- Attach the Schrader adapter to the air hose.
- Connect the adapter to the car tire valve.
- Select the car mode or set the desired pressure (e.g., 0 to 2.4 bars).
- Start inflation. The pump can inflate a car tire from 0 to 2.4 bars in approximately 2 minutes and 30 seconds.
Inflating Kites, Wingfoils, and Air Tents
- Attach the SUP adapter to the air hose.
- Select the correct nozzle from the 5 universal nozzles provided with the SUP adapter for your specific kite, wingfoil, or air tent valve.
- Connect the nozzle to the item's inflation valve.
- Set the desired pressure according to the item's specifications.
- Start inflation. The pump can inflate a kite or wingfoil in approximately 4 minutes, and a 4-person air tent in approximately 6 minutes (with optional Coolado adapter).
Using as a Power Bank
The Coolado tPump XL can also function as a power bank to charge your mobile devices.
- Connect your device's charging cable to the USB output port on the tPump XL.
- The tPump XL will begin charging your device.
Maintenance
- Cleaning: Wipe the exterior of the pump with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
- Storage: Store the pump in a cool, dry place, away from direct sunlight and extreme temperatures. Use the provided water-resistant protective cover for added protection.
- Battery Care: To prolong battery life, avoid fully discharging the battery frequently. Recharge the pump every 3-6 months even if not in use.
- Hose and Adapters: Inspect the air hose and adapters regularly for any signs of wear or damage. Replace if necessary.
Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| Pump does not turn on | Low battery; Power button not pressed long enough | Charge the pump; Press and hold the power button for 3 seconds |
| Pump not inflating | Hose or adapter not securely attached; Target pressure already reached; Blocked air outlet | Ensure all connections are tight; Check current pressure reading; Clear any obstructions |
| Slow inflation | Low battery; Air leak in hose/adapter connection | Recharge the pump; Check and tighten all connections |
| Pump overheats | Continuous operation for too long | Allow the pump to cool down for at least 10-15 minutes before resuming use. Avoid prolonged continuous operation. |
Specifications
| Feature | Detail |
|---|---|
| Model | tPump XL + SUP-Adapters SET-1 |
| Dimensions (L x W x H) | 20 x 8.5 x 6 cm |
| Weight | 815 grams |
| Material | Aluminum |
| Power Source | Electric cable (AC, USB, DC car) |
| Battery Type | 1 Lithium-ion (8000 mAh) |
| Max Pressure | 3 Bars |
| Operating Mode | Automatic |
| Bicycle Tire Inflation (0-3 bar) | Approx. 12 seconds |
| Car Tire Inflation (0-2.4 bar) | Approx. 2 minutes 30 seconds |
| Kite/Wingfoil Inflation | Approx. 4 minutes (with optional adapter) |
| 4-person Air Tent Inflation | Approx. 6 minutes (with optional adapter) |
Warranty and Support
Coolado provides reliable service and guarantees for its products. Spare parts availability is guaranteed for 2 years.
For technical support, warranty claims, or any questions regarding your Coolado tPump XL + SUP Adapter, please contact Coolado customer service through their official website or the retailer where you purchased the product. Please have your model number (tPump XL + SUP-Adapters SET-1) and proof of purchase ready when contacting support.
Online Support: Visit the official Coolado website for FAQs, product registration, and contact information. Coolado Store
