Tempest Umbra RGB ATX Mid-Tower PC Case

1. Introduction

Thank you for choosing the Tempest Umbra RGB ATX Mid-Tower PC Case. This manual provides detailed instructions for the proper installation, operation, and maintenance of your new PC case. Please read this guide thoroughly before beginning any installation to ensure optimal performance and longevity of your system components.

The Tempest Umbra RGB case is designed for enthusiasts seeking a blend of aesthetics and functionality, featuring ample space for high-performance components, efficient cooling options, and customizable RGB lighting.

2. Product Features

• Spacious Interior: Supports ATX, Micro-ATX, and Mini-ITX motherboards with generous room for components.
• Tempered Glass Side Panel: Showcases your build with a clear, durable tempered glass panel.
• Integrated RGB Lighting: Customizable RGB illumination for a personalized aesthetic.
• Optimized Airflow: Designed for efficient cooling with multiple fan mounting options.
• Front Panel Connectivity: Easy access to USB 3.0, USB 2.0, and audio ports.
• Dust Filters: Removable dust filters for easy maintenance and component protection.

3. Specifications

4. Package Contents

Please check the contents of your package. If any items are missing or damaged, contact your retailer.

• Tempest Umbra RGB ATX Mid-Tower PC Case
• Accessory Box (screws, cable ties, standoffs)
• User Manual (this document)

5. Case Layout and Components

Familiarize yourself with the various parts of your Tempest Umbra case before installation.

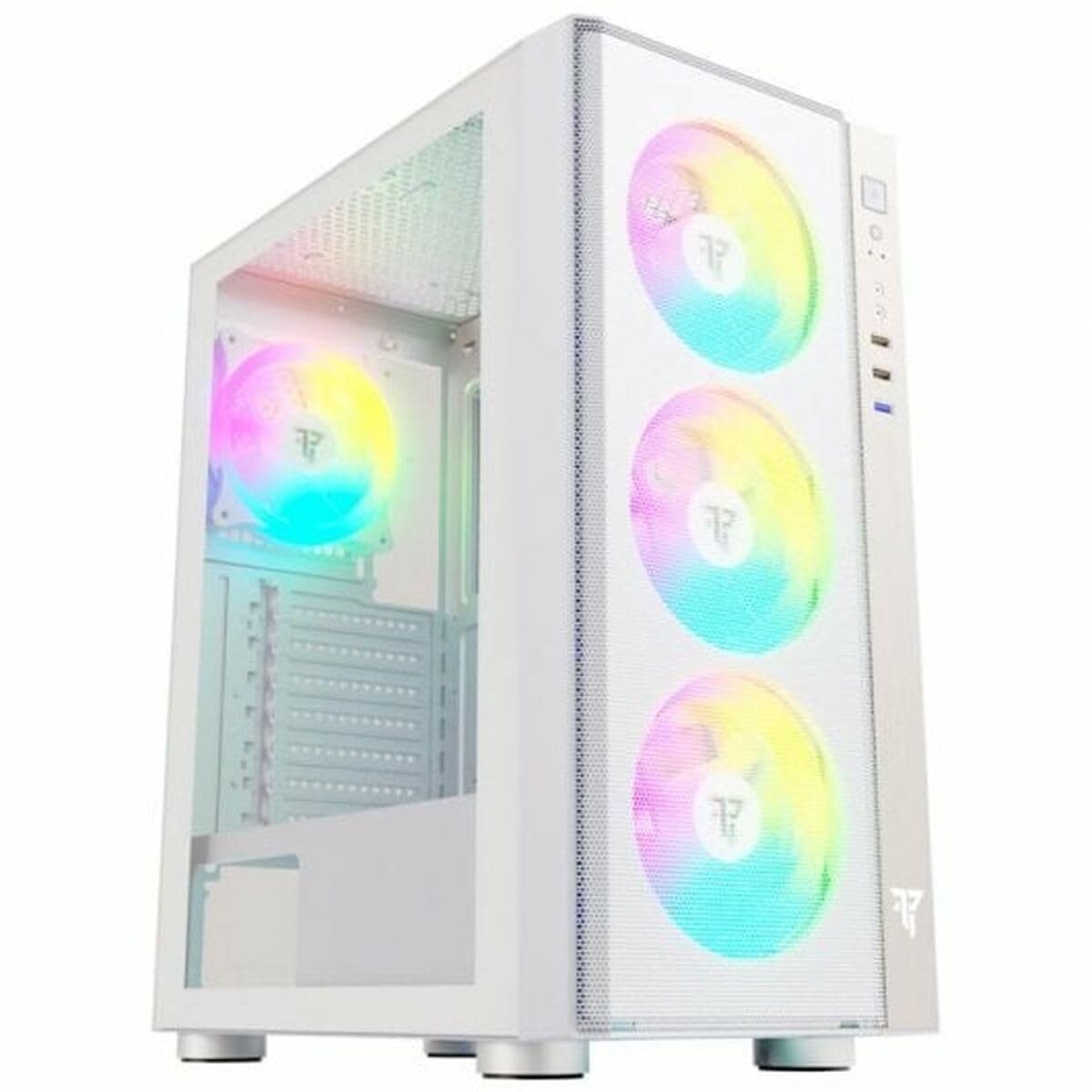

Figure 1: Front view of the Tempest Umbra RGB ATX Mid-Tower PC Case, showcasing its tempered glass side panel and front panel design.

5.1 Front I/O Panel

• Power Button: To turn the system on/off.
• Reset Button: To restart the system.
• USB 3.0 Port: For high-speed data transfer.
• USB 2.0 Ports (x2): For standard peripherals.
• Audio Jacks (Headphone/Microphone): For audio input and output.
• RGB Control Button: To cycle through RGB lighting modes.

5.2 Interior Layout

The case features a spacious interior with dedicated areas for the motherboard, power supply unit (PSU), storage drives, and cable management. The PSU shroud helps to conceal cables and improve airflow.

• Motherboard Tray: Pre-installed standoffs for ATX, Micro-ATX, and Mini-ITX motherboards.
• PSU Shroud: Located at the bottom, separating the PSU and drive bays from the main chamber.
• Drive Cages: Bays for 3.5" HDDs and 2.5" SSDs.
• Fan/Radiator Mounts: Locations for installing additional cooling fans or liquid cooling radiators.
• Cable Routing Cutouts: Strategically placed openings for efficient cable management behind the motherboard tray.

6. Installation Guide (Setup)

Follow these steps to install your PC components into the Tempest Umbra case.

6.1 Preparing the Case

1. Place the case on a flat, stable surface.
2. Remove the tempered glass side panel by unscrewing the thumb screws at the rear and carefully pulling the panel away. Set it aside on a soft, non-abrasive surface.
3. Remove the opposite steel side panel by unscrewing its thumb screws.

6.2 Motherboard Installation

1. Install the I/O shield (if applicable) into the rear opening of the case.
2. Align your motherboard with the pre-installed standoffs. Ensure the I/O ports match the I/O shield.
3. Secure the motherboard using the provided motherboard screws. Do not overtighten.

6.3 Power Supply Unit (PSU) Installation

1. Position the PSU into its designated compartment at the bottom rear of the case, usually with the fan facing downwards (if there's a vent) or upwards.
2. Secure the PSU to the case using the provided PSU screws from the rear of the case.

6.4 Storage Drive Installation

6.4.1 3.5" HDD Installation

1. Locate the 3.5" drive cage, typically under the PSU shroud.
2. Slide the HDD into the drive tray/cage until it clicks into place or can be secured with screws.

6.4.2 2.5" SSD Installation

1. Locate the 2.5" SSD mounting brackets, often on the back of the motherboard tray or on the PSU shroud.
2. Secure the SSD to the bracket using the provided screws, then attach the bracket to the case.

6.5 Expansion Card (GPU) Installation

1. Remove the necessary expansion slot covers from the rear of the case.
2. Insert your expansion card (e.g., graphics card) into the appropriate PCIe slot on your motherboard.
3. Secure the card with the provided screw or retention clip.

6.6 Connecting Front Panel Cables

Connect the front panel cables (USB, Audio, Power, Reset, RGB) to their corresponding headers on your motherboard. Refer to your motherboard manual for exact header locations.

• USB 3.0: Connect the large blue connector to the USB 3.0 header.
• USB 2.0: Connect the smaller black connectors to the USB 2.0 headers.
• HD Audio: Connect the HD Audio connector to the audio header.
• Power SW, Reset SW, HDD LED, Power LED: Connect these small connectors to the front panel header pins according to your motherboard manual.
• RGB Connector: Connect the RGB cable from the case to an available RGB header on your motherboard or to the integrated RGB controller.

6.7 Cable Management

Route all cables through the cutouts behind the motherboard tray to achieve a clean build and improve airflow. Use the included cable ties to secure cables.

6.8 Final Assembly

1. Once all components are installed and cables are managed, reattach the steel side panel and secure it with thumb screws.
2. Carefully reattach the tempered glass side panel and secure it with its thumb screws.

7. Operation

7.1 Powering On

Connect your monitor, keyboard, mouse, and power cable to the rear of your PC. Press the Power button on the front I/O panel to turn on your system.

7.2 RGB Lighting Control

The Tempest Umbra case features integrated RGB lighting. You can control the lighting effects in two ways:

• RGB Control Button: Press the dedicated RGB button on the front I/O panel to cycle through various lighting modes and colors.
• Motherboard Software: If the case's RGB is connected to a compatible motherboard RGB header, you can use your motherboard's RGB software (e.g., ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion) to synchronize and customize the lighting effects.

8. Maintenance

Regular maintenance helps ensure optimal performance and extends the lifespan of your components.

• Dust Cleaning: Periodically clean dust from the case, especially from fan filters and intake areas. Remove the dust filters and wash them with water, then dry thoroughly before reinstallation. Use compressed air to clean internal components.
• Exterior Cleaning: Wipe the exterior of the case with a soft, damp cloth. Avoid harsh chemicals or abrasive materials. For the tempered glass panel, use a glass cleaner and a microfiber cloth.
• Cable Management Check: Occasionally check cable routing to ensure no cables are obstructing airflow or fan blades.

9. Troubleshooting

If you encounter issues with your PC case, refer to the following common troubleshooting steps:

• No Power:
  • Ensure the PSU is switched on and properly connected to the wall outlet.
  • Verify that the 24-pin ATX and 8-pin CPU power cables are securely connected to the motherboard.
  • Check that the front panel Power Switch cable is correctly connected to the motherboard header.
• Fans Not Spinning / RGB Not Working:
  • Ensure all fan power cables are connected to the motherboard or fan controller.
  • Verify that the RGB cables are properly connected to the motherboard RGB header or the case's RGB controller.
  • If using motherboard software, ensure it is installed and configured correctly.
• Front Panel USB/Audio Not Working:
  • Check that the USB 3.0, USB 2.0, and HD Audio cables from the front panel are securely connected to their respective headers on the motherboard.

For more complex issues, consult your motherboard and component manuals or contact technical support.

10. Warranty and Support

The Tempest Umbra RGB ATX Mid-Tower PC Case comes with a 3-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accident, modification, or unauthorized repair.

For technical support or warranty claims, please contact your retailer or visit the official Tempest website for further assistance. Please have your proof of purchase and product model number (S7815434) ready when contacting support.
