WORX 20V Cordless Mini Chainsaw WG325E.9 User Manual

1. General Safety Instructions

Always read and understand all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.

• Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Do not expose power tools to rain or wet conditions.
• Personal Safety: Always wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, gloves, and sturdy footwear. Dress properly; do not wear loose clothing or jewelry. Keep hair and clothing away from moving parts.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
• Battery Tool Use and Care: Recharge only with the charger specified by the manufacturer. Use power tools only with specifically designated battery packs.
• Service: Have your power tool serviced by a qualified repair person using only identical replacement parts.
• Specific Chainsaw Safety: Keep all parts of the body away from the saw chain when the chainsaw is operating. Ensure the chainsaw is switched off before clearing jammed material or servicing the unit.

2. Product Overview

The WORX WG325E.9 is a powerful and compact 20V cordless mini chainsaw designed for pruning, trimming, branching, and cutting tasks. Its brushless motor ensures high efficiency and low vibration, making it an ideal tool for various garden applications.

2.1 Key Features

• Brushless Motor: Provides 50% more efficiency compared to the WG324E, delivering powerful performance and extended tool life.
• Automatic Chain Lubrication: Intelligent system with an integrated reservoir automatically adjusts oil consumption for optimal chain lubrication.
• Tool-Free Chain Tensioning & Replacement: Simplified adjustments and maintenance with a single button mechanism.
• Compact & Lightweight Design: Weighing only 1.4 kg, it allows for comfortable one-handed operation in confined spaces.
• Triple Integrated Safety: Features a double lock switch, secure design, and precise control for enhanced user safety.
• PowerShare Compatibility: Compatible with all WORX PowerShare 20V, 40V, and 80V MAX batteries (battery not included).

2.2 Components

The WORX WG325E.9 mini chainsaw comes with the following components:

• 1 x 12 cm Chain
• 1 x 12 cm Guide Bar
• 1 x Protective Cover

Figure 2.1: The WORX 20V Cordless Mini Chainsaw WG325E.9, showcasing its compact design and 12cm guide bar.

3. Setup

3.1 Unpacking

Carefully remove all components from the packaging. Inspect for any damage during transit. Keep packaging materials for future storage or transport.

3.2 Battery Installation

This model is supplied without a battery or charger. Ensure you use a compatible WORX PowerShare 20V battery. To install, align the battery pack with the battery port on the tool and slide it in until it clicks securely into place. To remove, press the battery release button and slide the battery out.

Figure 3.1: The WORX PowerShare battery system, illustrating compatibility with various WORX tools.

3.3 Chain and Guide Bar Installation

The WG325E.9 features a tool-free chain tensioning and replacement system. Follow these steps:

1. Ensure the battery is removed.
2. Locate the chain tensioning knob/button on the side of the chainsaw.
3. Press the button and rotate to loosen the guide bar cover.
4. Carefully place the chain around the guide bar, ensuring the cutting edges are facing the correct direction.
5. Fit the chain and guide bar assembly onto the chainsaw's sprocket.
6. Replace the guide bar cover and tighten the tensioning knob/button until the chain is snug but can still be pulled freely around the guide bar by hand.

Figure 3.2: Illustration of the tool-free chain tensioning and replacement mechanism, highlighting the ease of adjustment.

3.4 Filling Chain Oil (Automatic Lubrication System)

The chainsaw features an intelligent automatic lubrication system. Before first use and regularly during operation, ensure the oil reservoir is filled with appropriate chain lubricant.

1. Ensure the battery is removed.
2. Locate the oil reservoir cap, typically on the top or side of the tool.
3. Unscrew the cap and fill the reservoir with high-quality chain lubricant. Do not overfill.
4. Securely replace the cap.

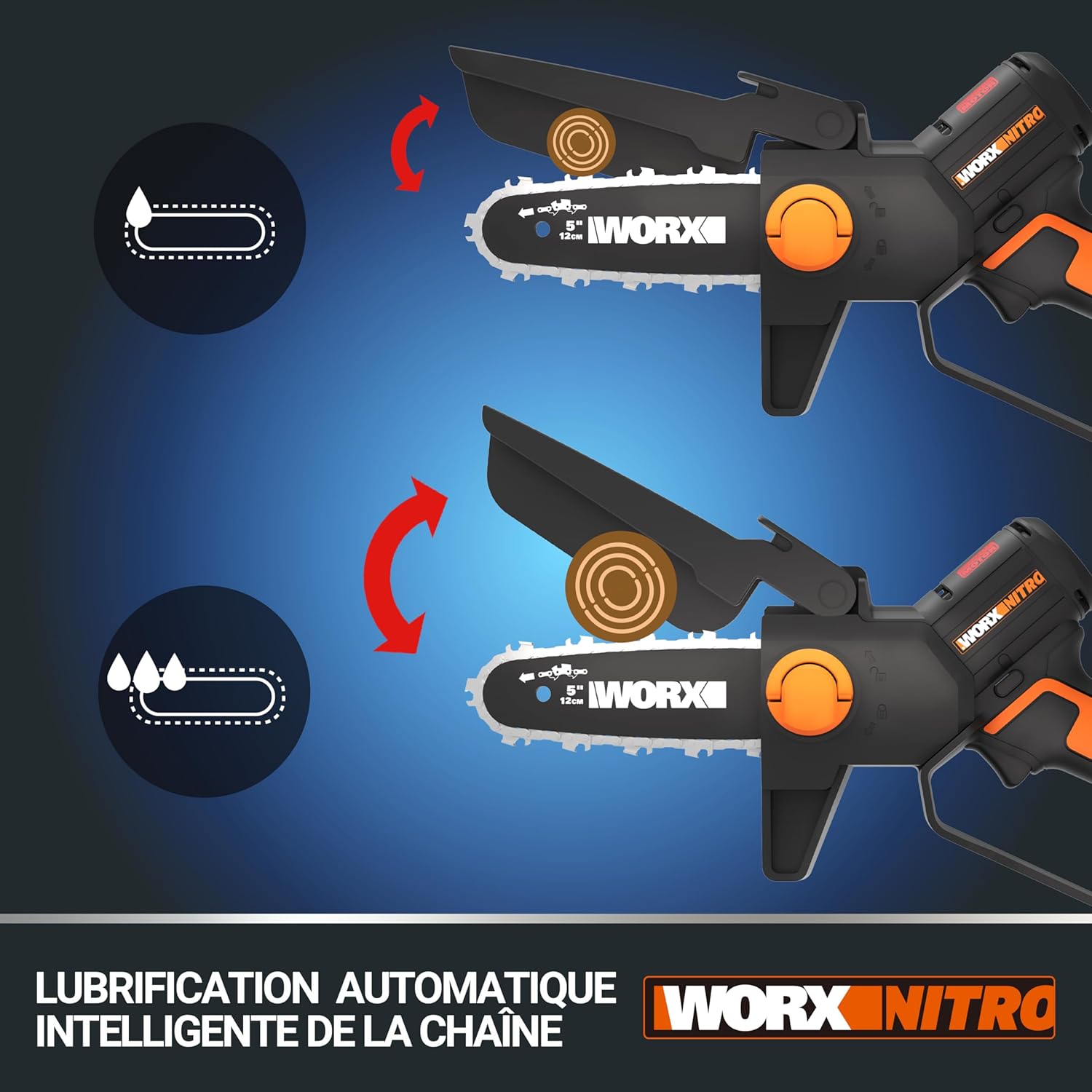

Figure 3.3: Diagram illustrating the intelligent automatic chain lubrication system, showing oil flow to the chain.

4. Operating Instructions

4.1 Starting and Stopping

To start the chainsaw, engage the double lock switch (safety button) and then press the trigger switch. Release the trigger switch to stop the chainsaw. Always ensure a firm grip on the tool.

4.2 Cutting Techniques

When cutting, ensure the workpiece is stable and secure. Apply steady, even pressure. For branches, cut from the top down to avoid pinching the chain. Be aware of kickback, which can occur if the tip of the guide bar touches an object or if the wood closes in and pinches the saw chain.

Figure 4.1: The WORX mini chainsaw being used to cut a branch, demonstrating its practical application.

4.3 Important Operating Tips

• Due to its lightweight and compact design, the WG325E.9 can be used with one hand for increased maneuverability in tight spaces.
• Do not attempt to cut material thicker than the guide bar length (12 cm).
• Allow the tool to cool down after extended use to prevent overheating.

Figure 4.2: The lightweight nature of the WORX mini chainsaw (1.4 kg) is highlighted, emphasizing ease of handling.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your WORX mini chainsaw.

5.1 Cleaning

After each use, remove the battery and clean the tool. Use a brush or compressed air to remove sawdust, chips, and debris from the chain, guide bar, and motor housing. Do not use water or solvents.

5.2 Chain Sharpening

A sharp chain is crucial for efficient and safe cutting. Sharpen the chain regularly or replace it when dull. Refer to a professional or specific chain sharpening instructions for your chain type.

5.3 Chain and Guide Bar Inspection

Periodically inspect the chain for damage, wear, or stretching. Check the guide bar for burrs, wear, or damage. Replace components as necessary.

5.4 Oil Reservoir Check

Before each use, check the oil level in the automatic lubrication reservoir and refill as needed.

6. Troubleshooting

This section provides solutions to common issues you might encounter.

7. Technical Specifications

Detailed specifications for the WORX 20V Cordless Mini Chainsaw WG325E.9:

8. Warranty and Support

WORX products are designed for durability and come with a comprehensive warranty.

8.1 Warranty Information

The WORX WG325E.9 mini chainsaw comes with a 2-year warranty. An additional 3-year extended warranty is available for power tools upon product registration on the Worx-Europe website within 30 days of purchase. Please note that this extended warranty typically excludes robotic lawnmowers (2 years + 1 year offered), accessories (6 months), and batteries/chargers (2 years).

8.2 Customer Support

Customer satisfaction is a top priority for WORX. For any questions, advice, or support, please contact WORX through their social media channels (e.g., "Worx France") or visit their official website. They can assist you in choosing the most suitable product for your project or help resolve any issues you may encounter.

For more information, visit the official WORX website: WORX Official Store
