Aiqi RC Gesture Sensing Stunt Car Instruction Manual

1. Introduction

Thank you for choosing the Aiqi RC Gesture Sensing Stunt Car. This manual provides essential information for the safe operation, setup, and maintenance of your new remote control vehicle. Please read it thoroughly before use and retain it for future reference.

Image 1.1: The Aiqi RC Gesture Sensing Stunt Car, including the remote control and gesture sensing watch.

2. Package Contents

Please verify that all items listed below are included in your package:

• 1 x Aiqi RC Stunt Car
• 1 x Remote Controller
• 1 x Gesture Sensing Watch
• 1 x USB Charging Cable
• 1 x 3.7V (1300mAh) Lithium Ion Battery (for car)
• 1 x Instruction Manual (this document)

Image 2.1: Visual representation of the product packaging and included accessories.

3. Product Features

The Aiqi RC Gesture Sensing Stunt Car offers a dynamic and engaging play experience with its advanced features:

• Dual Control Modes: Operate the car using either the traditional remote controller or the innovative gesture sensing watch.
• Multi-Directional Movement: Capable of forward, backward, 360° rotation, and various stunt maneuvers.
• Double-Sided Driving: Designed to drive on both sides, allowing for continuous play even after flips.
• Spray Function: Features a mist spray for added visual effect during operation.
• Cool Lighting: Integrated color-changing lights enhance visibility and appeal, day or night.
• 4-Wheel Drive (4WD): Provides enhanced traction and control across different surfaces.
• All-Terrain Tires: Equipped with unique roller anti-collision tires suitable for various indoor and outdoor environments, including stairs, carpets, beaches, and grasslands.
• Rechargeable Battery: Includes a durable 3.7V (1300mAh) Lithium Ion battery for extended playtime.

Image 3.1: Key features of the stunt car, including 360° rotation, drift, cool lights, and 4WD capabilities.

Image 3.2: The car's ability to perform double-sided running and 360-degree rotations.

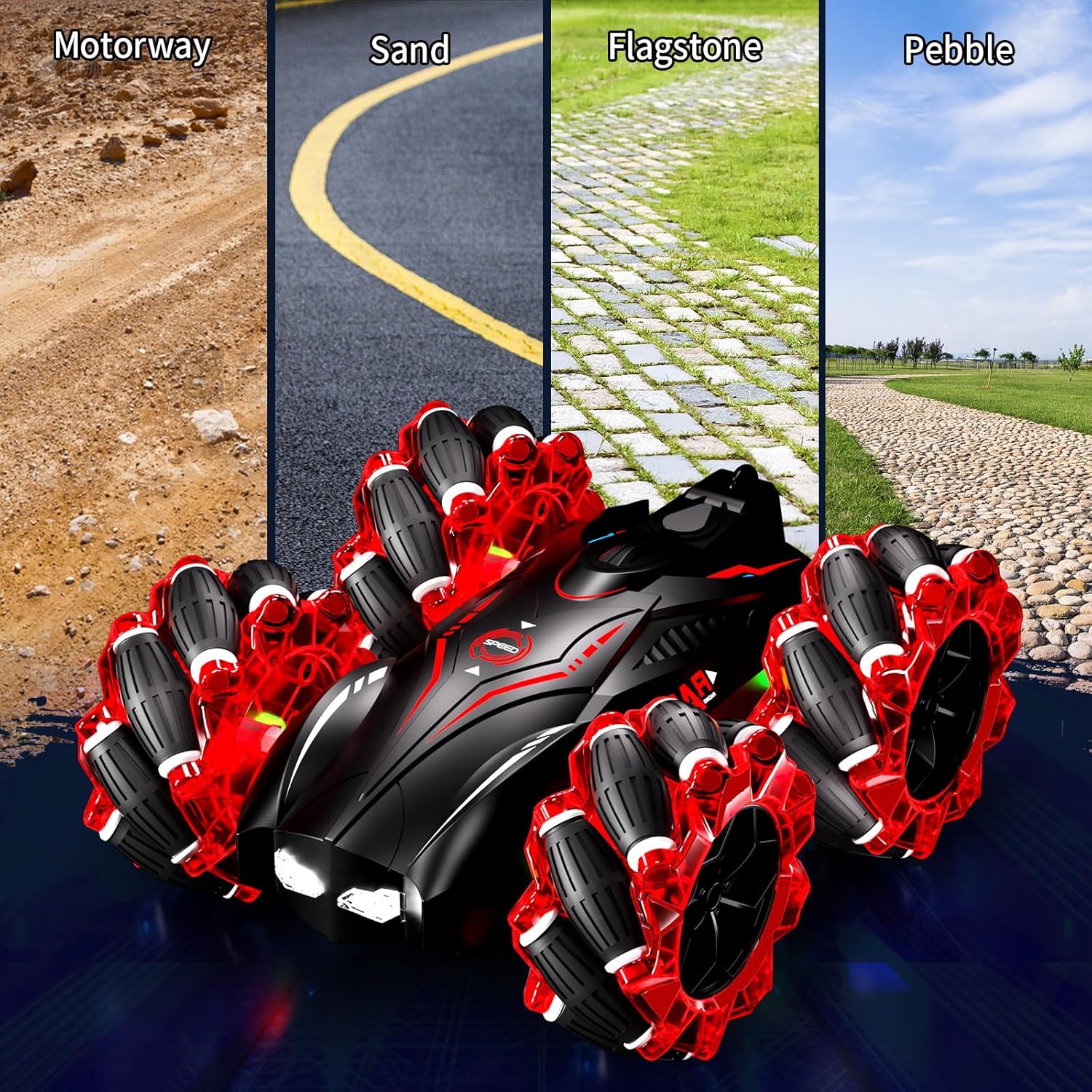

Image 3.3: The stunt car's versatility on different terrains such as sand, flagstone, and pebble surfaces.

4. Setup

4.1. Battery Installation

1. RC Stunt Car: Locate the battery compartment on the underside of the car. Open the compartment cover, connect the included 3.7V (1300mAh) Lithium Ion battery, and securely close the cover.
2. Remote Controller: Open the battery compartment on the back of the remote control. Insert 2 x AA batteries (not included), ensuring correct polarity. Close the compartment cover.
3. Gesture Sensing Watch: The gesture sensing watch has a built-in rechargeable battery. No installation is required.

4.2. Charging

Use the provided USB charging cable to charge the car's battery and the gesture sensing watch.

• Connect the USB charging cable to a standard USB power adapter (e.g., phone charger, computer USB port).
• Connect the other end of the cable to the charging port on the car's battery or the gesture sensing watch.
• Charging indicators will typically light up during charging and turn off or change color when fully charged.
• A full charge usually takes approximately 2 hours. Do not overcharge.

4.3. Pairing the Controller/Watch with the Car

1. Ensure the car's battery is charged and installed, and the car's power switch is in the OFF position.
2. Turn on the remote controller or the gesture sensing watch.
3. Turn on the power switch on the RC stunt car.
4. The car and controller/watch should automatically pair. If pairing fails, turn off all devices and repeat the steps.

5. Operating Instructions

5.1. Remote Control Operation

Familiarize yourself with the remote control layout:

Image 5.1: Detailed diagram of the remote control and gesture watch functions.

• Left Joystick: Controls forward/backward movement.
• Right Joystick: Controls turning left/right.
• Drive Left Front / Drive Right Ahead Buttons: Specific buttons for diagonal movement.
• Drift to the Left / Drift to the Right Buttons: Initiates side drifting maneuvers.
• Spray Function Button: Activates the mist spray. Ensure the water reservoir (if applicable) is filled.
• System Automatic Demonstration Button (M): Initiates a pre-programmed stunt sequence.

5.2. Gesture Sensing Watch Operation

To use the gesture sensing watch, ensure it is charged and paired with the car. The watch allows for intuitive control based on hand movements.

• Switching Mode: Use the switch on the gesture watch to activate it.
• Forward/Backward: Tilt your hand forward or backward.
• Turn Left/Right: Tilt your hand left or right.
• Specific gestures for stunts and drifts may vary; refer to the quick start guide included in the package for detailed gesture commands.

Image 5.2: Examples of the stunt car being used in various play environments.

6. Maintenance

• Cleaning: Wipe the car and controllers with a soft, dry cloth. For stubborn dirt, a slightly damp cloth can be used, but ensure no water enters electronic components.
• Storage: Store the car and accessories in a cool, dry place away from direct sunlight and extreme temperatures.
• Battery Care: Remove batteries from the remote control if the product will not be used for an extended period. Do not leave the car's battery or gesture watch charging unattended for prolonged times.
• Avoid Water: Do not immerse the car or any electronic components in water.

7. Troubleshooting

8. Specifications

• Model Number: HBD88-P5
• Brand: Aiqi
• Product Dimensions: 9.8 x 7.5 x 3 inches
• Item Weight: 1.6 pounds
• Battery (Car): 1 x 3.7V (1300mAh) Lithium Ion battery (included)
• Battery (Remote Control): 2 x AA batteries (not included)
• Battery (Gesture Watch): Built-in rechargeable Lithium Ion battery (included)
• Recommended Age: 3 years and up
• Control Frequency: 2.4GHz

9. Safety Information

• Adult supervision is recommended, especially for younger users.
• Do not operate the car near people, pets, or fragile objects.
• Avoid operating in wet conditions or near water to prevent electrical damage.
• Do not modify or disassemble the product, as this may cause damage or injury.
• Dispose of batteries responsibly according to local regulations.
• Keep small parts away from young children to prevent choking hazards.

10. Warranty and Support

This product is covered by a standard manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or contact the seller directly.

If you encounter any issues or have questions regarding your Aiqi RC Gesture Sensing Stunt Car, please contact the Aiqi customer support team or the retailer from whom you purchased the product. Please have your model number (HBD88-P5) and purchase information ready when contacting support.
