Tragial Tailgate Lock Kit User Manual

1. Introduction

The Tragial Electric Tailgate Lock Kit is engineered to enhance the security of your vehicle's tailgate while preserving its original design. This system integrates seamlessly with your vehicle's existing key remote control, providing a convenient and secure locking solution. Its advanced technology ensures ease of use and a straightforward installation process.

Important Note: This model is specifically designed for VW Amarok vehicles that do NOT have a factory-installed key lock on the tailgate.

1.1. Compatibility

This kit is compatible with the following Volkswagen Amarok models:

• Amarok 2010
• Amarok 2011
• Amarok 2012
• Amarok 2013
• Amarok 2014
• Amarok 2015
• Amarok 2016
• Amarok 2017
• Amarok 2018
• Amarok 2019
• Amarok 2020
• Amarok 2021
• Amarok 2022
• Amarok 2023

2. Setup and Installation

2.1. Package Contents

Please verify that all components are present in your package:

• Specific Electric Tailgate Lock for the Vehicle
• Wiring Harness
• Installation Manual (this document and/or a physical copy)
• Screws and Fasteners

Figure 1: All components included in the Tragial Tailgate Lock Kit.

2.2. Installation Overview

The Tragial Tailgate Lock Kit is designed for easy installation without the need for adaptations. However, due to the nature of vehicle electrical systems and mechanical components, professional installation is highly recommended to ensure proper function and safety.

Key aspects of installation include:

• Mounting the electric lock mechanism to the tailgate.
• Connecting the wiring harness to the vehicle's electrical system, typically integrating with the central locking or alarm system.
• Securing all components with the provided screws and fasteners.

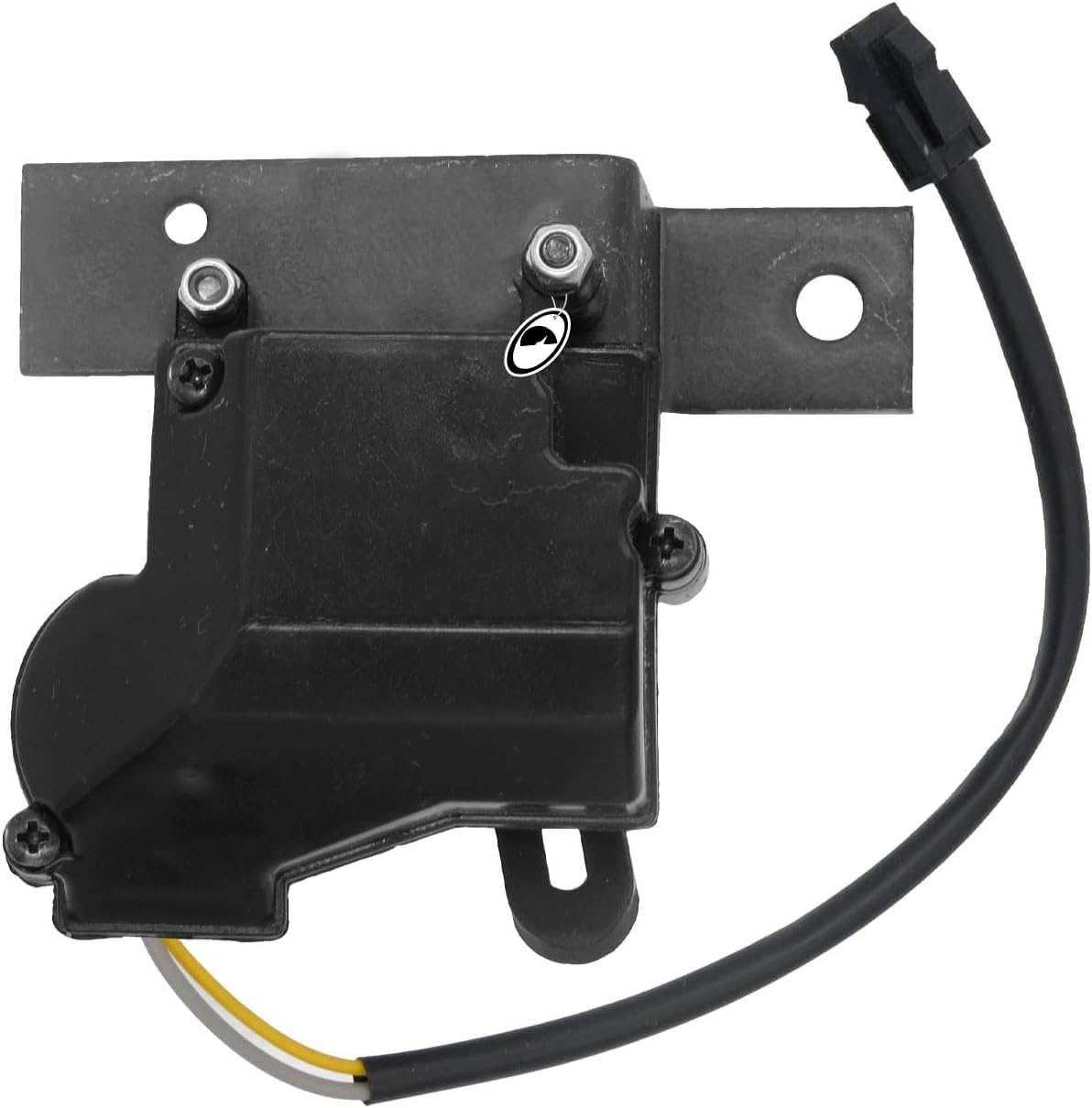

Figure 2: Detailed view of the electric tailgate lock mechanism.

Figure 3: The wiring harness provided with the kit.

3. Operating Instructions

The Tragial Electric Tailgate Lock operates in conjunction with your vehicle's existing central locking system or alarm. There are no additional buttons or remotes required for its operation.

1. Locking the Tailgate: When you activate your vehicle's central locking system (e.g., by pressing the lock button on your key remote or arming the alarm), the tailgate lock will automatically engage, securing the tailgate.
2. Unlocking the Tailgate: When you deactivate your vehicle's central locking system (e.g., by pressing the unlock button on your key remote or disarming the alarm), the tailgate lock will automatically disengage, allowing the tailgate to be opened.

Figure 4: Operation of the tailgate lock via the vehicle's key remote.

4. Maintenance

The Tragial Electric Tailgate Lock Kit is designed for durability and minimal maintenance. To ensure optimal performance and longevity:

• Regular Inspection: Periodically check the lock mechanism and wiring for any signs of wear, damage, or loose connections.
• Cleaning: Keep the area around the lock mechanism clean and free from excessive dirt, dust, or debris. Use a soft, damp cloth for cleaning. Avoid harsh chemicals.
• Lubrication: If the mechanical parts of the lock feel stiff over time, a small amount of silicone-based lubricant can be applied to moving components, avoiding electrical contacts.

5. Troubleshooting

If you experience issues with your Tragial Electric Tailgate Lock, consider the following troubleshooting steps:

• Lock Not Responding:
  • Ensure your vehicle's central locking system or alarm is functioning correctly.
  • Check all electrical connections to the tailgate lock for looseness or corrosion.
  • Verify that the vehicle's battery has sufficient charge.
• Mechanical Obstruction: Ensure there are no physical obstructions preventing the tailgate from locking or unlocking properly.
• Unusual Noises: If you hear grinding or unusual noises, discontinue use and inspect the mechanism for foreign objects or damage.

If the problem persists after these checks, it is recommended to consult a qualified automotive technician or contact Tragial customer support for assistance.

6. Specifications

7. Warranty and Support

7.1. Warranty Information

This product is covered by a manufacturer's warranty. Please refer to the specific warranty terms provided with your purchase documentation or contact Tragial directly for details regarding warranty duration and coverage.

7.2. Customer Support

For technical assistance, installation queries, or warranty claims, please contact Tragial customer support or the authorized reseller from whom you purchased the product. Ensure you have your product model number (TWCA2 MN) and purchase details ready when contacting support.
