Morphy Richards Impresso 20 Bar Espresso Coffee Maker

Introduction

Welcome to the comprehensive instruction manual for your new Morphy Richards Impresso 20 Bar Espresso Coffee Maker. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your appliance. Please read this manual thoroughly before first use and retain it for future reference.

Important Safety Information

• Always ensure the appliance is unplugged from the power outlet before cleaning, maintenance, or if it is not in use.
• Do not immerse the appliance, power cord, or plug in water or any other liquid.
• Keep the appliance out of reach of children and pets. Close supervision is necessary when the appliance is used near children.
• Avoid contact with hot surfaces. Use handles or knobs. Steam can cause severe burns.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Use only cold, fresh water in the water tank. Do not fill with milk, hot water, or other liquids.
• Ensure the drip tray is correctly positioned before operation to prevent spills.

Product Overview and Components

Familiarize yourself with the various parts of your Morphy Richards Impresso Coffee Maker for optimal use.

Figure 1: Key components of the Impresso Coffee Maker, highlighting the milk frother, steam control knob, power button, single shot and double shot espresso buttons, and the removable drip tray.

• Water Tank: Located at the back, for filling with fresh water.
• Control Panel: Features Power (I/O), Single Shot, Double Shot, and Steam buttons.
• Portafilter: Holds ground coffee for brewing.
• Steam Wand/Milk Frother: For steaming and frothing milk.
• Steam Control Knob: Adjusts steam intensity.
• Drip Tray: Collects excess liquid and is removable for easy cleaning.
• Cup Warming Plate: Top surface for pre-warming cups.

Setup and First Use

Unpacking

Carefully remove all packaging materials from the coffee maker. Ensure all components listed in the "Product Overview" section are present and undamaged.

Initial Cleaning

Before first use, wash the water tank, portafilter, filter basket, and drip tray with warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the machine with a damp cloth.

Filling the Water Tank

Remove the water tank from the back of the machine. Fill it with fresh, cold drinking water up to the MAX level indicator. Replace the water tank securely.

Priming the Machine (First Use)

1. Ensure the water tank is filled.
2. Place a large cup or container under the portafilter outlet.
3. Plug the appliance into a suitable power outlet. Press the Power (I/O) button. The indicator lights will flash as the machine preheats.
4. Once the lights are stable, indicating preheating is complete, press the Double Shot button. Allow water to flow through until the tank is nearly empty. This primes the pump and cleans the internal system.
5. Repeat this process for the steam wand: place a cup under the steam wand, turn the Steam Control Knob to release steam until water flows out, then close the knob.

Operating Instructions

Making Espresso

1. Ensure the water tank is filled and the machine is plugged in and powered on. Allow it to preheat until the indicator lights are stable.
2. Add ground coffee to the filter basket. For a single shot, use one scoop; for a double shot, use two scoops. Tamp the coffee evenly.
3. Insert the portafilter into the group head and twist it firmly to the right until it is securely locked.
4. Place your espresso cup(s) on the drip tray directly under the portafilter spouts.
5. Press the Single Shot or Double Shot button. The machine will begin brewing.
6. The machine will automatically stop when the desired volume is dispensed. Remove the cup(s).
7. Carefully remove the portafilter by twisting it to the left. Discard the used coffee grounds.

Figure 2: The Impresso Coffee Maker in action, showcasing its 20 bar pump pressure for rich espresso.

Using the Milk Frother

1. Ensure the machine is powered on and preheated. Press the Steam button. The steam indicator light will flash and then become stable when ready.
2. Fill a stainless steel frothing pitcher with cold milk (dairy or non-dairy) to about one-third full.
3. Position the steam wand just below the surface of the milk.
4. Slowly turn the Steam Control Knob to release steam. Move the pitcher up and down to create foam.
5. Once the milk is frothed to your desired consistency and temperature, turn the Steam Control Knob to the OFF position.
6. Immediately wipe the steam wand with a damp cloth to prevent milk residue from drying.

Figure 3: Detail of the milk frother and steam control knob, essential for creating creamy lattes and cappuccinos.

Coffee Guide

Your Impresso Coffee Maker allows you to create a variety of coffee beverages. Refer to the guide below for popular coffee types.

Figure 4: A visual guide to various coffee beverages you can prepare with your espresso machine.

Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your coffee maker. Always unplug the machine before cleaning.

Daily Cleaning

• Drip Tray: Empty and rinse the removable drip tray after each use or when the indicator floats up. Wash with warm, soapy water and dry thoroughly.
• Portafilter and Filter Basket: After each use, remove the portafilter, discard coffee grounds, and rinse the portafilter and filter basket under running water. Use a brush to remove any stubborn residue.
• Steam Wand: Immediately after frothing milk, wipe the steam wand with a damp cloth. Purge a small amount of steam to clear any milk residue from inside the wand.
• Exterior: Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or scouring pads.

Figure 5: The removable drip tray simplifies cleaning, ensuring hygiene and ease of maintenance.

Descaling

Over time, mineral deposits (limescale) can build up in your machine, affecting performance and taste. Descale your machine regularly, depending on water hardness and frequency of use (e.g., every 2-3 months).

1. Use a commercial descaling solution specifically designed for coffee machines. Follow the instructions on the descaling solution packaging carefully.
2. Fill the water tank with the descaling solution mixed with water as per the solution's instructions.
3. Place a large container under the portafilter and steam wand.
4. Run half of the solution through the coffee outlet by pressing the Double Shot button.
5. Run the remaining half of the solution through the steam wand.
6. After descaling, rinse the water tank thoroughly and fill it with fresh water. Run several full tanks of fresh water through both the coffee outlet and steam wand to rinse out any descaling solution residue.

Troubleshooting

If you encounter issues with your coffee maker, refer to the following common problems and solutions.

Product Specifications

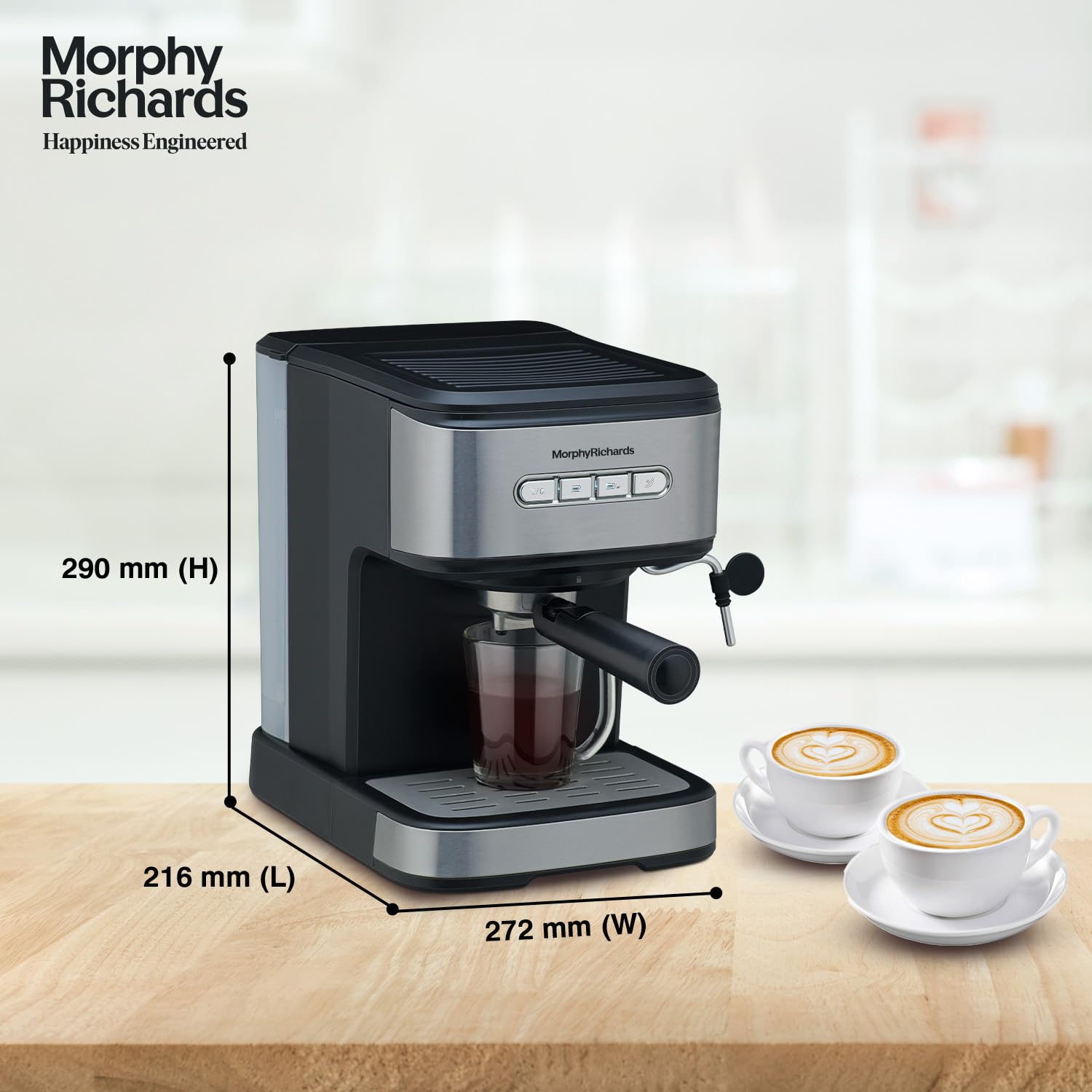

Figure 6: Product dimensions for the Impresso Coffee Maker.

Warranty and Customer Support

Your Morphy Richards Impresso Coffee Maker comes with a 2-year warranty by Brand, ensuring peace of mind regarding manufacturing defects and performance issues.

For any warranty claims, service requests, or further assistance, please contact Morphy Richards Consumer Care.

• Customer Support: Available through Morphy Richards Consumer Care.
• Manufacturer Contact: Imported & Marketed by Bajaj Electricals Ltd.
• Contact Number: 022-41280000

Please retain your purchase receipt as proof of purchase for warranty validation.
