Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your ZEVAWAY Keyless Electronic Keypad Door Lock with Handle. This modern-looking entry set is designed to add sophistication and high-grade security to your home. It features an electronic keypad deadbolt and can be unlocked using a user code or a mechanical key, ensuring access even during power outages.
Key features include:
- Electronic Keypad Deadbolt for enhanced security.
- Compatibility with standard pre-drilled doors (5-1/2" Center-to-Center).
- Mechanical key override for power failure situations.
- Reversible door handle for left or right-hand door applications.
- Backlit keypad for convenient use in low-light conditions.
Package Contents
Before beginning installation, please verify that all components are present:
- Electronic Keypad Door Lock Assembly
- Inside Door Handle
- Deadbolt Latch (Adjustable Backset)
- Installation Hardware (Screws, Spindles, etc.)
- Mechanical Keys (2)
- Installation Template
- User Guide
Image: All components included in the ZEVAWAY Keyless Electronic Keypad Door Lock package.
Setup and Installation
The ZEVAWAY Keyless Electronic Keypad Door Lock is designed for easy installation, typically requiring only a screwdriver. It fits standard pre-drilled doors with a 5-1/2 inch (140mm) center-to-center distance between the deadbolt and handle holes. The deadbolt latch is adjustable for 2-3/8 inches (60mm) or 2-3/4 inches (70mm) backset, and the handle is reversible for left or right-hand doors.
Pre-Installation Checks:
- Ensure your door has the standard 5-1/2" (140mm) center-to-center drilling.
- Verify door thickness is between 1-3/8" (35mm) to 1-3/4" (45mm).
- Adjust the deadbolt latch backset if necessary (60mm or 70mm).
- Determine your door's handing (left or right) and adjust the handle accordingly.
Image: Product dimensions and handle reversibility.
Image: Door preparation and deadbolt adjustment.
General Installation Steps (Refer to included user guide for detailed steps):
- Prepare the door: Ensure existing holes are clean and correctly sized. Use the provided template if new holes are needed.
- Install the deadbolt latch: Insert the latch into the door edge and secure it. Adjust the backset if required.
- Install the exterior assembly: Feed the power cable and spindles through the door holes.
- Install the interior mounting plate: Secure the mounting plate to the door, ensuring the power cable passes through.
- Connect the power cable: Connect the power cable from the exterior assembly to the interior assembly.
- Install the interior assembly: Secure the interior assembly to the mounting plate.
- Install the inside handle: Attach the handle to the interior assembly.
- Install batteries: Insert 4 AA batteries (not included) into the battery compartment.
- Test operation: Verify that the lock operates smoothly with both the keypad and mechanical key.
Image: Adjusting the lock for left or right-hand doors.
Operating Instructions
Your ZEVAWAY Keyless Electronic Keypad Door Lock offers multiple ways to secure and access your home.
Setting User Codes:
The lock supports up to 100 user codes. Refer to the detailed programming instructions in your included user guide to set, modify, or delete user codes. User codes must be at least six digits long.
Unlocking the Door:
- Using a User Code: Enter your programmed user code on the keypad. The keypad is backlit for visibility in darkness.
- Using a Mechanical Key: Insert the mechanical key into the keyhole and turn to unlock. This method is available even if the electronic lock has no power.
Locking the Door:
- Manual Locking: Turn the interior thumb-turn or press the lock button on the keypad.
- Auto-Lock: The lock can be set to automatically lock after a specified time (5 to 90 seconds). This feature enhances convenience and security.

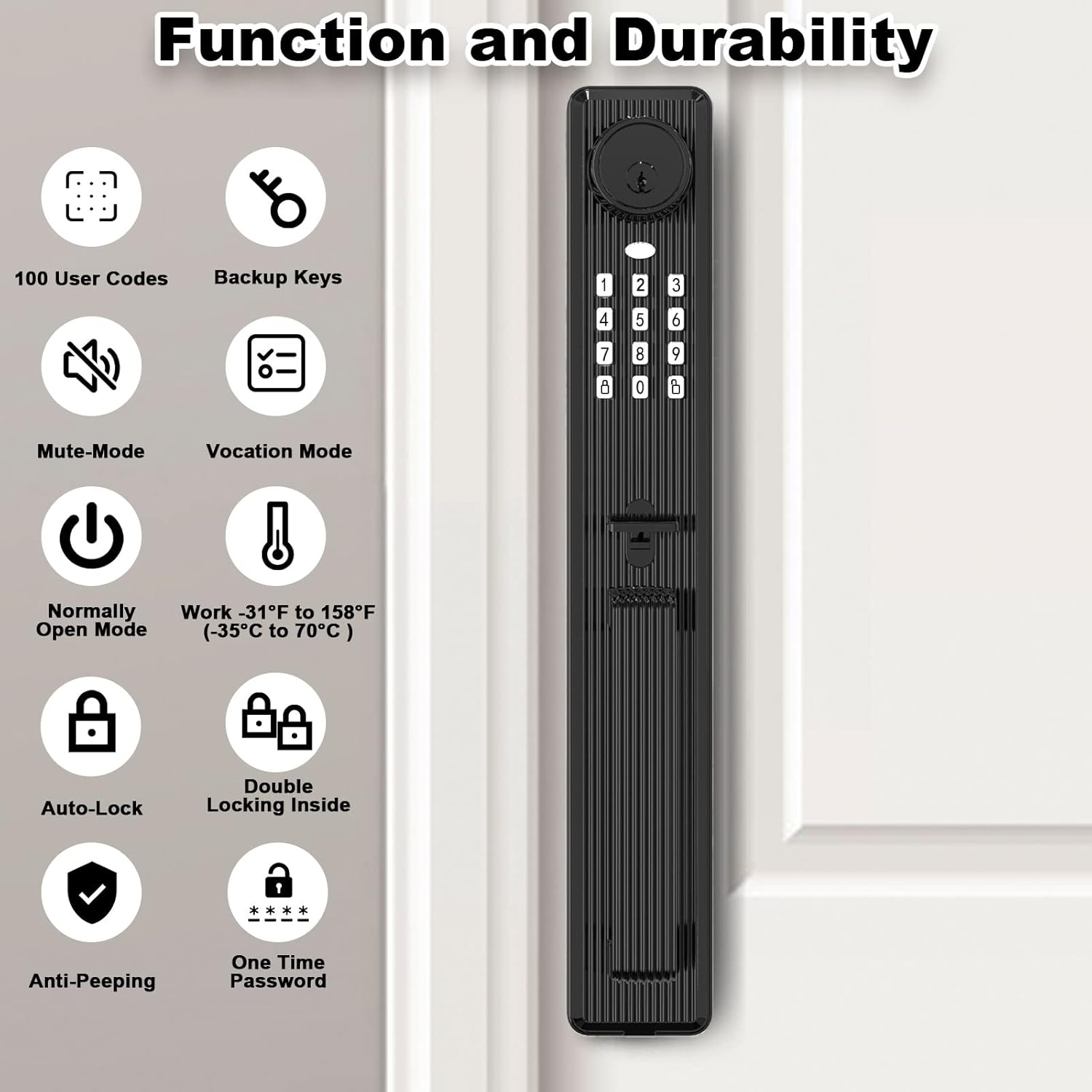

Image: Overview of lock functions and durability features.
Image: Auto-lock feature explanation.
Advanced Modes:
- Mute Mode: Disables keypad sounds for quiet operation.
- Vacation Mode: Enhances security when you are away, allowing only administrator access.
- Normally Open Mode: Keeps the door unlocked for continuous access.
- Double Locking Inside: Provides an extra layer of privacy and security from the interior.
- Anti-Peeping User Code: Allows you to enter random digits before and after your actual code to prevent others from guessing it.
- One Time Password: Generate temporary access codes for guests or service providers.
Maintenance
To ensure the longevity and optimal performance of your ZEVAWAY door lock, regular maintenance is recommended.
Battery Replacement:
The lock operates on 4 AA batteries (not included). When the door lock voltage is lower than 4.8V, an alarm will prompt you to replace the batteries. The typical battery life is approximately 1 year under normal usage. Always replace all four batteries simultaneously with new, high-quality alkaline batteries.
Image: Low battery indicator.
Cleaning:
Wipe the keypad and handle surfaces with a soft, damp cloth. Avoid using abrasive cleaners or solvents, as these can damage the finish and electronic components.
Troubleshooting
While specific troubleshooting steps are detailed in the full user guide, here are some common issues and general advice:
- Lock not responding: Check battery levels and replace if necessary. Ensure the power cable connection is secure.
- Keypad not lighting up: This usually indicates low batteries. Replace all four AA batteries.
- Difficulty locking/unlocking: Ensure the deadbolt latch is properly aligned with the strike plate on the door frame. Check for any obstructions.
- Forgotten user code: Use the mechanical key to access the door and refer to the user guide for instructions on resetting or recovering codes.
Specifications
| Feature | Detail |
|---|---|
| Brand | ZEVAWAY |
| Model Name | 1185E-MBN |
| Lock Type | Keypad |
| Special Feature | Keyless |
| Material | Metal |
| Color | Matte Black |
| Recommended Uses | Residential Front Door |
| Number of Pieces | 1 |
| Included Components | Lock And Key, Installation Hardware |
| Controller Type | Hand Control, Mechanical knob |
| Control Method | Touch |
| Item Weight | 5.52 pounds |
| Package Dimensions | 20.16 x 7.05 x 3.86 inches |
| Operating Temperature | -31°F to 158°F (-35°C to 70°C) |
Warranty
ZEVAWAY offers a one-year warranty for this product. If you encounter any problems with your purchased product during use, please contact us in a timely manner. We are committed to providing satisfactory after-sales service.
Support
For further assistance, technical support, or warranty claims, please refer to the contact information provided in your product packaging or on the official ZEVAWAY website. Our support team is available to help you with any questions or issues you may have.
