1. Introduction
The IsEasy 90cm Cooker Hood, model TV52A90D4, is designed to efficiently remove smoke, steam, and cooking odors from your kitchen environment. This appliance features a powerful 578 m³/h suction capacity, three adjustable fan speeds, intuitive touch controls, and versatile dual-mode ventilation for either external extraction or internal recirculation. Constructed from durable stainless steel and tempered glass, it offers both functionality and a sleek aesthetic. This manual provides essential information for safe installation, proper operation, and effective maintenance to ensure optimal performance and longevity of your cooker hood.
Image 1: IsEasy 90cm Cooker Hood installed above a hob.
2. Safety Information
Please read and understand all safety instructions before installing or operating this appliance. Failure to follow these instructions may result in electric shock, fire, or personal injury.
- Ensure the power supply voltage matches the rating label on the appliance.
- Always disconnect the appliance from the main power supply before cleaning, maintenance, or servicing.
- Do not operate the cooker hood if the power cord or plug is damaged. Contact qualified service personnel for repairs.
- Maintain a minimum distance between the hob and the lowest part of the cooker hood as specified in the installation section.
- Ensure adequate ventilation in the room when the cooker hood is used simultaneously with gas or other fuel-burning appliances.
- Do not flambé under the cooker hood.
- Regularly clean grease filters to prevent fire hazards.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. What's in the Box
Carefully unpack the box and ensure all components are present and undamaged. The package should contain the following items:
- IsEasy 90cm Cooker Hood Unit
- Flexible Exhaust Duct (1.5 meters)
- Charcoal Filters (2 units, for recirculation mode)
- Mounting Brackets and Screws
- Chimney Cover Sections
- Instruction Manual
- Aluminum Grease Filters (pre-installed)
Image 2: All components included in the packaging, including the hood, duct, filters, and mounting hardware.
4. Setup and Installation
The IsEasy 90cm Cooker Hood is designed for wall-mounted installation and supports both external extraction and internal recirculation modes. Choose the appropriate mode for your kitchen setup.
4.1 Dimensions and Placement
Ensure sufficient space for installation. The recommended distance between the hob and the cooker hood is 65-75cm.

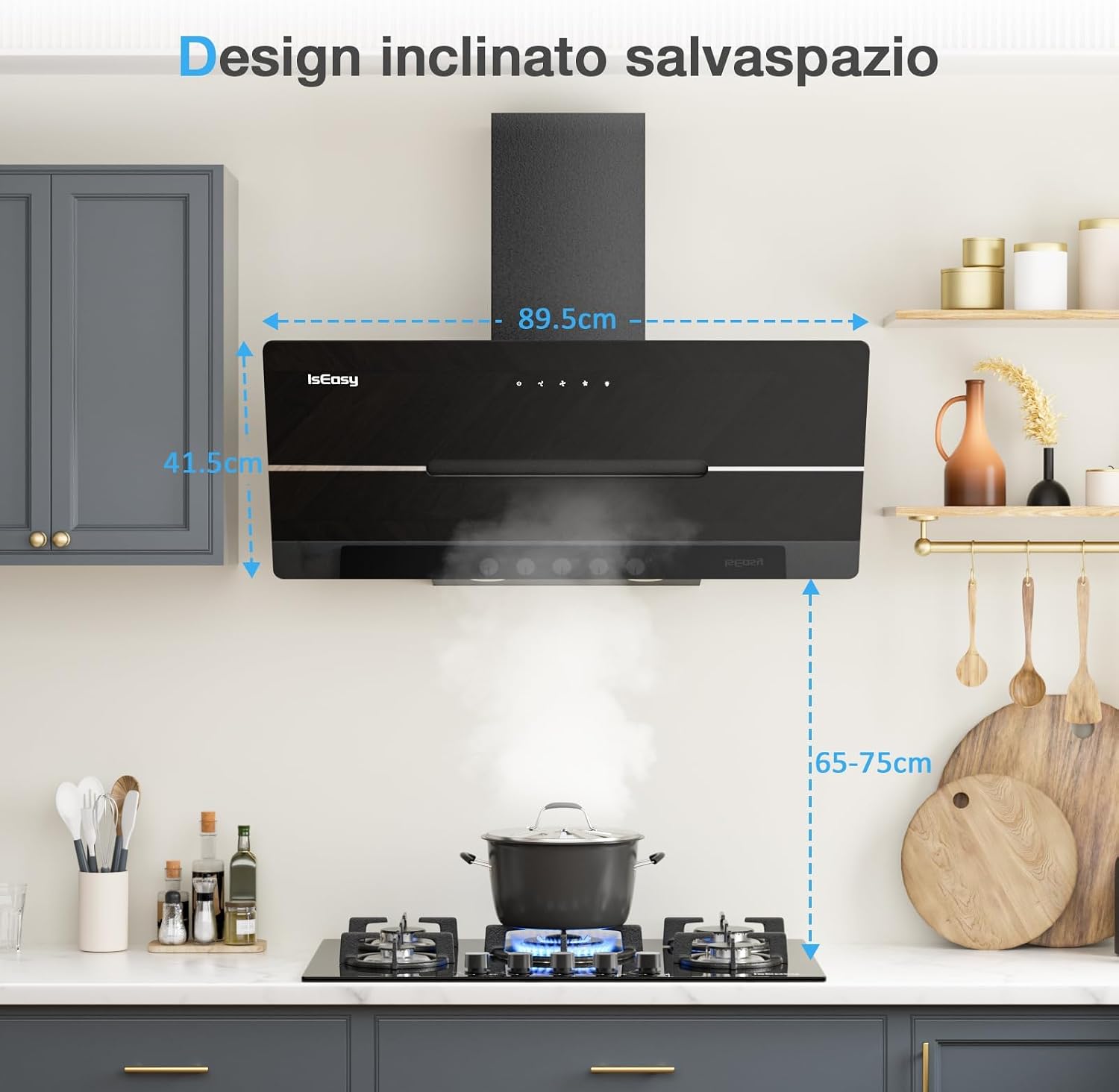

Image 3: Dimensions of the cooker hood and recommended installation height (65-75cm above the hob).
4.2 Ventilation Modes
The hood supports two ventilation modes:
- Extraction Mode: Fumes are expelled outside through the flexible exhaust duct.
- Recirculation Mode: Air is filtered through charcoal filters and recirculated back into the kitchen.
Image 4: Illustration of exhaust (left) and recirculation (right) modes, showing the included charcoal filter and exhaust pipe.
4.3 Installing Charcoal Filters (for Recirculation Mode)
If using recirculation mode, charcoal filters must be installed. Remove the aluminum grease filters to access the motor. Twist the charcoal filters onto the motor housing until secure. Replace the grease filters.
5. Operating Instructions
The cooker hood features a user-friendly touch control panel for easy operation.
5.1 Touch Control Panel
The control panel allows you to power on/off, adjust fan speed, and control the LED lighting.
Image 5: Touch control panel with power, fan speed (low, medium, high), and LED light buttons.
5.2 Fan Speed Adjustment
Select from three fan speeds (low, medium, high) to match your cooking needs. For light cooking, use a lower speed. For heavy frying or strong odors, select a higher speed for maximum extraction.
5.3 LED Lighting
Activate the integrated 3W LED lights to illuminate your cooking area. The lights provide clear visibility and enhance the kitchen ambiance.
Image 6: The two 1.5W LED lights providing illumination for the cooking area.
5.4 Quiet Operation
The IsEasy Cooker Hood operates at a maximum noise level of 58 decibels, ensuring a quiet kitchen environment even during active use.

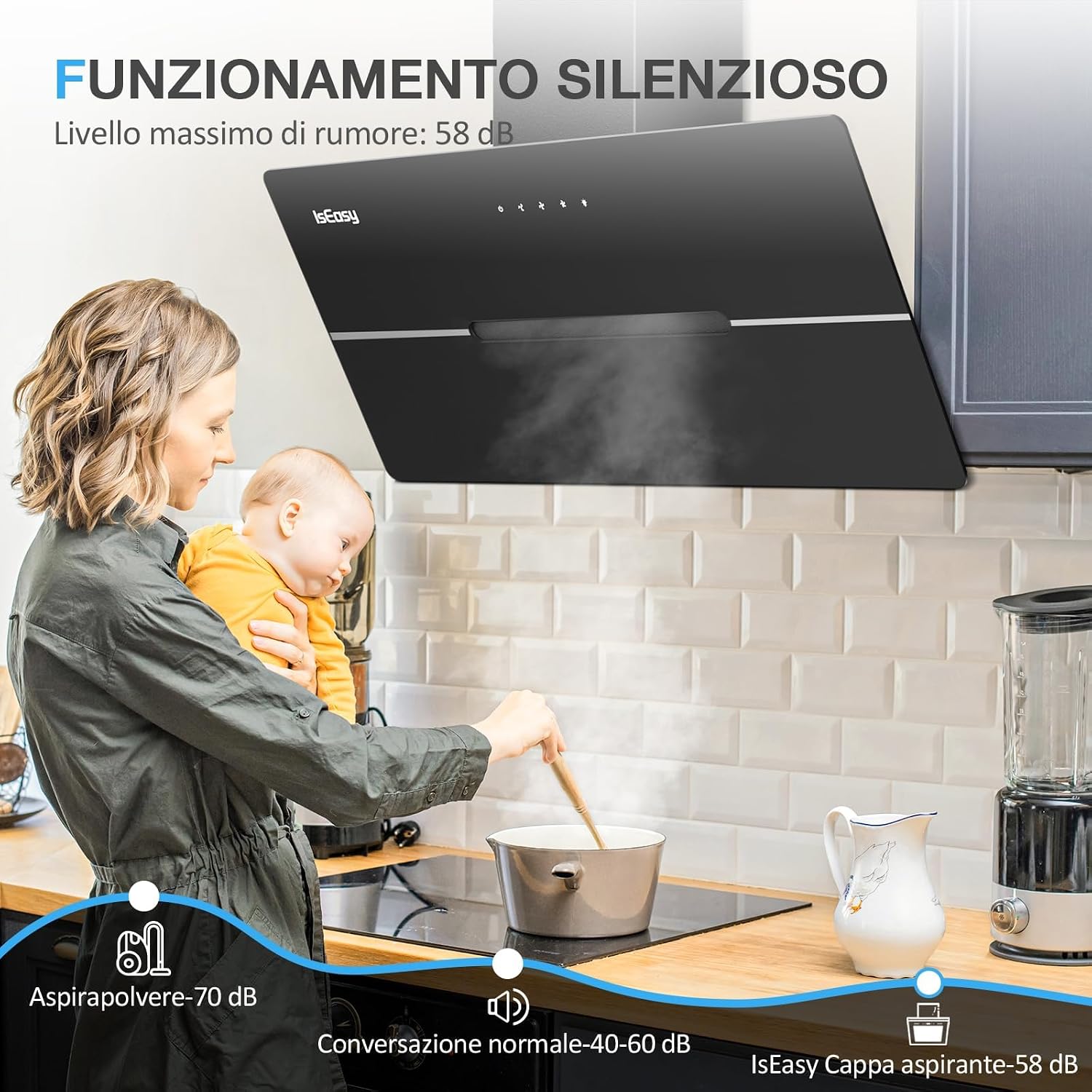

Image 7: The cooker hood operating with minimal noise, allowing for normal conversation.
6. Maintenance
Regular maintenance ensures the efficiency and longevity of your cooker hood.
6.1 Cleaning Aluminum Grease Filters
The 5-layer aluminum grease filters should be cleaned regularly (approximately every 2-4 weeks, depending on usage) to maintain optimal performance. These filters are dishwasher safe.
- To remove: Pull the latch on the filter and gently lower it.
- Clean: Wash by hand with warm soapy water or place in a dishwasher.
- To reinstall: Insert the filter back into its slot and push the latch until it clicks into place.
Image 8: Easy maintenance showing the removal and cleaning of the aluminum grease filter.
Image 9: The 5-layer aluminum filter, highlighting its rust resistance, easy cleaning, and dishwasher-safe properties.
6.2 Replacing Charcoal Filters (Recirculation Mode Only)
Charcoal filters cannot be washed and must be replaced every 3-6 months, depending on usage. Refer to section 4.3 for installation steps.
6.3 Cleaning the Exterior
Wipe the exterior surfaces with a soft cloth and a mild, non-abrasive cleaning agent. Avoid using harsh chemicals or abrasive materials that could damage the finish.
7. Specifications
| Feature | Specification |
|---|---|
| Model Number | TV52A90D4 |
| Brand | IsEasy |
| Material | Stainless Steel, Tempered Glass |
| Noise Level | 58 Decibels |
| Mounting Type | Wall-mounted |
| Control Type | Touch |
| Voltage | 220 Volt |
| Item Weight | 13.5 Kilograms |
| Light Source Type | LED (2x 1.5W) |
| Power Consumption | 103 Watts |
| Filter Type | 5-layer Aluminum Grease Filter, Activated Carbon Filter (optional) |
| Ventilation Type | Exhaust/Recirculation |
| Airflow Rate | 578 Cubic meters per hour |
| Product Dimensions (L x W x H) | 89.5 x 41.5 x 38.7 cm |
Image 10: Illustration of the durable motor, designed for efficient and reliable performance.
8. Troubleshooting
If you encounter issues with your cooker hood, refer to the following common troubleshooting steps:
- Hood does not turn on: Check if the appliance is properly plugged into a power outlet. Verify the circuit breaker.
- Weak suction: Ensure the aluminum grease filters are clean and not clogged. If using recirculation mode, check if the charcoal filters need replacement. Verify that the exhaust duct (if used) is not obstructed.
- Unusual noise: Check for any loose parts, especially the grease filters or the exhaust duct connection. Ensure the chimney cover is securely installed.
- Lights not working: Check if the LED light button on the touch panel has been pressed. If not, the LED lights may require professional servicing.
For problems not listed here or if issues persist, please contact customer support.
9. Warranty and Support
Your IsEasy 90cm Cooker Hood is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.
For technical assistance, spare parts, or any inquiries regarding your product, please contact IsEasy customer service through the contact information provided in your purchase documentation or on the official IsEasy website. When contacting support, please have your model number (TV52A90D4) and proof of purchase readily available.
