GOXAEEE 21V 50 Bar Cordless Portable High-Pressure Cleaner User Manual

1. Introduction

Thank you for choosing the GOXAEEE 21V 50 Bar Cordless Portable High-Pressure Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read this manual thoroughly before first use and retain it for future reference.

2. Product Overview

2.1 Package Contents

• 1 x Cordless High-Pressure Cleaner Unit
• 1 x Spray Gun
• 2 x Nozzles (Fan-shaped, High-pressure)
• 1 x 5m Hose
• 1 x Water Connector
• 1 x Filter Basket
• 1 x 12000 mAh Battery
• 1 x Battery Charger

2.2 Component Identification

Familiarize yourself with the parts of your high-pressure cleaner:

Image: Labeled diagram of the high-pressure cleaner components.

• Replaceable Nozzle: For various spray patterns.
• Metal Water Connection: Point for hose attachment.
• Stainless Steel Extension Rod: Extends reach for cleaning.
• Sealed Waterproof Body: Protects internal components.
• Heat Dissipation Hole: Prevents overheating during operation.
• Activate Trigger: Engages water flow and pressure.
• Water Inlet Interface: Connects to the water source hose.
• Lithium Battery Dedicated Charging Base: Power source for cordless operation.

Image: Complete GOXAEEE high-pressure cleaner kit with all accessories.

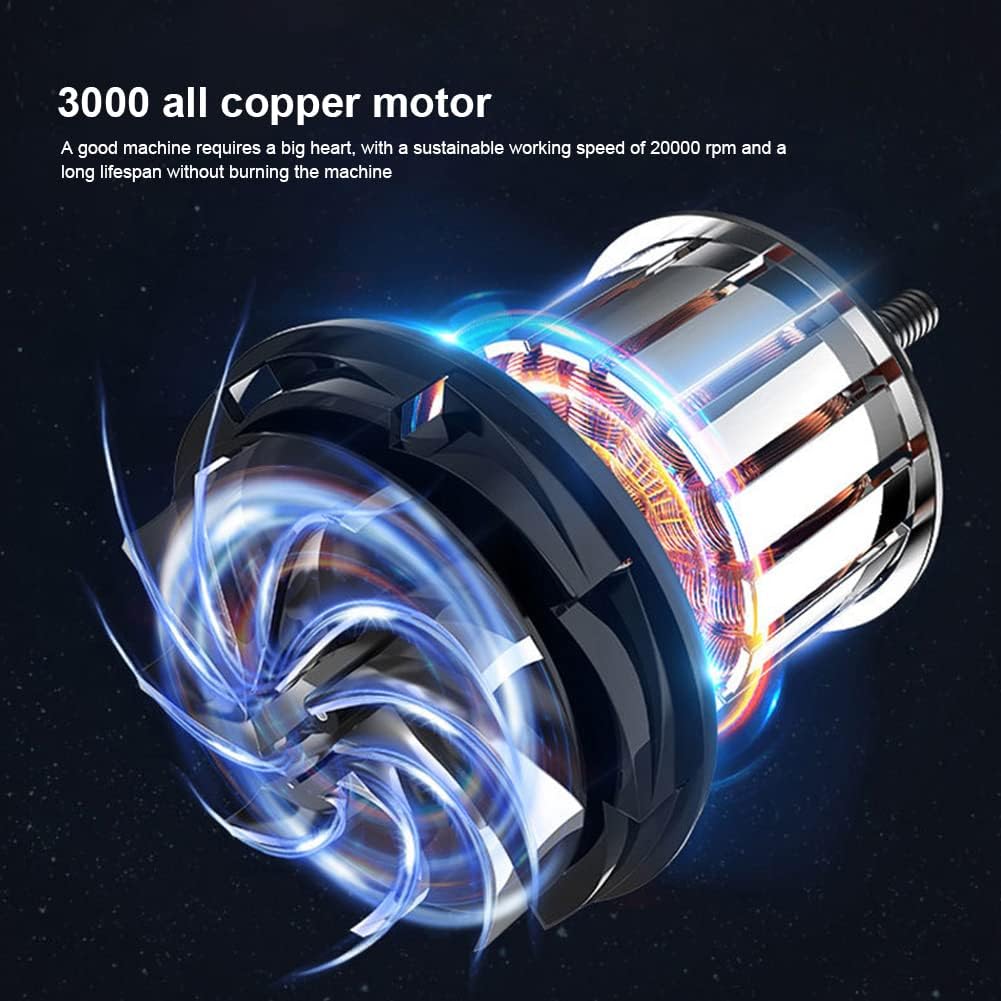

2.3 Motor Information

The unit is equipped with a 3000W all-copper motor, designed for sustained performance and a maximum speed of 20,000 RPM, ensuring a long operational lifespan.

Image: Illustration of the 3000W all-copper motor.

3. Safety Instructions

Always observe the following safety precautions to reduce the risk of injury or damage:

• Wear appropriate personal protective equipment (PPE) such as safety glasses and gloves during operation.
• Never point the spray gun at people, animals, or electrical equipment.
• Ensure all connections are secure before starting the unit.
• Do not operate the unit in explosive atmospheres or near flammable liquids.
• Keep children and pets away from the operating area.
• Use only the provided battery and charger. Do not attempt to charge non-rechargeable batteries.
• Store the unit in a dry, secure place, out of reach of children.
• Disconnect the battery before performing any maintenance or cleaning.

4. Setup

4.1 Battery Charging

1. Insert the battery into the charger.
2. Plug the charger into a standard electrical outlet.
3. Allow the battery to charge fully before first use. The indicator light on the charger will signal when charging is complete.

4.2 Assembling the Unit

1. Attach the stainless steel extension rod to the main unit.
2. Select the desired nozzle (fan-shaped or high-pressure) and securely attach it to the end of the extension rod.
3. Connect the 5m hose to the water inlet interface on the main unit.
4. Attach the filter basket to the other end of the hose. This filter helps prevent impurities from entering the pump.
5. Insert the charged battery into the battery slot on the main unit until it clicks into place.

4.3 Water Source Connection

The high-pressure cleaner supports self-priming, allowing it to draw water from various sources:

• Place the end of the hose with the filter basket into a bucket of water, a river, or any suitable water container.
• Ensure the filter basket is fully submerged to prevent air intake.

Image: Self-priming setup, drawing water from a bucket.

5. Operating Instructions

5.1 Starting the Unit

1. Ensure the battery is fully charged and correctly installed.
2. Confirm the water source is connected and the filter is submerged.
3. Hold the spray gun firmly and press the activate trigger to start the water flow. It may take a few seconds for water to prime and reach full pressure.

5.2 Nozzle Selection and Use

The unit comes with two main nozzle types for different cleaning tasks:

Image: Fan-shaped and high-pressure nozzle spray patterns.

• Fan-shaped Nozzle: Provides a wide spray pattern, ideal for general cleaning, rinsing, and covering larger areas quickly. Suitable for vehicle body cleaning and decontamination.
• High-Pressure Nozzle: Delivers a concentrated, straight beam spray for stubborn dirt, grime, and high-pressure descaling.

5.3 Applications

This versatile cleaner can be used for various tasks:

• Car and motorcycle washing
• Balcony and patio cleaning
• Window and wall cleaning
• Ground flushing
• Pet bathing
• Rinsing vegetables (e.g., potatoes)
• Watering flowers and plants (with appropriate nozzle/pressure)
• Spraying pesticides (ensure thorough cleaning after use)

Image: Examples of diverse applications for the high-pressure cleaner.

Image: High-pressure cleaner in use for car washing.

Image: High-pressure cleaner in use, drawing water from a lake.

6. Maintenance

6.1 Cleaning

• After each use, disconnect the battery and flush the unit with clean water to remove any detergent residue or debris.
• Clean the filter basket regularly to ensure optimal water flow and prevent clogging.
• Wipe the exterior of the unit with a damp cloth. Do not use abrasive cleaners or solvents.

6.2 Storage

• Drain all water from the unit, hose, and spray gun before storage to prevent freezing damage in cold climates.
• Store the high-pressure cleaner, battery, and charger in a dry, well-ventilated area, away from direct sunlight and extreme temperatures.
• Remove the battery from the unit if storing for extended periods.

7. Troubleshooting

8. Specifications

9. Warranty and Support

Specific warranty information for this product was not provided in the available product data. For warranty claims or technical support, please refer to the retailer or manufacturer's official contact channels at the point of purchase.
