1. Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your EVAYP foam dryer filters. These filters are designed as a direct replacement for original filters in various condenser and heat pump dryers, ensuring optimal performance and energy efficiency for compatible Whirlpool and Indesit models.
2. Product Overview
The EVAYP foam dryer filter set includes four high-quality, two-layer sponge filters. Each filter measures approximately 230 x 115 x 14 mm. These filters are crucial for maintaining the efficiency of your dryer's heat exchanger by preventing lint and debris buildup.

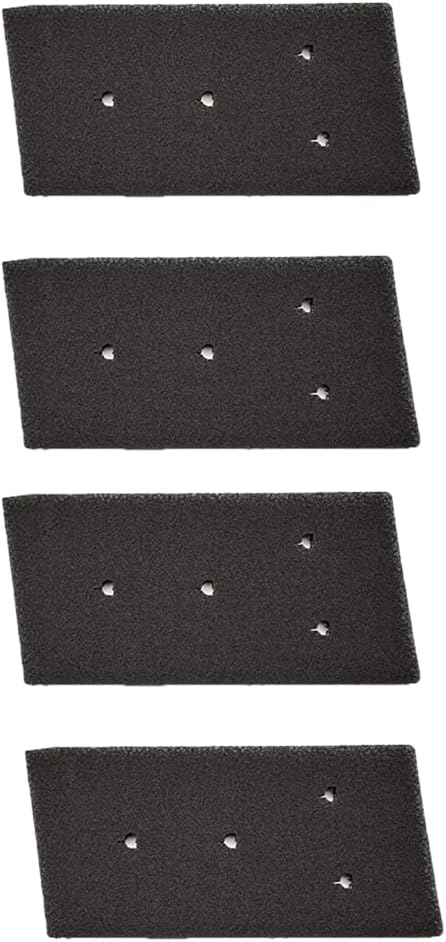

Image 2.1: A set of four EVAYP foam dryer filters, stacked neatly. These filters are designed to capture lint and debris, protecting your dryer's heat exchanger.
Compatibility: These filters are suitable replacements for:
- Whirlpool part numbers: 481010345281, 8015250474909 (replaces 481010354755, 481010716911)
- Ariston Indesit Merloni Hotpoint part number: C00379889
3. Setup and Installation
Proper installation of the foam filter is essential for your dryer's performance and longevity. Follow these steps carefully:
- Safety First: Before beginning any maintenance or installation, always unplug your dryer from the power outlet to prevent electrical hazards.
- Locate the Filter Compartment: Refer to your dryer's specific user manual to identify the location of the heat exchanger filter compartment. This is typically found at the bottom front of the dryer, behind a removable panel or flap.
- Remove the Old Filter: Carefully open the filter compartment and remove the existing foam filter. Note its orientation for correct placement of the new filter.
- Clean the Compartment: While the filter is out, gently clean any lint or debris from the filter compartment and surrounding areas using a soft brush or vacuum cleaner.
- Insert the New EVAYP Filter: Take one of the new EVAYP foam filters. Ensure it is correctly oriented and gently slide it into the filter compartment until it is securely in place. The two-layer design should fit snugly.
- Close the Compartment: Securely close the filter compartment panel or flap.
- Restore Power: Plug your dryer back into the power outlet.
Image 3.1: An EVAYP foam filter positioned near the opening of a dryer, illustrating the context for filter replacement. Always ensure the dryer is unplugged before accessing internal components.
4. Operating Guidelines
Once the new filter is installed, your dryer is ready for use. The EVAYP foam filter works continuously during the drying cycle to protect the heat exchanger from lint accumulation. This protection is vital for maintaining the dryer's performance and ensuring it operates with low energy consumption.
No special operating procedures are required beyond your dryer's standard usage. The filter functions passively to maintain air quality within the heat exchanger system.
5. Maintenance
Regular maintenance of your dryer's filter system is crucial for its efficiency and lifespan. While the EVAYP foam filters are designed for replacement, periodic checks are recommended.
- Inspection Frequency: Inspect the foam filter every 3-6 months, or more frequently if you use your dryer heavily.
- Replacement: Replace the foam filter regularly to ensure that the dryer's performance remains high and energy consumption stays low. The exact replacement interval depends on usage, but generally, replacing it annually or when visible signs of wear or significant discoloration appear is advisable.
- Cleaning (Temporary): In between replacements, if the filter appears slightly dusty but not heavily soiled or damaged, you may gently tap it to dislodge loose lint. Avoid washing or wetting the foam filter, as this can degrade its material and effectiveness.
6. Troubleshooting
If you encounter issues related to your dryer's performance after filter installation, consider the following:
- Reduced Drying Efficiency: If clothes are taking longer to dry, or the dryer feels less effective, first check the primary lint filter (usually located in the door opening) and ensure it is clean. Then, inspect the EVAYP foam filter for excessive lint buildup or damage. A clogged foam filter restricts airflow, leading to reduced efficiency and increased energy consumption.
- Unusual Noises: Ensure the foam filter is seated correctly in its compartment. A loose filter might vibrate during operation.
- Error Codes: If your dryer displays an error code related to airflow or heat exchange, a clogged or improperly installed filter could be a contributing factor. Consult your dryer's specific manual for error code interpretations.
If troubleshooting steps do not resolve the issue, consider replacing the foam filter with a new one from the EVAYP pack.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | EVAYP |
| Model Number | EVYP-163 |
| Material | Foam (two-layer sponge) |
| Color | Black |
| Dimensions (L x W x H) | 230 mm x 115 mm x 14 mm |
| Quantity per Pack | 4 filters |
| Compatibility | Whirlpool 481010345281, 481010716911; Indesit C00379889 |
Image 7.1: An EVAYP foam filter with its key dimensions, 230mm in length and 115mm in width, clearly marked for reference.
8. Support
If you have questions regarding the compatibility of these filters with your specific dryer model, or require further assistance, please contact EVAYP customer support. Providing your dryer's model number and the existing filter's part number will help expedite support.
