1. Product Overview
The JAMJII HB-001 Cold Compress Massage Fascia Gun is a portable, handheld deep tissue massager designed to relieve muscle soreness, stiffness, and fatigue through high-frequency vibration stimulation. It features an AI intelligent chip, a silent operation design, and multiple interchangeable massage heads for targeted relief across various body parts.

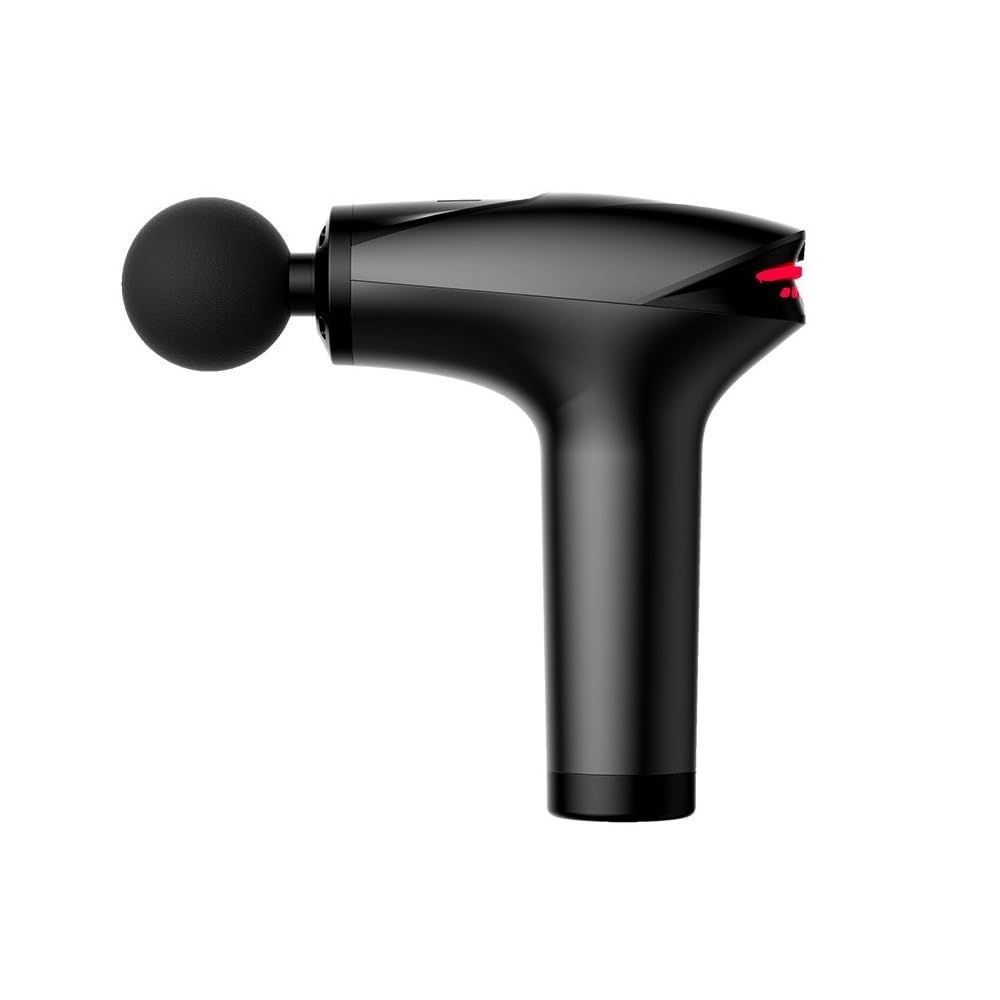

Figure 1: JAMJII HB-001 Cold Compress Massage Fascia Gun.
Key Features:
- AI Intelligent Chip: Provides smart massage therapy for targeted pain relief.
- Silent Design: Operates at approximately 40dB, ensuring a quiet and comfortable experience.
- 5 Professional Massage Heads: Includes specialized heads for various muscle groups and a cold compress head for post-exercise recovery.
- 8 Gear Strength: Adjustable vibration intensity levels for personalized massage.
- Long Endurance Battery: Equipped with an 1800mAh lithium-ion battery, providing up to 10 hours of use on a single charge.
- Automatic Protection: Automatically switches off after 10 minutes of continuous use to protect battery life and prevent overuse.
2. Safety Information
Please read all safety instructions carefully before using the JAMJII HB-001 Massage Fascia Gun. Improper use can lead to injury or device damage.
General Safety Precautions:
- Medical Conditions: Consult a physician before use if you are pregnant, have a pacemaker, suffer from diabetes, epilepsy, migraines, herniated discs, recent surgery, or any other medical condition.
- Avoid Sensitive Areas: Do not use the device on your head, face, open wounds, bony areas, joints, or areas with varicose veins.
- Children and Pets: Keep the device out of reach of children and pets.
- Water Exposure: This product is not water-resistant. Do not use it in wet environments or immerse it in water.
- Charging: Use only the provided charging cable. Do not attempt to modify or disassemble the battery.
- Overuse: The device has an automatic 10-minute shut-off feature. Do not exceed recommended usage times to prevent muscle fatigue or injury.
- Discontinue Use: If you experience pain, discomfort, or unusual sensations during use, stop immediately and consult a medical professional.
3. Product Components
The JAMJII HB-001 package includes the main massage gun unit and a set of interchangeable massage heads.
Figure 2: Main unit and included massage heads.
Package Contents:
- JAMJII HB-001 Massage Fascia Gun (Main Unit)
- 5 x Replaceable Massage Heads:
- Spherical Head: Suitable for large muscle groups like arms, back, hips, thighs, and calves.
- U-shaped Head: Designed for massaging the neck and Achilles tendon around the spine.
- Cold Compress Head: Accelerates relief of post-exercise pain and muscle soreness.
- (Additional heads may include flat, bullet, or other shapes for varied applications)
- Charging Cable
- User Manual
4. Setup Guide
4.1 Charging the Device
- Before first use, fully charge the massage gun.
- Connect the charging cable to the charging port on the device.
- Plug the other end of the cable into a suitable USB power adapter (not included) or a USB port.
- The LED display will indicate charging status. A full charge can provide up to 10 hours of use.
4.2 Attaching Massage Heads
- Ensure the device is powered off before attaching or removing any massage head.
- Select the desired massage head for your target muscle group.
- Align the base of the massage head with the opening on the front of the massage gun.
- Gently push the head firmly into the opening until it is securely seated. Do not twist forcefully.
- To remove, gently pull the massage head straight out from the device.
5. Operating Instructions
Follow these steps to operate your JAMJII HB-001 Massage Fascia Gun effectively and safely.
Figure 3: Using the massage gun for muscle relief.
5.1 Powering On/Off
- To Power On: Press and hold the power button (usually located on the handle or near the display) for a few seconds until the LED display illuminates.
- To Power Off: Press and hold the power button again until the display turns off.
5.2 Adjusting Speed/Intensity
- Once powered on, the device will typically start at the lowest speed setting.
- Press the speed adjustment button (often indicated by '+' or '-' symbols, or a single button to cycle through speeds) to increase or decrease the vibration intensity.
- The LED display will show the current gear strength (1-8).
5.3 Using the Massage Gun
- Select the appropriate massage head for the area you wish to treat.
- Gently place the massage head on the desired muscle area. Do not apply excessive pressure.
- Move the device slowly over the muscle, allowing the vibrations to penetrate. Avoid staying in one spot for too long.
- For specific muscle groups, refer to the guidelines below:
- Arms, Back, Hips, Thighs, Calves: Use the Spherical Head.
- Neck, Achilles Tendon: Use the U-shaped Head.
- Post-Exercise Soreness: Use the Cold Compress Head for targeted relief.
- The device will automatically shut off after 10 minutes of continuous use. If you wish to continue, simply power it on again.
Figure 4: Targeting muscle groups for soothing relief.
6. Maintenance
Proper maintenance ensures the longevity and optimal performance of your massage gun.
6.1 Cleaning the Device
- Always power off and unplug the device before cleaning.
- Wipe the surface of the massage gun with a soft, slightly damp cloth.
- Do not use abrasive cleaners, solvents, or harsh chemicals.
- Ensure no liquid enters the device's ventilation holes or charging port.
- Clean massage heads with a mild soap and water solution, then rinse and dry thoroughly before reattaching.
6.2 Storage
- Store the massage gun in a cool, dry place, away from direct sunlight and extreme temperatures.
- Keep it away from moisture and dust.
- Store the device and all accessories in its original packaging or a protective case to prevent damage.
7. Troubleshooting
If you encounter any issues with your JAMJII HB-001 Massage Fascia Gun, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on. | Battery is depleted. | Charge the device fully. |
| Power button not pressed correctly. | Press and hold the power button for a few seconds. | |
| Weak or no vibration. | Low battery. | Charge the device. |
| Massage head not properly attached. | Ensure the massage head is securely pushed into place. | |
| Device stops unexpectedly. | Automatic 10-minute shut-off activated. | This is a normal safety feature. Power on the device again to continue use. |
| Battery is critically low. | Charge the device. |
If the problem persists after trying these solutions, please contact customer support.
8. Specifications
Detailed technical specifications for the JAMJII HB-001 Cold Compress Massage Fascia Gun.
| Feature | Detail |
|---|---|
| Model Number | HB-001 |
| Product Dimensions | 6.1 x 7.8 x 2.6 inches (15.5 x 19.8 x 6.6 cm) |
| Item Weight | 1.98 Pounds (0.9 Kilograms) |
| Power Source | Battery Powered |
| Battery Type | 1 Lithium Ion battery (included) |
| Battery Capacity | 1800 mAh |
| Endurance | Up to 10 hours |
| Massage Heads | 5 (including cold compress, U-shaped, spherical) |
| Speed Settings | 8 Gear Strength |
| Noise Level | Approximately 40dB |
| Material | Plastic |
| Certifications | FCC, CE, ROHS |
| Automatic Shut-off | 10 minutes |
| Water Resistance Level | Not Water Resistant |
9. Warranty & Support
9.1 Manufacturer's Warranty
The JAMJII HB-001 Cold Compress Massage Fascia Gun comes with a 90-day manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or neglect.
9.2 Customer Support
For any questions, concerns, or warranty claims, please contact JAMJII customer support through your original point of purchase or the contact information provided with your product packaging. Please have your model number (HB-001) and proof of purchase ready when contacting support.
