Introduction
This instruction manual provides comprehensive information for the installation, operation, and maintenance of your Ussuray 272531 Top Valve Assembly Kit. This kit is designed as a direct replacement for various 1.5-inch top-mount HiFlow multiport valves used in pool and spa sand filter systems. Please read this manual thoroughly before beginning any procedures to ensure safe and efficient use of the product.
Product Overview and Wide Application
Image: The 272531 Hi-Flow Top Valve Assembly Kit, highlighting its compatibility with Tagelus, Sand Dollar, Meteor, and other 1.5-inch top-mount HiFlow multiport valve models including 261124, 261130, 262504, 262505, 262506, 272523, Pureline PL0700, and 272531.
The 272531 Top Valve Assembly is compatible with HiFlow 6-Way 1-1/2" multiport valves. It is designed to be compatible with a wide range of sand filters, including Tagelus, Sand Dollar, Meteor, and specific models such as 261124, 261130, 262504, 262505, 262506, 272523, and Pureline PL0700. This valve is commonly used on HI-FLOW MODELS 26-1124, 26-1130, 26-2506, 272523, primarily on PAC-FAB (PUREX/TRITON SYSTEMS) and TAGELUS FLITERS. It serves as a direct replacement for parts including 100304, 24-110-1466, 27500-154-100, 4600-2531, 72197, PAC-051-1776, PEN272531, and PL0748.
Package Contents

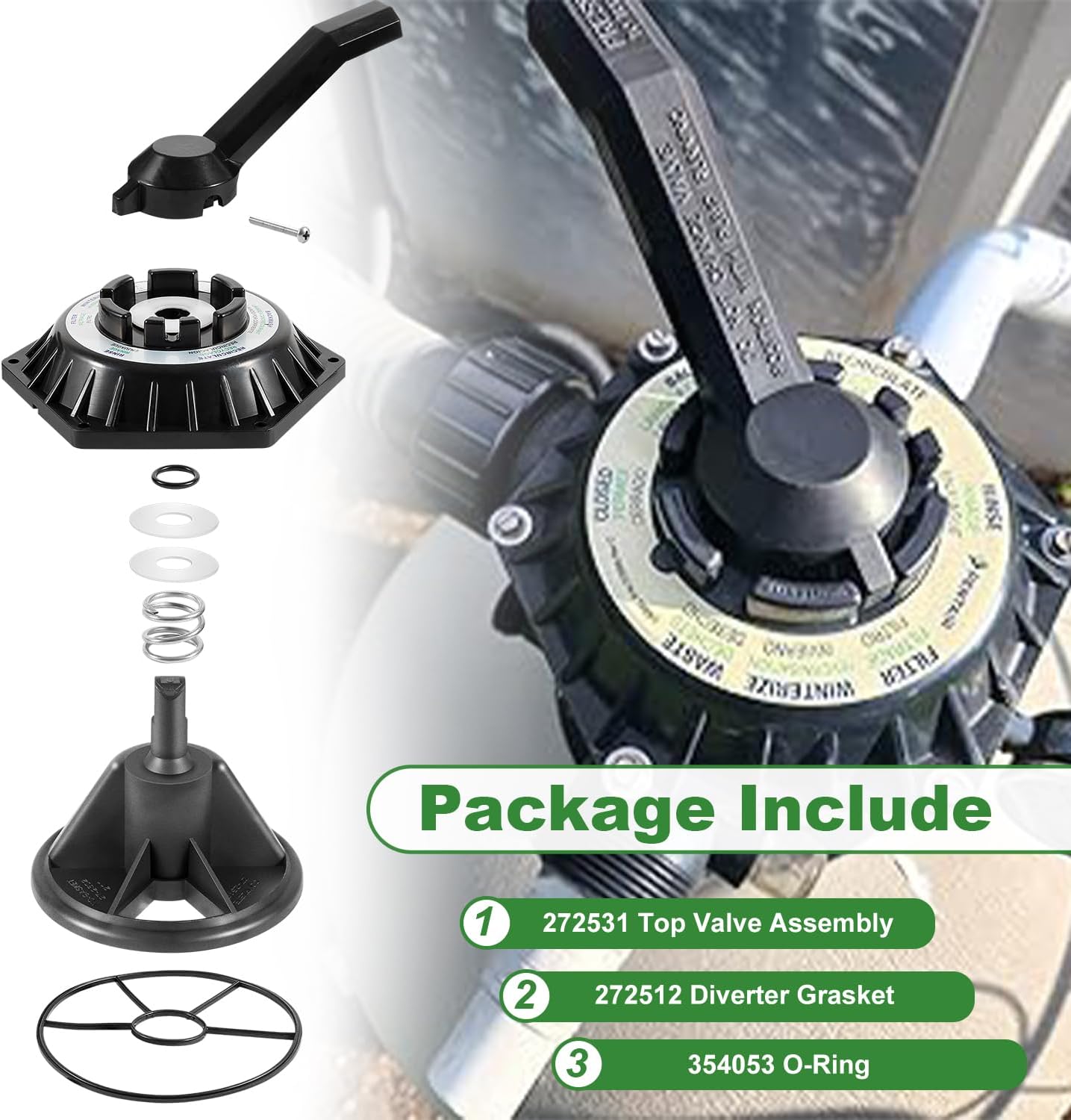

Image: A detailed view of the package contents, including the 272531 Top Valve Assembly, 272512 Diverter Gasket, and 354053 O-Ring.
Your 272531 Top Valve Assembly Kit includes the following components:
- 1 x 272531 Top Valve Assembly
- 1 x 272512 Diverter Gasket
- 1 x 354053 O-Ring
The inclusion of the necessary O-ring in the kit ensures a better seal and prevents valve leakage, saving you time from purchasing it separately.
Key Features
Image: Visual representation of the valve's key attributes, emphasizing its high-quality construction, durability, leak prevention via O-ring, and extended service life.
The 272531 valve is manufactured from premium and upgraded plastic and rubber, providing durable and sturdy performance. Each detail of the top valve is well-made, ensuring reliable use for a longer service life. The top valve with its included O-ring brings better sealing, effectively preventing valve leakage.
- Made of high-quality materials
- Durable and sturdy features
- With O-ring, prevents leakage
- Longer service life
Dimensions
Image: A technical drawing displaying the precise dimensions of the valve assembly, including its length (8.66 inches), width (6.54 inches), and height (7.6 inches).
The approximate dimensions of the 272531 Top Valve Assembly are:
- Length: 8.66 inches
- Width: 6.54 inches
- Height: 7.6 inches
Setup and Installation
The 272531 valve is designed for direct replacement. Before proceeding with installation, please confirm that this model is suitable for your specific filter system.
Video: This video demonstrates the process of disassembling and reassembling the 272531 Hi-Flow Top Valve Assembly Kit, including the removal and reinstallation of the O-ring and the top handle. It provides a visual guide for direct replacement.
Installation Steps:
- Preparation: Ensure the pool pump is turned off and the filter system is completely depressurized before beginning any work.
- Remove Old Valve: Carefully remove the old water valve from its position on the filter.
- Clean Surface: Clean the mating surface on the filter tank thoroughly to ensure a proper and leak-free seal with the new valve.
- Inspect New Valve: Inspect the new 272531 valve assembly and its O-ring (354053) for any signs of damage or imperfections.
- Install O-Ring: Place the new 354053 O-ring into its designated groove on the valve assembly.
- Position New Valve: Align the new valve assembly with the filter tank.
- Secure Valve: Bolt the new water valve securely into its original position. Ensure all bolts are tightened evenly to prevent stress on the valve body.
- Check Connections: Double-check all plumbing connections to ensure they are tight and properly sealed.
- Test for Leaks: Slowly turn on the pump and carefully inspect all connections and the valve itself for any signs of water leaks.
Operating the Multiport Valve
The 272531 Top Valve Assembly features a 6-way multiport valve, allowing for various operational modes for your pool or spa filter. Always turn off the pump before changing valve positions to prevent damage to the system.
Valve Positions:
- FILTER: This is the normal operating mode for daily filtration. Water flows through the filter media, trapping debris, and clean water is returned to the pool.
- BACKWASH: Used for cleaning the filter media. Water flows in reverse through the filter, dislodging trapped debris, and is directed out through the waste line. Perform backwash until the water runs clear in the sight glass (if available).
- RINSE: Used immediately after backwashing. This mode flushes out any remaining dirty water from the filter and settles the filter media. Water is directed to waste. Rinse for approximately 30-60 seconds.
- WASTE: In this mode, water bypasses the filter and is sent directly to the waste line. This is useful for vacuuming heavy debris directly to waste, lowering the pool water level, or draining the pool.
- RECIRCULATE: This mode bypasses the filter and circulates water directly back to the pool. It is used when the filter media is not needed, for example, when dissolving chemicals or if the filter is temporarily out of service.
- CLOSED: This position shuts off all flow to the filter. Use this position only when the pump is off and for maintenance or repairs on the filter or pump. Never operate the pump with the valve in the CLOSED position.
- WINTERIZE: (If applicable) This position is used to drain the valve and prepare the system for winter storage, preventing freezing damage.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your 272531 Top Valve Assembly and your pool filter system.
- O-Ring Inspection: Periodically inspect the main O-ring (354053) and the diverter gasket (272512) for any signs of wear, cracks, or dryness. Replace these components if they show signs of degradation to prevent leaks.
- Lubrication: Apply a silicone-based lubricant specifically designed for pool equipment to the O-ring and any other moving parts of the valve as needed. This helps maintain smooth operation and ensures a proper seal.
- Handle Operation: Ensure the valve handle moves freely and smoothly between all positions. If it becomes stiff or difficult to turn, check for debris or wear in the internal components.
- Winterization: If you live in an area with freezing temperatures, follow proper winterization procedures for your entire pool system, which includes draining the valve to prevent water from freezing and causing damage.
- Cleanliness: Keep the exterior of the valve clean from dirt, debris, and chemical residue.
Troubleshooting
If you encounter issues with your 272531 Top Valve Assembly, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leaking from valve handle or body | Worn, cracked, or improperly seated O-ring (354053) or diverter gasket (272512). Loose connections. | Turn off pump and depressurize system. Inspect and replace the O-ring or gasket if damaged. Ensure all bolts and plumbing connections are tight. |
| Valve handle is stiff or hard to turn | Lack of lubrication on O-rings, debris inside the valve, or worn internal parts. | Turn off pump. Lubricate the O-rings with silicone lubricant. Disassemble and clean any debris from the valve's internal components. If problem persists, internal parts may need replacement. |
| Poor filtration or cloudy water despite filter operation | Incorrect valve position, clogged filter media, or internal valve bypass/damage. | Ensure the valve is securely in the FILTER position. Perform a backwash and rinse cycle. If the issue continues, inspect the valve's internal diverter for damage or wear that might be causing water to bypass the filter media. |
Specifications
- Model Number: 272531
- Material: Plastic
- Dimensions (L x W x H): 8.66 x 6.54 x 7.6 inches
- Item Weight: 1.57 pounds
- Inlet Connection Size: 1.5 Inches
- Inlet Connection Type: Flange
- Outlet Connection Type: Flange
- Number of Ports: 6
- Valve Type: Multi Port Valve
- Manufacturer: Ussuray
Service and Support
If you have any questions about the Ussuray 272531 HiFlow valve top assembly, please do not hesitate to send us a message. We are committed to actively assisting you in finding a solution.
For further assistance or inquiries, please contact Ussuray customer support through the platform where the product was purchased. Please have your product model number (272531) and purchase details ready when contacting support.
