Introduction
This manual provides instructions for the installation, operation, and maintenance of your GLOWYE Caster Wheels. These wheels are designed as a direct replacement for specific Weber Spirit 200 and 300 Series Grills, corresponding to Weber part number 69827. Please read these instructions carefully before proceeding with installation to ensure proper function and longevity of the product.
Product Overview
The GLOWYE Caster Wheels are engineered for durability and smooth mobility. Each set includes two heavy-duty casters and mounting hardware.
- Material: Constructed from high-quality Polyvinyl chloride (PVC) for the wheel and thickened steel for the column and mounting plate, ensuring strong abrasion resistance.
- Design: Features a silent shock absorber and wear-resistant properties.
- Mobility: 360° rotation allows for smooth movement without scratching floor surfaces.
- Load Capacity: The set has a total load capacity of 2000 lbs.
Image: Two GLOWYE caster wheels, showing the black wheel and silver mounting plate, accompanied by eight screws for installation.
Image: A detailed view of one GLOWYE caster wheel, highlighting the mounting plate and the set of screws provided for attachment.
Compatibility
These GLOWYE caster wheels are designed to replace Weber part number 69827 and are compatible with the following Weber Spirit grill series and models:
- Weber Spirit 200 & 300 Series Grills (with "Up Front" controls), manufactured between 2013 and 2017.
- Specific Spirit Models: E210, S210, E220, S220, E310, S310, E320, S320, E330, S330, S315, SP310, SP320, SP330.
- Compatible Weber Model Numbers: 49000001, 49010001, 45000001, 45010001, 45020001, 45030001, 45060001, 46110001, 46113101, 46010074, 46010674, 46310001, 46100001, 47100001, 44000001, 44010001, 44020001, 44030001, 44060001, 44070001, 48000001, 48010001, 48070001.
Note: These casters are NOT compatible with Weber Spirit II 200 and 300 Series grills.
Image: A visual comparison indicating compatibility with Spirit 200 and 300 Series (2017 and Newer) and incompatibility with Spirit II 200 and 300 Series grills.
Image: A GLOWYE caster wheel highlighted on the base of a compatible Weber Spirit grill, demonstrating its intended application.
Specifications
| Mounting Type | Plate Mount |
| Load Capacity | 2000 Pounds (Total) |
| Caster Type | Swivel (360° Rotation) |
| Wheel Diameter | 2-7/8 inches |
| Mounting Plate Size | 2-3/8 inches |
| Wheel Width | 2 Inches |
| Material | Polyvinyl chloride (PVC) wheel, Steel plate and column |
| Color | Black |
| Unit Count | 2 Casters per package |

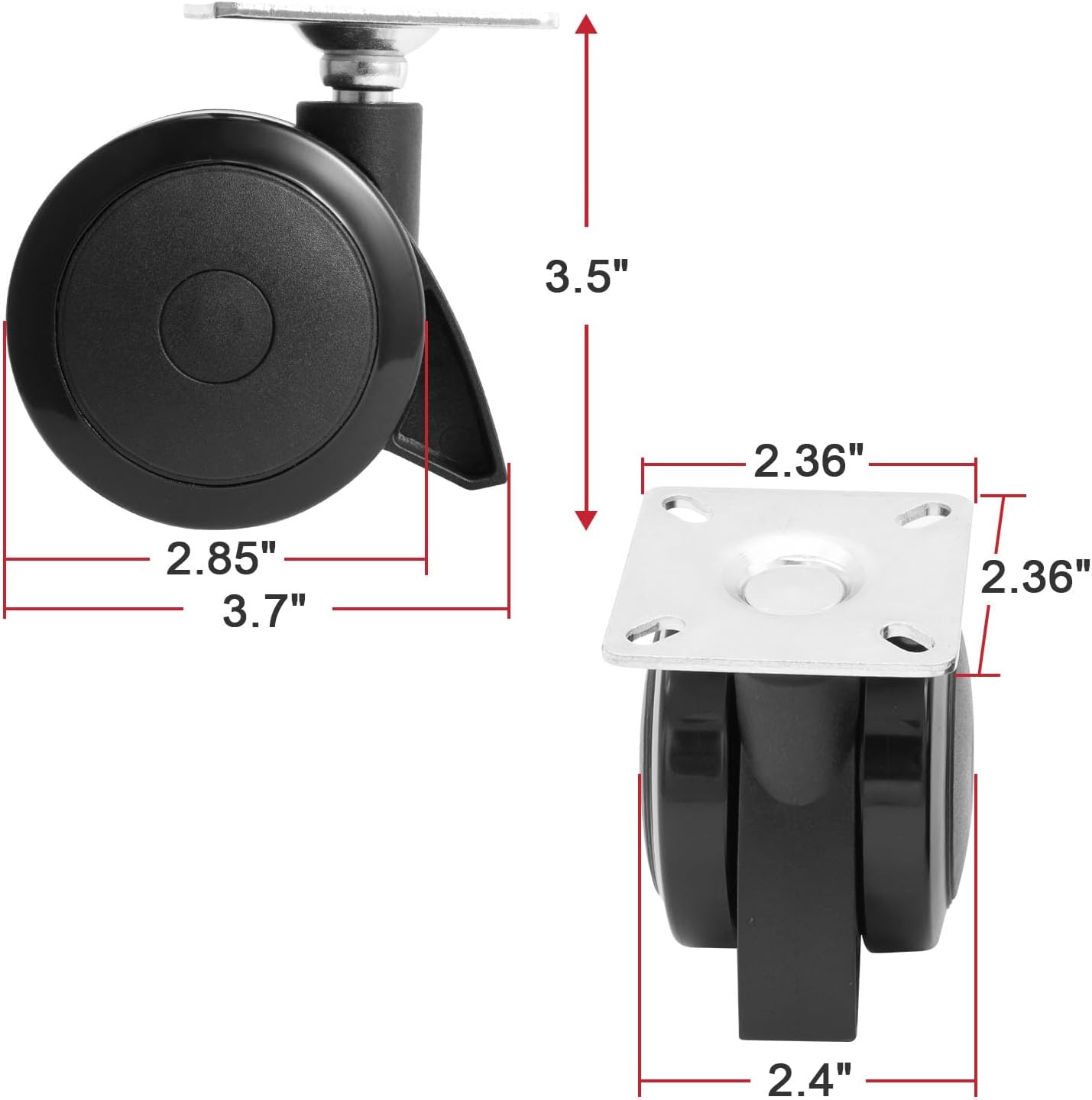

Image: A technical diagram illustrating the precise dimensions of the GLOWYE caster wheel, including wheel diameter, mounting plate size, and overall height.
Installation (Setup)
Follow these steps to replace the caster wheels on your compatible Weber Spirit grill:
- Safety First: Ensure your grill is cool, disconnected from any gas supply, and stable before beginning. It is recommended to have assistance when tilting or moving the grill.
- Access Existing Wheels: Carefully tilt the grill to access the underside where the existing caster wheels are attached. You may need to lay the grill on its side, ensuring it is securely supported to prevent tipping.
- Remove Old Casters: Locate the screws or fasteners holding the old caster wheels to the grill frame. Use an appropriate screwdriver or wrench to remove them. If the existing wheels are press-fit, you may need to gently pry them away from their base.
- Prepare New Casters: Take one GLOWYE caster wheel. Align its mounting plate with the holes on the grill frame where the old caster was removed.
- Attach New Casters: Use the included 8 screws to securely fasten the new caster wheel to the grill frame. Ensure the screws are tightened firmly but do not overtighten.
- Repeat: Repeat the process for any other wheels you are replacing.
- Verify Stability: Once all new casters are installed, carefully return the grill to its upright position. Gently push and pull the grill to ensure all wheels are securely attached and roll smoothly.
Operating
The GLOWYE caster wheels are designed for easy movement of your grill. Simply push or pull the grill to relocate it. The 360° swivel design allows for effortless changes in direction. Always ensure the path is clear of obstacles to prevent damage to the wheels or the grill.
Maintenance
To ensure the longevity and smooth operation of your GLOWYE caster wheels, consider the following maintenance tips:
- Regular Cleaning: Periodically inspect the wheels for any accumulated debris such as dirt, grass, hair, or string. Clean the wheels and axles as needed to prevent obstruction of movement.
- Lubrication: While not always necessary, a light application of silicone-based lubricant to the swivel mechanism can help maintain smooth rotation, especially if the wheels are exposed to harsh outdoor conditions.
- Inspection: Regularly check the mounting screws to ensure they remain tight. Inspect the wheel material for any signs of wear or damage.
Troubleshooting
If you encounter issues with your GLOWYE caster wheels, consider the following:
- Wheels Not Rolling Smoothly:
- Check for debris (dirt, pebbles, grass) caught in the wheel or axle. Clean thoroughly.
- Ensure the mounting screws are not overtightened, which could impede rotation.
- Verify that the surface you are rolling on is suitable. These wheels perform best on smooth, flat surfaces. Rough or uneven terrain like asphalt driveways may reduce rolling efficiency.
- Wobbling or Instability:
- Confirm all mounting screws are securely tightened.
- Ensure the grill frame itself is not damaged or bent where the casters attach.
Warranty and Support
For any questions or concerns regarding your GLOWYE caster wheels, please contact the GLOWYE customer service team. They are available to provide professional after-sales support and assistance.
Please refer to your purchase documentation for specific warranty details.
