Rodzon RC Stunt Car Model 3300 User Manual

Introduction

This manual provides essential instructions for the safe operation, setup, and maintenance of your Rodzon RC Stunt Car Model 3300. Please read this manual thoroughly before using the product to ensure proper function and longevity.

Package Contents

Verify that all items listed below are included in your package:

• Rodzon RC Stunt Car (Green)
• Remote Control
• Rechargeable Lithium Batteries for Car (2x 3.7V)
• USB Charging Cable
• Screwdriver
• User Manual

Image: The Rodzon RC Stunt Car in green, along with its remote control, two rechargeable batteries, a USB charging cable, and a screwdriver, representing the complete package contents.

Safety Information

• This product is recommended for ages 3 and up. Adult supervision is advised for younger children.
• Do not operate the car near people, pets, or fragile objects.
• Avoid operating in wet conditions or near water to prevent electrical damage.
• Do not touch moving parts during operation to prevent injury.
• Use only the provided charging cable and batteries.
• Do not attempt to modify or disassemble the car or remote control.
• Keep batteries away from heat sources and direct sunlight.

Setup

1. Battery Installation (RC Car)

1. Locate the battery compartment on the underside of the RC car.
2. Use the included screwdriver to open the battery compartment cover.
3. Connect one of the 3.7V rechargeable lithium batteries to the car's battery connector.
4. Place the battery inside the compartment and close the cover securely with the screwdriver.

Image: Two rechargeable lithium batteries, indicating the power source for the RC car.

2. Battery Installation (Remote Control)

1. Locate the battery compartment on the back of the remote control.
2. Open the battery compartment cover.
3. Insert two AA batteries (not included) into the compartment, ensuring correct polarity (+/-).
4. Close the battery compartment cover.

3. Charging the Car Battery

1. Connect the USB charging cable to the car battery.
2. Plug the USB end of the cable into a standard USB power adapter (e.g., phone charger, computer USB port).
3. The indicator light on the USB cable will illuminate during charging. It will turn off or change color when fully charged.
4. Charging typically takes 60-90 minutes. Do not overcharge.

4. Pairing the Car and Remote Control

1. Ensure the car battery is installed and fully charged.
2. Turn on the RC car using the power switch located on the car. The car's lights will flash.
3. Turn on the remote control. The indicator light on the remote will flash.
4. The car and remote will automatically pair. Once paired, the lights on both the car and remote will stop flashing and remain solid.
5. If pairing fails, turn off both devices and repeat the steps.

Operation

The Rodzon RC Stunt Car features a 2.4GHz remote control system for stable, long-distance operation up to 30 meters. It is equipped with two powerful motors for high-speed performance and is designed for various terrains.

Basic Controls

Image: Diagram illustrating the remote control's functions: pushing both joysticks up for forward, both down for backward, left joystick up for right turn, right joystick up for left turn, left joystick up and right joystick down for clockwise rotation, and left joystick down and right joystick up for counter-clockwise rotation. The remote control range is approximately 20 meters.

• Forward/Backward: Push both joysticks simultaneously upwards for forward movement, or downwards for backward movement.
• Turn Left/Right: Push only the left joystick upwards to turn right, or only the right joystick upwards to turn left.
• Clockwise Rotation: Push the left joystick up and the right joystick down simultaneously.
• Counter-Clockwise Rotation: Push the left joystick down and the right joystick up simultaneously.

Special Features

Image: An infographic highlighting the car's main features: 4-wheel drive (4WD), 2.4GHz control frequency, 180-degree flip capability, high speed, 360-degree rotation, anti-skid tires, powerful drive system, and cool LED wheel lights.

• LED Lights: The car features bright, colorful LED lights in its wheels and headlights, enhancing visibility and visual appeal, especially in low-light conditions.
• 360° Rotation: The car can perform full 360-degree spins in place.
• 180° Flip: Designed for stunt maneuvers, the car can flip and continue driving on its other side.
• Drift Capability: The car's design allows for exciting drift actions.
• All-Terrain Driving: Equipped with durable, anti-skid tires, the car can operate on various surfaces including grass, dirt, and pavement.
• Powerful Drive: Two integrated motors provide strong power for high-speed performance and climbing capabilities.

Image: A sequence showing the RC car rotating 360 degrees and performing a 180-degree flip, demonstrating its stunt capabilities.

Image: A close-up view of the RC car's internal motor, illustrating its powerful drive system.

Image: The RC car is shown climbing a set of outdoor stairs, highlighting its ability to traverse various terrains.

Maintenance

• Cleaning: Use a dry, soft cloth to clean the car and remote control. Do not use water or chemical cleaners.
• Battery Care:
  • Always fully charge the car's lithium batteries before storage.
  • Remove all batteries from the car and remote control if not in use for more than one week.
  • Store batteries in a cool, dry place.
• Storage: Store the car and remote control in a dry environment, away from direct sunlight and extreme temperatures.
• Inspection: Periodically check for loose screws or damaged parts. Do not operate if damaged.

Troubleshooting

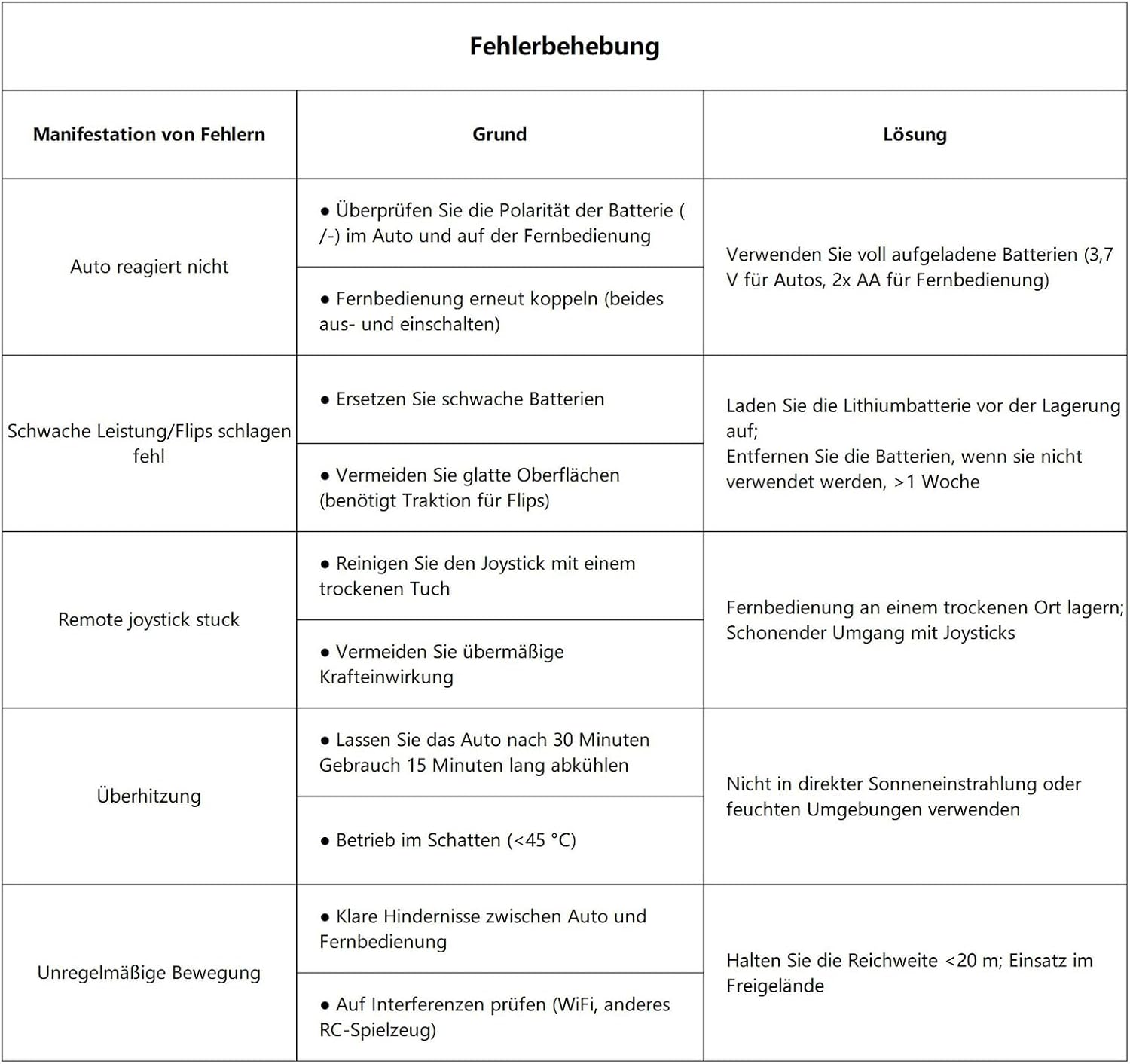

Image: A table detailing common problems, their causes, and solutions for the RC car, including issues like non-responsiveness, weak performance, stuck joysticks, overheating, and irregular movement.

Specifications

Warranty and Support

Information regarding specific warranty terms or direct support contact details is not available in the provided product data. For any issues or inquiries, please refer to the retailer's return policy or contact the seller directly through your purchase platform.
