Dallas 140 Horizontal Articulated Double Bed with Overhead Storage

1. Welcome and Product Overview

Thank you for choosing the Eu Amo Móveis Dallas 140 Horizontal Articulated Double Bed. This innovative furniture piece is designed to maximize space in your home, offering a comfortable sleeping solution that neatly folds away to reveal integrated overhead storage and shelving. Please read this manual carefully before assembly and use to ensure safe operation and proper maintenance.

2. Important Safety Guidelines

Your safety is paramount. Please adhere to the following guidelines:

• Wall Mounting is Mandatory: For safety reasons and to prevent tipping, the bed unit must be securely fixed to a solid wall using appropriate hardware. Failure to do so can result in serious injury or death.
• Ensure all assembly hardware is tightened securely before use. Periodically check and re-tighten all connections.
• Keep children and pets away from the bed during opening and closing operations.
• Do not place excessive weight on the bed frame or shelves. Refer to specifications for weight limits.
• Do not attempt to modify the bed's structure or mechanisms.
• Always ensure the area around the bed is clear before opening or closing.

3. Package Contents

Before beginning assembly, please verify that all components are present and undamaged. If any parts are missing or damaged, contact customer support immediately.

• Dallas 140 Horizontal Articulated Double Bed components (main frame, bed base, overhead storage, shelves)
• Assembly Hardware Kit
• Feet for bed support
• Installation Manual (this document)

4. Setup and Installation

Assembly of the Dallas 140 bed requires two adults and basic tools (not included). It is highly recommended to have professional assistance for installation, especially for wall mounting.

1. Prepare the Area: Choose a suitable wall for installation. Ensure the wall is structurally sound and free of electrical wires or plumbing where drilling will occur. Clear the area of any obstacles.
2. Assemble the Main Frame: Follow the step-by-step instructions provided in the included assembly hardware kit to construct the main frame and overhead storage unit.
3. Attach Feet: Securely attach the provided feet to the bed base as indicated in the assembly instructions.
4. Wall Mounting: This is the most critical step. Carefully measure and mark the drilling points on the wall according to the manual. Use appropriate wall anchors and screws for your wall type (e.g., concrete, brick, wood studs). Ensure the unit is level and securely fastened to the wall.
5. Install Bed Mechanism: Attach the articulated bed mechanism to the main frame and bed base, ensuring smooth operation.
6. Final Checks: Before first use, double-check all screws and connections for tightness. Test the bed's opening and closing mechanism several times to ensure it operates smoothly and safely.

Figure 4.1: Open Bed Dimensions. This diagram illustrates the overall dimensions of the bed unit when fully extended, including the bed frame and overhead storage. Key measurements are provided in millimeters.

Figure 4.2: Closed Bed Dimensions. This diagram shows the compact dimensions of the bed unit when folded up against the wall, highlighting its space-saving design and the integrated shelving.

5. Operating Your Articulated Bed

The Dallas 140 bed is designed for easy and safe operation. Always ensure the area is clear before moving the bed.

1. To Open the Bed: Gently pull the bed frame downwards from its closed position. The articulated mechanism will smoothly guide the bed to its horizontal, open position. Ensure the support legs are fully extended and locked into place for stability.
2. To Close the Bed: Lift the bed frame upwards from the foot end. The mechanism will assist in retracting the bed into its vertical, closed position against the wall. Ensure it locks securely in place.

Figure 5.1: Bed in Open Position. This image shows the Dallas 140 bed fully extended and ready for use, with bedding and items placed on the overhead shelves.

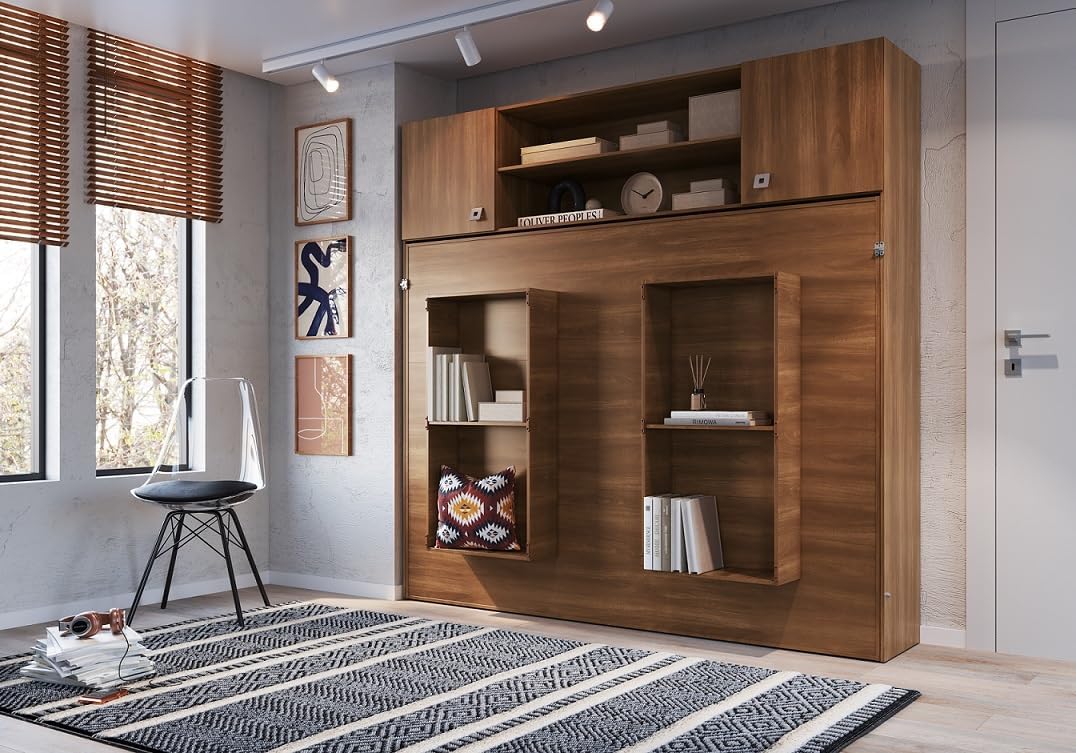

Figure 5.2: Bed in Closed Position. This image displays the Dallas 140 bed folded vertically against the wall, showcasing its compact design and the integrated shelving units.

6. Care and Maintenance

Proper care will extend the life and appearance of your Dallas 140 bed.

• Cleaning: Clean the surfaces with a soft, dry cloth or a cloth lightly dampened with water and mild soap. Avoid abrasive cleaners, harsh chemicals, or excessive moisture, as these can damage the MDP material.
• Regular Checks: Periodically inspect all screws, bolts, and connections to ensure they remain tight. Re-tighten as necessary.
• Mechanism Care: The articulated mechanism is designed for durability. Avoid forcing the bed open or closed. If you notice any stiffness, ensure there are no obstructions. Do not lubricate the mechanism unless specifically instructed by the manufacturer.
• Environmental Conditions: Avoid exposing the furniture to direct sunlight, extreme temperatures, or high humidity, which can cause warping or discoloration.

7. Troubleshooting

If you encounter any issues with your Dallas 140 bed, please refer to the following common solutions:

• Bed is difficult to open/close:
  • Check for any obstructions around or under the bed frame.
  • Ensure all assembly hardware is properly tightened and not causing misalignment.
  • Verify that the wall mounting is secure and the unit is level.
• Bed feels unstable:
  • Confirm that the bed is securely fixed to the wall as per installation instructions.
  • Ensure all support legs are fully extended and locked when the bed is open.
  • Check that all assembly screws are tight.
• Damaged parts:
  • Do not attempt to repair severely damaged structural components. Contact customer support for replacement parts.

If the problem persists after attempting these solutions, please contact Eu Amo Móveis customer support.

8. Product Specifications

9. Warranty and Customer Support

Eu Amo Móveis stands behind the quality of its products. For information regarding warranty coverage, replacement parts, or technical assistance, please contact Eu Amo Móveis customer support through their official website or the retailer where the product was purchased. Please have your model number (Dallas 140) and ASIN (B0C7CTYH9W) ready when contacting support.
