FORLIM Gravity Electric Salt and Pepper Grinder Set User Manual

Introduction

Thank you for choosing the FORLIM Gravity Electric Salt and Pepper Grinder Set. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new electric grinders. Designed for convenience and precision, these grinders feature a gravity-activated mechanism, adjustable coarseness, and USB-C fast charging, making seasoning your meals effortless.

Product Overview

The FORLIM Electric Salt and Pepper Grinder Set consists of two units, typically one for salt and one for pepper, though they can be used interchangeably with various spices. Each grinder features a durable stainless steel body, a transparent acrylic container for spices, and a ceramic grinding mechanism.

Components:

• Grinder Body: Houses the motor, battery, and control electronics.
• Spice Container: Transparent chamber for holding salt, pepper, or other spices.
• Grinding Mechanism: Ceramic rotors located at the bottom, adjustable for coarseness.
• USB-C Charging Port: Located on the side of the grinder body for recharging.
• Power Button/Indicator Light: A button on the side, often with an integrated LED light indicating operation or charging status.
• Coarseness Adjustment Knob: Located at the bottom of the grinder, used to select grind size.

Image: The complete FORLIM Gravity Electric Salt and Pepper Grinder Set, including two grinders, USB-C charging cables, and a cleaning brush.

Image: An internal diagram illustrating the upgraded motor and built-in rechargeable Li-ion battery within the grinder.

Setup

Before first use, please follow these steps to set up your grinder:

1. Initial Charging: Fully charge the grinder using the provided USB-C cable. Connect the cable to the grinder's charging port and a suitable USB power adapter (adapter not included). The indicator light will show charging status. A full charge typically takes over 60 minutes and provides 3-6 months of use.
2. Filling the Grinder:
   • Twist the top stainless steel part counter-clockwise to detach it from the transparent spice container.
   • Fill the transparent container with your desired salt, pepper, or spices. The large capacity allows for ample storage.
   • Align the top part with the container and twist clockwise to secure it firmly.
3. Adjusting Coarseness: Turn the adjustment knob located at the bottom of the grinder to select your preferred grind size, from fine to coarse. Turn clockwise for finer grinds and counter-clockwise for coarser grinds.

Image: A visual guide demonstrating the four key setup and operation steps: charging, refilling, adjusting grind thickness, and gravity-activated grinding.

Operating Instructions

The FORLIM Gravity Electric Grinder features a simple one-hand operated, gravity-activated mechanism:

1. Ensure the grinder is filled with your desired spice and fully charged.
2. Turn on the safety switch (if present, typically a small button or switch on the side).
3. Simply tilt the grinder to an angle of 45 degrees or more downwards. The grinding mechanism will automatically activate, and the built-in blue LED light will illuminate, indicating operation.
4. Once you have dispensed the desired amount of spice, return the grinder to an upright position (less than 0 degrees tilt) to stop the grinding.

Image: A user demonstrating the gravity-activated grinding feature, tilting the grinder over a plate of food, with the blue LED light visible.

Adjustable Coarseness

Your FORLIM grinder allows you to customize the coarseness of your grind to suit various culinary needs. This is achieved by adjusting the ceramic grinding mechanism at the bottom of the unit.

• To adjust, locate the knob at the very bottom of the grinder.
• Turn the knob clockwise for a finer grind, ideal for delicate dishes or baking.
• Turn the knob counter-clockwise for a coarser grind, perfect for steaks, salads, or when a more robust texture is desired.

Image: A detailed view of the customizable coarseness adjustment knob at the base of the grinder, showing indicators for fine and coarse settings.

Refilling

The FORLIM grinders feature an extra-large capacity spice chamber, reducing the frequency of refills. When refilling is necessary, follow these steps:

1. Ensure the grinder is in an upright position and not actively grinding.
2. Gently twist the top stainless steel section counter-clockwise to separate it from the transparent spice container.
3. Carefully pour your desired salt, pepper, or spices into the wide opening of the transparent container. Avoid overfilling.
4. Reattach the top section by aligning it and twisting clockwise until securely fastened.

Image: A visual comparison highlighting the ease of refilling the FORLIM grinder's wide-mouth container compared to a narrower, less convenient design.

Charging

Your FORLIM Electric Grinder is equipped with a built-in rechargeable lithium-ion battery for convenience and environmental friendliness. To charge:

• Locate the USB-C charging port on the side of the grinder body.
• Insert the provided USB-C cable into the grinder's port.
• Connect the other end of the USB-C cable to a standard USB power source (e.g., wall adapter, computer USB port, power bank).
• The indicator light will illuminate to show that charging is in progress.
• A full charge takes approximately 60 minutes and provides extended usage time (3-6 months depending on frequency of use).

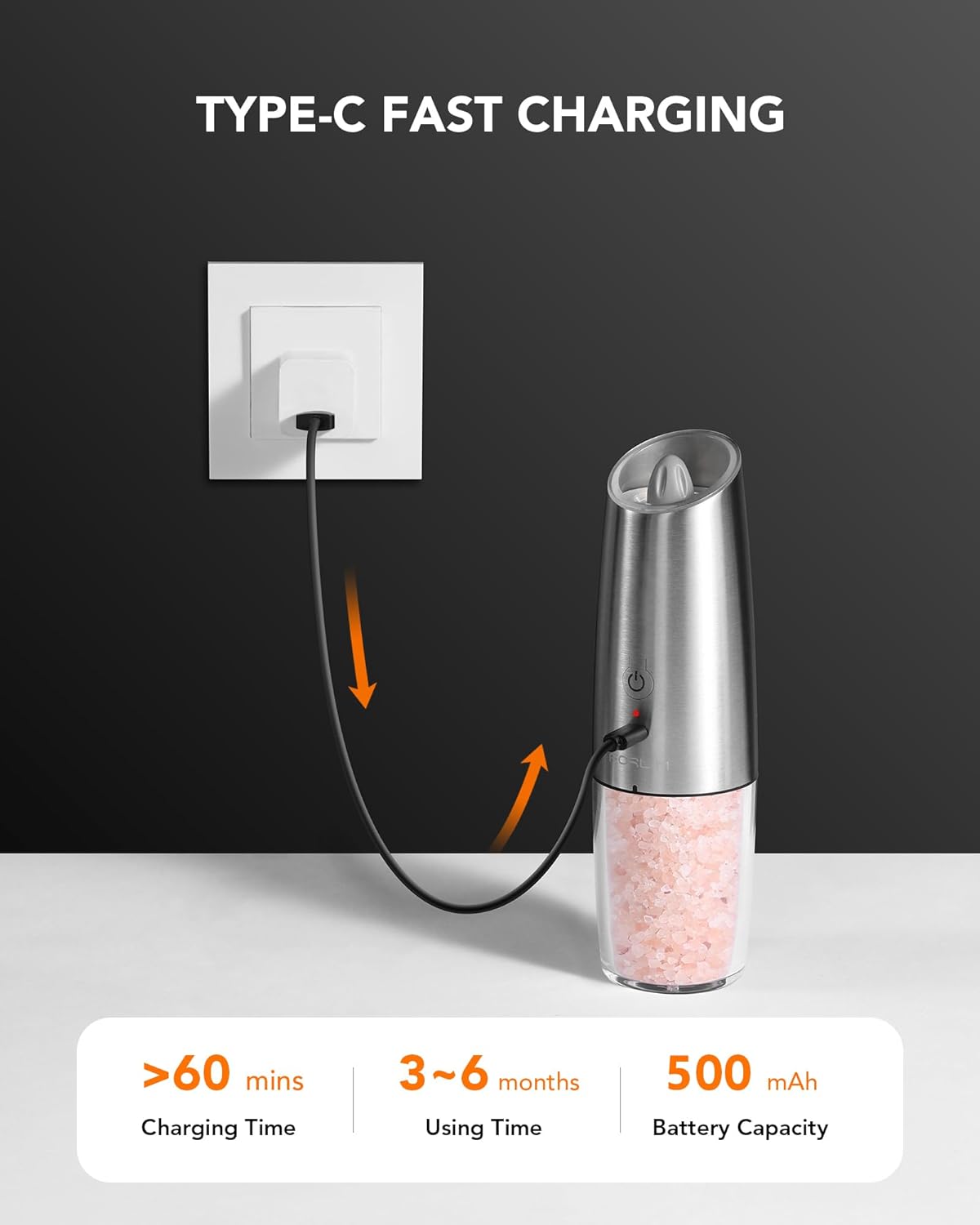

Image: The FORLIM grinder connected to a wall adapter via its USB-C cable, illustrating the fast charging capability.

Maintenance and Cleaning

Proper maintenance ensures the longevity and optimal performance of your FORLIM grinder. Please follow these guidelines:

• Cleaning the Spice Chamber: The transparent spice chamber is detachable and washable. After emptying, it can be rinsed with water. Ensure it is completely dry before reattaching and refilling.
• Cleaning the Grinder Body: The main grinder body, containing the electronics and motor, is NOT dishwasher safe and should NOT be submerged in water. Wipe the exterior with a soft, damp cloth. Use the provided cleaning brush to remove any spice residue from the grinding mechanism.
• Storage: Store the grinders in a dry place away from direct sunlight and excessive humidity.
• Avoid Harsh Cleaners: Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or internal components.

Image: The detachable spice chamber being submerged in water, illustrating its washable design for easy cleaning.

Troubleshooting

If you encounter issues with your FORLIM Electric Grinder, please refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact FORLIM customer support for assistance.

Specifications

Warranty and Support

FORLIM is committed to providing high-quality products and excellent customer service.

• Warranty: Your FORLIM Gravity Electric Salt and Pepper Grinder Set comes with a 12-month after-sale care period.
• Customer Support: For any questions, concerns, or technical assistance, our dedicated team is available for 24-hour support. Please refer to the product packaging or the FORLIM official website for contact details.

Image: Information regarding FORLIM's 12-month after-sale care and 24-hour team support, emphasizing commitment to customer satisfaction.
