Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of your Qideyipe PMB1275PNB1-AY 12V 3.6W Turbo Blower Cooling Fan. Please read this manual thoroughly before using the product and retain it for future reference.
The PMB1275PNB1-AY is a compact 12V turbo blower fan designed for cooling applications in various electronic and industrial setups. Its efficient design ensures effective airflow for heat dissipation.
Safety Information
- Power Supply: Ensure the fan is connected to a stable 12V DC power source. Connecting to an incorrect voltage may damage the fan or the power supply.
- Polarity: Observe correct polarity when connecting the wires (red for positive, black for negative). Incorrect polarity will prevent the fan from operating.
- Moving Parts: Keep fingers and other objects away from the fan blades during operation to prevent injury or damage to the fan.
- Environment: Do not expose the fan to excessive moisture, dust, or extreme temperatures. Operate within specified environmental conditions.
- Installation: Ensure the fan is securely mounted to prevent vibration or detachment during operation.
Package Contents
- 1 x Qideyipe PMB1275PNB1-AY Turbo Blower Cooling Fan
Setup
1. Physical Installation
Identify a suitable mounting location that allows for optimal airflow and heat dissipation. The fan features mounting holes for secure attachment. Use appropriate screws (not included) to fasten the fan firmly to the desired surface or enclosure.

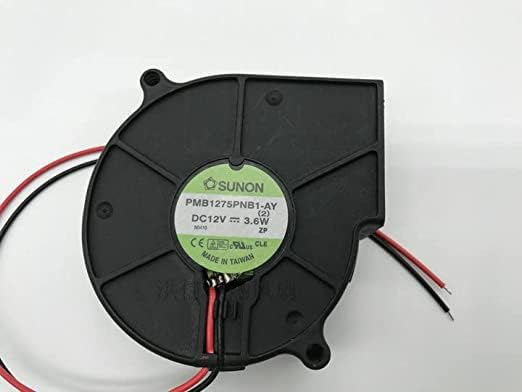

Image: The Qideyipe PMB1275PNB1-AY Turbo Blower Cooling Fan, showing its compact black housing and exposed red and black power wires.
2. Electrical Connection
Connect the fan to a 12V DC power supply. The fan has two wires:
- Red Wire: Connect to the positive (+) terminal of the 12V DC power supply.
- Black Wire: Connect to the negative (-) or ground terminal of the 12V DC power supply.
Ensure all connections are secure and insulated to prevent short circuits.
Operating
Once properly installed and connected to a 12V DC power source, the fan will begin to operate, drawing air in and expelling it to create a cooling airflow. The fan is designed for continuous operation within its specified voltage and temperature ranges.
- Initial Check: After connecting power, observe the fan to ensure it spins freely and quietly.
- Airflow Direction: The fan is a blower type, meaning it draws air from its central intake and expels it through the side outlet. Ensure the fan's orientation supports the desired airflow path for your cooling application.
Maintenance
Regular maintenance helps ensure optimal performance and longevity of your cooling fan.
- Dust Removal: Periodically inspect the fan for dust accumulation on the blades and inside the housing. Use compressed air or a soft brush to gently remove dust. Ensure the power is disconnected before cleaning.
- Connection Check: Occasionally check the electrical connections to ensure they remain secure and free from corrosion.
- Noise Monitoring: Listen for any unusual noises during operation, which could indicate a potential issue.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not spin | No power, incorrect voltage, incorrect polarity, loose connection, damaged fan. | Verify 12V DC power supply. Check wire connections for correct polarity (red+, black-). Ensure connections are secure. If issues persist, the fan may be faulty. |
| Fan makes unusual noise | Dust accumulation, obstruction, worn bearing. | Disconnect power and clean fan blades and housing. Check for any obstructions. If noise persists, the fan may require replacement. |
| Weak airflow | Dust accumulation, obstruction, fan operating below rated voltage. | Clean the fan. Ensure the fan is receiving a stable 12V DC. Check for obstructions in the intake or exhaust. |
Specifications
- Model: PMB1275PNB1-AY
- Dimensions: 75mm x 75mm x 30mm (2.95"L x 1.18"W x 2.95"H)
- Voltage: 12V DC
- Power: 3.6W
- Material: Copper (internal components), Plastic (housing)
- Manufacturer: Wilson Dick
- UPC: 768611523829
Customer Support
For any questions, concerns, or assistance regarding your Qideyipe PMB1275PNB1-AY Turbo Blower Cooling Fan, please contact Qideyipe customer service. We are committed to providing support and will assist you wholeheartedly.
Contact information (e.g., email address or website) would typically be provided here by the manufacturer.
