Introduction
This manual provides instructions for the proper installation, operation, and maintenance of your Relaxdays Pet Door for screen doors. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.
Safety Information
- Ensure all components are securely fastened during installation.
- Keep small children away from the pet door during installation and initial use to prevent injury.
- Regularly inspect the pet door for any signs of wear or damage. Replace damaged parts immediately.
- This pet door is designed for small cats and dogs. Do not use for larger animals or other purposes.
Package Contents
Verify that all parts are present before beginning installation:
- 1x Relaxdays Pet Door (front and back frames with flap)
- Mounting screws
- Installation template (if included, otherwise use measurements)
Setup and Installation
This pet door is designed for installation on screen doors. Follow these steps carefully:
- Choose Location: Select a suitable location on your screen door, ensuring it is at an appropriate height for your pet. The bottom of the opening should be slightly above your pet's belly.
- Prepare Screen: Carefully mark the cutting area on the screen using the pet door frame as a guide or an included template. Ensure the marked area is slightly smaller than the outer frame but larger than the flap opening.
- Cut Opening: Using a sharp utility knife or scissors, carefully cut the marked opening in the screen material. Be precise to avoid fraying.
- Position Frames: Place one half of the pet door frame on one side of the screen, aligning it with the cut opening. Place the other half of the frame on the opposite side of the screen, sandwiching the screen material between the two frames.
- Secure Frames: Align the screw holes on both frames. Insert the provided mounting screws through the holes and tighten them securely. Do not overtighten, as this may damage the screen or frame.
- Test Flap: Ensure the pet door flap swings freely and the magnetic closure engages properly.

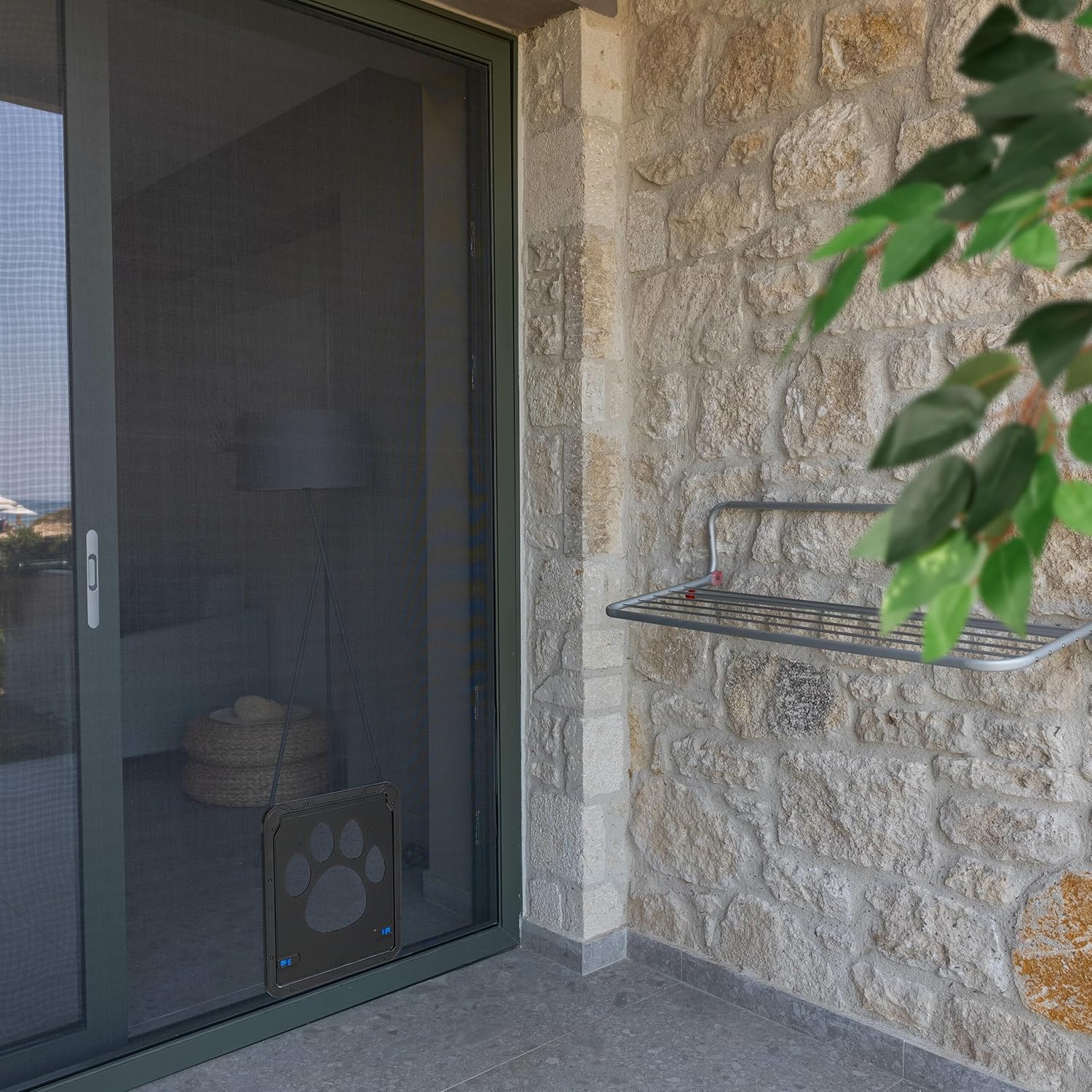

Image: The pet door installed on a screen door, viewed from the exterior.
Image: A small dog interacting with the pet door installed on a screen door, viewed from the interior.
Operating Instructions
The Relaxdays Pet Door allows your small cat or dog to pass through screen doors independently.
- Automatic Closure: The integrated magnets ensure the pet door flap automatically closes after your pet passes through, helping to keep insects out.
- Locking Mechanism: The pet door is equipped with two sliding latches (one on each side of the flap). Slide these latches to the "Close" position to prevent your pet from using the door. Slide them to the "Open" position to allow free passage.
Image: A cat passing through the pet door installed on a screen door, demonstrating its use.

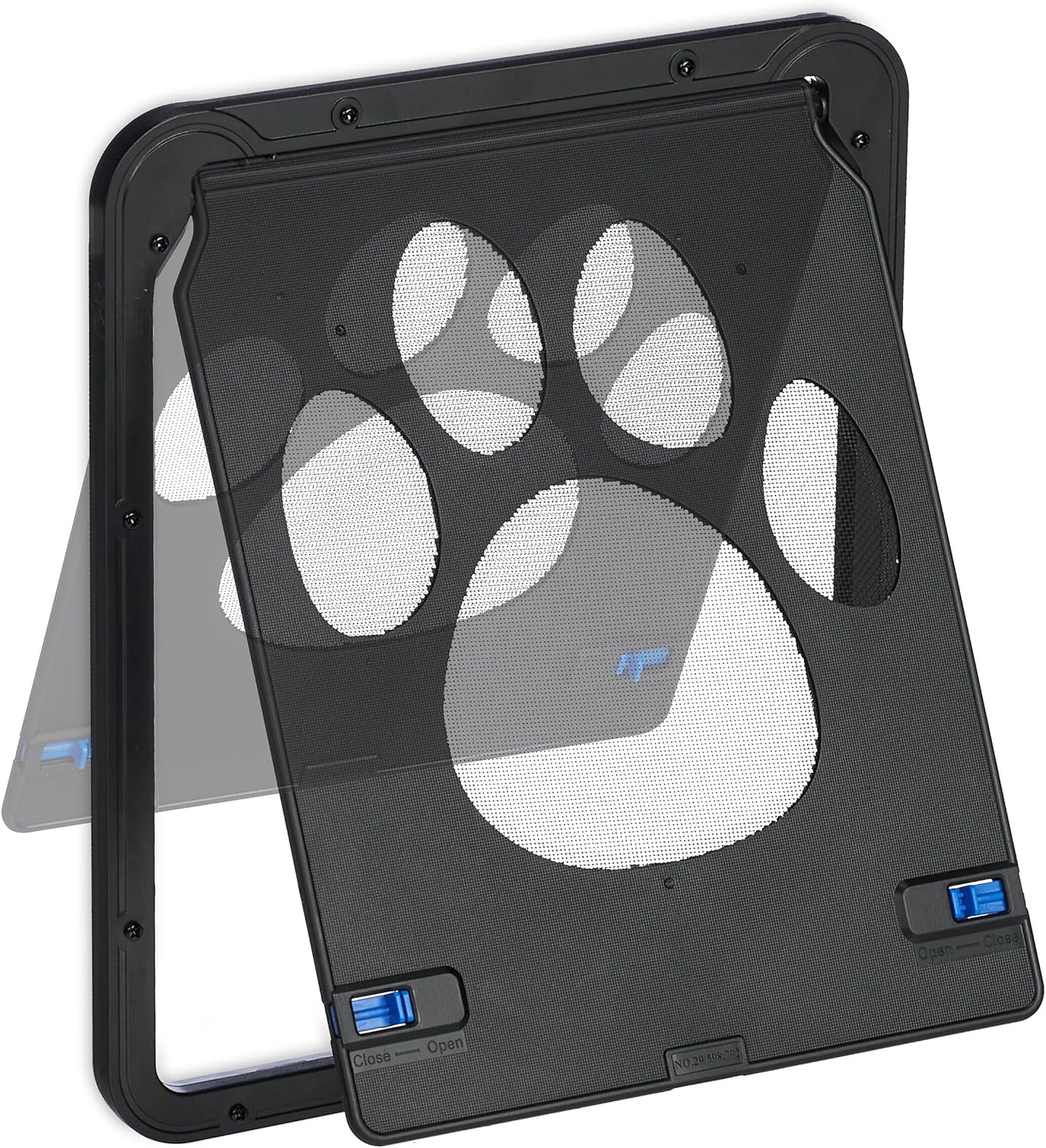

Image: The pet door flap shown in an open position, demonstrating its movement.
Image: A detailed view of the sliding latch mechanism on the pet door, indicating "Open" and "Close" positions.
Maintenance
To ensure the longevity and proper function of your pet door, follow these maintenance guidelines:
- Cleaning: Wipe the pet door frames and flap with a damp cloth and mild soap as needed. Avoid abrasive cleaners that could damage the plastic or screen material.
- Inspection: Periodically check the screws for tightness and the flap for smooth operation. Ensure the magnets are clean and free of debris to maintain proper closure.
- Screen Integrity: Inspect the screen material around the pet door for any tears or damage. Repair or replace the screen if necessary to maintain its function.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Flap does not close completely. | Debris on magnets or hinge, misaligned flap. | Clean magnets and hinge area. Check if the flap is properly seated in the frame. |
| Difficulty opening/closing latches. | Dirt or obstruction in the latch mechanism. | Clean the latch area. Ensure no foreign objects are blocking movement. |
| Pet is hesitant to use the door. | Unfamiliarity, fear of the flap. | Gently guide your pet through the door with treats. Hold the flap open initially to encourage use. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | 10044088_46 |
| Brand | Relaxdays |
| Color | Black |
| Material | Acrylonitrile Butadiene Styrene (ABS), Nylon |
| Exterior Dimensions | Approx. 29 x 24 cm (Height x Width) |
| Interior Flap Opening | Approx. 24.5 x 21 cm (Height x Width) |
| Product Dimensions (overall) | 2 x 29 x 29 cm; 250 g (Depth x Height x Width; Weight) |
| Suitable for | Small cats and dogs |
| Features | Magnetic closure, 2 sliding latches |
Image: Diagram illustrating the exterior dimensions of the pet door (29 cm height, 24 cm width).
Warranty and Support
Information regarding warranty and customer support is not available in the provided product data. Please refer to the product packaging or the manufacturer's official website for details.
