KOBI LUK Children's Bed with Mattress and Frame, 160x80 cm - Instruction Manual

1. Introduction

Thank you for choosing the KOBI LUK Children's Bed. This manual provides essential information for the safe assembly, proper use, and maintenance of your new bed. Please read these instructions carefully before assembly and retain them for future reference.

The KOBI LUK bed is designed to provide a safe and comfortable sleeping environment for children, featuring a durable construction and a movable safety barrier.

Image 1.1: KOBI LUK Children's Bed (White with Car Graphic)

2. Product Features

• Enhanced Durability: Bed edges are secured without glue, ensuring increased durability and stability for long-lasting performance.
• Safety First Design: Rounded bed edges are protected with a PVC trim, reducing the risk of accidental bumps or injuries. The sufficient height of the bed prevents falls, offering a secure and worry-free sleeping experience.
• Robust and Reliable: With a remarkable load capacity of up to 110 kg, this bed offers exceptional strength and optimal stability, accommodating various body types and ensuring safe and comfortable rest.
• Quality Construction: The bed features a spring slat frame using the FLEX system, providing superior support and optimal comfort. The high-quality laminated furniture board structure enhances stability and durability.
• Quality Assurance: Manufactured from certified raw materials, ensuring compliance with strict quality standards and safety regulations. Designed for self-assembly, offering convenience and flexibility. Safety barriers can be installed on either the right or left side for additional protection.

3. Package Contents

Please check the package contents against the list below. If any parts are missing or damaged, please contact customer support immediately.

• Bed frame components
• Safety barrier (movable)
• Mattress (160 x 80 cm)
• Slatted bed base (FLEX system)
• Assembly instructions
• Assembly kit (screws, dowels, tools if applicable)

Image 3.1: Bed Components Overview

4. Safety Information

Your child's safety is our top priority. Please adhere to the following safety guidelines:

• Always ensure all assembly hardware is securely tightened. Periodically check and re-tighten if necessary.
• Keep small parts out of reach of children during assembly.
• Do not allow children to climb on the bed frame or safety barrier.
• The bed is designed for children. Do not exceed the maximum weight capacity of 110 kg.
• Ensure the movable safety barrier is properly installed and secured when in use to prevent falls.
• The bed's rounded edges with PVC protection are designed to minimize injury risk. However, always supervise young children.
• Place the bed away from windows, blinds, cords, or any objects that could pose a strangulation hazard.

5. Setup and Assembly Instructions

The KOBI LUK bed is designed for easy self-assembly. We recommend two adults for assembly. Please follow the included detailed assembly instructions step-by-step.

1. Unpack Components: Carefully unpack all parts and lay them out on a clean, soft surface to prevent scratches. Verify all components listed in Section 3 are present.
2. Assemble Bed Sides: Attach the side panels to the headboard and footboard using the provided hardware. Ensure all connections are snug but do not overtighten initially.
3. Install Slatted Base: Place the FLEX system slatted bed base into the designated supports on the bed frame. Ensure the slats are evenly spaced and securely seated.
4. Position Safety Barrier: The movable safety barrier can be installed on either the right or left side of the bed. Follow the specific instructions in the assembly kit to secure it firmly.
5. Place Mattress: Once the frame and slatted base are fully assembled and secure, place the 160x80 cm mattress onto the slatted base.
6. Final Tightening: Once the entire bed is assembled, go back and gently tighten all screws and fasteners to ensure maximum stability. Do not overtighten.

Image 5.1: FLEX System Slatted Bed Base

6. Operating Instructions

The KOBI LUK bed is straightforward to use.

• Movable Safety Barrier: The safety barrier is designed to be easily adjusted or removed as needed. Refer to the assembly instructions for specific details on how to secure and release the barrier. Always ensure it is locked in place when your child is sleeping.
• Weight Capacity: The bed is designed to safely support a maximum weight of 110 kg. Do not exceed this limit to ensure the longevity and safety of the bed.

7. Maintenance

Regular maintenance will help prolong the life of your KOBI LUK bed.

• Cleaning the Bed Frame: Wipe the bed frame with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the laminated furniture board finish.
• Mattress Care: The mattress cover is typically removable and washable. Refer to the care label on your mattress for specific washing instructions. The image below indicates washing at 30°C.
• Hardware Check: Periodically check all screws and fasteners to ensure they remain tight. Re-tighten if necessary to maintain the bed's stability.

Image 7.1: Mattress Care Instructions

8. Troubleshooting

If you encounter any issues during assembly or use, please refer to the following common solutions:

• Difficulty during assembly: Ensure you are following the step-by-step assembly instructions provided in the package. Sometimes, parts may appear similar but have subtle differences. Double-check part numbers and orientations. Do not force components together.
• Bed feels unstable: Verify that all screws and fasteners are fully tightened. Ensure the bed is placed on a flat, level surface.
• Missing or damaged parts: If any components are missing or damaged upon arrival, do not proceed with assembly. Contact KOBI customer support immediately for assistance.
• Squeaking noises: Check all connections and tighten any loose screws. Applying a small amount of lubricant (e.g., silicone spray) to metal-on-metal contact points (if any) can sometimes help, but ensure it is child-safe.

9. Specifications

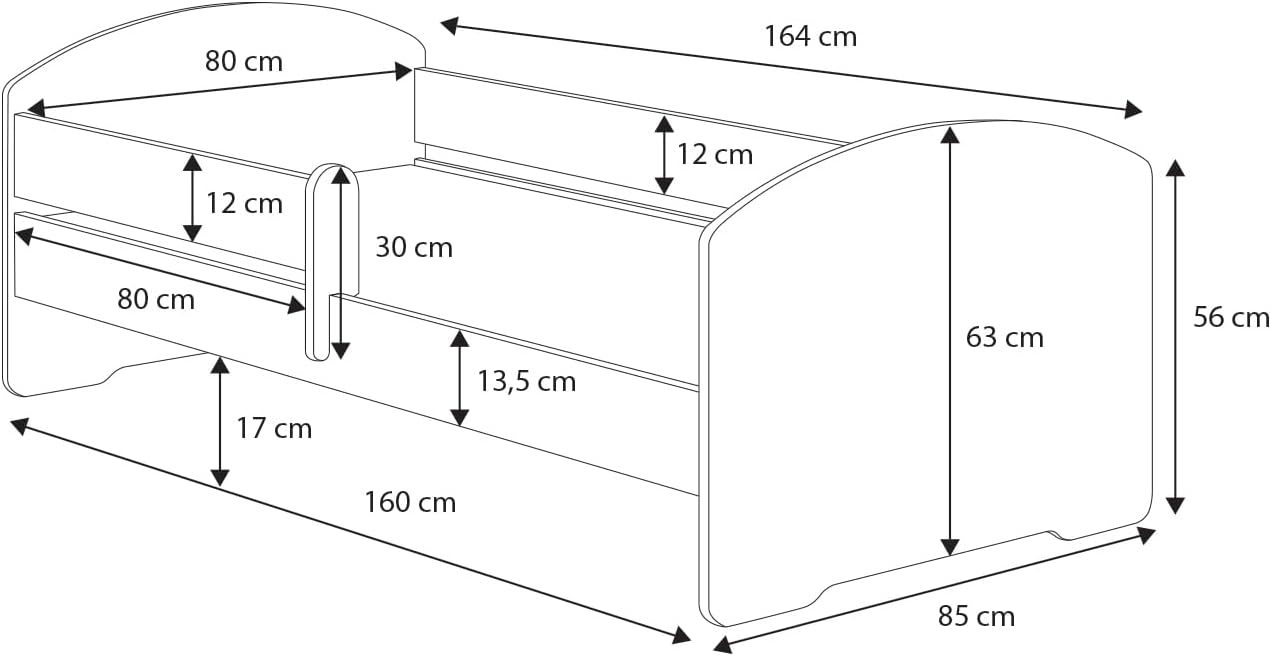

Image 9.1: Product Dimensions Diagram

10. Warranty Information

Specific warranty details for the KOBI LUK Children's Bed are typically provided with your purchase documentation. Please refer to the warranty card or contact the retailer/manufacturer for comprehensive information regarding warranty coverage, terms, and conditions.

11. Support

For further assistance, technical support, or to inquire about replacement parts, please contact KOBI customer service.

• Manufacturer: KOBI
• Seller: MEBLEKO (as per purchase information)
• Please refer to your purchase receipt or the product packaging for specific contact details or visit the official KOBI website.
