1. Introduction
This manual provides essential instructions for the installation, operation, and maintenance of the Generic CDL-P000C1000 Fermator Door Parts Elevator Equipment. Please read this manual thoroughly before attempting any procedures to ensure safe and correct usage. Retain this manual for future reference.
2. Safety Information
WARNING: Improper installation, operation, or maintenance can result in serious injury or equipment damage. All procedures must be performed by qualified personnel familiar with elevator systems and safety protocols.
- Always disconnect power to the elevator system before performing any installation, maintenance, or inspection.
- Wear appropriate personal protective equipment (PPE) such as safety glasses, gloves, and protective footwear.
- Ensure all tools are in good working condition and used correctly.
- Follow all local and national safety codes and regulations pertaining to elevator equipment.
- Do not modify the equipment. Use only genuine replacement parts.
3. Product Overview
The CDL-P000C1000 is a critical component designed for Fermator elevator door systems. It facilitates the proper functioning of elevator car doors, ensuring smooth and reliable operation. This part is essential for the mechanical linkage and control of the door opening and closing mechanisms.

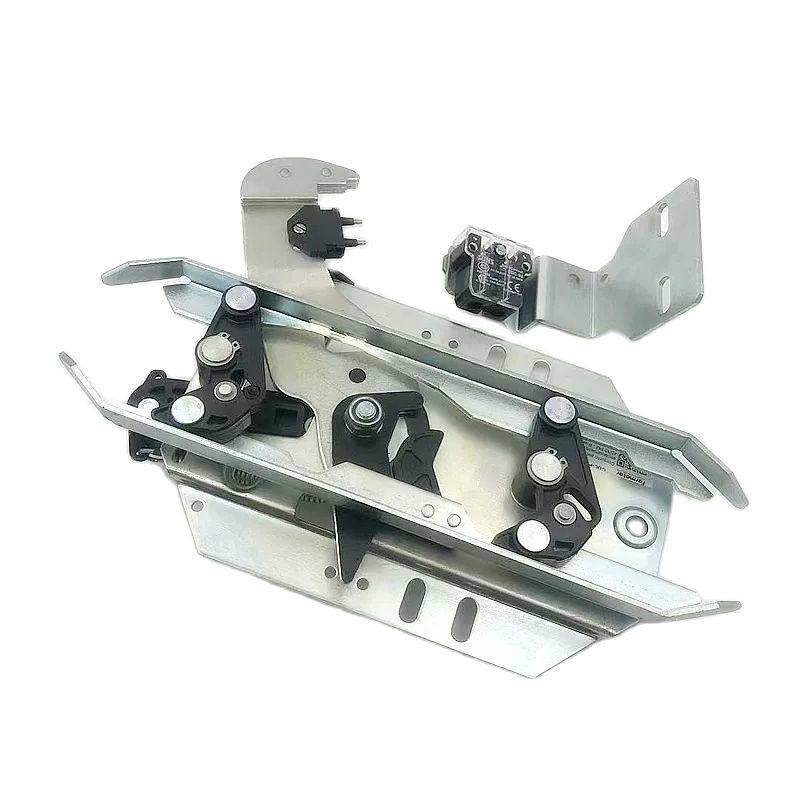

Figure 3.1: Overall view of the CDL-P000C1000 Fermator Door Part. This image displays the complete assembly, including the main metal frame, black plastic components, and electrical switch, providing a comprehensive look at the unit's structure.

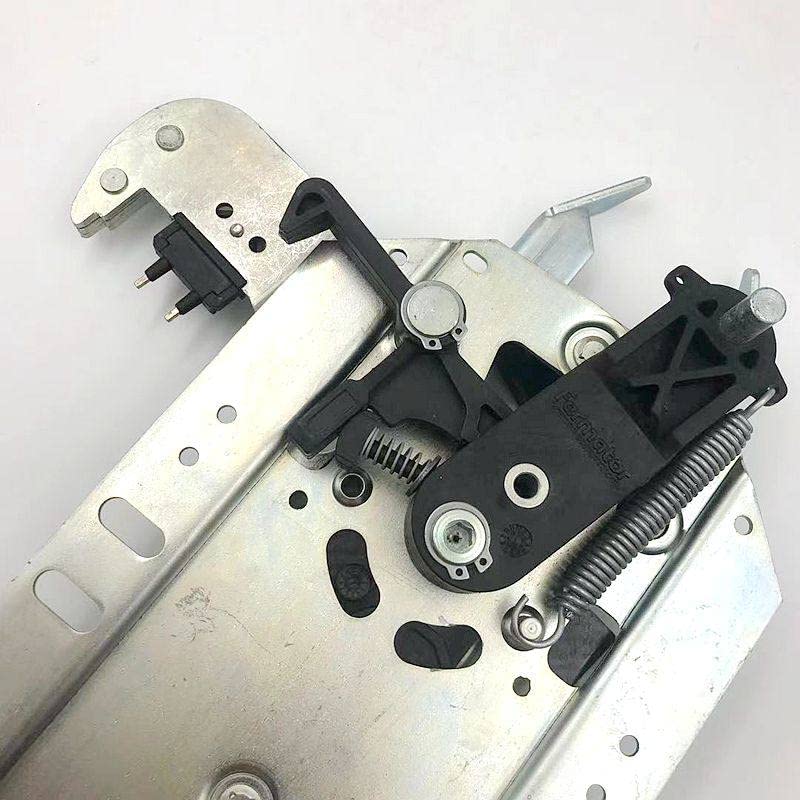

Figure 3.2: Close-up view of a specific section of the CDL-P000C1000. This image highlights the spring mechanism, a black plastic lever with "Fermator" branding, and associated pivot points, indicating a detailed mechanical function.

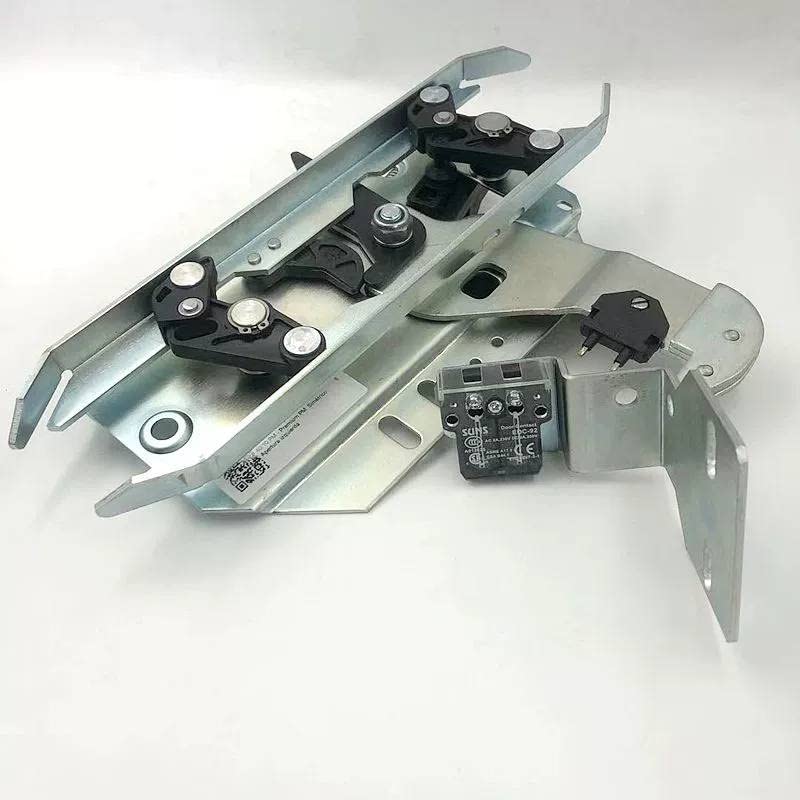

Figure 3.3: Angled perspective of the CDL-P000C1000, showcasing the main frame and the integrated electrical switch module. This view provides a different spatial understanding of the component arrangement and its connection points.
4. Setup and Installation
Installation of the CDL-P000C1000 requires precision and adherence to elevator system specifications. This component is typically installed within the elevator car door mechanism.
4.1 Pre-Installation Checks
- Verify that the power to the elevator system is completely disconnected and locked out.
- Inspect the new CDL-P000C1000 part for any signs of damage during shipping.
- Ensure all necessary tools and fasteners are available.
- Refer to the specific elevator system's service manual for detailed instructions on removing the old component.
4.2 Installation Steps
- Carefully position the CDL-P000C1000 into its designated mounting location within the elevator car door mechanism.
- Secure the component using appropriate fasteners. Ensure all bolts and screws are tightened to the manufacturer's specified torque settings.
- Connect any electrical wiring to the integrated switch module, ensuring correct polarity and secure connections. Refer to the elevator's wiring diagrams.
- Verify that all mechanical linkages are properly engaged and move freely without obstruction.
- Once installed, perform a preliminary visual inspection to confirm correct placement and secure fastening.
5. Operating Principles
The CDL-P000C1000 functions as a critical interface within the elevator door system. Its primary role is to transmit mechanical motion and provide electrical feedback regarding the door's position and status. When the elevator control system initiates a door open or close command, this component's levers and linkages move, engaging with other door parts to facilitate the action. The integrated electrical switch provides signals to the elevator controller, confirming door status (e.g., fully open, fully closed, obstructed).
Proper operation relies on the smooth movement of its mechanical parts and the accurate signaling from its electrical switch. Any obstruction or malfunction in these areas can lead to door operational issues or safety interlocks.
6. Maintenance
Regular maintenance is crucial for the longevity and reliable operation of the CDL-P000C1000 and the entire elevator door system.
6.1 Routine Inspection (Monthly/Quarterly)
- Visual Check: Inspect the component for any signs of wear, corrosion, cracks, or loose fasteners.
- Lubrication: Apply a small amount of appropriate lubricant (as specified by Fermator or elevator manufacturer) to pivot points and sliding surfaces to ensure smooth operation. Avoid over-lubrication.
- Electrical Connections: Check all electrical connections for tightness and absence of corrosion.
- Functionality Test: Observe the component's movement during door cycles to ensure it operates smoothly and without binding. Verify that the electrical switch activates correctly at the appropriate door positions.
6.2 Cleaning
Keep the component free from dust, debris, and excessive grease. Use a clean, dry cloth or a soft brush. Avoid using harsh chemicals that could damage plastic parts or electrical contacts.
6.3 Replacement
If significant wear, damage, or malfunction is detected, the CDL-P000C1000 should be replaced by a qualified technician using genuine Fermator replacement parts.
7. Troubleshooting
This section provides guidance for common issues related to the CDL-P000C1000. Always ensure power is disconnected before inspecting or servicing the component.
| Problem | Possible Cause | Solution |
|---|---|---|
| Door not opening/closing smoothly |
|
|
| Intermittent door operation |
|
|
| Unusual noises during door movement |
|
|
If troubleshooting steps do not resolve the issue, contact a certified elevator technician for further assistance.
8. Specifications
- Model: CDL-P000C1000
- Brand: Generic (Fermator compatible part)
- Type: Elevator Door Part
- Application: Designed for Fermator elevator door systems
- Material: Metal alloy, engineering plastics, electrical components
- Date First Available: June 2, 2023
