Haier I-PRO SERIE 7 PLUS Washer Dryer HWD120-B14979U1

1. Introduction

Welcome to the user manual for your new Haier I-PRO SERIE 7 PLUS Washer Dryer, model HWD120-B14979U1. This appliance combines advanced washing and drying technologies to provide superior laundry care. To ensure safe and efficient operation, please read this manual thoroughly before using the appliance and keep it for future reference.

1.1 Safety Information

Always adhere to the following safety guidelines:

• Ensure the appliance is properly installed and grounded by a qualified technician.
• Do not allow children to play with or operate the appliance.
• Never force the door open during operation.
• Unplug the appliance from the power supply before cleaning or maintenance.
• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.

2. Product Overview

The Haier I-PRO SERIE 7 PLUS HWD120-B14979U1 is a high-capacity washer dryer designed for modern households. It offers a washing capacity of 12 kg and a drying capacity of 8 kg, making it suitable for large families and bulky items.

2.1 Key Features

• Smart hOnApp with Artificial Intelligence: Optimize washing programs and detergent dosage.
• Direct Motion Motor: Ensures quiet, efficient, and durable operation.
• ABT Antibacterial Technology: Prevents bacterial growth on the cuff and detergent drawer for enhanced hygiene.
• XL Drum (525mm) + Large Loading Opening: Facilitates easy loading and improved washing performance.
• i-Refresh Steam Function: Refreshes clothes and reduces wrinkles without water contact.
• Full Water Protection: AquaProtect hose and base tray provide comprehensive protection against water damage.

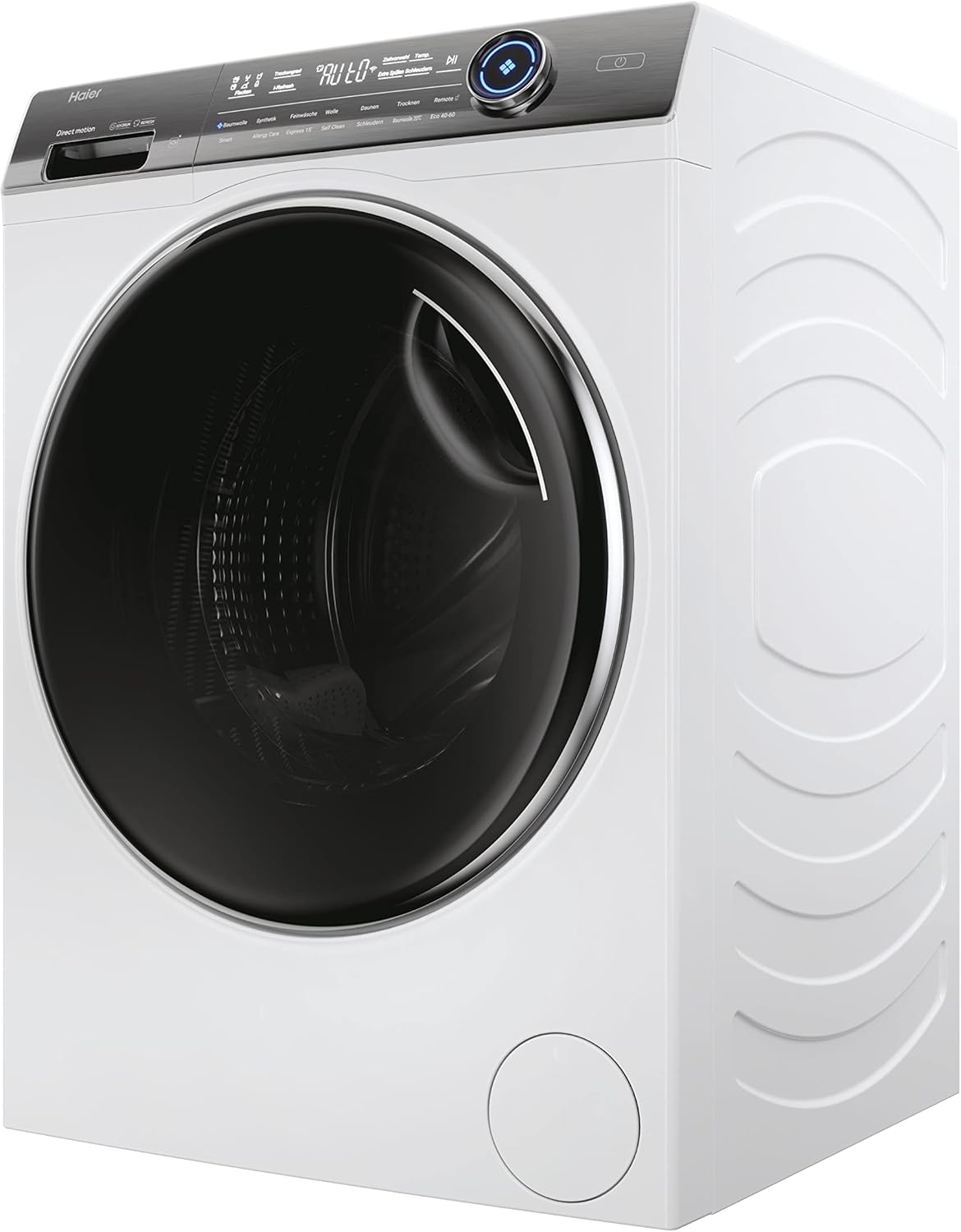

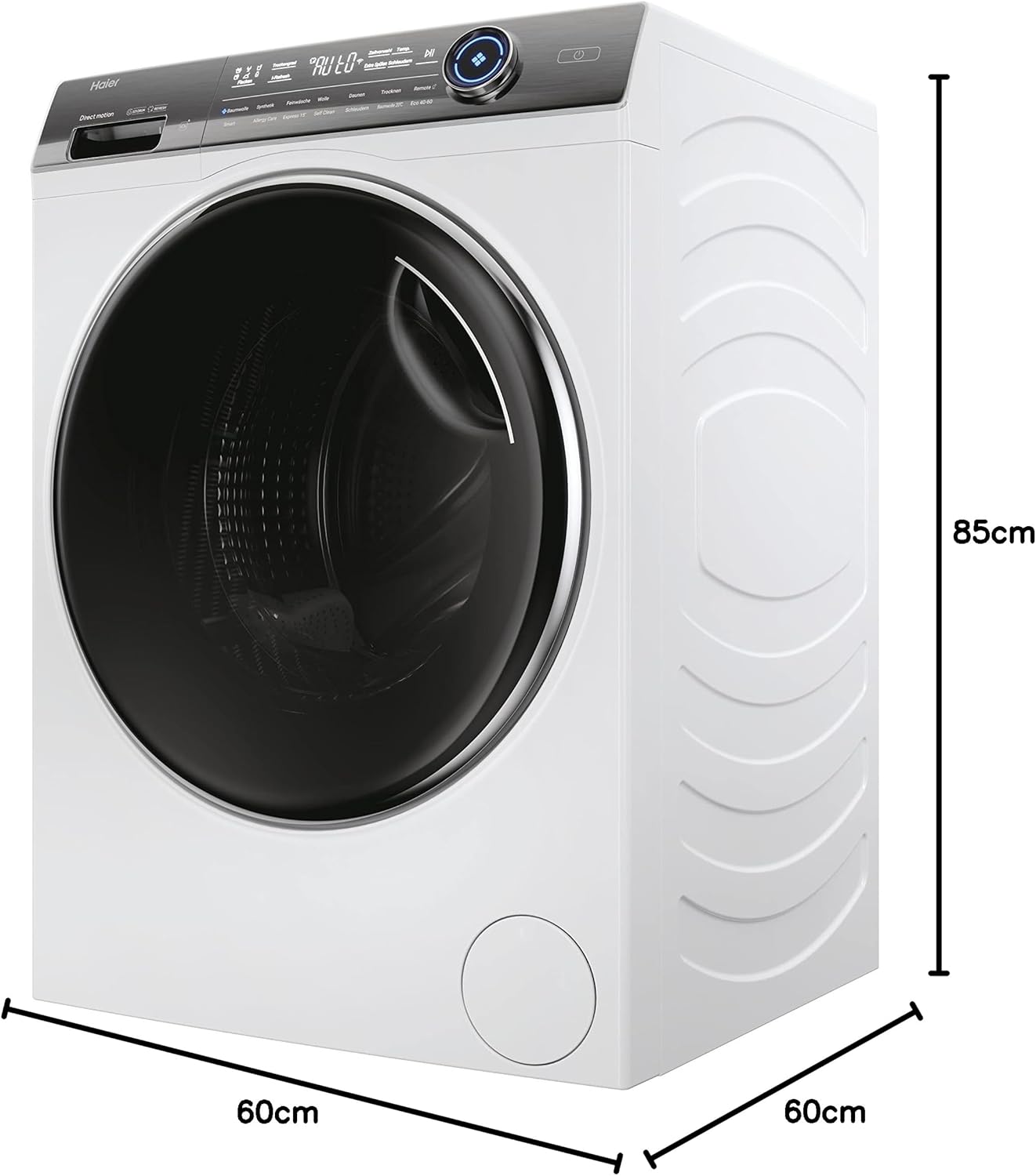

2.2 Product Images

3. Setup and Installation

Proper installation is crucial for the performance and longevity of your washer dryer. Please follow these steps carefully.

3.1 Unpacking

• Remove all packaging materials, including the polystyrene base and any protective film.
• Carefully remove the transport bolts from the rear of the appliance. Keep them for future transport if needed.

3.2 Location and Leveling

• Place the appliance on a firm, level floor. Avoid placing it on carpets or soft flooring that could obstruct ventilation.
• Adjust the leveling feet at the bottom of the appliance until it is perfectly stable and level. Use a spirit level to verify.

3.3 Water Connection

• Connect the supplied AquaProtect inlet hose to a cold water tap with a 3/4" thread. Ensure the connection is tight to prevent leaks.
• Position the drain hose into a standpipe or over the edge of a sink, ensuring it is securely fixed to prevent displacement during operation.

3.4 Electrical Connection

• Plug the appliance into a grounded electrical outlet. Ensure the voltage and frequency match the specifications on the rating plate.
• Do not use extension cords or multiple socket adapters.

3.5 First Use

Before the first wash, run a short cycle without laundry to clean the drum and internal components. Use a small amount of detergent.

4. Operating Instructions

This section guides you through the daily operation of your Haier washer dryer.

4.1 Loading Laundry

• Open the door and load laundry into the drum. Do not overload the machine; ensure there is enough space for clothes to tumble freely.
• Close the door firmly until it clicks.

4.2 Detergent Dispenser

The appliance features an intelligent detergent dispenser. Add liquid or powder detergent and fabric softener to the appropriate compartments. Refer to the detergent packaging for recommended dosages.

4.3 Program Selection

Turn the program selector dial to choose the desired washing or drying program. The display will show the estimated cycle time and default settings. Available programs include:

• Cotton
• Synthetics
• Delicates
• Wool
• Quick Wash
• Eco 40-60
• Mix
• Drying cycles
• i-Refresh (Steam)
• And more, accessible via the hOn App.

4.4 hOn App Connectivity

Your washer dryer is equipped with Wi-Fi connectivity and can be controlled via the Haier hOn App. Download the app from your smartphone's app store and follow the in-app instructions to connect your appliance. The hOn App allows you to:

• Select from over 2,500 program combinations.
• Receive AI-powered recommendations for optimal washing and drying.
• Monitor cycle progress and receive notifications.
• Manage detergent dosing.

4.5 Starting a Cycle

Press the 'Start/Pause' button to begin the selected program. The appliance will automatically adjust water levels and cycle duration based on the load and program.

5. Maintenance and Care

Regular maintenance ensures the longevity and optimal performance of your appliance.

5.1 Cleaning the Exterior

Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.

5.2 Cleaning the Drum

The ABT Antibacterial Technology helps keep the drum hygienic. For additional cleaning, run a drum clean cycle (if available) or a hot wash cycle with no laundry and a descaling agent periodically.

5.3 Cleaning the Detergent Dispenser

Remove the detergent dispenser drawer and rinse it under running water to remove any residue. Clean the housing of the dispenser with a brush.

5.4 Cleaning the Filter

Locate the drain pump filter, usually at the bottom front of the appliance. Place a shallow container underneath to catch any water. Unscrew the filter cover and remove any lint or foreign objects. Clean the filter and screw it back securely.

6. Troubleshooting

If you encounter issues with your appliance, refer to the following common problems and solutions before contacting service.

7. Specifications

Detailed technical specifications for the Haier I-PRO SERIE 7 PLUS HWD120-B14979U1 Washer Dryer.

For detailed energy information, please refer to the EPREL database: https://eprel.ec.europa.eu/qr/1265279

8. Warranty and Support

8.1 Warranty Information

This Haier appliance comes with a minimum warranty period of 24 months from the date of purchase, as offered by the supplier. Please retain your proof of purchase for warranty claims.

8.2 Customer Support

For technical assistance, spare parts, or to schedule a service appointment, please contact Haier Customer Service. You can find contact details on the official Haier website or through the hOn App.
