Momi REVO Multifunction Co-Sleeper Crib Instruction Manual

Introduction

Thank you for choosing the Momi REVO Multifunction Co-Sleeper Crib. This manual provides essential information for the safe and correct assembly, use, and maintenance of your new co-sleeper crib. Please read all instructions carefully before assembly and keep this manual for future reference.

The Momi REVO is designed to provide a safe and comfortable sleeping environment for your baby from birth, offering versatility as a standalone crib or a co-sleeper attached to the parent's bed. Its features include adjustable height, a comfortable mattress, wheels for easy movement, a mosquito net, and a toy arch.

Image: The Momi REVO co-sleeper crib positioned next to an adult bed, showing a mother interacting with her baby.

Safety Information

WARNING: Failure to follow these warnings and instructions could result in serious injury or death.

• Always ensure the crib is placed on a firm, horizontal surface.
• Never leave your child unattended in the crib.
• Do not use the crib if any parts are broken, torn, or missing. Contact customer support for replacement parts.
• Ensure all assembly fasteners are tightened securely. Periodically check for loose fasteners.
• Do not use more than one mattress in the crib. Use only the mattress provided by the manufacturer.
• When used as a co-sleeper, ensure the crib is securely attached to the adult bed using the provided fixation straps. There should be no gap between the crib and the adult mattress.
• The height of the co-sleeper must always be adjusted so that the top of the crib side is level with or slightly below the top of the adult mattress.
• Do not use the co-sleeper function if the adult bed frame prevents proper attachment or creates a gap.
• Keep small parts and packaging materials away from children to prevent choking hazards.

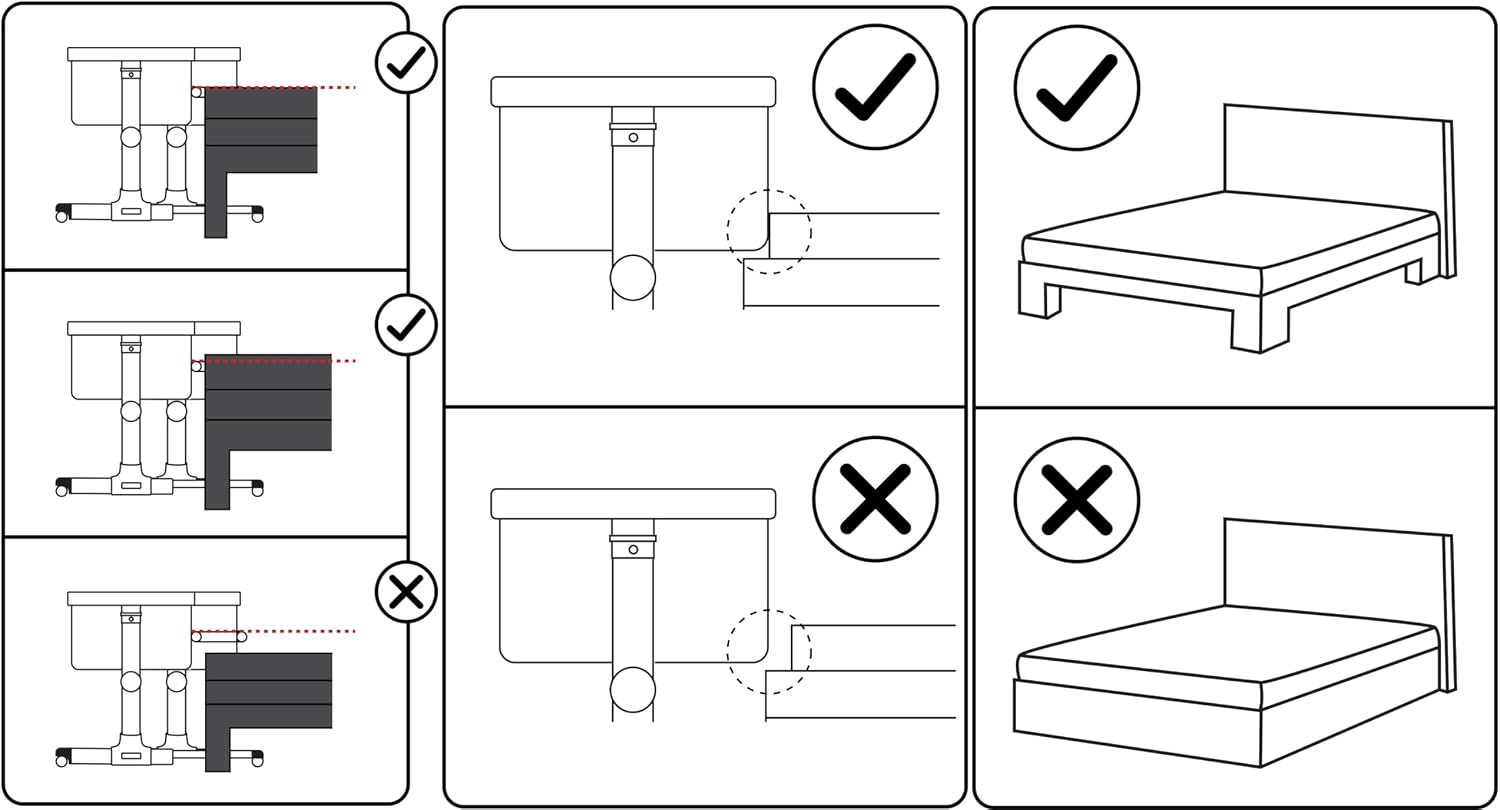

Image: Visual guide for safe co-sleeper attachment, illustrating correct height alignment and secure fit against the adult bed.

Package Contents

Please check that all components are present before beginning assembly:

• Crib Frame (main structure with legs and wheels)
• Mattress
• Fixation Straps (for co-sleeping mode)
• Mosquito Net
• Toy Arch with hanging toys
• Instruction Manual

Setup Instructions

1. Unfolding the Crib Frame

1. Place the folded crib on a flat surface.
2. Carefully unfold the legs and base frame until they lock into place. Ensure all locking mechanisms are engaged.

2. Installing the Mattress

1. Place the provided mattress firmly into the base of the crib. Ensure it lies flat and covers the entire base.

3. Adjusting Height

The Momi REVO offers 6 levels of height adjustment, ranging from 72 cm to 82 cm. To adjust:

1. Locate the height adjustment buttons on each side of the crib frame.
2. Press the buttons simultaneously and raise or lower the crib to the desired height.
3. Ensure both sides are adjusted to the same level and click securely into place.

Image: The crib demonstrating its 6-level height adjustment feature, ranging from 72 cm to 82 cm.

4. Attaching the Toy Arch and Mosquito Net

1. Attach the toy arch to the designated slots on the crib frame. Ensure it is secure.
2. Drape the mosquito net over the crib, securing it to the frame as intended to prevent insect entry.

Operating Instructions

Using as a Co-Sleeper

To use the Momi REVO as a co-sleeper, allowing your baby to sleep safely next to your bed:

1. Lower one side of the crib by unzipping the side panel.
2. Position the crib next to your adult bed, ensuring there is no gap between the crib and your mattress.
3. Adjust the crib height so that the top edge of the lowered side is level with or slightly below your mattress.
4. Use the provided fixation straps to securely attach the crib to your adult bed frame. Follow the instructions on the straps for proper attachment.
5. Regularly check that the crib remains securely attached and that no gap has formed.

Image: The co-sleeper crib with its side panel unzipped and lowered, demonstrating its readiness for co-sleeping mode.

Using as a Standalone Crib

To use the Momi REVO as a standalone crib:

1. Ensure both side panels are zipped up and secured.
2. Lock the wheels to prevent unintended movement.
3. The crib can be easily moved between rooms by unlocking the wheels.

Mattress Tilt Function

The mattress can be slightly tilted to aid digestion or for babies with reflux. To tilt the mattress:

1. Adjust one side of the crib to a higher level than the other, using the height adjustment buttons.
2. Ensure the tilt is gentle and safe for your baby. Never exceed a slight incline.

Image: The crib with its mattress gently tilted, a feature designed for baby's comfort and to assist with digestion.

Maintenance

Cleaning

• The fabric padding of the Momi REVO is removable and machine washable. Refer to the care label for specific washing instructions (typically gentle cycle, cold water).
• Wipe the metal and plastic parts of the frame with a damp cloth and mild soap. Do not use abrasive cleaners.
• Allow all parts to air dry completely before reassembly or use.

Storage

When not in use, the Momi REVO can be folded for compact storage:

1. Remove the mattress, mosquito net, and toy arch.
2. Follow the reverse steps of assembly to fold the frame.
3. Store in a dry, safe place away from direct sunlight.

Image: The Momi REVO crib shown in its folded configuration, highlighting its compact design for storage or transport.

Troubleshooting

• Crib not stable: Ensure all frame components are fully extended and locked into place. Check that the wheels are locked when used as a stationary crib.
• Difficulty adjusting height: Make sure both adjustment buttons are pressed simultaneously and that there is no obstruction. Apply gentle, even pressure.
• Crib not attaching securely to adult bed: Verify that the fixation straps are correctly routed and tightened according to their instructions. Ensure there is no gap between the crib and the adult mattress.
• Wheels not rolling smoothly: Check for any debris or hair caught in the wheels. Clean as necessary.

Specifications

Image: A detailed diagram showing the length, width, and height dimensions of the Momi REVO crib.

Warranty and Support

The Momi REVO Multifunction Co-Sleeper Crib comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging or visit the official Momi website for detailed warranty terms and conditions.

For technical support, missing parts, or any questions regarding your product, please contact Momi customer service through their official website or the contact information provided in your product documentation.
