KNAKASAKI Mini Chainsaw Instruction Manual

Introduction

Thank you for choosing the KNAKASAKI Mini Chainsaw. This manual provides essential information for the safe and efficient operation, assembly, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before first use and keep it for future reference. Proper use and care will ensure optimal performance and extend the life of your chainsaw.

Important Safety Instructions

Always follow basic safety precautions to reduce the risk of fire, electric shock, and serious personal injury. Failure to follow these instructions may result in severe injury or death.

• Personal Protective Equipment (PPE): Always wear safety glasses, hearing protection, gloves, and sturdy footwear when operating the chainsaw.
• Work Area Safety: Keep the work area clean and well-lit. Do not operate the chainsaw in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Keep children and bystanders away.
• Electrical Safety: Avoid body contact with earthed or grounded surfaces. Do not expose power tools to rain or wet conditions.
• Chainsaw Operation: Hold the chainsaw firmly with both hands. Ensure proper footing and balance. Do not overreach. Avoid accidental starting; ensure the switch is in the off-position before inserting the battery pack.
• Battery Safety: Use only the specified charger for the battery pack. Do not charge the battery in damp or wet locations. Do not disassemble, crush, or incinerate battery packs.
• Maintenance: Disconnect the battery pack before making any adjustments, changing accessories, or storing power tools.

Package Contents

Carefully unpack your KNAKASAKI Mini Chainsaw and check that all items are present and in good condition. If any items are missing or damaged, please contact your retailer.

• 1 x KNAKASAKI Mini Chainsaw Unit
• 2 x 25V Lithium-ion Batteries
• 2 x Chains
• 1 x Battery Charger
• 1 x Adjustment Wrench

Image: All components included in the KNAKASAKI Mini Chainsaw package.

Product Overview

Familiarize yourself with the main parts of your KNAKASAKI Mini Chainsaw before operation.

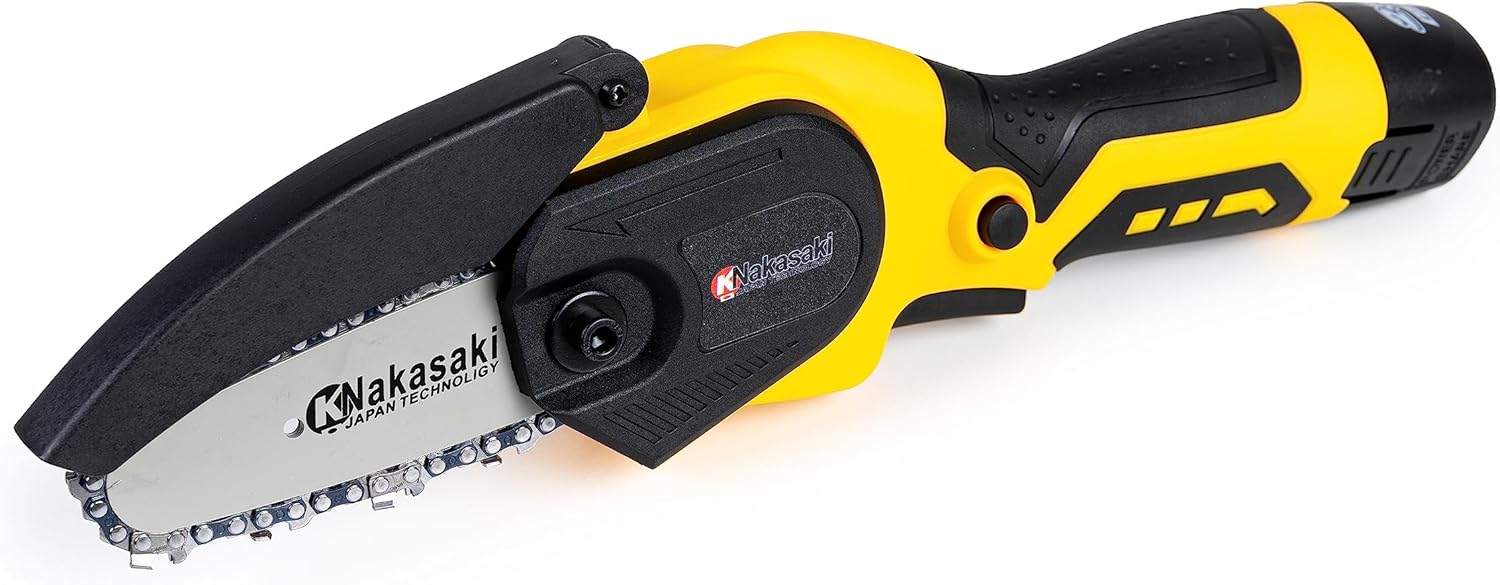

Image: The KNAKASAKI Mini Chainsaw, highlighting its ergonomic handle and compact design.

• Guide Bar: Supports the saw chain.
• Saw Chain: The cutting element.
• Chain Guard: Provides protection during operation.
• Handle: Ergonomically designed for comfortable grip.
• Safety Lock Button: Prevents accidental starting.
• Trigger Switch: Activates the motor.
• Battery Compartment: Holds the rechargeable battery.

Image: Detail of the chain and guide bar, featuring the KNAKASAKI branding.

Image: The trigger switch and safety lock button for operating the chainsaw.

Setup

1. Battery Installation and Charging

1. Ensure the battery is fully charged before use. Connect the charger to a power outlet and then to the battery. The indicator light on the charger will show charging status.
2. To install the battery, align the battery pack with the slot in the chainsaw's handle and slide it in until it clicks securely into place.
3. To remove the battery, press the release button (if present) and slide the battery out.

2. Chain and Guide Bar Assembly

Your chainsaw may come partially assembled. If not, follow these steps:

1. Ensure the battery is removed for safety.
2. Remove the side cover by loosening the retaining nut with the adjustment wrench.
3. Place the chain around the guide bar, ensuring the cutting edges are facing the correct direction (refer to markings on the chain or guide bar).
4. Fit the guide bar and chain onto the chainsaw body, ensuring the chain engages with the drive sprocket.
5. Replace the side cover and hand-tighten the retaining nut.
6. Adjust chain tension: Use the adjustment wrench to tighten or loosen the chain tensioning screw until the chain is snug against the guide bar but can still be pulled freely by hand. There should be minimal sag on the underside of the guide bar.
7. Fully tighten the retaining nut to secure the guide bar and chain.

3. Chain Lubrication

This mini chainsaw typically uses a manual lubrication method or a self-lubricating chain. Check your specific model for lubrication requirements. If manual lubrication is needed, apply a small amount of chain oil directly to the chain and guide bar before and during extended use to reduce friction and wear.

Operating Instructions

Pre-Operation Checklist

• Ensure the battery is fully charged and securely installed.
• Verify the chain tension is correct.
• Check that the chain guard is properly positioned.
• Clear the work area of any obstacles, debris, or bystanders.
• Wear all recommended Personal Protective Equipment (PPE).

Starting and Stopping

1. To Start: Press and hold the safety lock button with your thumb, then squeeze the trigger switch. The chainsaw will begin to operate.
2. To Stop: Release the trigger switch. The chain will stop immediately.

Cutting Techniques

Always maintain a firm grip with both hands. Position yourself securely and ensure the cutting area is clear. Start cutting with the bottom edge of the guide bar for better control and to avoid kickback.

• Small Branches: For branches up to the length of the guide bar, make a single cut from top to bottom.
• Larger Branches: For thicker branches, make an undercut first (about 1/3 of the branch thickness) to prevent pinching, then complete the cut from the top.
• Pruning: When pruning, ensure the branch is supported and will not fall onto you or the chainsaw.

Image: Examples of common applications for the KNAKASAKI Mini Chainsaw, including cutting firewood, pruning branches, and landscaping.

Maintenance

Regular maintenance ensures the longevity and safe operation of your chainsaw.

Chain Care

• Cleaning: After each use, clean the chain to remove sawdust and debris.
• Sharpening: A dull chain requires more force and can cause kickback. Sharpen the chain regularly or replace it when necessary. Refer to a professional if unsure.
• Tension: Always check chain tension before each use and adjust as needed.

Guide Bar Maintenance

• Cleaning: Clean the guide bar groove to remove sawdust and debris that can impede chain movement.
• Wear: Check the guide bar for wear, especially on the rails. Replace if excessively worn or damaged.

Battery Care

• Charging: Charge batteries in a dry, well-ventilated area. Do not overcharge.
• Storage: Store batteries in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, charge batteries to about 50% capacity.

General Cleaning

Wipe down the chainsaw body with a damp cloth after each use. Do not use harsh chemicals or abrasive cleaners. Ensure all vents are clear of debris.

Troubleshooting

This section addresses common issues you might encounter with your KNAKASAKI Mini Chainsaw.

Technical Specifications

• Brand: KNAKASAKI
• Model: B0C6R6F4KS
• Product Dimensions (L x W x H): 30 x 30 x 10 cm (approximately)
• Power Source: Battery Powered
• Battery Type: 25V, 2.0Ah Lithium-ion (approximate, based on product images)
• Chain Speed: 10 m/s (as per product description)

Warranty and Customer Support

Specific warranty information for the KNAKASAKI Mini Chainsaw is not provided within this manual. For details regarding warranty coverage, returns, or technical support, please refer to the documentation included with your purchase or contact your retailer directly. You may also visit the KNAKASAKI official website for further assistance.
