Daiwa Seaborg Electric Reel User Manual
Model: Seaborg 400J / 400JL (2023 Model)
Introduction
Thank you for choosing the Daiwa Seaborg Electric Reel. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your new electric fishing reel. Please read this manual thoroughly before using the reel to ensure optimal performance and longevity.

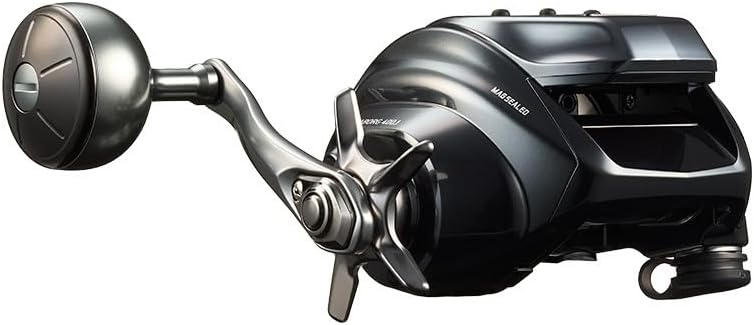

Figure 1: Daiwa Seaborg 400J Electric Reel (Right Handle version shown).
Safety Information
Always observe the following safety precautions to prevent injury or damage to the reel:
- Do not attempt to disassemble or modify the reel. Unauthorized modifications can lead to malfunction and void the warranty.
- Keep the reel away from excessive heat, direct sunlight for prolonged periods, and corrosive substances.
- Ensure the power cord is securely connected and free from damage before each use.
- Avoid operating the reel with wet hands or in extremely wet conditions to prevent electrical shock.
- Always turn off the power and disconnect the reel from the power source before performing any maintenance or cleaning.
- Use only the specified power source and accessories provided or recommended by Daiwa.
Setup
Before your first use, follow these steps to set up your Daiwa Seaborg Electric Reel:
- Unpacking: Carefully remove all components from the packaging. Verify that all included components are present: reel, power cord, simple manual, web access guide, warning list, and other small parts like thread thread pin, reel bag, and prep gauge.
- Reel Mounting: Securely attach the electric reel to your fishing rod's reel seat. Ensure it is firmly seated to prevent movement during operation.
- Line Spooling: Spool your fishing line onto the reel. The Seaborg 400J supports PE line capacities of 3-500m, 4-400m, 5-300m, and 6-230m. Ensure the line is spooled evenly to prevent tangles and optimize performance.
- Power Connection: Connect the reel's power cord to a compatible 12V DC power source (e.g., a boat battery). Ensure the connection is secure and free from corrosion.

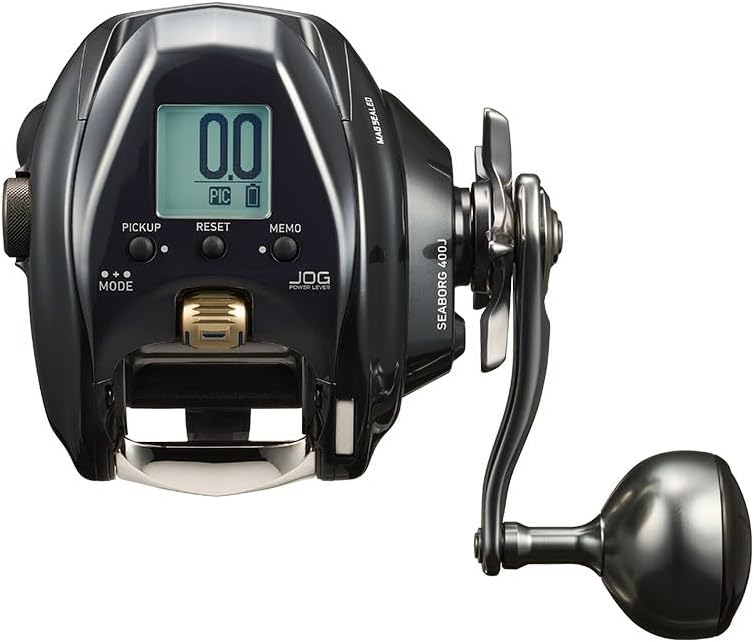

Figure 2: Front view of the reel, showing the digital display and control buttons.
Operating Instructions
The Daiwa Seaborg Electric Reel is designed for efficient and powerful fishing. Familiarize yourself with its key features:
- JOG Power Lever: This intuitive lever allows for precise and instantaneous control over winding speed and retrieve. It enables quick adjustments during a fight and smooth operation even with wet hands.
- Digital Display: The clear digital display provides essential information such as line counter, depth, and various settings.
- ATD (Automatic Drag System): The ATD system provides a smooth and consistent drag performance, automatically adjusting to the fish's pull to prevent line breakage and ensure a steady fight. The maximum drag force is 16 kg (35.3 lbs).
- MAGMAX Motor: Equipped with a powerful MAGMAX motor, the reel delivers high torque and quick response, making it suitable for various fishing techniques.
- SYNCHRO LEVEL WIND: This feature ensures the line is spooled evenly across the reel, preventing tangles and improving casting and retrieval efficiency.
- Clutch Operation: The motor ON/OFF interlocking clutch allows for seamless transition between manual and electric winding. Clutch ON engages electric winding, while Clutch OFF stops the motor.
- Fall Brake Dial: This dial allows for instantaneous setting of the fall speed, providing precise control when dropping your lure or bait.
Basic Operation:
- Power On: Connect the power cord. The display will illuminate.
- Line Counter Reset: Use the "RESET" button to zero out the line counter before deploying your line.
- Line Deployment: Engage the clutch to allow the line to run freely. Use the Fall Brake Dial to control the descent speed.
- Retrieval: Use the JOG Power Lever to control the winding speed. The reel has a normal winding speed of 150 m/min (with 1kg load).
- Fighting a Fish: The ATD system will manage the drag. Use the JOG Power Lever for additional retrieve or to adjust tension as needed.
- Power Off: Disconnect the power cord when finished fishing.
Figure 3: Side view of the reel, highlighting the handle and main body.
Maintenance
Proper maintenance ensures the longevity and performance of your Daiwa Seaborg Electric Reel:
- Rinsing: After each use, especially in saltwater, gently rinse the reel with fresh water. Do not submerge the reel. Use a soft cloth to wipe away salt and debris.
- Drying: Allow the reel to air dry completely in a shaded, well-ventilated area before storage. Avoid direct sunlight.
- Lubrication: Periodically apply a small amount of reel oil to moving parts as recommended by Daiwa. Refer to the detailed manual or Daiwa's website for specific lubrication points. The reel features MAGSEALED Ball Bearings for enhanced durability and water resistance, reducing the need for frequent internal maintenance.
- Storage: Store the reel in a cool, dry place, ideally in the provided reel bag, away from direct sunlight and extreme temperatures.
- Battery Care: If using a separate battery, ensure it is properly charged and maintained according to its manufacturer's instructions.
Figure 4: Top view of the reel, showing the ergonomic design.
Troubleshooting
If you encounter issues with your Daiwa Seaborg Electric Reel, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Reel does not power on. | Loose power connection, dead battery, damaged cord. | Check power cord connection. Ensure battery is charged. Inspect cord for damage. |
| Motor not winding line. | Clutch disengaged, line tangled, motor overload. | Engage the clutch. Check for line tangles or obstructions. Reduce load if overloaded. |
| Inconsistent drag. | Drag washers dry or contaminated, excessive wear. | Rinse reel thoroughly. If problem persists, professional service may be required. |
| Unusual noise during operation. | Debris in gears, worn bearings, internal damage. | Stop operation immediately. Clean reel. If noise continues, seek professional repair. |
For issues not listed here or if solutions do not resolve the problem, please contact Daiwa customer support or an authorized service center.
Specifications
Key technical specifications for the Daiwa Seaborg 400J Electric Reel:
- Model Name: Seaborg 400J
- Part Number: 00810036
- Brand: Daiwa
- Hand Orientation: Right Hand (400J) / Left Hand (400JL)
- Color: Silver (Gunmeta)
- Item Weight: 0.59 Kilograms (585g)
- Gear Ratio: 5.1
- Ball Bearings: 12
- Maximum Drag Force: 16 kg (35.3 lbs)
- Maximum Winding Force: 59 kg (122 lbs)
- Normal Winding Speed (1kg load): 150 m/min (165 yards/min)
- Line Capacity (PE No. - m): 3-500, 4-400, 5-300, 6-230
- Handle Material: Aluminum
- Bearing Material: Stainless Steel
- Fishing Technique: Boat
- Fishing Line Type: Braided
- Included Components: Reel, Power Cord, Reel Bag, Prep Gauge, Simple Manual, Web Access Guide, Warning List, Thread Thread Pin.
Figure 5: Back view of the reel, showing the power connection port.
Warranty and Support
For warranty information, product support, or service inquiries, please contact Daiwa customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.
Official Product Videos: No official product videos from the seller were found for this model in the provided data. Please refer to the manufacturer's official website or authorized dealers for any available video resources.
For the most up-to-date information, visit the official Daiwa website or consult your local authorized Daiwa dealer.
