DAJDAH AP-T20FL Replacement Filter Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your DAJDAH AP-T20FL replacement filter. This filter is designed to be compatible with Homedics Total Clean Air Purifier models AP-T20 and AP-T20WT, ensuring continued air purification performance.

Image: The DAJDAH AP-T20FL replacement filter shown alongside a compatible Homedics air purifier, illustrating its intended use.

2. Product Features

The DAJDAH AP-T20FL filter is engineered with a multi-layer filtration system to effectively capture various airborne particles and odors. It features a 360° barrel-type design for comprehensive air intake.

• Ultra-Fine Pre-Filter: Captures larger particles such as dust, lint, and pet dander, extending the life of subsequent filters.
• True HEPA-Type Filter: Designed to capture tiny particles, including pollen, mold spores, and other allergens.
• Activated Carbon Filter: Effectively absorbs various unfavorable odors, including volatile organic compounds (VOCs), tobacco smoke, cooking smells, and pet odors.
• Net Filter: Provides additional support and filtration.

Image: A detailed diagram illustrating the multi-layer filtration system of the AP-T20FL filter, including the ultra-fine pre-filter, true HEPA-type filter, activated carbon filter, and net filter.

3. Setup and Installation

Follow these steps to replace the filter in your Homedics Total Clean Air Purifier (AP-T20 or AP-T20WT).

1. Open the Grille Cover: Pull the indents on each side of the air purifier's grille cover to open it.
2. Remove Packaging: Before installing the new filter, remove any plastic bags or packaging.
3. Remove Old Filter: Pull the filter tabs to remove the old filter. Ensure the filter tabs on the new filter are facing outward for easy removal next time.
4. Insert New Filter: Carefully insert the new DAJDAH AP-T20FL filter into the air purifier.
5. Close Grille Cover: Reinstall the grille cover onto the air purifier.
6. Reset Filter Indicator: Press and hold the Ionizer/Reset button on the air purifier for 3 seconds to reset the filter indicator light.

Image: A visual guide demonstrating the four steps for filter replacement: opening the grille, removing packaging, pulling out the old filter, and inserting the new filter.

4. Operating Considerations

After installing the new filter, ensure the air purifier is plugged in and powered on. The filter indicator light should be reset as described in the installation steps. The air purifier will now operate with the new filter, providing improved air quality.

5. Maintenance

To maintain optimal performance of your Homedics Total Clean Air Purifier, it is recommended to replace the DAJDAH AP-T20FL filter every 6 to 12 months. Actual replacement frequency may vary depending on air quality and usage. Regular replacement ensures efficient filtration and odor reduction.

6. Troubleshooting

Filter Indicator Light Remains On After Replacement

If the filter indicator light does not turn off after replacing the filter and pressing the reset button:

• Ensure the reset button was held for the full 3 seconds.
• Verify the filter is correctly seated within the air purifier.
• Confirm the grille cover is securely closed.
• If the issue persists, refer to your Homedics air purifier's original user manual or contact DAJDAH customer support.

7. Specifications

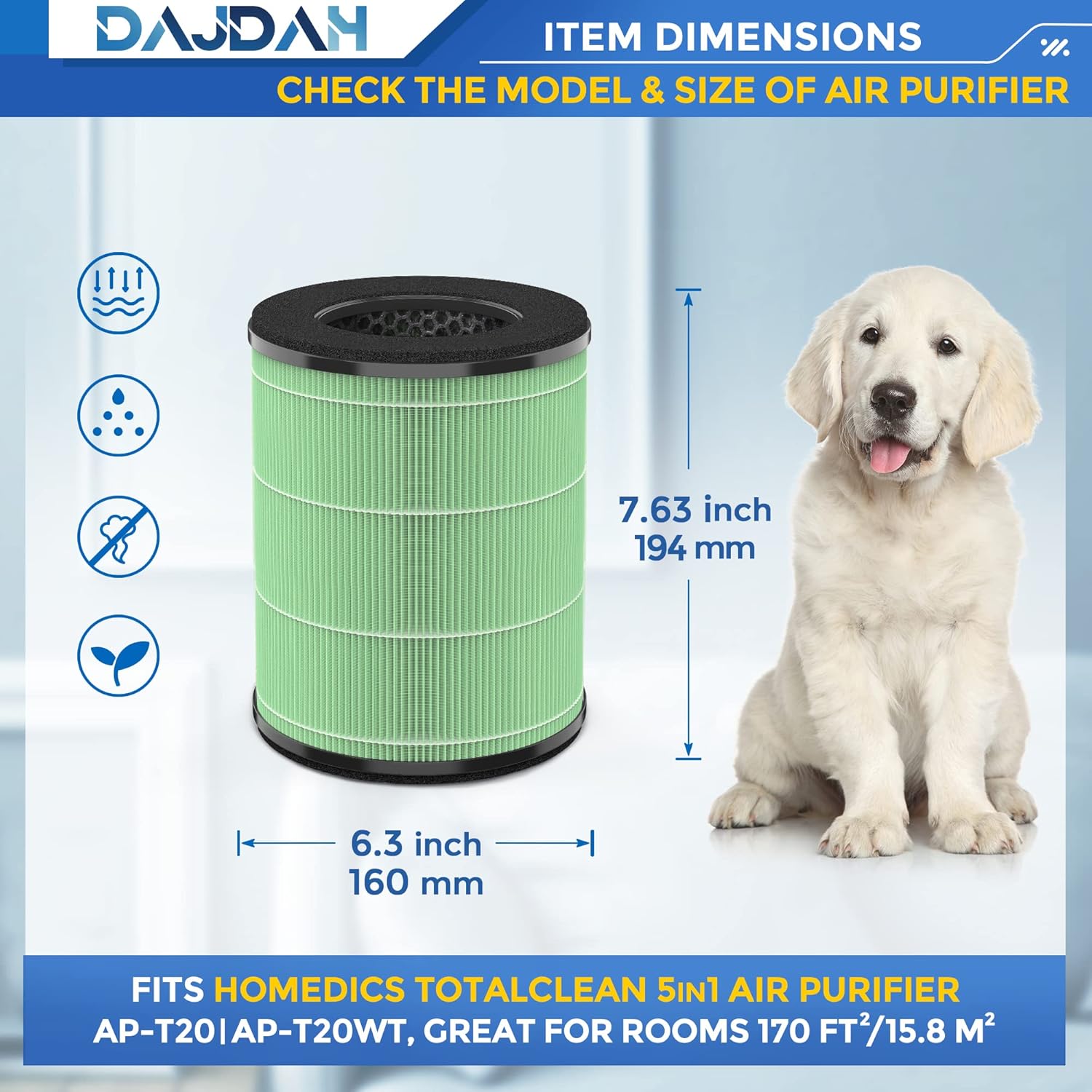

Image: The AP-T20FL filter with its key dimensions, 6.3 inches in diameter and 7.63 inches in height, for verification of fit.

8. Warranty and Support

DAJDAH provides quality assurance for its products. If you have any questions regarding the AP-T20FL replacement filter, its installation, or performance, please do not hesitate to contact DAJDAH customer service. We are committed to providing support and ensuring your satisfaction.

For further assistance, please visit our official website or contact our support team through the retailer where you purchased the product.
