1. Introduction
Thank you for choosing the PURPLE LEAF 12' x 20' Permanent Hardtop Gazebo. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor structure. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
1.1 Product Overview
This permanent hardtop gazebo is designed to provide a durable and elegant outdoor living space. It features a galvanized steel double roof for enhanced weather resistance, a robust aluminum frame with a fade-resistant powder coating, and includes both netting and heavy-duty curtains for comfort and privacy.
Image 1.1: The PURPLE LEAF 12' x 20' Permanent Hardtop Gazebo.
1.2 Safety Information
Important Safety Warnings:
- Always follow local building codes and obtain necessary permits before installation.
- Consult your Homeowners Association (HOA) guidelines for any specific rules or requirements.
- Exercise caution during assembly. It is recommended to have at least two individuals for installation.
- Consider hiring a professional for installation if you are not comfortable with the process.
- Do not use furniture provided by third-party services within the gazebo.
2. Setup and Assembly
Proper site preparation and careful assembly are crucial for the stability and longevity of your gazebo.
2.1 Site Preparation
- Select a level and stable area for installation. Uneven ground can compromise the structure's integrity.
- Ensure adequate clearance around the gazebo for assembly and future maintenance.
- Verify compliance with all local building codes, permits, and HOA regulations before commencing installation.
2.2 Assembly Instructions
Refer to the separate detailed assembly guide included with your product for step-by-step instructions. General recommendations include:
- Teamwork: Assembly typically requires two or more individuals.
- Tools: Gather necessary tools such as wrenches, screwdrivers, and ladders before starting. An impact driver with appropriate hex bits can expedite the process.
- Part Identification: Carefully identify all parts using the provided parts list and diagrams. Ensure all components are present before assembly.
- Sequence: Follow the assembly steps in the order provided to ensure correct construction.
Image 2.1: The 4.7-inch upgraded aluminum pole base provides enhanced stability.
3. Operating and Features
Your PURPLE LEAF gazebo is designed with several features to enhance your outdoor experience.
3.1 Double Roof Design
The galvanized steel double roof provides superior protection against various weather conditions. Its design allows for better air circulation, contributing to a cooler environment within the gazebo. It is engineered to withstand wind rates up to 40 mph and snow loads up to 2500 lbs.
Image 3.1: Double roof design for enhanced air circulation and weather resistance.
3.2 Optimized Drainage System
The sloped roof and integrated gutter system efficiently direct rainwater. Water is channeled through drainage holes located in the four corners, preventing accumulation on the roof and ensuring a dry interior.
Image 3.2: The efficient drainage system prevents water accumulation.
3.3 Curtains and Netting
The gazebo includes upgraded 260 GSM textilene netting and heavy-duty black curtains. These provide protection from rainwater and UV rays while maintaining ventilation. The curtains can be closed for privacy or tied back to enjoy an open view.
Image 3.3: Detail of the unique black curtain, offering UV protection and privacy.
Image 3.4: Quality textilene netting for steadfast protection and ventilation.
3.4 Roof Hooks
The gazebo roof features three integrated hooks, providing convenient locations for hanging items such as outdoor lighting or decorative elements. Note: Ceiling fans and ceiling lights are not included.
Image 3.5: Roof hooks for hanging accessories.
4. Maintenance
Regular maintenance will help preserve the appearance and functionality of your gazebo.
4.1 Frame Care
- Clean the aluminum frame with a soft cloth, mild soap, and water. Rinse thoroughly and dry to prevent water spots.
- Avoid using abrasive cleaners or harsh chemicals, as these can damage the powder coating.
- Periodically inspect all bolts and fasteners and tighten them as needed to ensure structural integrity.
4.2 Roof Care
- Keep the galvanized steel roof free of leaves, debris, and snow accumulation.
- Clean the roof panels with a soft brush and water.
- Inspect for any signs of damage or rust, especially after severe weather.
4.3 Curtains and Netting Care
- The curtains and netting can be hand washed or machine washed on a gentle cycle with cold water and mild detergent.
- Air dry completely before re-hanging or storing.
- For prolonged life, consider removing and storing curtains and netting during periods of extreme weather or when not in use for extended periods.
5. Troubleshooting
This section addresses common issues you might encounter.
5.1 Assembly Difficulties
- Parts Not Aligning: Double-check the assembly guide to ensure all parts are oriented correctly. Sometimes, a slight adjustment or loosening of previously tightened bolts can help.
- Missing Parts: Before starting assembly, verify all parts against the provided list. If any parts are missing, contact PURPLE LEAF customer service immediately.
5.2 Water Accumulation on Roof
- Ensure the drainage system (gutters and corner holes) is clear of any debris, such as leaves or twigs, that could obstruct water flow.
- Verify that the gazebo is installed on a level surface, as unevenness can affect drainage.
5.3 Gazebo Instability
- Confirm that all frame connections are securely tightened.
- Ensure the gazebo is properly anchored to the ground using appropriate hardware for your surface type.
6. Specifications
| Brand | PURPLE LEAF |
| Model Number | ZY05HSTPP |
| Product Dimensions | 233.4"L x 142.9"W x 120.9"H |
| Material | Aluminum Frame, Galvanized Steel Roof |
| Item Weight | 469 Pounds |
| Floor Area | 240 Square Feet |
| Water Resistance Level | Water Resistant |
| Ultraviolet Light Protection | UPF50+ |
| Assembly Required | Yes |
| Color | Light Grey |
| Wind Rate Capacity | 40 mph |
| Snow Load Capacity | 2500 lbs |

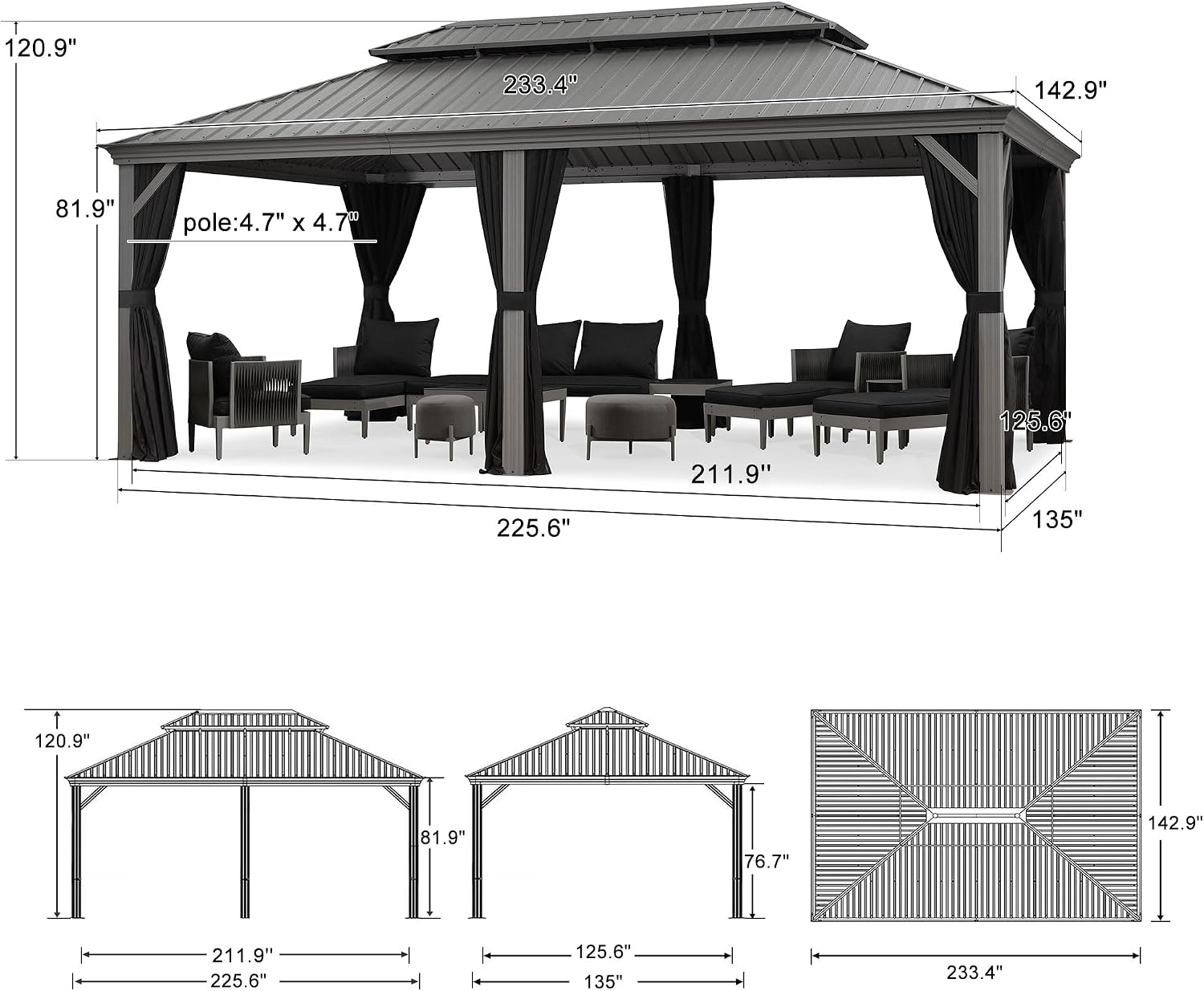

Image 6.1: Product size information and dimensions.
7. Warranty and Support
7.1 Product Warranty
PURPLE LEAF stands behind the quality of its products. This gazebo comes with the following warranty coverage:
- Hardtop Roof: 5 years
- Curtains and Netting: 2 years
- Frame Construction: 1 year
Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal use and conditions.
Image 7.1: PURPLE LEAF Warranty Information.
7.2 Customer Support
For any questions, concerns, or assistance with missing parts or warranty claims, please contact PURPLE LEAF customer service. Refer to the contact information provided at the point of purchase or on the official PURPLE LEAF website.
