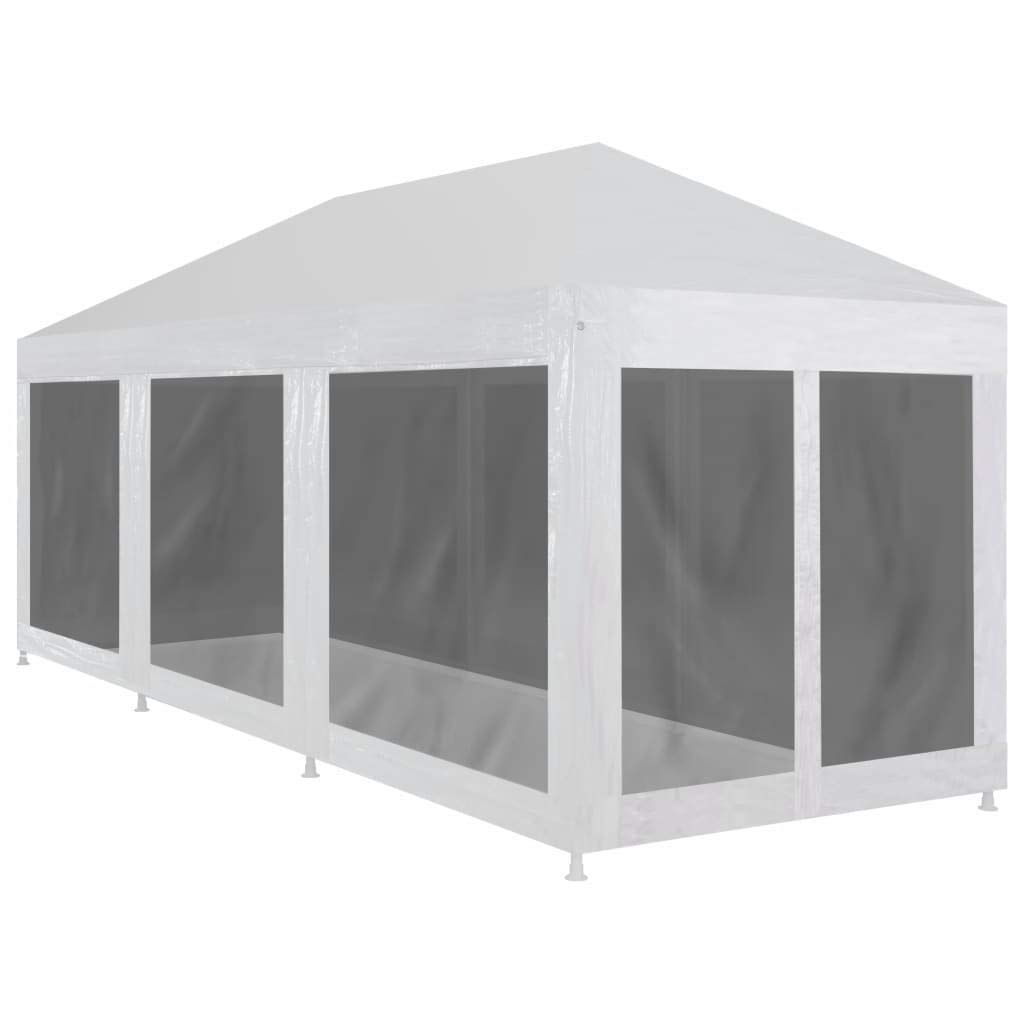

1. Product Overview
This Generic Reception Tent is designed for outdoor events, providing shelter and protection from insects. It features a robust powder-coated steel frame, a durable polyethylene roof, and eight mesh side walls, one of which includes a zippered entrance for easy access. The tent is UV and water-resistant, making it suitable for various outdoor gatherings.

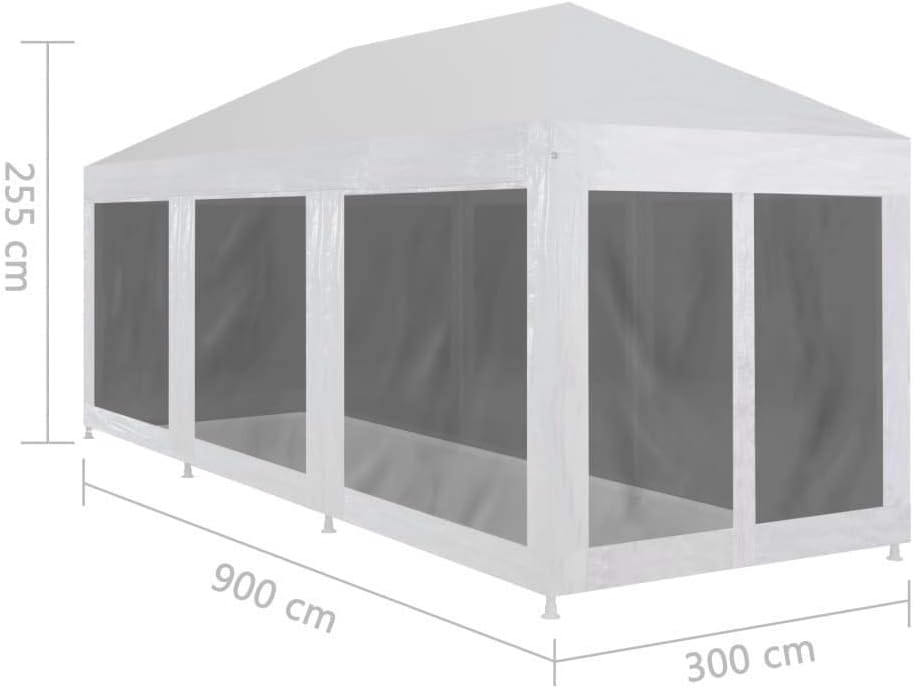

Image 1.1: Overview of the Reception Tent with key dimensions indicated. The tent measures 900 cm (9 meters) in length, 300 cm (3 meters) in width, and 255 cm (2.55 meters) in height.
2. Safety Instructions
- Weather Conditions: This product is intended for temporary use in calm weather conditions. Never use this tent in adverse weather conditions such as strong winds, heavy rain, snow, hail, or thunderstorms. Severe weather can cause structural damage and personal injury.
- Anchoring: Always ensure the tent is securely anchored to the ground using all provided ropes and stakes to prevent it from being lifted or moved by wind.
- Fire Safety: Keep all heat sources, open flames, and flammable materials away from the tent fabric. The tent material is not fireproof.
- Assembly: Assembly should be performed by at least two adults. Follow all assembly steps carefully to ensure structural integrity.
- Site Selection: Choose a level, clear area free from overhead obstructions (e.g., tree branches, power lines) and sharp objects on the ground.
- Supervision: Do not leave children unattended near or inside the tent.
3. Package Contents
Please check the package contents against the list below. If any parts are missing or damaged, contact your retailer immediately.
- Powder-coated steel frame components (poles, connectors)
- Polyethylene roof cover
- 8 Mesh side walls (one with zippered entrance)
- Ropes for anchoring
- Ground stakes
- Assembly instructions (this manual)
Image 3.1: Included anchoring accessories, consisting of ropes and ground stakes, essential for securing the tent.
4. Setup and Assembly
Assembly requires at least two people. Lay out all components on a clean, flat surface before beginning. Do not force connections.
- Assemble the Frame: Connect the steel poles according to the frame diagram (refer to separate diagram if provided, otherwise follow general tent frame assembly logic). Ensure all connections are secure.
- Attach the Roof Cover: Carefully drape the polyethylene roof cover over the assembled frame. Ensure it is centered and all corners align with the frame structure. Secure the roof cover to the frame as designed (e.g., with ties, Velcro, or grommets).
- Install Side Walls: Attach the mesh side walls to the tent frame. The side walls typically attach using Velcro straps, hooks, or ties along the top and sides of the frame. Identify the side wall with the zippered entrance and position it as desired.
- Secure the Tent: Once the tent is fully assembled, use the provided ropes and ground stakes to anchor the tent firmly to the ground. Attach ropes to the tent's anchor points (e.g., grommets on the roof cover or frame legs) and secure them with stakes. Ensure ropes are taut.
Image 4.1: Detail of a tent corner, illustrating the grommet where the roof cover is secured to the frame, often used for anchoring ropes.
5. Operating Instructions
- Using the Zippered Entrance: The tent features one side wall with a full-length zipper. Unzip to open the entrance and zip to close it, providing easy access while keeping insects out.
- Mesh Side Walls: The mesh side walls provide ventilation and protection from insects. They are fixed in place once installed.
- Ventilation: While the mesh walls offer airflow, ensure adequate ventilation, especially if many people are inside.

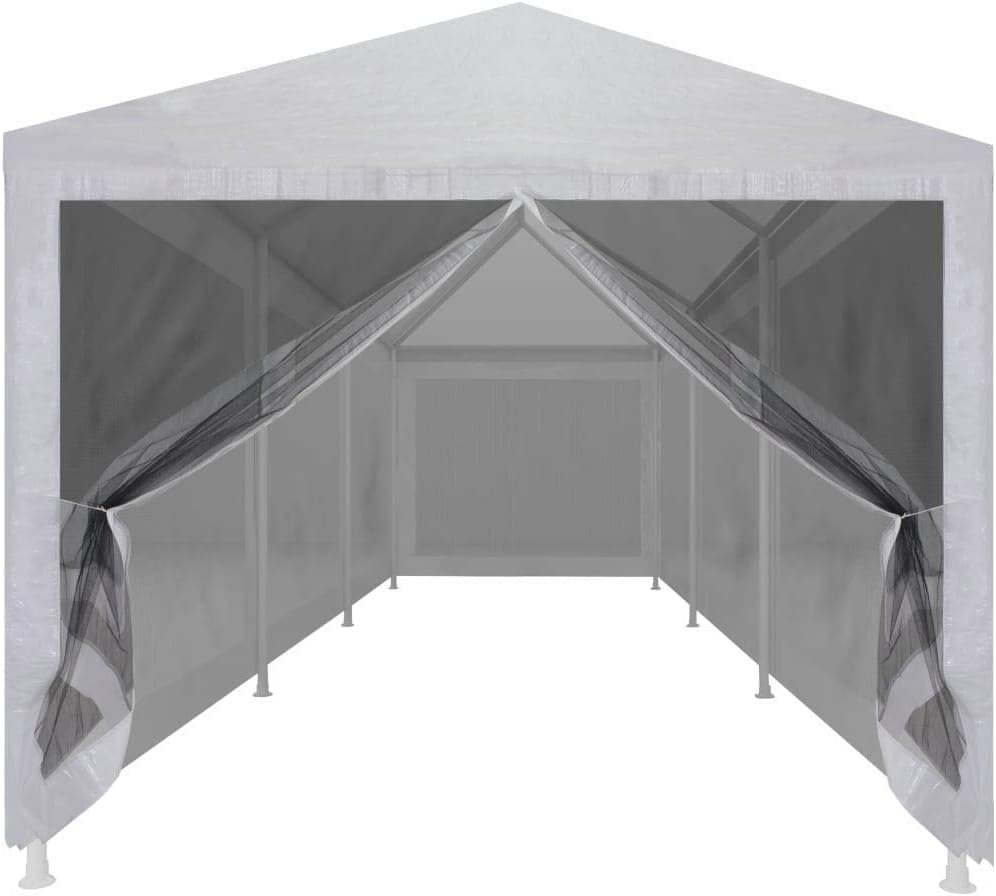

Image 5.1: The tent's entrance, showing the zippered mesh side walls pulled open for access.
Image 5.2: An interior perspective of the tent, highlighting the mesh side walls that provide insect protection and ventilation.
6. Maintenance
- Cleaning: Clean the tent fabric (roof and side walls) with a mild soap solution and a soft cloth or sponge. Rinse thoroughly with clean water and allow to air dry completely before storage. Do not use harsh chemicals or abrasive cleaners.
- Frame Care: Inspect the steel frame periodically for any signs of rust or damage. Clean any dirt or debris from the frame.
- Storage: Disassemble the tent carefully, ensuring all components are clean and dry. Store the tent in a cool, dry place, away from direct sunlight and extreme temperatures, to prolong its lifespan.
- Inspection: Before each use, inspect all components for wear, tears, or damage. Replace any damaged parts immediately.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Tent is unstable or sways | Insufficient anchoring; loose frame connections; strong winds. | Ensure all ropes are taut and stakes are firmly in the ground. Check all frame connections for tightness. Do not use in strong winds. |
| Water pooling on roof | Improper roof cover tension; heavy rain. | Adjust roof cover to ensure it is taut and water can run off. Do not use in heavy rain. |
| Zipper on mesh wall sticks | Dirt or debris in zipper teeth; fabric caught. | Clean zipper teeth with a small brush. Gently pull fabric away from zipper. Apply a zipper lubricant if necessary. |
| Difficulty assembling frame | Incorrect pole orientation; connections not aligned. | Refer to the frame diagram. Ensure poles are inserted correctly and connections are fully engaged. Do not force parts. |
8. Specifications
| Model Number | fZdNHEAGRHdeGcSm |
| Brand | Generic |
| Dimensions (L x W x H) | 9 x 3 x 2.55 m (900 x 300 x 255 cm) |
| Eave Height | 2 m |
| Roof Material | 100% Polyethylene |
| Side Wall Material | 100% Polyester Mesh |
| Frame Material | Powder-coated Steel |
| Color | White and Black |
| Features | UV and Water-resistant, 8 Mesh Side Walls (one with zippered entrance) |
9. Warranty and Support
For warranty information and customer support, please refer to the documentation provided at the time of purchase or contact your retailer directly. Keep your proof of purchase for any warranty claims.
This manual is for informational purposes only. The manufacturer and retailer are not responsible for any damage or injury caused by improper assembly, use, or maintenance of this product.
