Kugookirin G3 Adult Electric Scooter Instruction Manual

Introduction

This manual provides essential information for the safe operation, maintenance, and troubleshooting of your Kugookirin G3 Adult Electric Scooter. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.

Key Features:

• Powerful 1200W Motor for speeds up to 31 mph and 20° climbing ability.
• 52V/18Ah Large Capacity Battery providing an ultra-long range of up to 34 miles.
• 10.5" Off-Road Tires for superior shock absorption and grip on various terrains.
• Dual Brake System (front and rear 120mm disc brakes) for reliable stopping power.
• High Definition LED Display for real-time driving data and mode switching.
• Full 6-light system for enhanced visibility and safety.
• Foldable design for convenient storage and transport.

Figure 1: Kugookirin G3 Adult Electric Scooter with optional seat and a gift bag.

Safety Information

Always prioritize safety when operating the electric scooter. Failure to follow safety guidelines can result in serious injury or damage to the scooter.

General Safety Precautions:

• Always wear a helmet and appropriate protective gear (knee pads, elbow pads, gloves) when riding.
• Do not ride under the influence of alcohol or drugs.
• Adhere to local traffic laws and regulations.
• Avoid riding in heavy rain, snow, or icy conditions. The scooter has an IP54 waterproof rating, but it is not designed for submersion or heavy water exposure.
• Maintain a safe distance from other vehicles and pedestrians.
• Regularly inspect the scooter for any loose parts, tire pressure, and brake functionality before each ride.
• Do not exceed the maximum weight limit of 120 kg (264 lbs).
• Be aware of your surroundings and potential hazards such as potholes, cracks, and uneven surfaces.

Braking and Speed:

The G3 Pro electric scooter is equipped with front and rear 120mm in-line disc brakes. Always use both brakes for effective and safe stopping. Avoid sudden braking, especially at high speeds, to prevent loss of control. The scooter offers three speed modes:

• 1st Gear: 9 mph (15 km/h) - Ideal for beginners or crowded areas.
• 2nd Gear: 18.6 mph (30 km/h) - Balanced speed for general riding.
• 3rd Gear: 28 mph (45 km/h) - For experienced riders on open roads.

Figure 2: The powerful 600W brushless motor enables speeds up to 28 mph and a 20° climbing ability.

Package Contents

Upon opening the package, please verify that all the following components are included:

• Kugookirin G3 Electric Scooter (x1)
• Charger (x1)
• Instruction Manual (x1)
• Toolkit (x1)
• Optional Seat (x1)

Figure 3: Unboxing the KuKirin G2PRO Electric Scooter. Ensure all components are present.

Setup Guide

1. Unfolding the Scooter:

1. Carefully remove the scooter from its packaging.
2. Locate the folding mechanism near the base of the handlebar stem.
3. Release the latch and carefully lift the handlebar stem until it locks into the upright position. Ensure it is securely locked before proceeding.

2. Handlebar Assembly:

1. Attach the handlebar to the stem using the provided screws and toolkit. Ensure all screws are tightened securely.
2. Connect any loose cables from the handlebar to the main scooter body, ensuring they are properly seated and secured.

3. Seat Installation (Optional):

1. If you wish to use the seat, attach the seat post to the designated mounting point on the scooter deck.
2. Adjust the seat height to a comfortable position and secure it using the quick-release lever.

4. Initial Charge:

Before first use, fully charge the scooter's battery. The charging time is approximately 8 hours. Connect the charger to the scooter's charging port and then to a power outlet. The indicator light on the charger will change when fully charged.

Figure 4: The 48V/15Ah high-quality lithium-ion battery provides a long range and requires approximately 8 hours for a full charge.

Operating Instructions

1. Powering On/Off:

Insert the key into the ignition and turn it to the ON position. Press and hold the power button on the LED display to turn the scooter on. Repeat to turn off.

2. Understanding the LED Display:

The high-definition LED display provides real-time information about your ride, including speed, battery level, and selected gear mode. You can switch between driving modes (1st, 2nd, 3rd gear) using the mode button.

Figure 5: The LED HD Display shows real-time status, including speed, battery, and mode. Controls for light, horn, and accelerator are also visible.

3. Riding the Scooter:

1. Place one foot on the deck and push off with the other foot to gain initial momentum.
2. Once moving, gently press the accelerator lever to engage the motor.
3. To slow down or stop, release the accelerator and gently apply the brake levers.
4. Utilize the turn signals and horn as needed for safety.

Figure 6: Rider demonstrating standing operation of the Kugookirin G3 Electric Scooter.

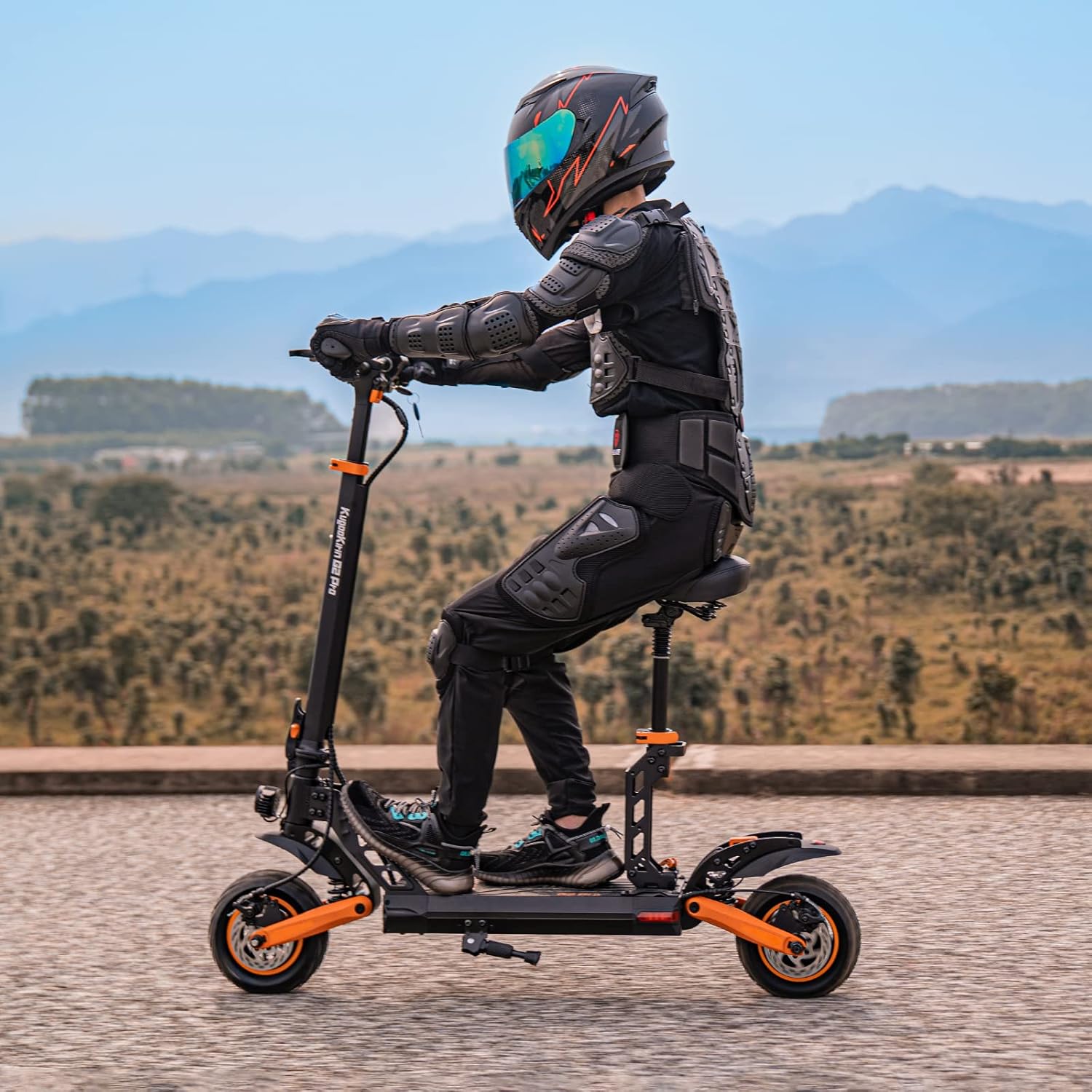

Figure 7: Rider demonstrating seated operation of the Kugookirin G3 Electric Scooter.

Maintenance

Regular maintenance ensures the longevity and safe operation of your Kugookirin G3 scooter.

1. Tire Care:

The 10.5" pneumatic off-road tires require regular pressure checks. Maintain recommended tire pressure for optimal performance and to prevent punctures. Inspect tires for wear and tear, and replace them if necessary.

Figure 8: The 10.5-inch pneumatic off-road tires provide wide surface area, good shock absorption, and grip.

2. Brake System:

Regularly check the front and rear disc brakes for proper function. Ensure the brake levers are responsive and the brake pads are not excessively worn. Adjust or replace components as needed.

Figure 9: The full 6-light system includes a headlight, auxiliary road lights, and warning tail lights for enhanced visibility and safety.

3. Cleaning and Storage:

Clean the scooter with a damp cloth. Avoid using high-pressure water jets directly on electrical components. Store the scooter in a dry, cool place away from direct sunlight and extreme temperatures. When storing for extended periods, ensure the battery is charged to approximately 50-70%.

Troubleshooting

Specifications

Warranty and Support

The KuKirin G2Pro off-road electric scooter has passed UL safety tests. We offer a 6 or 12-month warranty on different parts of the scooter. For specific warranty details, please refer to the warranty card included with your product or contact customer service.

If your scooter has any damaged parts or requires assistance, please contact the seller directly for help. Our customer service is available 24 hours to assist you with replacement parts or technical support.

For further assistance, please visit the official Kugookirin store: Kugookirin Store on Amazon.
