1. Important Safety Information
Please read all instructions carefully before installation and operation. Failure to follow these instructions may result in damage to the product, vehicle, or personal injury. Keep this manual for future reference.
- Ensure the vehicle's ignition is off and the battery is disconnected before installation to prevent electrical shorts.
- Consult a professional for installation if you are unsure about any steps.
- Do not operate the device in a manner that distracts you from driving. Always prioritize road safety.
- Avoid exposing the unit to extreme temperatures, direct sunlight for prolonged periods, or excessive moisture.
2. Product Overview
The BXLIYER Android 12 IPS Car Radio is an advanced multimedia system designed to enhance your driving experience in Volkswagen Golf 7 models from 2013 to 2018. It features a high-definition IPS touchscreen, powerful Octa-Core processor, ample memory, and a wide range of connectivity options.
Key Features:
- Operating System: Android 12
- Processor: Rockchip AC8257 A53 Octa-Core (64-bit, 2.0 GHz)
- Memory: 6GB LPDDR4 RAM + 128GB SSD ROM
- Display: IPS Screen, 1280*600 HD resolution
- Audio Output: Max 4x50W, built-in DSP with 64-band equalization
- Connectivity: Bluetooth 5.0, WiFi, 4G support (via optional dongle)
- Smartphone Integration: Wireless/Wired Apple CarPlay and Android Auto, MirrorLink
- Camera Support: Rear camera input (free LED rear camera included), 360 panoramic parking function (requires optional AHD cameras)
- Radio: AM/FM tuner with RDS, DAB+ support (requires optional adapter)
- Additional Features: Fast Boot (system access in less than 2 seconds), Steering Wheel Control, Split Screen Mode, 4K video playback, OBD2 support (requires optional adapter).
Image: The BXLIYER car radio seamlessly integrated into a Volkswagen Golf 7 dashboard, displaying its user interface with navigation and media options.
Image: An infographic highlighting the core specifications including Android 12, Octa-Core CPU, 6GB RAM, 128GB ROM, IPS screen, and support for CarPlay, Android Auto, and DSP.
3. Package Contents
Verify that all components listed below are included in your package:
- Main Head Unit (Car Radio)
- Power Socket Cable
- RCA Output Socket Cables
- GPS Antenna
- Double USB Cable
- USB Cable
- Owner's Manual (Instructions)
- Radio Antenna Adapter
- LED Rear Camera
- External Microphone
- CANBUS Decoder (if applicable for your vehicle model)
Image: A visual representation of the main unit's rear connections and all accessories included in the package, such as cables, antennas, and the external microphone.
4. Setup & Installation
This section provides general guidelines for installing your car radio. Specific vehicle wiring may vary. It is recommended to consult your vehicle's service manual or a professional installer.
Installation Steps:
- Preparation: Disconnect the negative terminal of your vehicle's battery. Remove the factory radio from the dashboard.
- Wiring Harness Connection: Connect the provided power socket cable to the car radio. Match the wires according to the wiring diagram (refer to image PT04). Ensure proper connections for B+(12V), ACC, GND, ILL, and speaker outputs.
- CANBUS Connection: If your vehicle requires a CANBUS decoder for steering wheel controls or other vehicle data, connect it as per the diagram.
- Antenna Connections: Connect the GPS antenna and the radio antenna adapter. Position the GPS antenna in a location with a clear view of the sky.
- USB & External Mic: Connect the USB cables for media playback and smartphone integration. Plug in the external microphone for improved call quality.
- Camera Connections: Connect the included LED rear camera to the 'REVERSE' input. If using optional 360 cameras, connect them to the designated 360 camera inputs.
- Test Functionality: Before fully reassembling the dashboard, reconnect the battery and briefly test the unit's basic functions (power on, radio, sound, camera).
- Secure Installation: Carefully mount the car radio into the dashboard opening and secure it. Reassemble any removed trim panels.

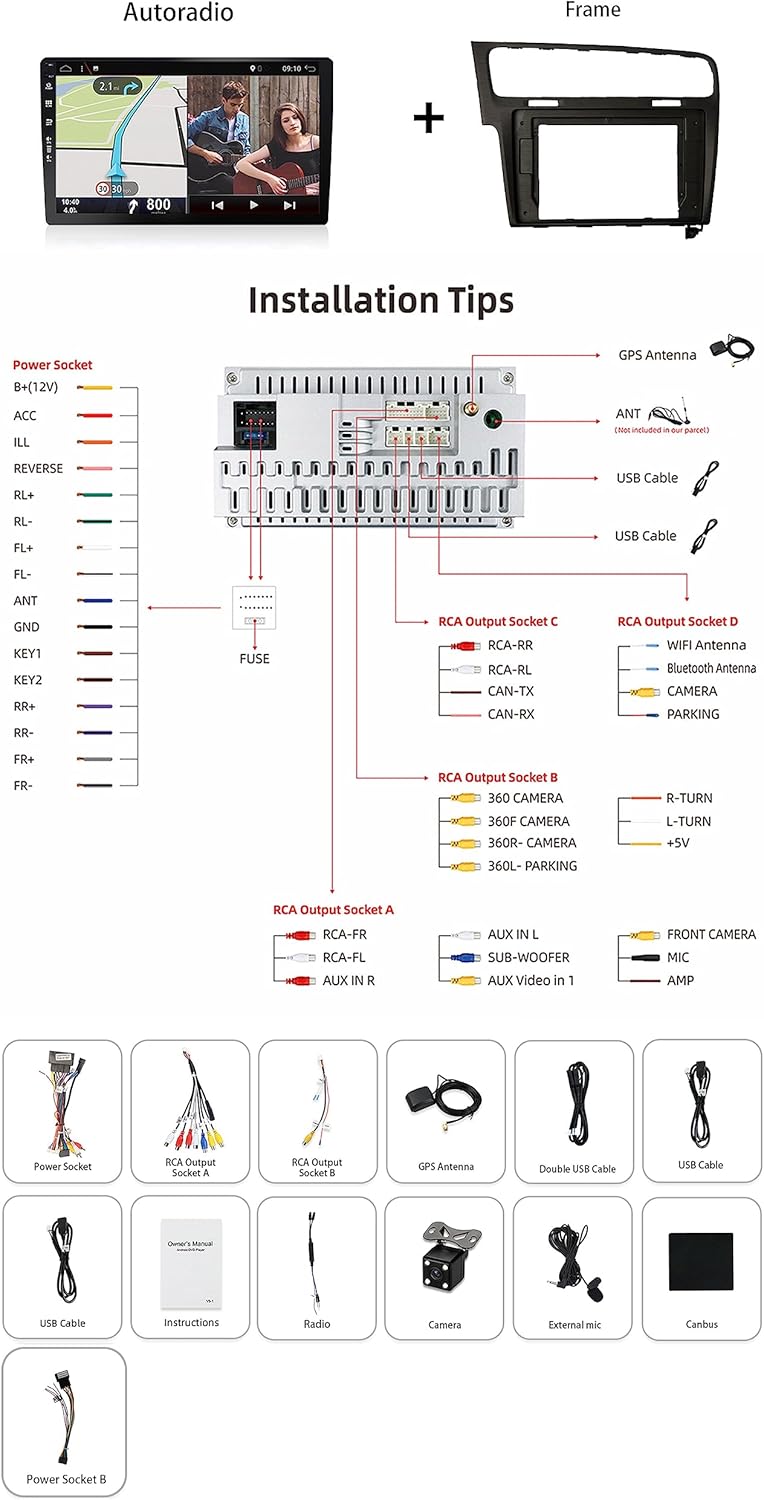

Image: The comprehensive wiring diagram illustrating all input and output connections, crucial for correct installation.
5. Operating Instructions
This section guides you through the various functions and features of your BXLIYER car radio.
System Basics:
- Fast Boot: The system is designed for quick startup, allowing access in less than 2 seconds after the initial boot.
- Touchscreen Interface: Navigate through menus and applications using the responsive IPS touchscreen.
Image: Visuals showing the fast boot functionality, how MirrorLink connects a phone, the split-screen feature, and the integration with steering wheel controls.
Connectivity:
- Bluetooth 5.0: Pair your smartphone for hands-free calling and audio streaming. Access your phonebook and call history directly from the unit.
- WiFi/4G: Connect to a WiFi hotspot or use an optional 4G dongle (ASIN: B0956QQXKF) for internet access, online navigation, and app downloads.
Image: Demonstrations of various connectivity options including DAB+ radio, 4G/WiFi internet access, rear camera view, Bluetooth interface, and the external microphone.
Smartphone Integration:
- Apple CarPlay & Android Auto: Connect your iPhone or Android smartphone wirelessly or via USB to access navigation, make calls, send messages, and play music through the car radio's interface.
- MirrorLink: Mirror your smartphone's screen directly onto the car radio display for compatible Android and iPhone devices.
Image: A visual guide to using built-in CarPlay and Android Auto for navigation, calls, and music, alongside an explanation of the DSP's sound customization options.
Audio Features:
- DSP (Digital Sound Processor): Utilize the 64-bit dual precision DSP chip for advanced audio customization, including 64-band equalization, surround sound settings, bass boost, and subwoofer adjustments.
- Radio: Enjoy AM/FM radio with RDS (Radio Data System) for station information. For enhanced digital radio quality, connect an optional DAB+ adapter (ASIN: B092D31BVX).
Navigation:
The unit supports both online and offline GPS navigation. Download your preferred navigation apps from the Google Play Store.
Camera Functions:
- Rear Camera: The included LED rear camera automatically displays the rear view when the vehicle is shifted into reverse gear.
- 360 Panoramic Parking Function: For a comprehensive view of your surroundings, this unit supports an optional 360-degree panoramic camera system (requires purchasing 4 AHD cameras separately, e.g., ASIN: B0B58CG2Y5).
Image: A visual explanation of the 360-degree panoramic parking system, showing how it provides a clear view around the car, and information on compatible AHD cameras.
Other Features:
- Steering Wheel Control: Connect the unit to your vehicle's steering wheel controls for convenient operation of volume, track changes, and calls.
- Split Screen Mode: Run two applications simultaneously on the screen, such as navigation and music playback.
- 4K Video Playback: Supports high-resolution video playback (up to 3840 x 2160 pixels).
- USB/MicroSD: Expand storage and media playback options with USB drives or MicroSD cards up to 5000GB.
- OBD2 Support: With an optional OBD2 Bluetooth unit and a compatible app (e.g., Torque from Play Store), you can retrieve vehicle diagnostic information and real-time data.
6. Maintenance
Proper maintenance ensures the longevity and optimal performance of your car radio.
- Cleaning the Screen: Use a soft, lint-free cloth to gently wipe the touchscreen. For stubborn smudges, slightly dampen the cloth with water or a screen cleaner designed for electronics. Avoid harsh chemicals or abrasive materials.
- Software Updates: Periodically check for available software updates to ensure you have the latest features and bug fixes. Updates can usually be performed via WiFi connection.
- Environmental Care: Avoid exposing the unit to extreme temperatures, direct sunlight for extended periods, or excessive dust and moisture.
7. Troubleshooting
If you encounter issues with your car radio, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not power on | Loose power connection, blown fuse, vehicle battery issue. | Check power cables (B+, ACC, GND). Inspect vehicle fuses. Ensure battery is charged. |
| No sound | Volume too low, mute activated, speaker wiring issue, incorrect audio output settings. | Increase volume. Check if mute is on. Verify speaker connections. Adjust audio settings in DSP. |
| GPS not working / inaccurate | GPS antenna not connected or poorly positioned, outdated maps, no internet connection for online maps. | Ensure GPS antenna is securely connected and has a clear view of the sky. Update maps. Connect to WiFi/4G for online navigation. |
| Bluetooth connection issues | Device not in pairing mode, incorrect pairing code, interference. | Ensure both devices are in pairing mode. Re-enter pairing code. Move closer to the unit. Restart Bluetooth on both devices. |
| Rear camera not displaying | Camera not connected, reverse trigger wire not connected, faulty camera. | Check camera and reverse trigger wire connections. Test camera functionality. |
If the problem persists after attempting these solutions, please contact customer support.
8. Specifications
| Feature | Specification |
|---|---|
| Model Number | SXAUTO-552G-D05-6128-BX |
| Operating System | Android 12 |
| CPU | Rockchip AC8257 A53 Octa-Core, 64-bit, 2.0 GHz |
| RAM | 6GB LPDDR4 |
| ROM | 128GB SSD |
| Output Power | Max 4x50W |
| Screen Type | IPS |
| Screen Resolution | 1280*600 HD |
| Radio IC | TDA7786 (AM/FM Tuner with RDS) |
| Amplifier IC | TDA7388 |
| Bluetooth Version | 5.0 |
| Connectivity | Bluetooth, WiFi, 4G (optional dongle), USB Type-A |
| Special Features | DAB+ support (optional), OBD2 support (optional), CarPlay, Android Auto, DSP, MirrorLink, Fast Boot, 360 Camera support |
| Compatible Vehicles | Volkswagen Golf 7 (2013-2018) |
| Package Dimensions | 28 x 25 x 18 cm |
| Package Weight | 2.3 kg |
9. Warranty and Support
Your BXLIYER car radio comes with a standard manufacturer's warranty. Please refer to your purchase documentation for specific warranty terms and conditions.
For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact our support team:
- Email: SXAUTO_TECHSUPPORT@163.com
When contacting support, please provide your product model number (SXAUTO-552G-D05-6128-BX) and a detailed description of the issue.
