1. Introduction
Thank you for choosing the Kaowod Outdoor Waterproof Solar Globe Light. This manual provides essential information for the proper setup, operation, and maintenance of your solar light to ensure optimal performance and longevity. Please read these instructions carefully before use.
2. Product Overview
The Kaowod Solar Globe Light is designed for outdoor decorative lighting, featuring a cracked glass sphere and solar-powered LED illumination. It is built to withstand various weather conditions and provides automatic lighting from dusk till dawn.
Key Features:
- Solar Powered: Automatically charges during the day and illuminates at night.
- Durable Construction: Features a 4mm thick real glass ball and a corrosion-resistant base.
- Waterproof Design: IP65/IP67 rated for protection against rain, snow, and dust.
- Long Illumination: Provides 9-12 hours of light after a full charge.
- Versatile Placement: Can be placed on a tabletop or staked into the ground.
Image: Kaowod Solar Globe Lights providing warm white illumination in an outdoor setting.
Image: Details on the light's internal LED string and high-capacity solar panel for extended glow time.
3. Setup Instructions
- Unpack the Product: Carefully remove the solar globe light and any accessories from the packaging.
- Activate the Light: Locate the ON/OFF switch on the base of the solar light. Slide the switch to the "ON" position. The light will not illuminate during the day, but this step is crucial for automatic operation at night.
- Initial Charge: Place the solar light in a location where the solar panel can receive direct sunlight for 5-6 hours. This initial charge ensures the battery is adequately powered for its first use.
- Choose Placement:
- For Ground Placement: Attach the included ground stake to the base of the light. Gently push the stake into soft ground in your desired location. Ensure the solar panel is unobstructed.
- For Tabletop Placement: The light can be placed directly on any flat surface without the ground stake.
Image: Illustrates flexible placement options for the solar globe light, either on a table or staked into the ground.

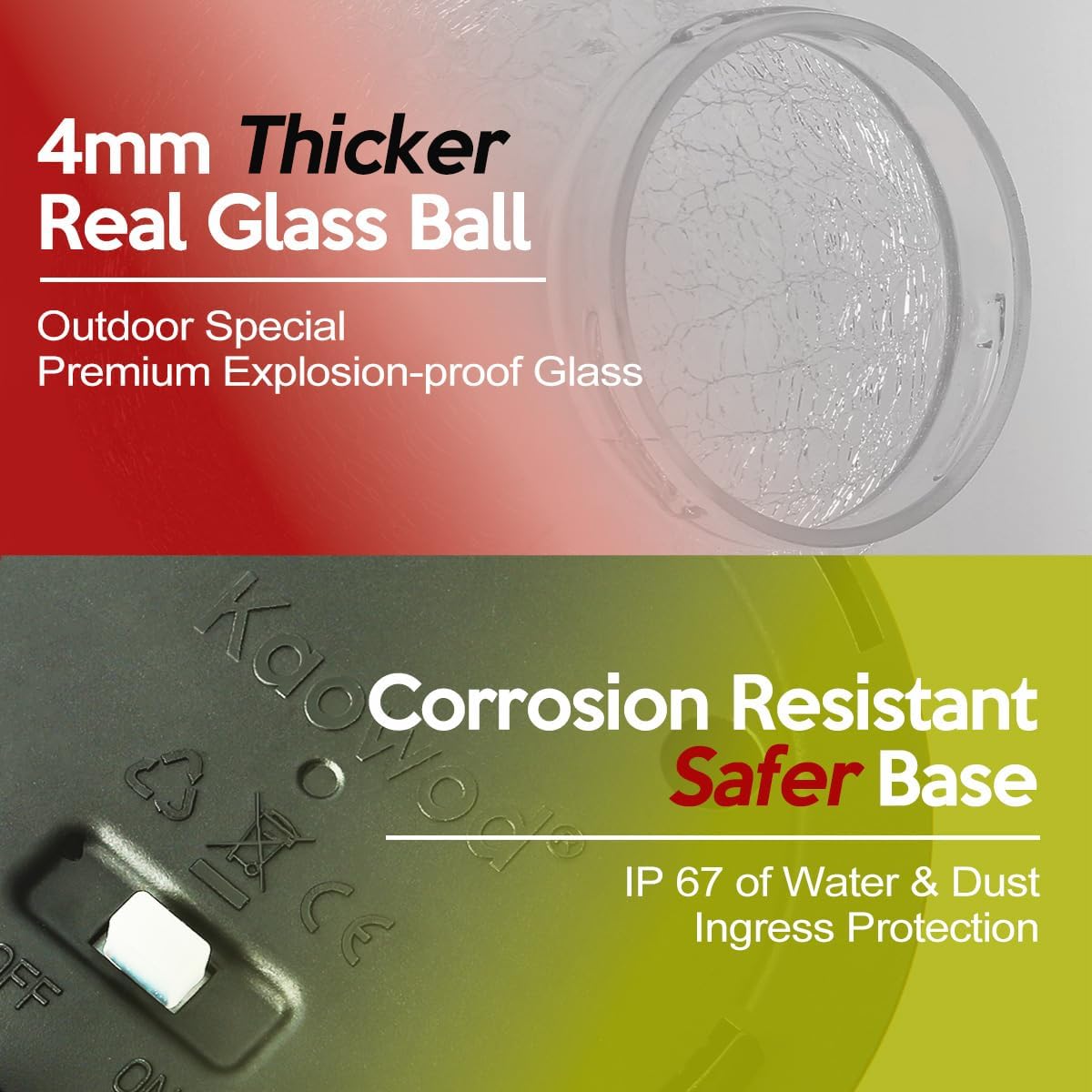

Image: The base of the solar light, highlighting the ON/OFF switch and its corrosion-resistant design.
4. Operating Instructions
Once properly set up and charged, your Kaowod Solar Globe Light operates automatically:
- Automatic Charging: During daylight hours, the integrated solar panel converts sunlight into electricity, charging the internal AAA battery. This process typically takes 5-6 hours of direct sunlight for a full charge.
- Automatic Illumination: As dusk approaches and ambient light levels decrease, the light sensor will automatically activate the LEDs, causing the globe to illuminate.
- Automatic Shut-off: The light will automatically turn off at dawn or when the battery charge is depleted, whichever comes first. A full charge can provide 9-12 hours of continuous light.

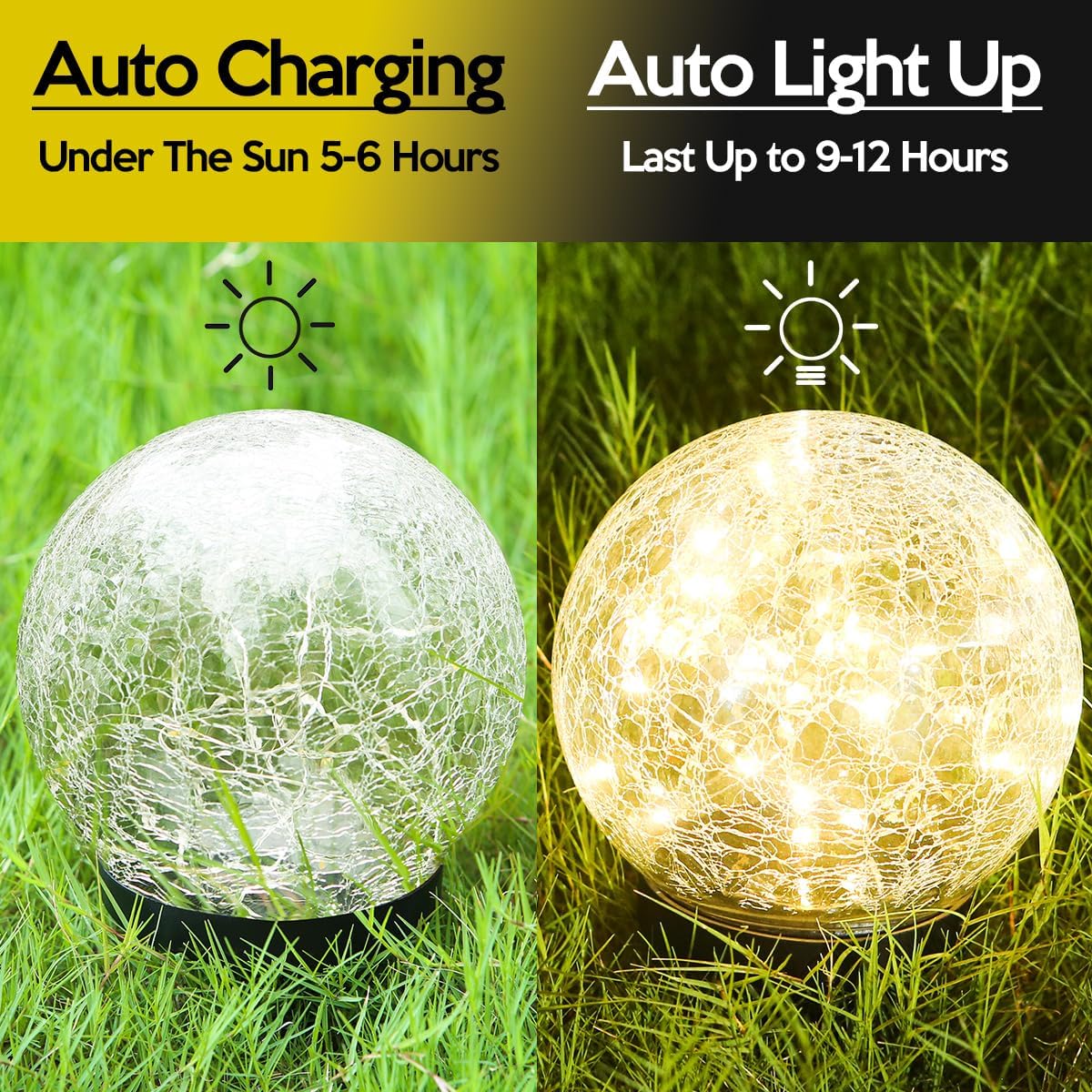

Image: Visual representation of the automatic charging and illumination cycle of the solar light.
5. Maintenance
To ensure your solar globe light continues to function effectively, follow these maintenance guidelines:
- Clean the Solar Panel: Regularly wipe the solar panel with a soft, damp cloth to remove dust, dirt, or debris. A clean panel ensures maximum sunlight absorption and efficient charging.
- Battery Replacement: The light uses 1 AAA rechargeable battery (included). If the light duration significantly decreases over time, the battery may need replacement. To replace, carefully open the battery compartment on the base, replace with a new rechargeable AAA battery, and ensure proper polarity.
- Seasonal Storage: If storing the light for an extended period, switch it to the "OFF" position and store it in a cool, dry place. It is recommended to fully charge the battery before storage and recharge it every few months to maintain battery health.
- Weather Resistance: The IP65/IP67 rating ensures the light is protected against heavy rain and snow. However, avoid submerging the light in water.
Image: The solar light demonstrating its robust IP67 waterproof capabilities in various weather conditions.
6. Troubleshooting
If you encounter issues with your solar globe light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on at night. |
|
|
| Light duration is short. |
|
|
| Light is dim. |
|
|
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Kaowod |
| Model Number | TY-QIUD-T115 |
| Dimensions | 6"D x 6"W x 6"H |
| Item Weight | 1.81 pounds (0.82 Kilograms) |
| Material | Glass |
| Light Source Type | LED |
| Color Temperature | Warm White |
| Power Source | Solar Powered |
| Battery | 1 AAA rechargeable battery (included) |
| Water Resistance | IP65/IP67 Waterproof |
| Charging Time | 5-6 hours (direct sunlight) |
| Illumination Time | 9-12 hours (after full charge) |
| Assembly Required | No |
| UPC | 769083392050 |
8. Warranty and Support
Kaowod stands behind its products. Your solar globe light is covered by a 90-day hassle-free replacement and refund policy from the date of purchase.
If you encounter any issues, have questions, or require assistance with your product, please do not hesitate to contact our dedicated customer support team. We are committed to providing prompt and helpful support to ensure your satisfaction.
For support, please refer to the contact information provided with your purchase or visit the official Kaowod website.
