Kompak KGG20Ei-DF Dual Fuel Inverter Generator User Manual

1. Product Overview

The Kompak KGG20Ei-DF is a versatile dual-fuel inverter generator designed to provide stable and clean power for various applications. It operates on both gasoline and LPG (Liquefied Petroleum Gas), offering flexibility in fuel choice. Its inverter technology ensures a stable power output, making it suitable for sensitive electronic devices.

Figure 1: Kompak KGG20Ei-DF Dual Fuel Inverter Generator.

Figure 2: Dual Fuel capability logo.

2. Setup and Initial Preparation

2.1 Adding Engine Oil

Before starting the generator for the first time, or after an oil change, ensure the engine oil is at the correct level. Use SAE 10W-30 engine oil.

1. Unscrew the knob and remove the oil maintenance cover.
2. Unscrew and remove the oil dipstick.
3. Using an oil funnel, add approximately 450ml of new oil. Do not overfill.
4. Tighten the oil dipstick.
5. Install the oil maintenance cover.

2.2 Adding Fuel (Gasoline or LPG)

The KGG20Ei-DF operates on both gasoline and LPG. Choose the appropriate fuel source for your needs.

2.2.1 Gasoline Operation

1. Remove the fuel tank cap.
2. Add E10 gasoline. The gasoline level should NOT be higher than the red ring inside the tank. (Fuel Tank Capacity: 5.2L).
3. Tighten the fuel tank cap securely.

2.2.2 LPG Operation

Connect an LPG tank to the generator using the appropriate hose and regulator (not included). Ensure all connections are secure and leak-free before operation.

Figure 3: Generator connected for LPG operation.

3. Operating Instructions

3.1 Starting the Generator

1. Turn the fuel cap vent knob to the "ON" position.
2. Turn the three-in-one switch to the "CHOKE" position.
3. Ensure the ECO switch is in the "OFF" state for initial starting.
4. Firmly grasp and pull the recoil handle slowly until you feel increased resistance, then pull rapidly to start the engine.
5. Once the engine is running smoothly, move the three-in-one switch to the "RUN" position.
6. After the AC indicator turns green, plug in your device.

3.2 ECO Mode

The ECO switch allows the generator to adjust engine speed based on the load, maximizing fuel efficiency and reducing noise. Activate ECO mode by flipping the ECO switch to "ON".

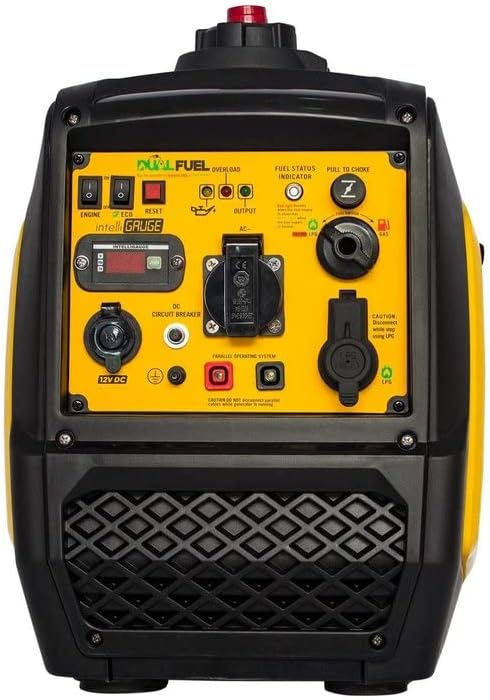

Figure 4: Control panel with ECO switch and outlets.

3.3 Stopping the Generator

1. Remove all loads from the output receptacles.
2. Turn the three-in-one switch to the "OFF" position.
3. Turn the fuel cap vent knob to the "OFF" position.

3.4 Operation Videos (for similar models)

The following videos demonstrate general operation procedures for similar inverter generator models. While not specific to KGG20Ei-DF, the principles apply.

4. Maintenance

Regular maintenance is crucial for the longevity and optimal performance of your generator. Always ensure the generator is turned off and cooled down before performing any maintenance.

4.1 Maintenance Procedures (for similar models)

The following videos demonstrate maintenance procedures for similar inverter generator models. While not specific to KGG20Ei-DF, the general steps for oil change, air filter cleaning, spark plug replacement, and fuel draining are applicable.

5. Troubleshooting

If your generator encounters issues, refer to the following common troubleshooting steps:

• Generator will not start: Check fuel level (gasoline or LPG), ensure engine oil is sufficient, verify spark plug condition, and confirm the choke is set correctly.
• No power output: Check if the AC indicator light is green. If the overload indicator is red, reduce the connected load and reset the output.
• Engine runs rough: Inspect the air filter for clogs and clean if necessary. Check the spark plug for fouling.

6. Specifications

7. Warranty and Support

This Kompak generator comes with a standard manufacturer's warranty. For detailed warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact Kompak customer service directly.
