1. Introduction
This manual provides essential information for the safe and effective operation, setup, and maintenance of your KAKA INDUSTRIAL BS-1018T Dual Miter Metal Cutting Band Saw. Please read this manual thoroughly before operating the machine to ensure proper usage and to prevent injury or damage. Keep this manual accessible for future reference.

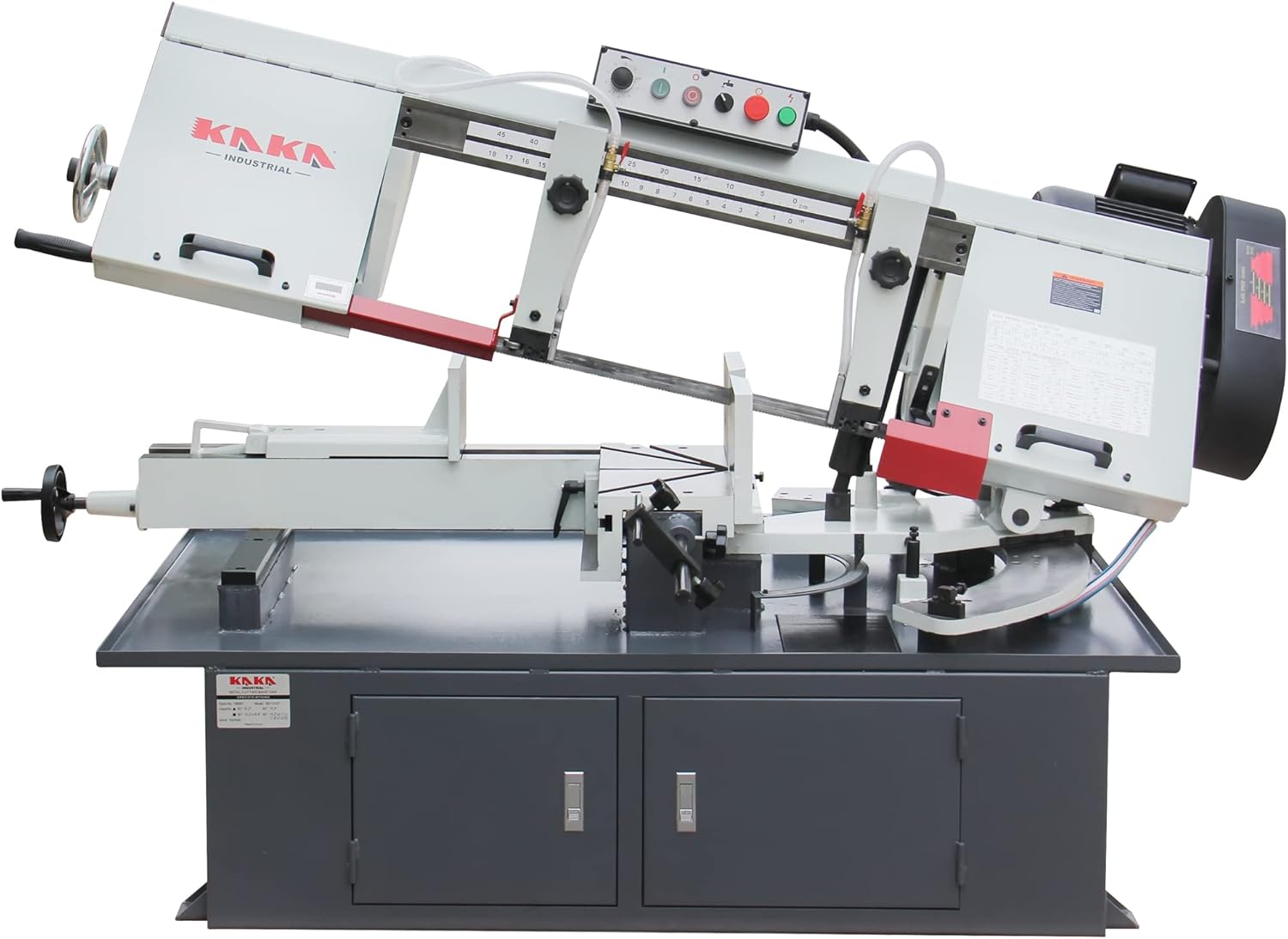

This image displays the complete KAKA INDUSTRIAL BS-1018T band saw, highlighting its robust construction and key components, including the saw frame, control panel, and base cabinet.
2. Safety Information
Operating power tools can be hazardous. Always follow basic safety precautions to reduce the risk of fire, electric shock, and serious personal injury.
- Read the Manual: Understand all instructions and warnings before operation.
- Personal Protective Equipment (PPE): Always wear safety glasses, hearing protection, and appropriate work gloves. Avoid loose clothing and jewelry.
- Work Area: Keep the work area clean, well-lit, and free from obstructions. Ensure adequate space around the machine.
- Electrical Safety: Ensure the machine is properly grounded. Do not operate in damp or wet conditions. Disconnect power before making adjustments or maintenance.
- Blade Safety: Ensure the blade is correctly installed and tensioned. Never touch the blade while the machine is running.
- Material Securement: Always secure the workpiece firmly in the vise before cutting.
- Supervision: Never leave the machine unattended while it is running.
- Machine Stability: Ensure the machine is placed on a stable, level surface.
3. Product Features
The KAKA INDUSTRIAL BS-1018T band saw is designed for precise metal cutting with several key features:
- Dual Miter Capability: Designed for 45 to 60-degree angle cuts without repositioning the material.
- Hydraulic Down Feed: Provides variable speed control for consistent and smooth cutting.
- Manual Saw Frame Adjustment: Allows for manual raising and swiveling of the saw frame.
- Integrated Cooling System: A built-in system for efficient blade cooling during operation.
- Quick-Release Vise: Facilitates fast and secure clamping of workpieces.
- Adjustable Blade Guide: Features a scale for precise blade positioning.
- Material Stop: Ensures repeatable cut lengths.
- Tool Storage Cabinet: Conveniently located in the base for accessories and tools.
This image illustrates various functional parts of the band saw, including the adjustable blade guide with scale, hydraulic down feed control, 2 HP motor, fast release clamp vise, material stop, storage cabinet, fast swivel angle setup, and swivel locker handle.

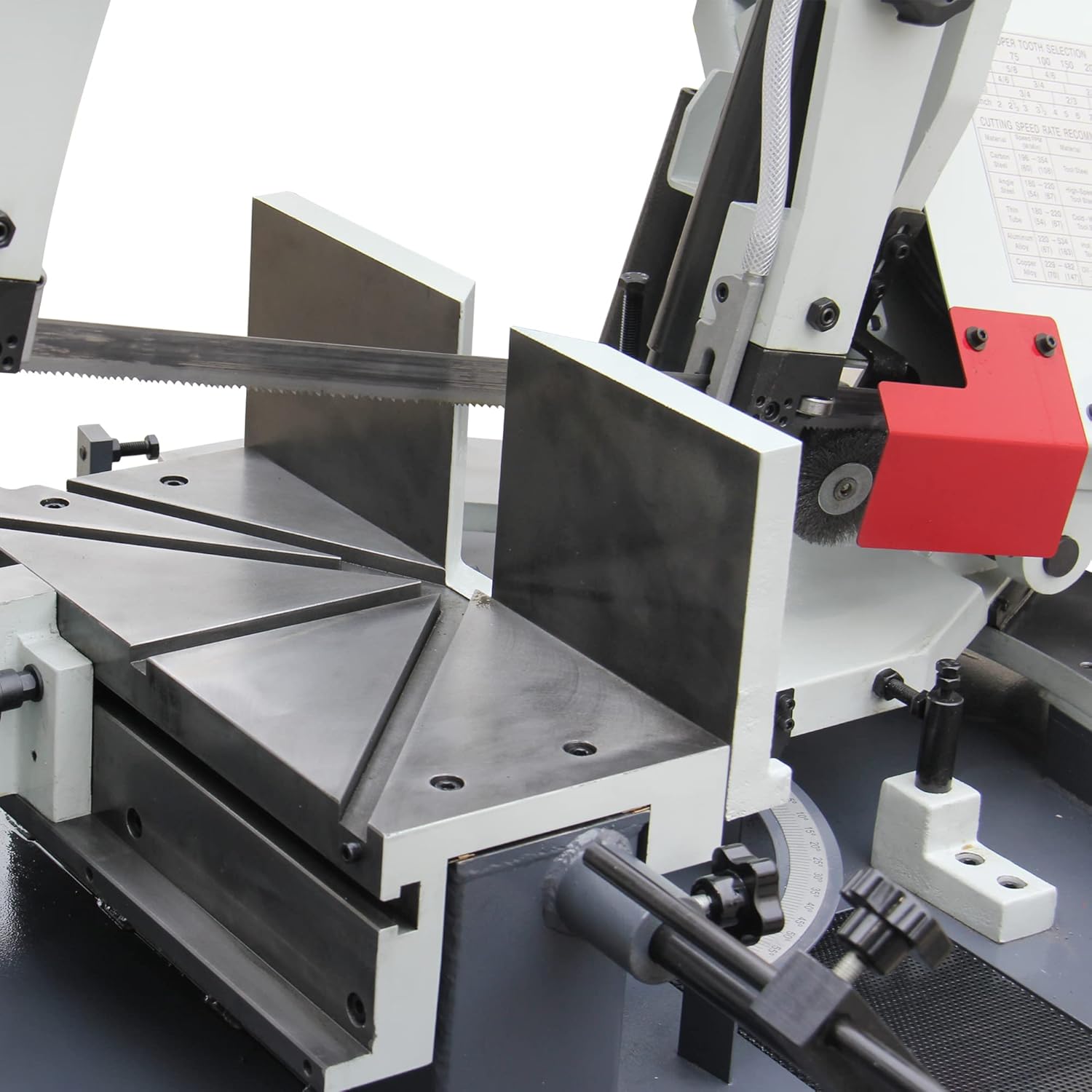

A close-up view showing the robust vise mechanism and the blade's path through the workpiece, emphasizing the machine's capability for angled cuts.
4. Setup
Proper setup is crucial for safe and accurate operation.
- Unpacking and Placement: Carefully unpack the machine. Due to its weight (approximately 1147 lbs), ensure proper lifting equipment and personnel are used. Place the band saw on a solid, level surface capable of supporting its weight and operational forces.
- Assembly: Follow the assembly instructions provided in the separate assembly guide for any components that require installation (e.g., saw frame, coolant system connections).
- Electrical Connection: Connect the machine to a 220V single-phase power supply. Ensure the circuit is properly grounded and can handle the 1500 watts (2 HP) power requirement. Consult a qualified electrician if unsure.
- Blade Installation and Tensioning: Install the band saw blade according to the manufacturer's guidelines. Ensure the blade teeth are oriented correctly and the blade is properly tensioned to prevent breakage and ensure straight cuts.
- Coolant System Setup: Fill the coolant reservoir with appropriate metalworking coolant. Ensure all hoses and nozzles are securely connected and positioned to deliver coolant to the cutting area.
5. Operating Instructions
Follow these steps for safe and effective operation:
- Power On: Ensure all safety guards are in place. Turn on the main power switch.
- Select Blade Speed: Adjust the blade speed according to the material being cut. Refer to the machine's speed chart or general guidelines for optimal cutting performance and blade life.
- Position Workpiece: Place the material to be cut on the machine bed. Use the material stop for repetitive cuts.
- Secure Workpiece: Firmly clamp the workpiece in the quick-release vise. Ensure it is stable and will not shift during cutting.
- Set Miter Angle (if applicable): For angled cuts, adjust the swivel angle using the fast swivel angle setup and secure it with the swivel locker handle. The machine supports dual miter cuts up to 45 degrees to the left and 60 degrees to the right.
- Start Cutting:
- Lower the saw frame manually to just above the workpiece.
- Activate the blade motor using the control panel.
- Engage the hydraulic down feed. Adjust the variable speed for a controlled descent.
- Allow the blade to cut through the material. Do not force the cut.
- Completion: Once the cut is complete, the saw frame will typically stop or lift automatically (depending on model configuration). Turn off the blade motor and raise the saw frame.
- Power Off: Turn off the main power switch and disconnect from the power source when finished or before any adjustments.
This image shows the machine's control panel with power buttons, speed selector, and coolant controls. Below it, a clear measurement scale in both centimeters and inches assists in precise material positioning.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your band saw. Always disconnect power before performing any maintenance.
- Cleaning: After each use, clean metal chips and debris from the machine bed, vise, and blade area. Use a brush or shop vacuum.
- Blade Inspection and Replacement: Regularly inspect the blade for wear, damage, or dullness. Replace worn blades promptly to maintain cutting efficiency and safety.
- Coolant System: Check coolant levels regularly and refill as needed. Clean the coolant tank and filter periodically to prevent clogging and maintain coolant effectiveness.
- Lubrication: Lubricate moving parts as indicated in the detailed maintenance schedule (refer to a separate service manual if provided).
- Vise and Guides: Keep the vise jaws and blade guides clean and free of debris to ensure smooth operation and accurate cuts.
A view of the coolant tank located within the machine's base, part of the integrated cooling system designed to extend blade life and improve cutting performance.
7. Troubleshooting
This section addresses common issues you might encounter. For problems not listed here, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | No power, emergency stop engaged, faulty switch. | Check power connection, reset emergency stop button, inspect power switch. |
| Blade not cutting efficiently | Dull blade, incorrect blade tension, wrong blade speed for material. | Replace blade, adjust blade tension, select appropriate blade speed. |
| Blade breakage | Incorrect blade tension, worn blade guides, forcing the cut. | Adjust tension, inspect/replace guides, reduce feed pressure. |
| Inaccurate cuts | Loose workpiece, worn blade, misaligned blade guides. | Secure workpiece, replace blade, adjust blade guides. |
| Coolant not flowing | Low coolant level, clogged pump/filter, kinked hose. | Refill coolant, clean pump/filter, check hoses. |
8. Specifications
Technical specifications for the KAKA INDUSTRIAL BS-1018T Dual Miter Metal Cutting Band Saw:
| Specification | Value |
|---|---|
| Model | BS-1018T |
| Brand | KAKA INDUSTRIAL |
| Cutting Capacity (Rectangular) | 10.2" x 16.9" |
| Power Source | Corded Electric |
| Voltage | 220 Volts |
| Wattage | 1500 watts (2 HP) |
| Blade Material | High Speed Steel |
| Blade Length | 144 Inches |
| Number of Teeth | 24 |
| Cutting Angle | Up to 90 Degrees (Dual Miter: 45° Left, 60° Right) |
| Product Dimensions (L x W x H) | 84" x 43" x 48" |
| Item Weight | 1147 Pounds |
| Material | Cobalt Steel (Blade) / Metal Alloy (Handle) |
| Included Components | Saw Blade |
| UPC | 720707945694 |
| Part Number | 188061 |
This image provides key dimensions of the band saw, indicating its length (76"/1930mm), width (43" implied from overall dimensions), and height (41"/1050mm to top of saw frame, 39"/1000mm to table).
9. Warranty and Support
The KAKA INDUSTRIAL BS-1018T comes with a limited warranty. For specific terms and conditions, please refer to the warranty documentation included with your purchase or contact KAKA INDUSTRIAL directly.
For technical assistance, parts, or any questions regarding your band saw, please contact KAKA INDUSTRIAL Customer Support.
- Customer Support: Refer to the contact information provided on the KAKA INDUSTRIAL website or your purchase documentation.
- Online Resources: Visit the KAKA INDUSTRIAL Store on Amazon for additional product information and support.
