1. Important Safety Instructions
Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury. Save all warnings and instructions for future reference.
- Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
- Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Personal Safety: Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Power Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools.
- Battery Tool Use and Care: Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
2. Product Overview
The TOPSHAK TS-ED5 is a versatile 20V Li-Ion brushless impact drill kit designed for various drilling and driving tasks. It features a powerful brushless motor, 20+1 position clutch, 2-speed transmission, and an impact function for enhanced performance.
2.1 Components and Features
Figure 2.1: Labeled components of the TOPSHAK TS-ED5 drill. Key parts include the metal keyless chuck (1/2"), motor vents, forward & reverse button, HI/LO 2-speed transmission, LED work light, variable speed trigger, and power indicator.
- Brushless Motor: Provides increased power, efficiency, and longer tool lifespan compared to brushed motors.
- 20+1 Position Clutch: Allows precise torque adjustment for various materials and applications, preventing overtightening or stripping screws. The '+1' position is for drilling.
- 2-Speed Transmission:
- Gear 1 (0-400 RPM): Ideal for driving screws and applications requiring higher torque and lower speed.
- Gear 2 (0-1650 RPM): Suitable for drilling tasks requiring higher speed.
- Impact Function: Enables drilling into harder materials like concrete with greater ease.
- Wide-range LED Work Light: Illuminates the work area for improved visibility in dimly lit conditions.
- Forward/Reverse Switch: For tightening or loosening fasteners.
- Variable Speed Trigger: Provides precise control over drilling/driving speed based on pressure applied.
- Flexible Shaft Driver: Extends reach for accessing screws in confined or awkward spaces.
- 2.0Ah Li-Ion Battery with Indicators: Offers extended run time and features an indicator to show remaining charge.
2.2 Package Contents
Figure 2.2: The complete TOPSHAK TS-ED5 kit, including the drill, battery, charger, and various accessories.
The TOPSHAK TS-ED5 kit includes the following items:
- 1x TOPSHAK Electric Drill (TS-ED5)
- 1x 20V 2Ah Li-Ion Battery
- 1x Battery Charger (Plug)
- 1x Hard Storage Case
- 1x Hexagon Socket Extension Rod
- 1x Flexible Shaft
- 10x Drill Bits (various sizes)
- 32x Screwdriver Bits (various types)
3. Setup
3.1 Charging the Battery
Figure 3.1: The 2.0Ah Li-Ion battery with its charging unit, showing the indicator lights.
- Ensure the battery is securely inserted into the charger.
- Plug the charger into a standard power outlet.
- The battery indicator lights on the battery pack will show the charging status. A full charge is indicated when all lights are solid.
- Unplug the charger once charging is complete.
Note: For optimal battery life, avoid fully discharging the battery before recharging. Store the battery in a cool, dry place away from direct sunlight.
3.2 Attaching and Removing the Battery
- To Attach: Align the battery pack with the base of the drill handle and slide it in until it clicks securely into place.
- To Remove: Press the battery release buttons on the sides of the battery pack and slide the battery out from the drill handle.
3.3 Installing Drill Bits and Screwdriver Bits

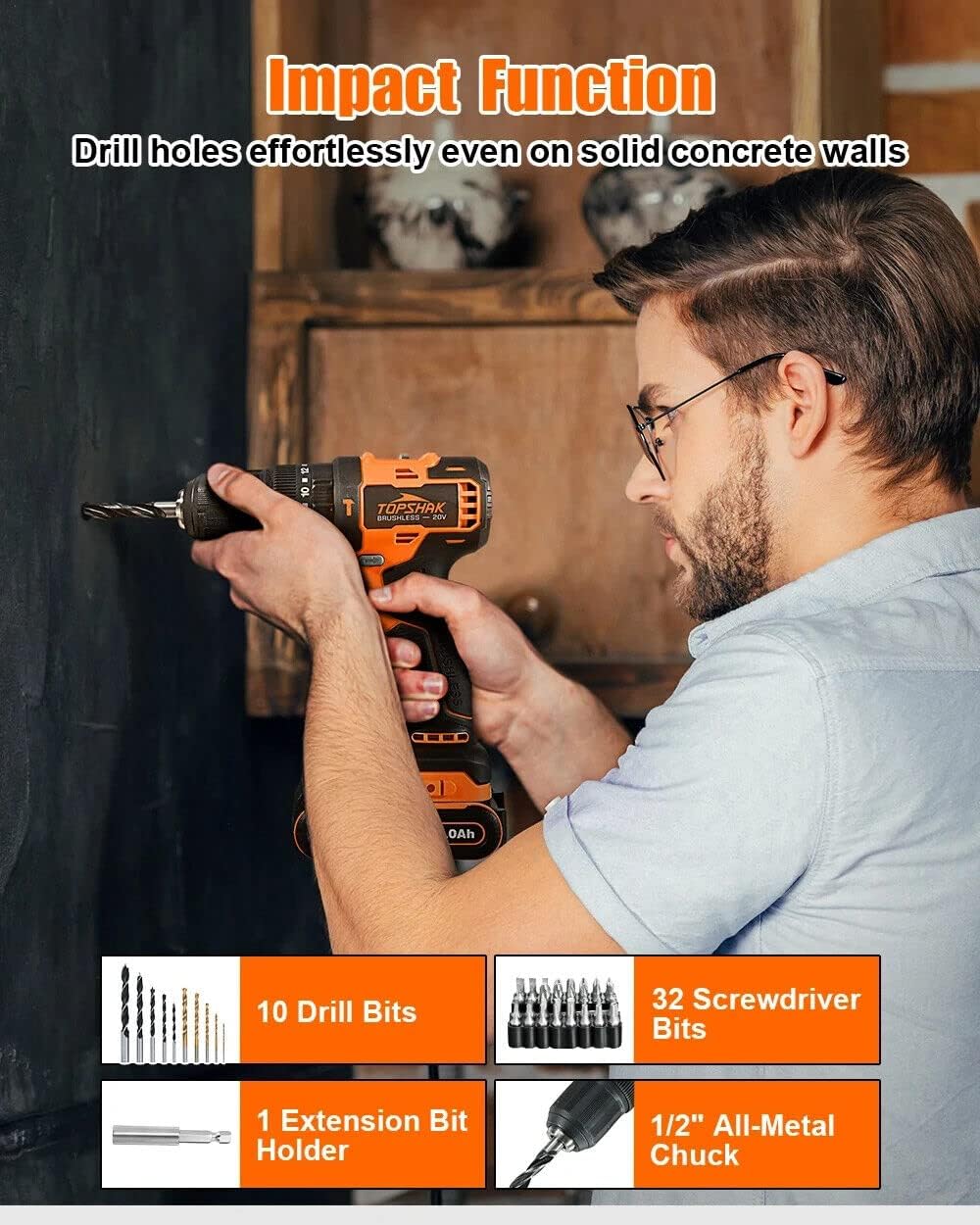

Figure 3.2: The drill shown with a selection of drill bits and screwdriver bits, highlighting the 1/2" all-metal chuck.
- Ensure the drill is switched off and the battery is removed before changing bits.
- Rotate the chuck counter-clockwise to open the jaws.
- Insert the desired drill bit or screwdriver bit into the chuck, ensuring it is centered.
- Rotate the chuck clockwise to tighten the jaws firmly around the bit. Hand-tighten only; do not use tools to tighten the chuck.
3.4 Using the Flexible Shaft Driver
The flexible shaft driver allows you to reach fasteners in tight or awkward spaces.
- Insert the hexagonal end of the flexible shaft into the drill chuck and tighten securely.
- Insert the desired screwdriver bit into the other end of the flexible shaft.
- Use the flexible shaft to access fasteners in hard-to-reach areas.
4. Operation
4.1 Powering On/Off and Variable Speed Control
Figure 4.1: Close-up of the drill's handle, illustrating the wide-range LED, forward/reverse switch, and variable speed trigger for precise control.
- To start the drill, press the variable speed trigger. The speed increases as you press the trigger further.
- To stop the drill, release the variable speed trigger.
- The integrated LED work light will activate when the trigger is pressed, illuminating the work surface.
4.2 Forward/Reverse Switch
The forward/reverse switch is located above the variable speed trigger.
- Push the switch to the left for forward rotation (tightening screws, drilling).
- Push the switch to the right for reverse rotation (loosening screws, removing bits).
- When the switch is in the center position, the trigger is locked, preventing accidental operation. Always engage the lock when not in use or when changing bits.
4.3 Clutch Settings and Speed Transmission

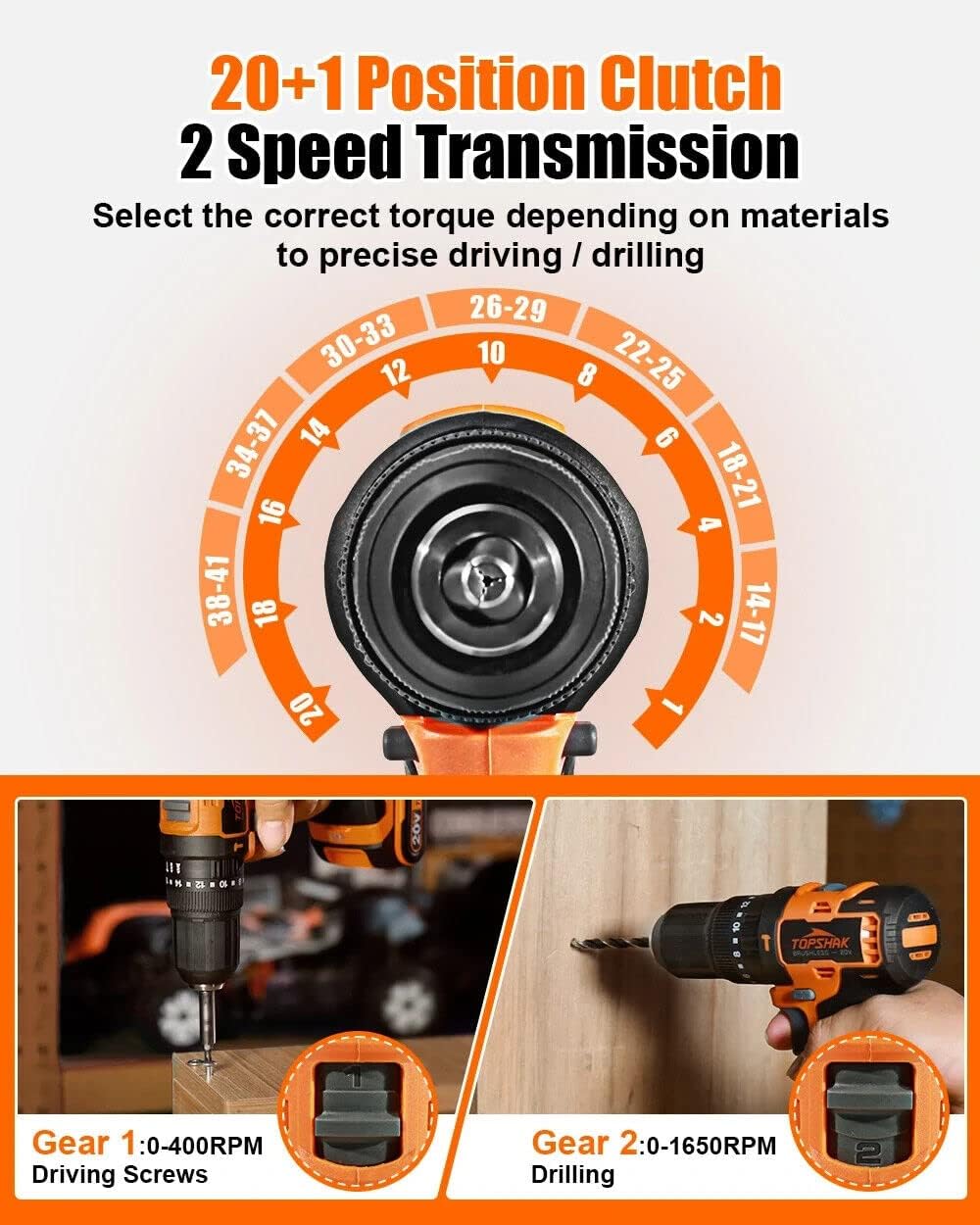

Figure 4.2: The drill's chuck area, detailing the 20+1 position clutch ring and the 2-speed transmission selector switch.
- Clutch Ring: Rotate the numbered ring behind the chuck to select the desired torque setting (1-20) for driving screws. Use lower numbers for smaller screws and softer materials, and higher numbers for larger screws and harder materials. The drill icon setting (beyond 20) is for drilling without clutch engagement.
- Speed Selector: Use the switch on top of the drill to select between Gear 1 (low speed, high torque for driving) and Gear 2 (high speed, low torque for drilling).
4.4 Impact Function
To activate the impact function, ensure the clutch ring is set to the drill icon (impact mode). This mode is specifically designed for drilling into masonry or concrete surfaces.

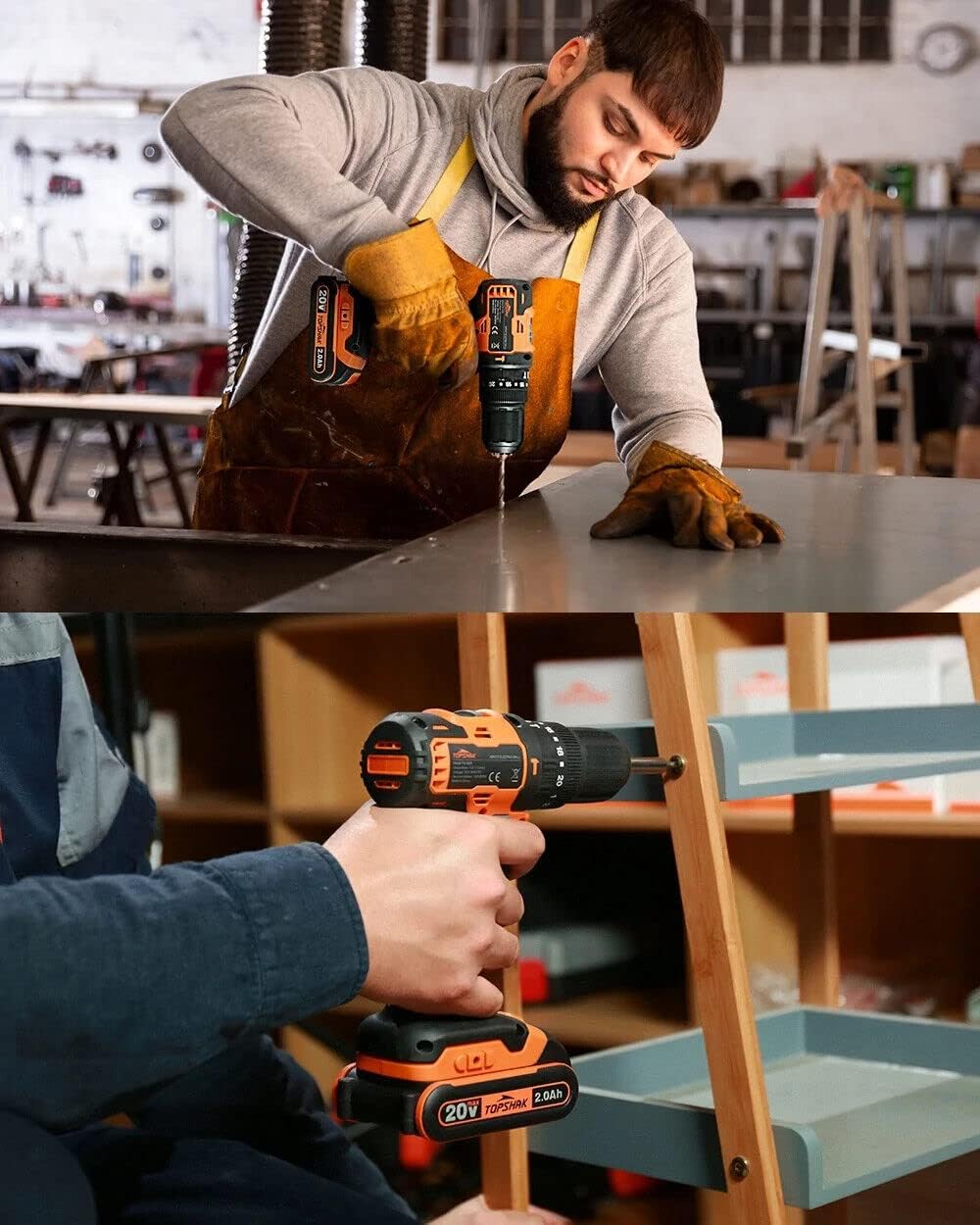

Figure 4.3: Demonstrations of the drill in use for both drilling into metal and driving screws into wood.
5. Maintenance
- Cleaning: Regularly clean the tool's ventilation openings to prevent overheating. Use a soft, damp cloth to wipe down the exterior. Do not use harsh chemicals or abrasive cleaners.
- Storage: Store the drill and its accessories in the provided hard storage case in a dry, secure location, out of reach of children. Remove the battery from the tool before storage.
- Battery Care: Store batteries in a cool, dry place. For long-term storage, charge the battery to approximately 50% capacity. Avoid storing fully charged or fully discharged batteries for extended periods.
- Inspection: Periodically inspect the power cord of the charger for damage. Check the chuck for wear and ensure it tightens properly.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Drill does not start. | Battery not charged or not properly inserted. Forward/Reverse switch in center (locked) position. | Charge the battery and ensure it is securely inserted. Move the forward/reverse switch to either the forward or reverse position. |
| Reduced power or short run time. | Battery charge is low. Battery is old or damaged. | Recharge the battery. If the problem persists, the battery may need replacement. |
| Bit slips in chuck. | Chuck not tightened sufficiently. Bit shank is dirty or damaged. | Ensure the chuck is hand-tightened firmly. Clean the bit shank. Replace damaged bits. |
| Overheating during use. | Continuous heavy use. Ventilation openings blocked. | Allow the tool to cool down. Clear any obstructions from the ventilation openings. Avoid excessive pressure during operation. |
7. Specifications
| Feature | Specification |
|---|---|
| Brand | TOPSHAK |
| Model Number | TS-ED5 |
| Voltage | 20 Volts |
| Battery Type | Lithium Ion (Li-Ion) |
| Battery Capacity | 2.0 Amp Hours (2.0Ah) |
| Motor Type | Brushless |
| Chuck Size | 1/2 inch (Metal Keyless Chuck) |
| Clutch Settings | 20+1 Position |
| No-Load Speed (Gear 1) | 0-400 RPM |
| No-Load Speed (Gear 2) | 0-1650 RPM |
| Maximum Torque | 45 N.m (398 Inch Pounds) |
| Special Features | Brushless Motor, Impact Function, Reverse Rotation, Variable Speed, Wide-range LED |
| Product Dimensions (L x W x H) | 17.5 x 8 x 21 cm (6.89 x 3.15 x 8.27 inches) |
| Weight | 2.72 kg (6 Pounds) |
8. Warranty and Support
This TOPSHAK product is manufactured to high-quality standards and is warranted against defects in materials and workmanship. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.
For technical support, service, or to inquire about replacement parts, please contact TOPSHAK customer service through the retailer where the product was purchased or visit the official TOPSHAK website for contact information.
When contacting support, please have your product model number (TS-ED5) and purchase date available.
