Z.M.C Single Burner Gas Stove 2.2 kW with Storage Case User Manual

Introduction

This user manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Z.M.C Single Burner Gas Stove. Designed for portability and ease of use, this stove is an ideal companion for camping, hiking, fishing, and other outdoor activities. Please read this manual thoroughly before first use and keep it for future reference.

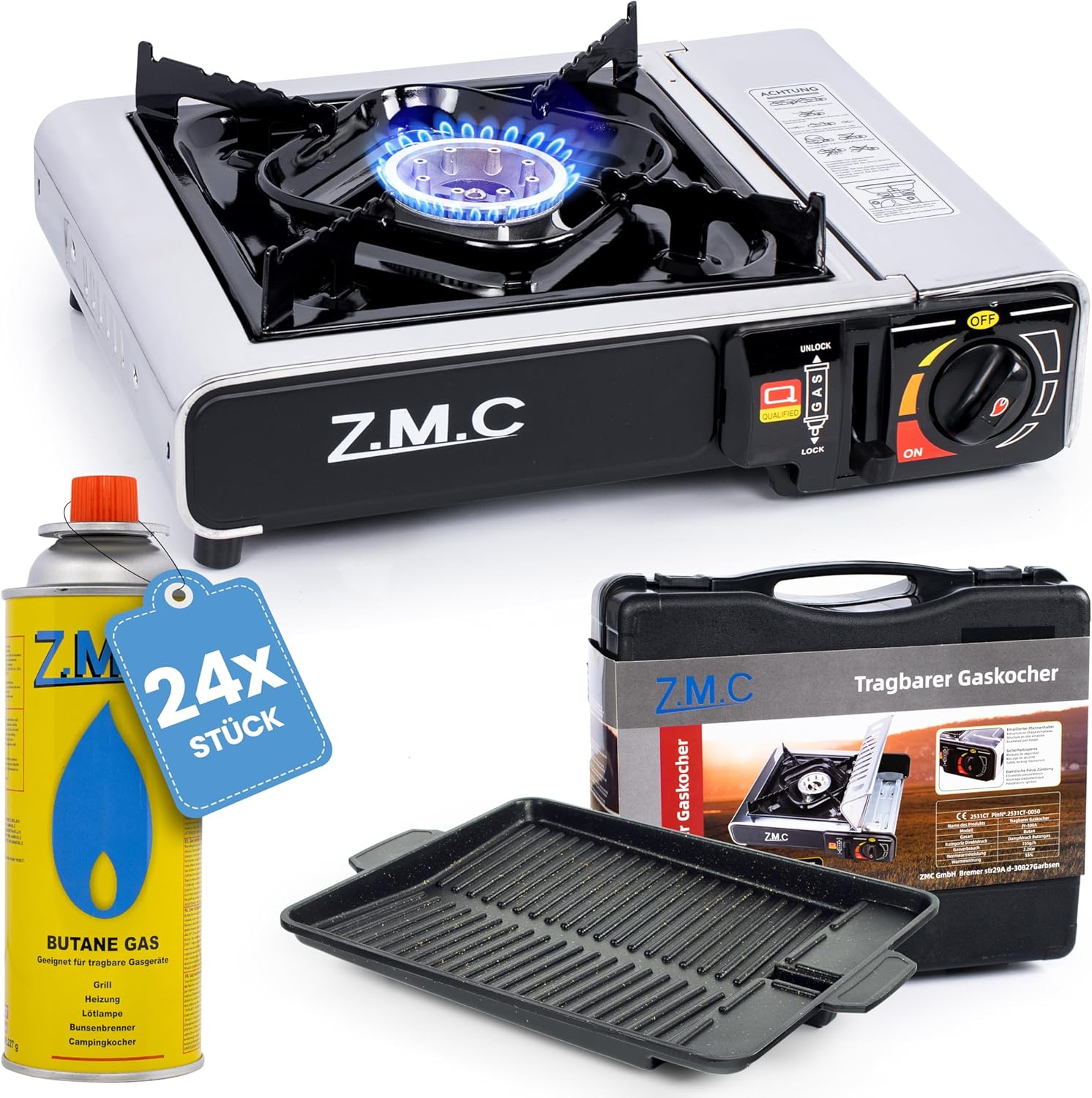

Image: The Z.M.C Single Burner Gas Stove, shown with a gas cartridge and an optional grill plate, highlighting its complete package.

Safety Information

WARNING: Failure to follow these instructions could result in fire, explosion, or carbon monoxide poisoning, which could cause property damage, personal injury, or death.

• Use outdoors only. Do not operate this appliance indoors or in an enclosed space.
• Read all instructions before operating the appliance.
• Keep children and pets away from the stove during operation.
• Ensure adequate ventilation when in use.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
• Always use the correct type of gas cartridge (Butane MSF-1a 227g).
• Disconnect the gas cartridge when the stove is not in use.
• Allow the stove to cool completely before handling or storing.
• Do not obstruct the ventilation openings of the appliance.
• An integrated pressure sensor provides additional safety during operation.

Package Contents

Please check the package to ensure all items are present and undamaged:

• Z.M.C Single Burner Gas Stove
• Grill Plate (optional, included in some packages)
• Plastic Transport Case
• User Manual (this document)
• Butane Gas Cartridges (24 x 227g, included in some packages)

Image: The complete package including the gas stove, grill plate, transport case, and butane gas cartridges.

Setup

1. Unpack the Stove: Carefully remove the stove from its transport case. Place the stove on a stable, level, non-combustible surface, away from any flammable materials.

2. Open the Gas Cartridge Compartment: Locate the gas cartridge compartment on the side of the stove. Lift the lid to open it.



   Image: Step-by-step guide showing how to open the gas cartridge compartment.

3. Insert the Gas Cartridge: Ensure the gas control knob is in the "OFF" position. Align the collar of the Butane MSF-1a 227g gas cartridge with the guide in the compartment and push it firmly into place. The nozzle should fit securely into the stove's gas inlet.

4. Lock the Gas Cartridge: Push the gas cartridge locking lever (usually marked "LOCK" or with an arrow) to the "LOCK" position. This secures the cartridge and creates a seal. You should hear a click. Do not force it if it doesn't move easily; re-check cartridge alignment.

5. Place Cookware: If using the grill plate, place it securely on the stove's pot support. Otherwise, place your pot or pan directly on the pot support.



   Image: The grill plate positioned correctly on the stove's burner support.

Operating Instructions

Igniting the Stove:

1. Turn the Gas Knob: Rotate the gas control knob counter-clockwise from "OFF" to the "ON" position. You may hear a slight hiss of gas.

2. Activate Piezo Ignition: Press the gas control knob inwards to activate the automatic piezo ignition. This will generate a spark to ignite the gas. If the stove does not ignite on the first attempt, release the knob, wait a few seconds, and try again.



   Image: Detailed view of the piezo ignition mechanism and the stepless gas control knob.

3. Adjust Flame: Once ignited, adjust the flame intensity by rotating the gas control knob. The flame is continuously adjustable for precise cooking control.

Turning Off the Stove:

1. Turn Gas Knob to OFF: Rotate the gas control knob clockwise to the "OFF" position until the flame extinguishes completely.

2. Unlock Gas Cartridge: Push the gas cartridge locking lever to the "UNLOCK" position. This will release the gas cartridge.

3. Remove Gas Cartridge: Carefully remove the gas cartridge from the compartment. Close the compartment lid.

4. Allow to Cool: Let the stove cool down completely before cleaning or storing.

Maintenance

• Cleaning: After each use, ensure the stove has cooled down. Wipe the exterior surfaces with a damp cloth. For stubborn stains, use a mild detergent. Do not use abrasive cleaners or solvents. The removable pot support can be cleaned separately.
• Storage: Store the stove in its plastic transport case in a cool, dry place, away from direct sunlight and heat sources. Ensure the gas cartridge is removed before storage.
• Inspection: Periodically inspect the gas hose and connections for any signs of wear, damage, or leaks. If any damage is found, do not use the stove and contact customer support.

Troubleshooting

Specifications

Image: Visual representation of the stove's dimensions (34 cm length, 26 cm width, 15 cm height with grill plate, 8 cm height without).

Warranty and Support

For warranty information, technical support, or replacement parts, please contact Z.M.C customer service through your original point of purchase or visit the official Z.M.C website. Please have your model number (4060711241358) and purchase date ready when contacting support.
