1. Introduction and Product Overview
The Monster Racking Galwix Galvanized Garage Shelving and Workbench is a versatile and robust storage solution designed for garages, workshops, warehouses, and greenhouses. Its boltless, interlocking assembly system allows for easy setup without the need for complex tools. Constructed with a high-quality galvanized steel frame and durable MDF shelves, this unit offers significant load-bearing capacity and stability.
This product can be configured as a tall shelving unit or split into two smaller units, including a workbench with adjustable height. The design prioritizes efficient space utilization and durability for organizing various tools and items.

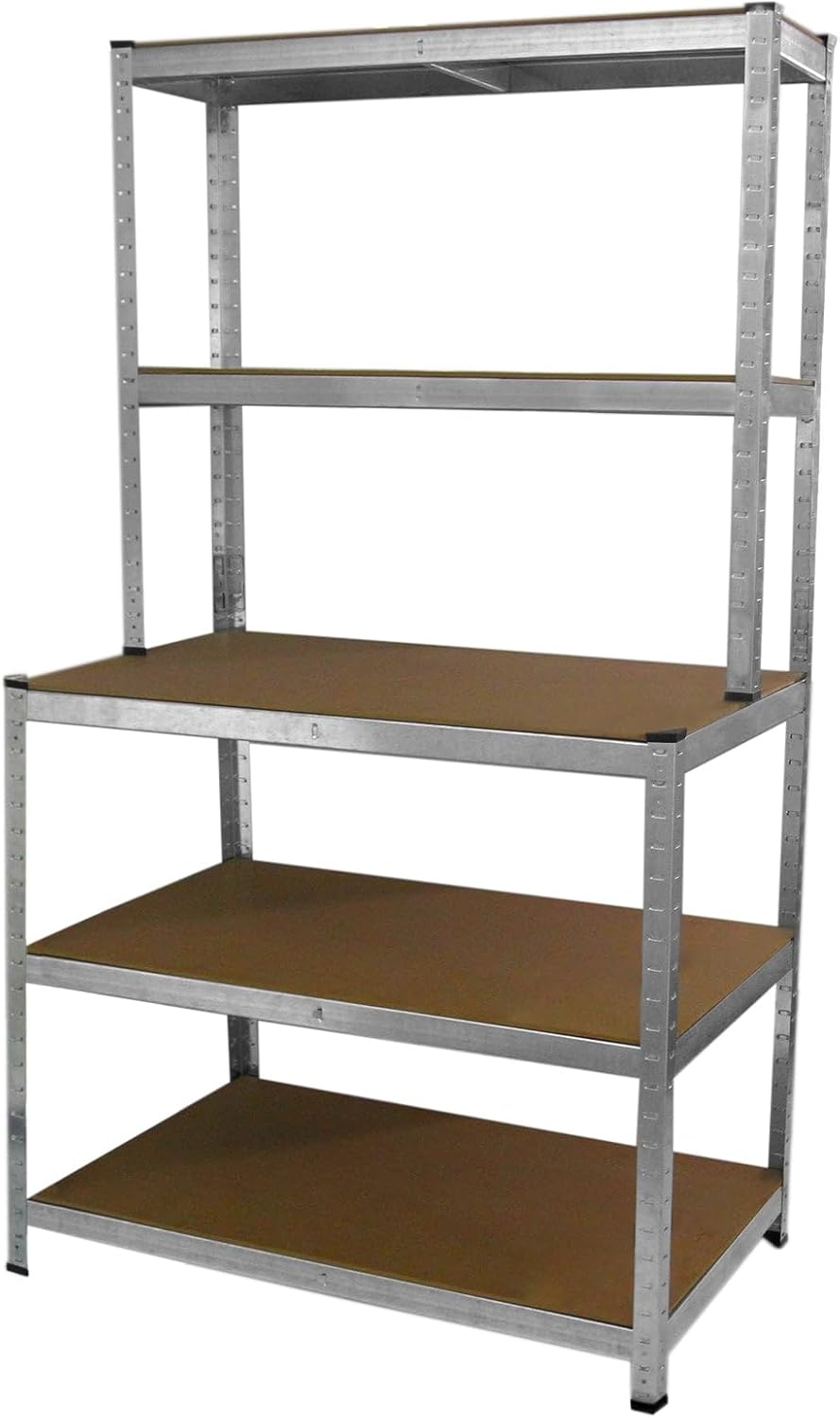

Image 1.1: Fully assembled Monster Racking Galwix Galvanized Garage Shelving and Workbench.
2. Safety Information
- MDF Treatment: The MDF panels included with this unit are untreated. It is strongly recommended to treat each MDF panel before use, especially if the unit will be placed in cold or humid environments, to prevent warping or damage.
- Weight Capacity: Do not exceed the maximum weight capacity for each configuration. The workbench configuration supports up to 900 kg. Individual shelves support up to 175 kg (Galwix model) or 200 kg (E-Rax model). Distribute weight evenly across shelves.
- Stability: Ensure the unit is assembled on a flat, stable surface. Use the provided rubber feet to protect floors and enhance stability.
- Assembly: Always follow assembly instructions carefully. Use a rubber mallet for assembly to avoid damaging components.
- Children and Pets: Keep children and pets away from the unit during assembly. Do not allow climbing on the assembled unit.
3. Package Contents
Before beginning assembly, verify that all components are present and undamaged. While an exact list is not provided, the package typically includes:
- Galvanized steel uprights and beams
- MDF shelf panels (6mm thickness)
- Rubber feet for floor protection
- Locking pins (integrated into the boltless design)
Note: A rubber mallet is required for assembly and is not included.
4. Setup and Assembly Instructions
The Galwix shelving unit features a 100% boltless, interlocking assembly system. A rubber mallet is the only tool required.
4.1. Preparation
- Clear a spacious, level area for assembly.
- Unpack all components and verify against the package contents.
- If using in a cold or humid environment, treat the MDF panels as recommended in Section 2.
4.2. Assembly Steps
- Assemble the Base Frame: Connect the horizontal beams to the vertical uprights to form the base of the unit. Ensure all connections are securely tapped into place with a rubber mallet.
- Install Lower Shelves: Place the MDF panels onto the assembled beams.
- Extend Uprights (for full height): If assembling as a single tall unit, connect the upper sections of the uprights to the lower sections.
- Install Remaining Shelves: Continue to install horizontal beams and MDF panels at desired heights. The interlocking system allows for adjustable shelf placement.
- Attach Rubber Feet: Secure the rubber feet to the bottom of the uprights to protect your floor and provide additional stability.
Image 4.1: Detail of the interlocking steel frame and protective rubber foot.
Image 4.2: View of the top shelves and their secure placement within the frame.

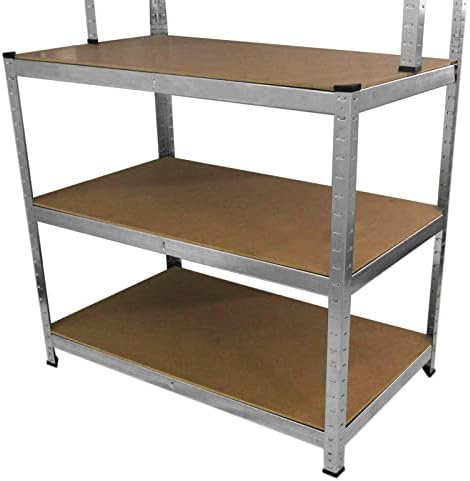

Image 4.3: View of the bottom shelves and their secure placement within the frame.
4.3. Workbench Configuration
The unit can be split into two separate units, one of which can serve as a workbench. The workbench height is adjustable, typically between 80 cm and 100 cm.
Image 4.4: The unit configured as two separate sections, demonstrating its versatility.
5. Operating (Usage) Instructions
Once assembled, the Galwix shelving and workbench unit is ready for use. It provides ample space for organizing tools, equipment, and various items.
- Storage: Utilize the multiple shelves for organized storage. Ensure heavier items are placed on lower shelves for better stability.
- Workbench Functionality: When configured as a workbench, it provides a sturdy surface for various tasks. The adjustable height allows for ergonomic positioning.
- Weight Distribution: Always distribute weight evenly across the shelves and workbench surface to prevent stress on the frame and ensure stability.

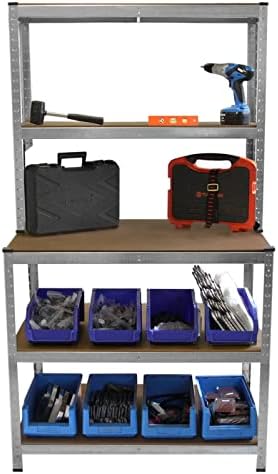

Image 5.1: Example of the workbench in use with tools and organized storage bins.

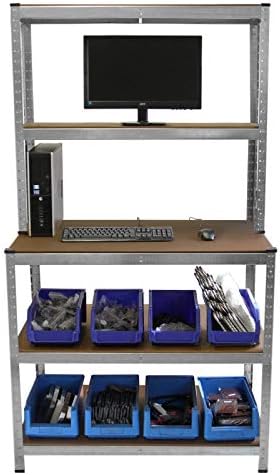

Image 5.2: Example of the workbench used as a workstation with a computer.
6. Maintenance
- MDF Care: As mentioned in Section 2, treat the MDF panels with a suitable sealant or paint if the unit is exposed to moisture or extreme temperatures to prolong their lifespan.
- Cleaning: Wipe down the galvanized steel frame and MDF shelves with a damp cloth. Avoid abrasive cleaners that could damage the finish.
- Regular Inspection: Periodically check all connections to ensure they remain secure. Re-tap with a rubber mallet if any looseness is detected.
7. Troubleshooting
Most issues can be resolved by reviewing the assembly steps and ensuring proper usage.
- Unit feels unstable: Ensure all interlocking connections are fully seated and tapped down with a rubber mallet. Verify the unit is on a level surface and the rubber feet are properly installed. Check that weight is distributed evenly.
- Difficulty assembling: Ensure components are correctly oriented. A firm tap with a rubber mallet is often necessary to fully engage the interlocking parts. Do not force components.
- MDF panels warping: This typically occurs due to exposure to moisture or humidity without prior treatment. Refer to Section 2 for preventative measures.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Monster Racking |
| Model Number | 24671F3 |
| Overall Dimensions (L x D x H) | 100 cm x 60 cm x 180 cm |
| Material | Galvanized Steel (1.2mm for Galwix), Engineered Wood (MDF 6mm) |
| Number of Shelves | 5 |
| Maximum Weight Capacity (Workbench) | 900 kg |
| Maximum Weight Capacity (Per Shelf) | 175 kg (Galwix) / 200 kg (E-Rax) |
| Assembly Type | Boltless, Interlocking |
| Special Feature | Space-saving, Adjustable Workbench Height (80-100 cm) |
| Color | Silver |

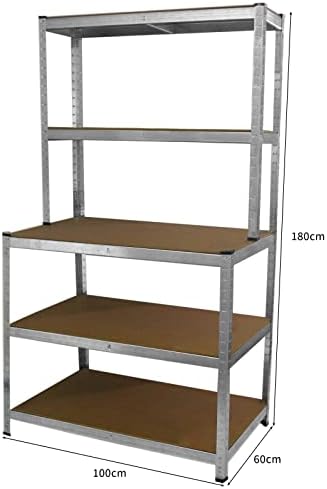

Image 8.1: Visual representation of the shelving unit's dimensions.
9. Warranty and Support
Specific warranty information for the Monster Racking Galwix Galvanized Garage Shelving and Workbench is typically provided at the point of purchase or by the manufacturer. Please refer to your purchase documentation or contact the seller for details regarding warranty coverage and claims.
For technical support or assistance with assembly, please contact Monster Racking customer service through their official website or the retailer from whom the product was purchased.
