Homtone 12-Cup Programmable Drip Coffee Maker

1. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock, and personal injury, do not immerse cord, plugs, or coffee maker in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or personal injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Scalding may occur if the lid is removed during the brewing cycles.
• The carafe is designed for use with this appliance. It must never be used on a range top.
• Do not place a hot carafe on a wet or cold surface.
• Do not use a cracked carafe or a carafe having a loose or weakened handle.
• Do not clean carafe with cleansers, steel wool pads, or other abrasive material.

2. Product Components

Familiarize yourself with the parts of your Homtone Coffee Maker for optimal use and maintenance.

Figure 2.1: Exploded view showing Permanent Filter, Detachable Funnel, Easy View Water Window, Warming Plate, 1.8L Capacity Glass Carafe, and Included Spoon.

• Main Unit: The primary body of the coffee maker, housing the heating element, water reservoir, and control panel.
• 1.8L Capacity Glass Carafe: The glass pot designed to collect brewed coffee, with clear measurement markings up to 12 cups.
• Permanent Filter: A reusable filter basket that eliminates the need for disposable paper filters, making it eco-friendly and easy to clean.
• Detachable Funnel: The component that holds the permanent filter, designed for easy removal and cleaning.
• Easy View Water Window: A transparent window on the side of the unit allowing you to monitor the water level in the reservoir.
• Warming Plate: Located beneath the carafe, this plate keeps your coffee hot for up to 4 hours after brewing.
• LCD Touch Screen: The intelligent display and control panel for setting time, programming brew cycles, and adjusting settings.
• Measuring Spoon: Included for accurate measurement of coffee grounds.

3. Setup

Follow these steps to set up your Homtone Coffee Maker for the first time.

1. Unpacking: Carefully remove the coffee maker and all accessories from the packaging. Retain packaging for future storage or transport.
2. Initial Cleaning: Before first use, wash the carafe, permanent filter, and detachable funnel in warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the coffee maker with a damp cloth.
3. First Brew Cycle (Cleaning):
   • Fill the water reservoir to the "12 MAX" line with clean water.
   • Place the empty carafe on the warming plate.
   • Press the "CLEAN" button on the control panel. The "CLEAN" indicator will flash.
   • Press the "BREW/AUTO OFF" button to start the cleaning cycle.
   • Allow the cycle to complete. Discard the water from the carafe. This process helps to clean the internal components and remove any manufacturing residues.
4. Placement: Place the coffee maker on a flat, stable, heat-resistant surface, away from the edge of the counter. Ensure there is adequate ventilation around the unit.

4. Operating Instructions

Brewing your perfect cup of coffee is simple with the Homtone Coffee Maker.

Figure 4.1: One Touch Brewing. The LCD screen display and touch buttons allow for easy operation.

Video 4.2: Homtone 24H Programmable Permanent Filter Coffee Maker. This video demonstrates the full brewing process from adding water and coffee to pouring a cup.

Video 4.3: Homtone Filter Coffee Maker Touch Screen Operation. This video provides a detailed look at setting the clock, keep-warm settings, preset operation, aroma selection, and mute function using the touch screen.

1. Fill Water Reservoir: Open the top lid and pour fresh, cold water into the water reservoir using the carafe. The visible water tank on the side indicates the water level up to 1.8L (12 cups).
2. Add Coffee Grounds: Place the detachable funnel into its position, then insert the permanent filter. Add your desired amount of ground coffee into the permanent filter. A general guideline is one level scoop (provided) per cup, but adjust to your taste.
3. Place Carafe: Ensure the glass carafe is properly placed on the warming plate.
4. Start Brewing: Press the "BREW/AUTO OFF" button. The coffee maker will begin the brewing process. The LCD screen will display the current time and brewing status.
5. Enjoy Your Coffee: Once brewing is complete, the coffee maker will automatically switch to the keep-warm function. You can remove the carafe to pour coffee at any time; the anti-drip design prevents leakage.

5. Advanced Features

5.1 Brew Strength Control (Aroma Selection)

Customize your coffee's strength from subtle to bold.

Figure 5.1: Brew Strength Control. Choose between a regular brew or an enhanced aroma function for a richer flavor.

To select your desired brew strength, short press the "AROMA" button before starting the brew cycle. This feature adjusts the brewing process to extract more flavor, ensuring every cup is tailored to your taste preferences.

5.2 24-Hour Programmable Brew

Set your coffee to brew automatically at a specific time.

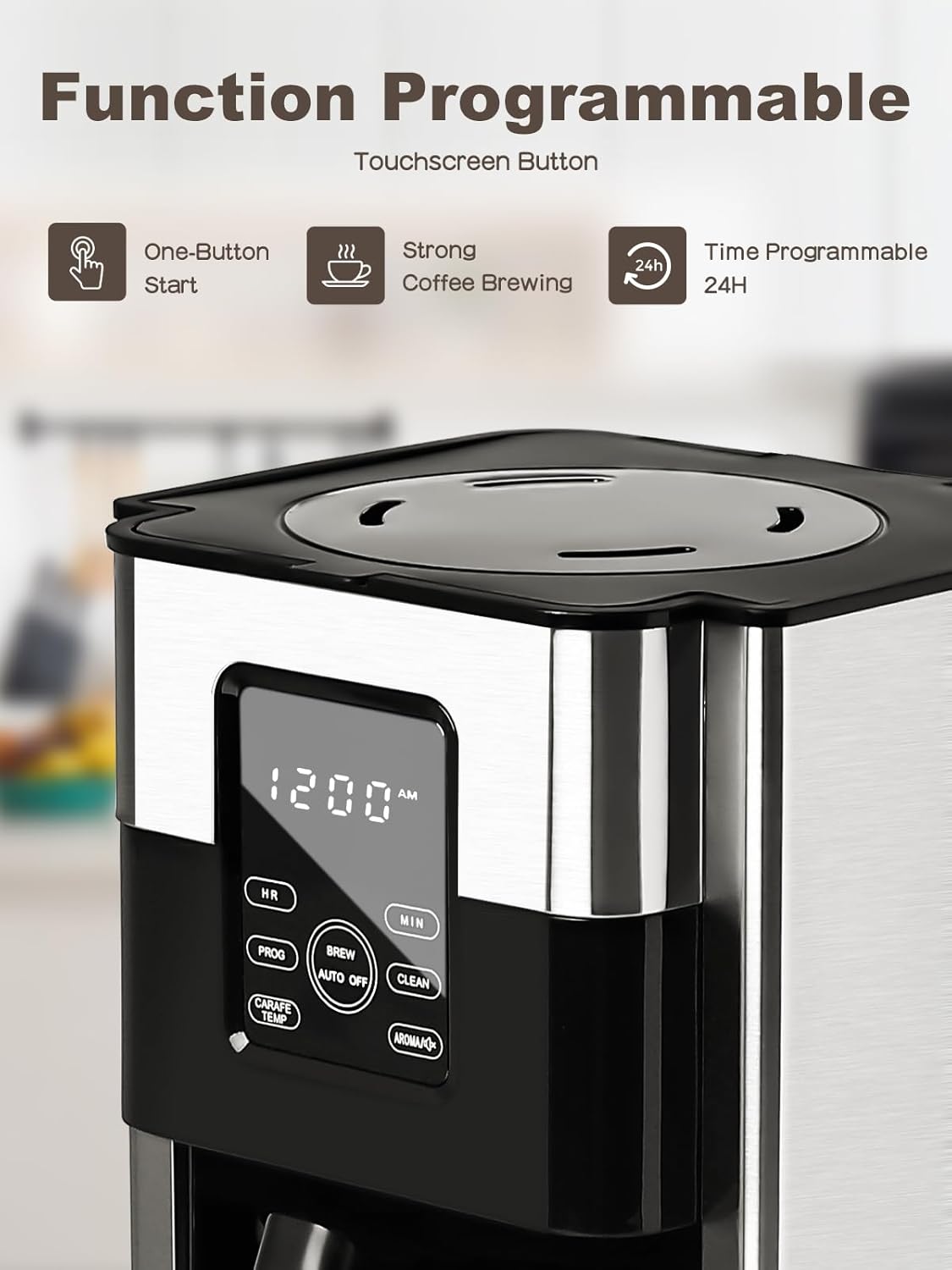

Figure 5.2: Function Programmable. The touchscreen buttons allow for easy setting of the 24-hour programmable timer.

1. First, set the current time using the "HR" and "MIN" buttons.
2. Press the "PROG" button. The "PROG" indicator will flash.
3. Use the "HR" and "MIN" buttons to set your desired brew start time.
4. Press "PROG" again to confirm the preset time. The "PROG" indicator will remain lit, indicating the programmable brew is set.

5.3 Keep-Warm Settings (3 Heat Settings & 4H Keep Warm)

Maintain your coffee at the perfect temperature for longer.

Figure 5.3: 4H Keep Warm & 3 Temperature Settings. The coffee maker can keep coffee warm for up to 4 hours with adjustable temperature levels.

The Homtone Coffee Maker offers three temperature preservation modes: Low, Medium, and High. To adjust the keep-warm temperature, long press the "CARAFE TEMP" button. The "AUTO OFF" indicator will flash. Short press "CARAFE TEMP" repeatedly to cycle through Low, Medium, and High settings. The warming time is adjustable between 0-4 hours.

5.4 Mute Function

To silence the button beep sounds, long press the "AROMA" button. This will toggle the mute function on or off.

6. Cleaning and Maintenance

Regular cleaning ensures optimal performance and longevity of your coffee maker.

Figure 6.1: Reusable Coffee Filter. The permanent filter is easy to remove and clean, eliminating the need for paper filters.

Figure 6.2: Optimized Infusion System. The wide showerhead design ensures even saturation of coffee grounds for maximum flavor extraction.

• Daily Cleaning:
  • After each use, unplug the coffee maker and allow it to cool.
  • Remove the permanent filter and detachable funnel. Discard used coffee grounds.
  • Wash the carafe, permanent filter, and detachable funnel in warm, soapy water. These parts are also top-rack dishwasher safe.
  • Wipe the exterior of the coffee maker with a soft, damp cloth. Do not use abrasive cleaners or scouring pads.
• Auto-Cleaning (Descaling): Over time, mineral deposits can build up in your coffee maker, affecting performance.
  • Fill the water reservoir with a mixture of 1 part white vinegar and 2 parts cold water.
  • Place the empty carafe on the warming plate.
  • Press the "CLEAN" button. The "CLEAN" indicator will flash.
  • Press "BREW/AUTO OFF" to start the descaling cycle.
  • After the cycle completes, discard the vinegar solution. Run 2-3 cycles with fresh, cold water to rinse thoroughly and remove any residual vinegar taste.
• Anti-Drip Design: The real anti-drip design helps prevent coffee from leaking when the carafe is removed during brewing. A special design on the inside of the lid blocks the flow of steam and water to the outside of the coffee machine, ensuring a cleaner countertop.

7. Troubleshooting

If you encounter issues with your Homtone Coffee Maker, refer to the following common problems and solutions:

8. Specifications

9. Warranty and Support

Homtone is committed to providing quality products and hassle-free after-sales service.

• Warranty: This product comes with a 12-24 month warranty.
• Lifetime Service Support: Homtone offers lifetime service support for this coffee maker.
• Contact Support: For any questions, troubleshooting assistance, or warranty claims, please contact Homtone official customer support. Refer to the contact information provided with your product packaging or visit the official Homtone website.
