DMC-FPPS Commercial Potato Peeler and Washer Instruction Manual

1. Introduction

This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your DMC-FPPS Commercial Potato Peeler and Washer. This machine is designed for commercial use, offering an efficient solution for peeling and washing various root vegetables and seafood. It features a robust 304 stainless steel construction and a powerful 1100W motor, capable of processing 300-500 KG (660-1100 lbs) per hour.

2. Safety Instructions

Always prioritize safety when operating any machinery. Failure to follow these instructions may result in injury or damage to the equipment.

• Electrical Safety: Ensure the machine is connected to a grounded power outlet. The power supply features earth leakage protection. Do not operate with wet hands or in wet conditions.
• Machine Placement: Place the machine on a stable, level surface to prevent tipping during operation.
• Moving Parts: Keep hands, hair, and loose clothing away from moving parts, especially the roller brushes, during operation.
• Emergency Stop: Familiarize yourself with the location and operation of the emergency stop switch. The switch is equipped with a rubber protective cover for waterproofing.
• Cleaning: Disconnect power before cleaning or performing any maintenance.
• Supervision: Do not allow untrained personnel to operate the machine.
• Material Handling: Only process items for which the machine is designed. Avoid overloading the machine.

Image: Safety features including waterproof, anti-electricity, corrosion prevention, and high-temperature protection indicators.

Image: Close-up of the earth leakage protection power supply, highlighting electrical safety.

3. Product Overview and Components

The DMC-FPPS Commercial Potato Peeler and Washer is constructed from durable 304 stainless steel, ensuring longevity and hygiene in commercial environments. It utilizes a roller brush system for both peeling and washing. The system incorporates 70 filaments of hard bristles for effective peeling and 20-25 filaments of soft bristles for thorough cleaning without peeling.

Image: Front view of the DMC-FPPS Commercial Potato Peeler and Washer with the top lid open, showing the internal roller brushes.

Key Components

Image: Diagram illustrating the main components of the machine, including the stainless steel body, roller brush, outlet, switch, mobile casters, outlet pull rod, sewage outlet, and cesspool.

• Stainless Steel Body: The main housing of the machine, providing durability and corrosion resistance.
• Roller Brush: The core component responsible for peeling and washing.
• Switch: Controls the power and operation of the machine, featuring a waterproof rubber cover.
• Outlet: Where peeled and washed produce exits the machine.
• Outlet Cover: Secures the outlet during operation.
• Outlet Pull Rod: Used to open and close the outlet for discharging produce.
• Sewage Outlet: Drains wastewater and removed peels.
• Cesspool: Collects waste water and debris.
• Mobile Casters: Wheels for easy movement of the machine, equipped with foot brakes for stability.
• Motor Steel Protective Sleeve: Encases the motor for protection against water and debris.

Image: Detail of the machine's control switch, showing its rubber protective cover for waterproofing.

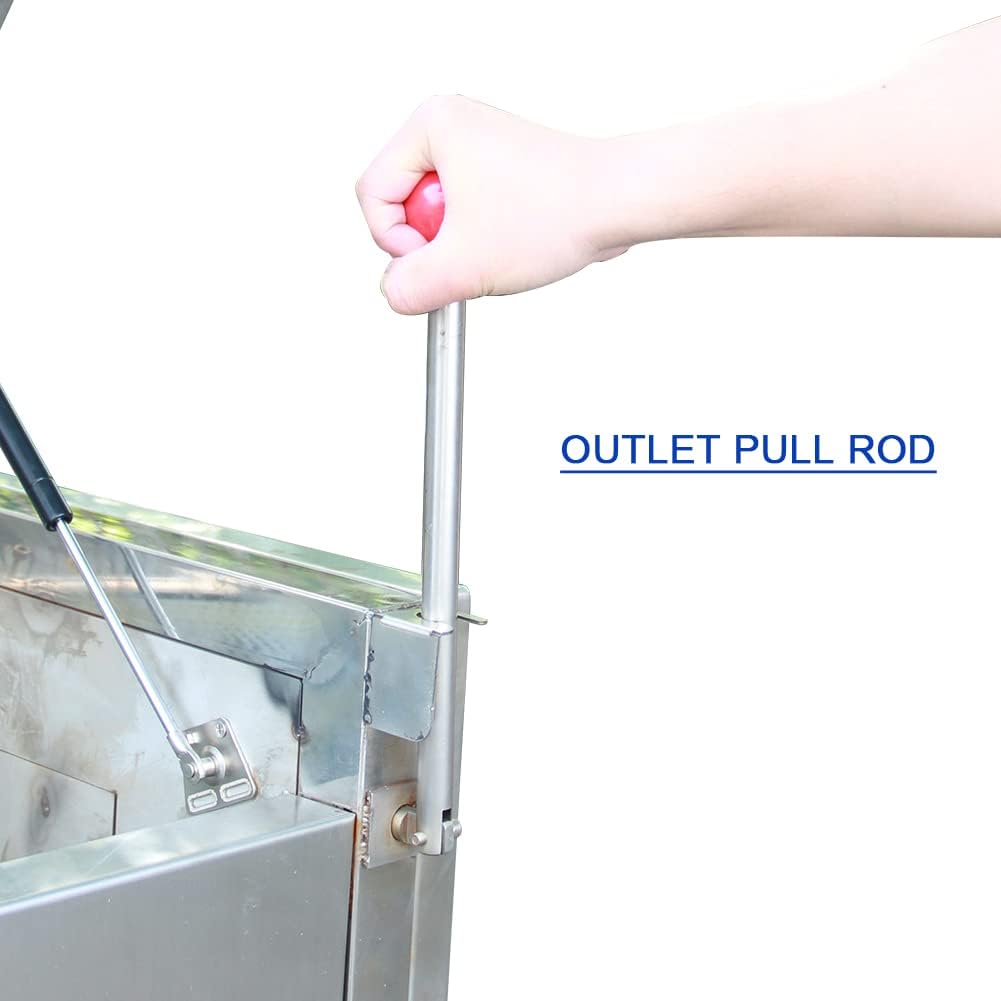

Image: Close-up view of the outlet pull rod, used to control the discharge of processed items.

4. Setup

1. Unpacking: Carefully remove the machine from its packaging. Inspect for any shipping damage.
2. Placement: Position the machine on a stable, level surface in a suitable work area. Ensure adequate space around the machine for operation and maintenance. Lock the mobile foot brakes to secure the machine.
3. Power Connection: Connect the machine's power cord to a compatible 110V/60Hz grounded electrical outlet. Ensure the earth leakage protection power supply is functioning correctly.
4. Water Supply Connection: Connect a tap water supply to the spray pipe inlet. This connection is essential for the automatic spraying cleaning function during operation, which assists in both peeling and washing.
5. Drainage: Ensure the sewage outlet is positioned to drain into an appropriate waste collection system or cesspool.

5. Operating Instructions

Follow these steps for effective peeling and washing:

1. Preparation: Ensure the machine is properly set up with power and water connections. Close the outlet using the pull rod.
2. Loading Produce: Open the top lid and carefully load the potatoes or other suitable produce into the machine. Do not overload beyond the recommended capacity.
3. Start Machine: Press the green 'ON' button on the waterproof control switch to start the roller brushes.
4. Activate Water Spray: Turn on the tap water supply connected to the spray pipe. The automatic spraying will begin, assisting the brushes in peeling and cleaning.
5. Monitoring: Allow the machine to operate for the required duration, which will vary based on the type and quantity of produce, and desired peeling level. The machine's design facilitates efficient cleaning and peeling.
6. Unloading: Once the process is complete, turn off the machine using the red 'OFF' button. Pull the outlet pull rod to open the discharge gate, allowing the peeled and washed produce to exit into a collection container.
7. Repeat or Clean: Close the outlet and repeat the process for the next batch, or proceed to cleaning the machine.

Image: Visual comparison showing raw potatoes before processing and clean, peeled potatoes after using the machine.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your machine.

• Daily Cleaning: After each use, disconnect the power supply. Rinse the interior of the machine thoroughly with water. Remove any accumulated peels or debris from the brushes, sewage outlet, and cesspool.
• Brush Inspection: Periodically inspect the nylon roller brushes for wear or damage. Replace brushes if they become excessively worn to maintain peeling efficiency.
• Exterior Cleaning: Wipe down the stainless steel exterior with a damp cloth. Avoid abrasive cleaners that could scratch the surface.
• Electrical Components: Keep all electrical components, including the switch and power cord, clean and dry.
• Lubrication: Consult the manufacturer for specific lubrication requirements for moving parts, if any.

7. Troubleshooting

If you encounter issues with your machine, refer to the following common troubleshooting steps:

• Machine Does Not Start:
  • Check if the power cord is securely plugged into a working outlet.
  • Verify that the power switch is in the 'ON' position.
  • Check the earth leakage protection device; reset if tripped.
• Ineffective Peeling/Washing:
  • Ensure the water supply to the spray pipe is active and sufficient.
  • Check the roller brushes for excessive wear or blockages. Clean or replace as necessary.
  • Reduce the amount of produce loaded if the machine is overloaded.
• Water Leakage:
  • Inspect all water connections for tightness.
  • Check the sewage outlet and cesspool for blockages or damage.

For issues not resolved by these steps, please contact customer support.

8. Technical Specifications

Image: Table displaying key product parameters such as material, power, capacity, and dimensions.

9. Warranty and Support

Specific warranty information for the DMC-FPPS Commercial Potato Peeler and Washer is not provided within this instruction manual. For details regarding warranty coverage, terms, and conditions, please contact the manufacturer or your point of purchase directly. For technical support or service inquiries, refer to the contact information provided with your purchase documentation.
