Finosen White Barn Door (32x84 inch) with 5.5ft Sliding Hardware Kit Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the assembly, installation, operation, and maintenance of your Finosen White Barn Door with a 5.5ft Sliding Hardware Kit. Please read these instructions carefully before beginning assembly and installation to ensure proper function and longevity of your product. This barn door is designed for interior use, offering a space-saving and aesthetically pleasing solution for various room dividers or doorways.

Image 1.1: The Finosen White Barn Door installed, showcasing its design and functionality within a room setting.

2. Product Components and Features

Your Finosen barn door kit includes the door panel, a 5.5ft sliding hardware track, and a handle. The door panel is constructed from high-quality MDF board with an environmentally friendly PVC finish, providing a durable, waterproof, and scratch-resistant surface. The hardware components are designed for smooth and reliable operation.

2.1 Key Features:

• Material: High-quality MDF board with PVC finish.
• Durability: Waterproof, scratch-resistant, and anti-warping properties.
• Finish: Bright and smooth white surface, eliminating the need for painting.
• Ease of Cleaning: The PVC finish allows for simple cleaning.
• Assembly: Pre-drilled and ready for assembly.

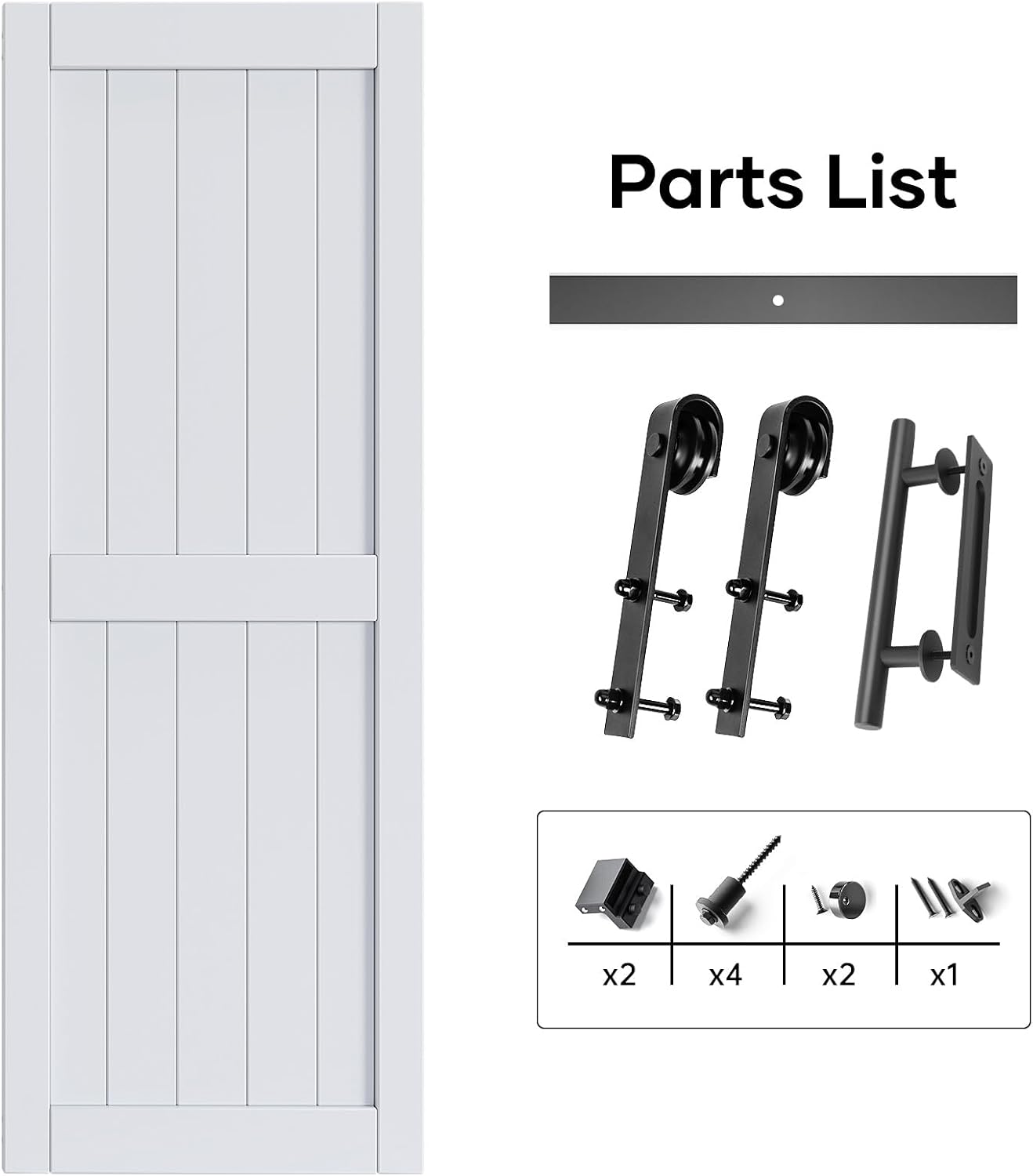

Image 2.1: An illustration detailing the various components included in the Finosen barn door kit, such as the door panel, track, rollers, and handle.

Image 2.2: Visual representation highlighting the MDF board material, emphasizing its odorless and anti-warping characteristics.

3. Setup and Installation

The Finosen barn door is designed for straightforward assembly and installation. The door arrives in separate planks, pre-drilled and ready for assembly. All necessary screws are included. A graphic and text-based installation manual is provided with the product. For detailed step-by-step instructions, please refer to the included physical manual.

3.1 Pre-Installation Checklist:

• Verify all components listed in the parts list are present and undamaged.
• Ensure the wall where the track will be mounted is structurally sound and capable of supporting the door's weight (approximately 61 lbs or 27.67 kg).
• Confirm adequate clearance above the doorway for the track and rollers. A clearance of 5 5/8 inches between the ceiling and the track is needed.
• Gather necessary tools (e.g., drill, level, measuring tape, screwdriver).

3.2 Assembly Steps (General Overview):

1. Assemble the door panel planks according to the provided instructions, ensuring all connections are secure.
2. Mount the sliding track to the wall, ensuring it is level and securely fastened to wall studs or appropriate anchors.
3. Attach the rollers to the top edge of the assembled door panel.
4. Hang the door panel onto the track.
5. Install the door handle and floor guide.

Image 3.1: Diagram illustrating the door dimensions (32" W x 84" H) and the required 5 5/8" clearance between the ceiling and the 66" track for proper installation.

4. Operating Instructions

To operate your Finosen barn door, simply grasp the handle and slide the door along the track. The rollers are designed to provide a smooth and quiet gliding motion. Ensure the path of the door is clear of obstructions before opening or closing.

• Opening: Gently pull the door towards the open position until it reaches the desired point or stopper.
• Closing: Gently push the door towards the closed position until it fully covers the doorway or reaches the stopper.

Image 4.1: The barn door in an installed setting, accompanied by icons signifying its ease of installation, high quality, wide applicability, and ease of cleaning.

5. Maintenance

Regular maintenance will help preserve the appearance and functionality of your Finosen barn door. The PVC finish is designed to be waterproof and anti-scratch, making cleaning simple.

• Cleaning the Door Panel: Wipe the door surface with a soft, damp cloth. For stubborn marks, a mild, non-abrasive cleaner can be used. Avoid harsh chemicals or abrasive scrubbers, as these may damage the PVC finish.
• Track and Rollers: Periodically inspect the sliding track and rollers for any dust or debris. Clean with a dry cloth or a soft brush. Lubricate the track and roller bearings annually with a silicone-based lubricant to ensure smooth operation.
• Hardware: Check all screws and fasteners on the track and door periodically to ensure they remain tight. Tighten any loose hardware as needed.

Image 5.1: A visual demonstration of the door panel's waterproof and anti-scratch properties, showing it partially submerged in water.

6. Troubleshooting

This section addresses common issues you might encounter during assembly or use.

6.1 Common Issues:

• Door not sliding smoothly:
  • Check the track for obstructions or debris. Clean if necessary.
  • Ensure the track is level. Adjust mounting if required.
  • Lubricate rollers and track with a silicone-based lubricant.
• Door panel components do not fit perfectly during assembly:
  • Carefully review the assembly instructions to ensure all pieces are oriented correctly.
  • In rare cases, minor adjustments (e.g., slight sanding or trimming) might be needed if manufacturing tolerances cause a tight fit. If significant alteration is required, contact customer support.
• Door wobbles or feels unstable:
  • Verify all track mounting screws are securely fastened to wall studs or appropriate anchors.
  • Ensure all door panel assembly screws are tightened.
  • Check that the floor guide is properly installed and adjusted.

7. Specifications

8. Warranty and Support

Finosen is committed to providing quality products and customer satisfaction. While specific warranty details are not provided in this manual, the manufacturer offers professional online support for any questions or assistance you may need regarding your barn door kit.

For support, please refer to the contact information provided with your purchase documentation or visit the official Finosen website.
