1. Introduction
Thank you for choosing the HLR Floating Night Stand. This manual provides essential information for the safe assembly, installation, operation, and maintenance of your new furniture. Please read these instructions carefully before beginning assembly and retain them for future reference.

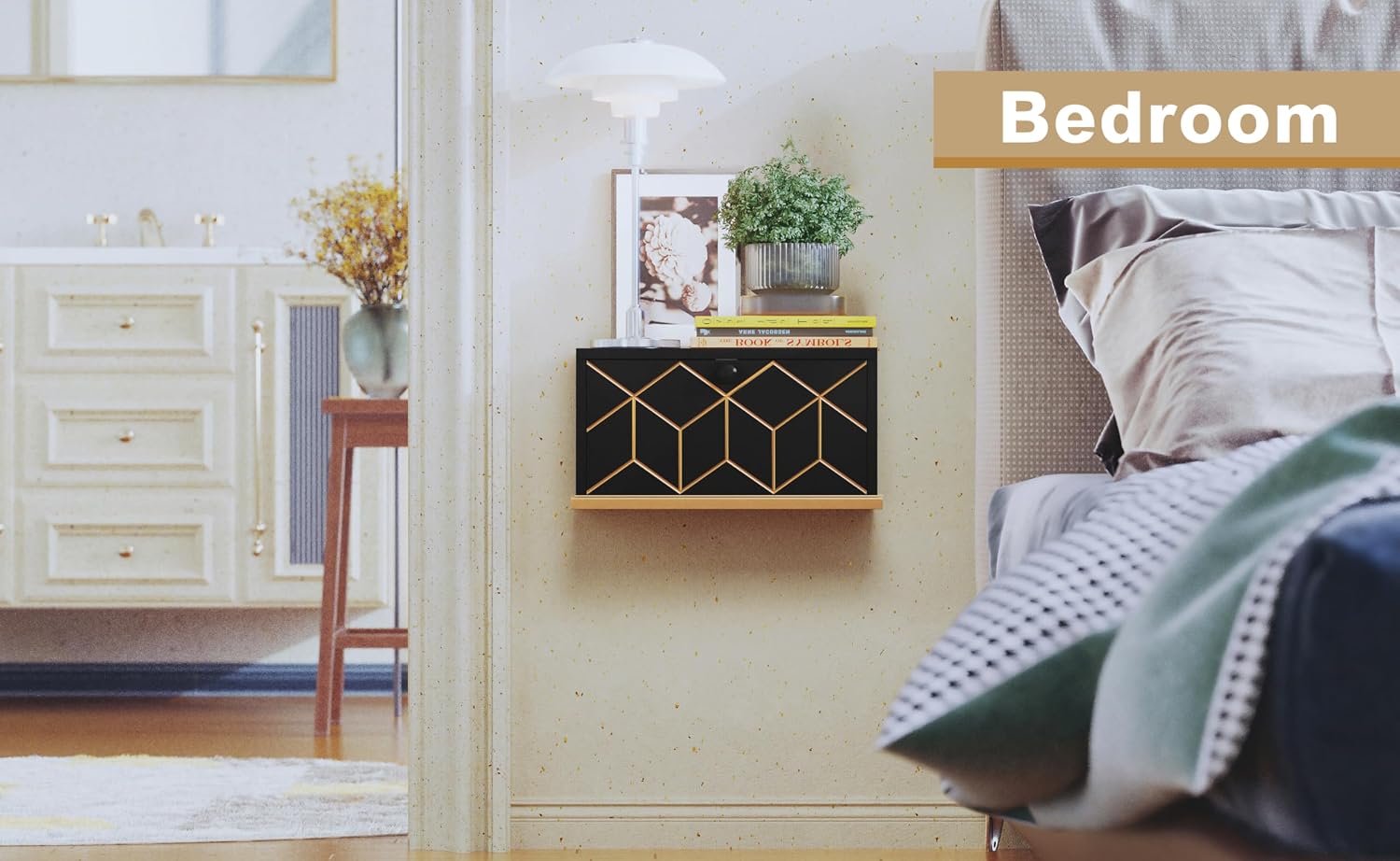

Image 1.1: HLR Floating Night Stand in a bedroom setting.
2. Safety Information
WARNING: Failure to follow these safety instructions may result in injury or product damage.
- Assemble the night stand strictly according to the provided instructions to ensure stability.
- Do not exceed the maximum recommended weight capacity of 22.68 kilograms (50 pounds). Overloading can cause the unit to detach from the wall or collapse.
- Exercise caution with the flip door to avoid pinch points during opening and closing.
- Ensure the wall mounting hardware is appropriate for your wall type and securely fastened. If unsure, consult a professional.
- Keep small parts and packaging materials away from children during assembly.
3. Package Contents
Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact HLR customer support.
- Floating Night Stand Unit (Main Body)
- Flip Door Panel
- Gold Trim Base
- Round Knob
- Assembly Hardware (screws, wall anchors, brackets)
- Assembly Guide (this document)
Image 3.1: Product dimensions and key features.
4. Assembly Instructions
Assembly is required for this product. Please follow the detailed steps provided in the included Assembly Guide. A general overview of the process is provided below:
- Prepare Components: Lay out all parts on a clean, soft surface to prevent scratches.
- Attach Gold Trim Base: Secure the gold trim base to the bottom of the main night stand unit using the designated screws.
- Install Flip Door: Attach the flip door panel to the main unit using the provided hinges. Ensure the hinges are aligned correctly for smooth operation.
- Mount Knob: Fasten the round knob to the front of the flip door.
- Prepare for Wall Mounting: Install the wall mounting brackets or hangable design hardware to the back of the night stand unit as instructed.
Image 4.1: Details of the gold trim, knob, and hanging mechanism.
5. Installation (Wall Mounting)
The HLR Floating Night Stand is designed for wall mounting. Proper installation is crucial for safety and stability.
- Choose Location: Select a suitable wall location, ensuring it is free from electrical wires or plumbing. Consider the desired height relative to your bed or seating.
- Mark Drilling Points: Use a level to mark the precise drilling points on the wall for the mounting hardware.
- Drill Pilot Holes: Drill pilot holes according to the size specified in the Assembly Guide. Insert wall anchors if required for your wall type (e.g., drywall).
- Mount Brackets: Securely attach the wall mounting brackets to the wall using the provided screws.
- Hang Night Stand: Carefully lift the assembled night stand and align its hangable design with the wall brackets. Ensure it is firmly seated and level.
- Test Stability: Gently pull down on the installed night stand to confirm it is securely attached to the wall before placing items on it.
Image 5.1: Example of wall-mounted night stands in a bedroom.
6. Operating Instructions
The HLR Floating Night Stand features a convenient flip door for storage access.
- Opening the Door: Gently pull the round knob to open the flip door. The door can be opened upwards or downwards, depending on how it was assembled.
- Closing the Door: Push the door back into its closed position until it is flush with the unit.
- Storage: The interior compartment provides space for small items such as books, remote controls, or personal effects.
Image 6.1: Demonstrating the flip door functionality.
7. Maintenance and Care
To ensure the longevity and appearance of your HLR Floating Night Stand, follow these care guidelines:
- Cleaning: Wipe the surface with a dry, soft cloth. Avoid abrasive cleaners or harsh chemicals, which can damage the finish.
- Dusting: Regular dusting with a dry cloth will help maintain its appearance.
- Spills: In case of spills, wipe immediately with a dry cloth.
- Inspection: Periodically check all screws and mounting hardware to ensure they remain tight and secure.
Image 7.1: The floating design facilitates easy cleaning underneath.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Night stand feels unstable after mounting. | Mounting hardware not securely fastened; incorrect wall anchors used; wall material not suitable. | Ensure all screws are tightened. Verify wall anchors are appropriate for your wall type. If necessary, consult a professional for secure installation. |
| Flip door does not open or close smoothly. | Hinges are misaligned or loose; obstruction in the compartment. | Check hinge alignment and tighten screws. Remove any items obstructing the door's path. |
| Missing parts or damaged components. | Packaging error or transit damage. | Do not proceed with assembly. Contact HLR customer support for replacement parts. |
9. Specifications
| Feature | Detail |
|---|---|
| Brand | HLR |
| Model Name | Floating nightstand |
| Color | Black |
| Product Dimensions (L x W x H) | 13.7'' x 7'' x 7'' (approx. 6.69"D x 13.18"W x 6.92"H) |
| Item Weight | 2.34 Kilograms (5.15 pounds) |
| Maximum Recommended Load | 22.68 Kilograms (50 pounds) |
| Material | Wood (MDF Board) |
| Mounting Type | Wall Mount |
| Special Feature | Flip Door |
| Assembly Required | Yes |
| Care Instructions | Wipe with Dry Cloth |
10. Warranty and Support
HLR is committed to customer satisfaction. This product comes with an after-sales satisfaction guarantee.
- Customer Support: For any questions, concerns, or issues regarding your HLR Floating Night Stand, please contact our customer support team. We offer a 24-hour response guarantee to address your inquiries promptly.
- Contact Information: Please refer to your purchase documentation or the HLR official website for the most current contact details.
11. Additional Product Views
Image 11.1: Night stand used as a side table in a living area.
Image 11.2: Night stand in a bedroom setting.
Image 11.3: Night stand utilized in a bathroom environment.
