Schumacher Electric FR01539 Rapid Battery Charger and Maintainer User Manual

Introduction

The Schumacher Farm and Ranch FR01539 10A 12V Rapid Battery Charger with Service Mode is designed for efficient and reliable charging and maintaining of 12V standard, AGM, and gel batteries. This fully automatic, microprocessor-controlled unit offers multi-stage charging, bad battery detection, and reverse hook-up protection, making it suitable for various vehicles and equipment including cars, SUVs, trucks, marine vessels, and farm equipment.

Figure 1: Schumacher Electric FR01539 Rapid Battery Charger and Maintainer.

Safety Information

Always read and understand all safety warnings and instructions before using this product. Failure to follow these instructions may result in electrical shock, fire, or serious injury. Keep the manual for future reference.

• Use in a well-ventilated area.
• Wear eye protection and protective clothing.
• Do not expose the charger to rain or wet conditions.
• Ensure proper polarity when connecting to a battery.
• Keep out of reach of children.

What's Included

Your Schumacher Farm and Ranch FR01539 package includes the following items:

• Schumacher Farm and Ranch FR01539 10A 12V Rapid Battery Charger
• User Manual

Figure 2: The FR01539 charger and its included user manual.

Product Overview

The FR01539 features a compact design with intuitive controls and indicators for ease of use.

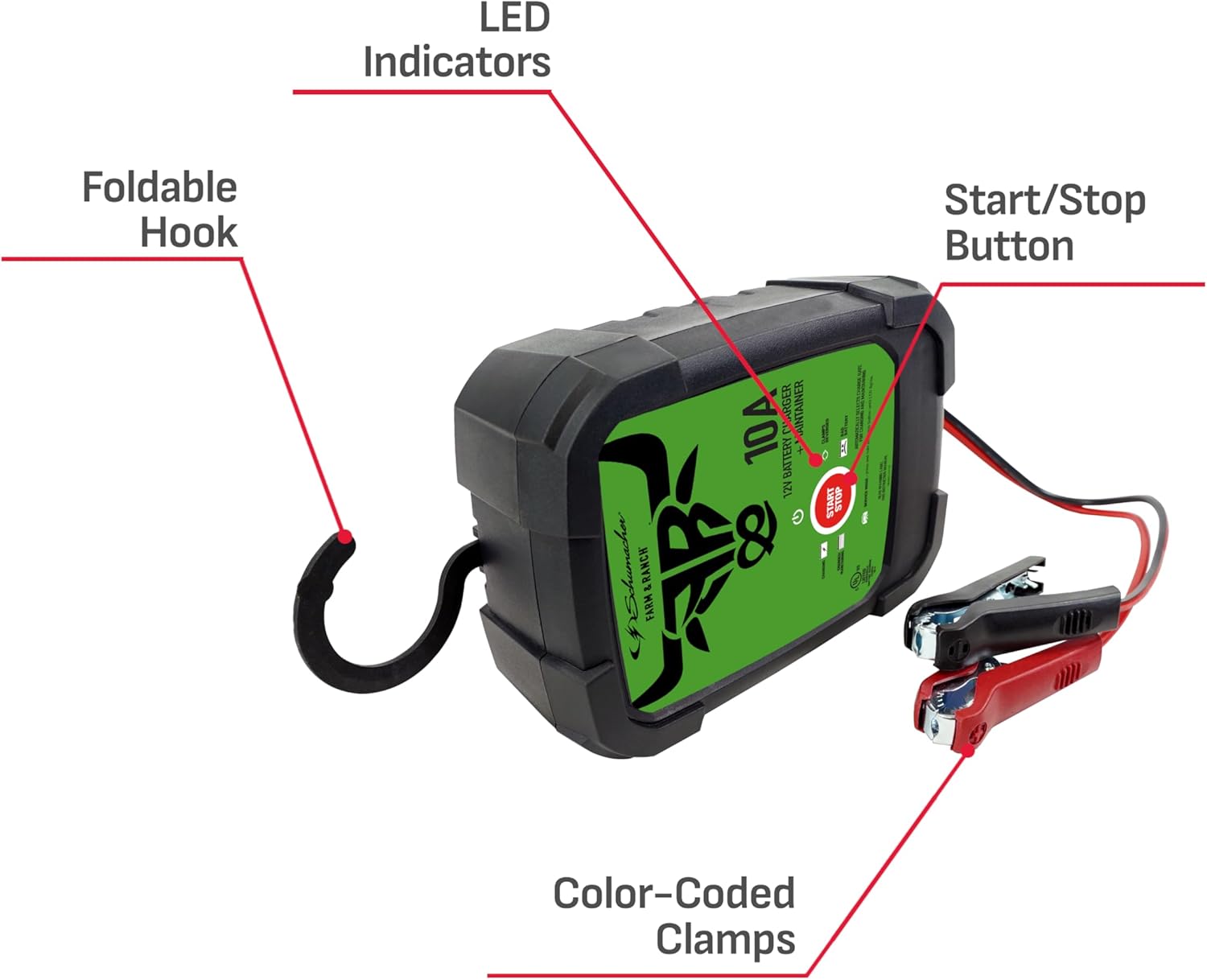

Figure 3: Key components of the FR01539, including the foldable hook, LED indicators, Start/Stop button, and color-coded clamps.

The unit is equipped with a foldable hook for convenient suspension, LED indicators for status updates, a Start/Stop button for operation control, and color-coded battery clamps for correct connection.

Figure 4: The compact footprint of the FR01539, measuring approximately 7.625 inches in length and 5.375 inches in width.

Setup and Connection

Follow these steps to properly set up and connect your FR01539 battery charger:

1. Turn off all vehicle accessories to prevent electrical surges or damage.
2. Connect the positive (red) clamp to the positive (+) battery post.
3. Connect the negative (black) clamp to the vehicle chassis or engine block, away from the battery. For marine/boat batteries, they should be removed and charged on shore.
4. Plug the FR01539's power cord into a 120V AC outlet. The green Power LED will illuminate.

Figure 5: Visual guide for connecting the charger to a vehicle battery.

Operating Instructions

The FR01539 is a fully automatic charger designed for optimal battery health.

Charging Modes

• Multi-Stage Charging: The internal microprocessor automatically adjusts the amperage rate and charging stages to optimize battery health and longevity.
• Float Mode Monitoring: Once the battery is fully charged, the charger automatically switches to float mode, maintaining the battery without overcharging.
• Automatic Desulfation Mode: Helps to recondition sulfated batteries, improving their performance and lifespan.

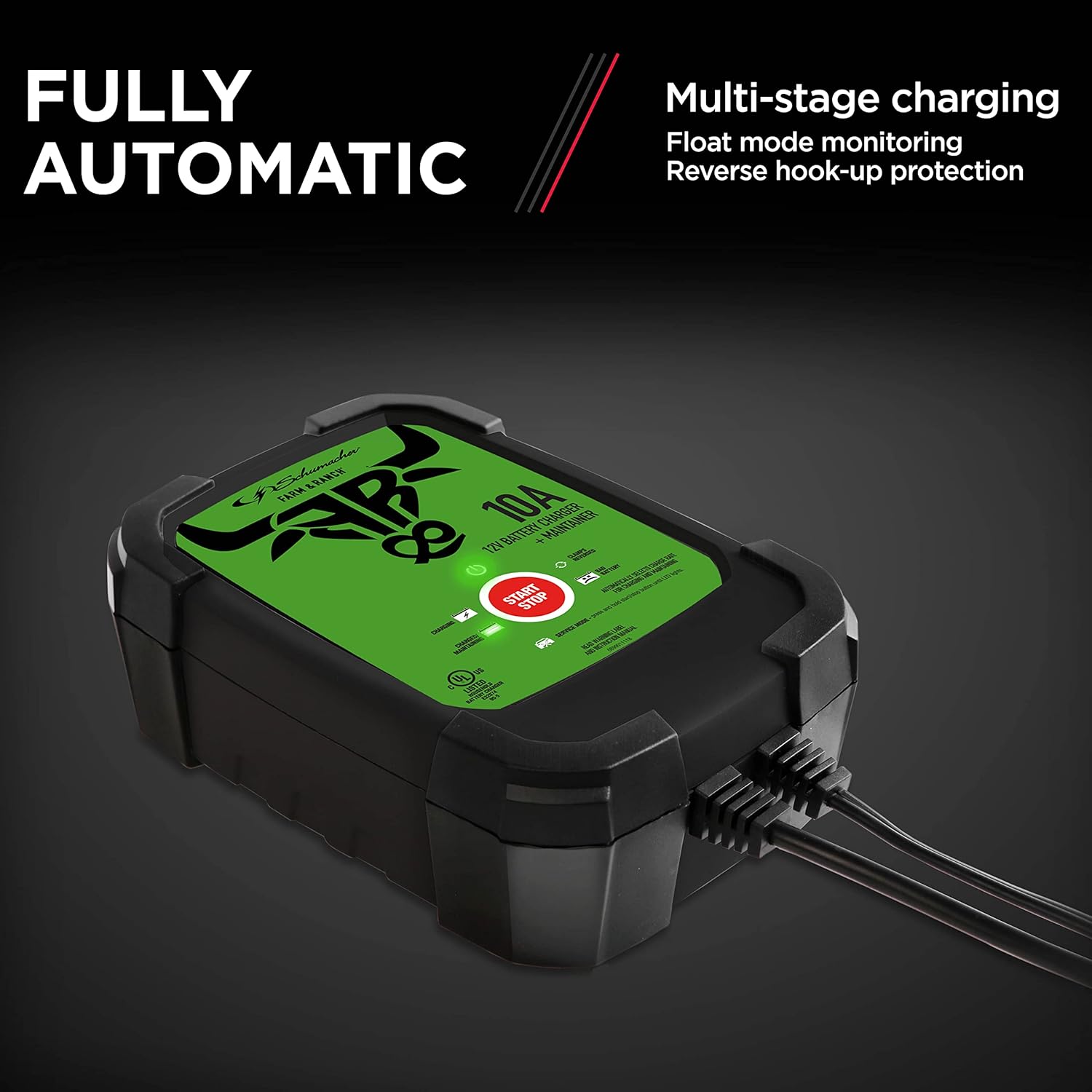

Figure 6: The FR01539 operates with fully automatic, multi-stage charging for optimal battery care.

Service Mode

The Service Mode maintains a stable voltage of 13.6V, preventing battery discharge during vehicle service or when a vehicle is idle for extended periods, such as on a showroom floor. To activate Service Mode, press and hold the Start/Stop button until the LED indicators confirm activation.

Starting the Charging Process

After connecting the charger and plugging it into an AC outlet, press the Start/Stop button to begin charging. The charger will automatically detect the battery type and condition and begin the appropriate charging cycle.

Ending the Charging Process

When charging is complete (indicated by the Green Charged/Maintaining LED), unplug the power cord from the AC outlet and then remove the clamps in reverse order of connection (negative clamp first, then positive clamp).

Maintenance

To ensure the longevity and optimal performance of your FR01539 charger:

• Clean the charger casing with a soft, dry cloth. Do not use solvents or abrasive cleaners.
• Inspect the cables and clamps for any damage or corrosion before each use. Replace if necessary.
• Store the charger in a cool, dry place when not in use.

Troubleshooting

If you encounter issues with your FR01539, refer to the following common problems and solutions:

Specifications

Warranty

This Schumacher Electric product is covered by a manufacturer's warranty. Please refer to the warranty card included with your product or visit the official Schumacher Electric website for detailed warranty terms and conditions.

Support

For technical assistance, product inquiries, or to purchase replacement parts, please contact Schumacher Electric customer support. Contact information can typically be found on the product packaging or the official Schumacher Electric website.
