Introduction
Thank you for choosing the Dornbracht Single Lever Mixer Pull-Out Elio 33840790. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new kitchen faucet. Please read all instructions carefully before beginning installation or use, and retain this manual for future reference.
Safety Information
- Ensure all local plumbing and building codes are followed during installation.
- Turn off the main water supply before beginning any installation or maintenance.
- If you are unsure about any part of the installation process, consult a qualified plumber.
- Do not use abrasive cleaners or harsh chemicals on the faucet finish.
Package Contents
Verify that all components are present before installation:
- Dornbracht Elio Single Lever Mixer
- Pull-out spray hose
- Mounting hardware
- Water supply lines
- Valve (included component)
Setup and Installation
This faucet is designed for single-hole installation. Refer to the technical drawing for precise dimensions and mounting requirements.
- Prepare the Mounting Surface: Ensure the sink or countertop has a single mounting hole with a diameter of approximately 35mm. The maximum countertop thickness should be 40mm.
- Install the Faucet Body: Insert the faucet body into the mounting hole. Secure it from underneath the sink using the provided mounting hardware (washer and nut). Ensure the faucet is oriented correctly.
- Connect Water Supply Lines: Connect the hot and cold water supply lines from your plumbing to the corresponding inlets on the faucet. Use appropriate wrenches and ensure connections are tight but do not overtighten.
- Connect Pull-Out Hose: Attach the pull-out spray hose to the designated connection point on the faucet body. Ensure the hose weight is properly installed on the hose underneath the sink to allow for smooth retraction.
- Test for Leaks: Slowly turn on the main water supply and check all connections for leaks. Operate the faucet to flush out any debris and ensure proper function.

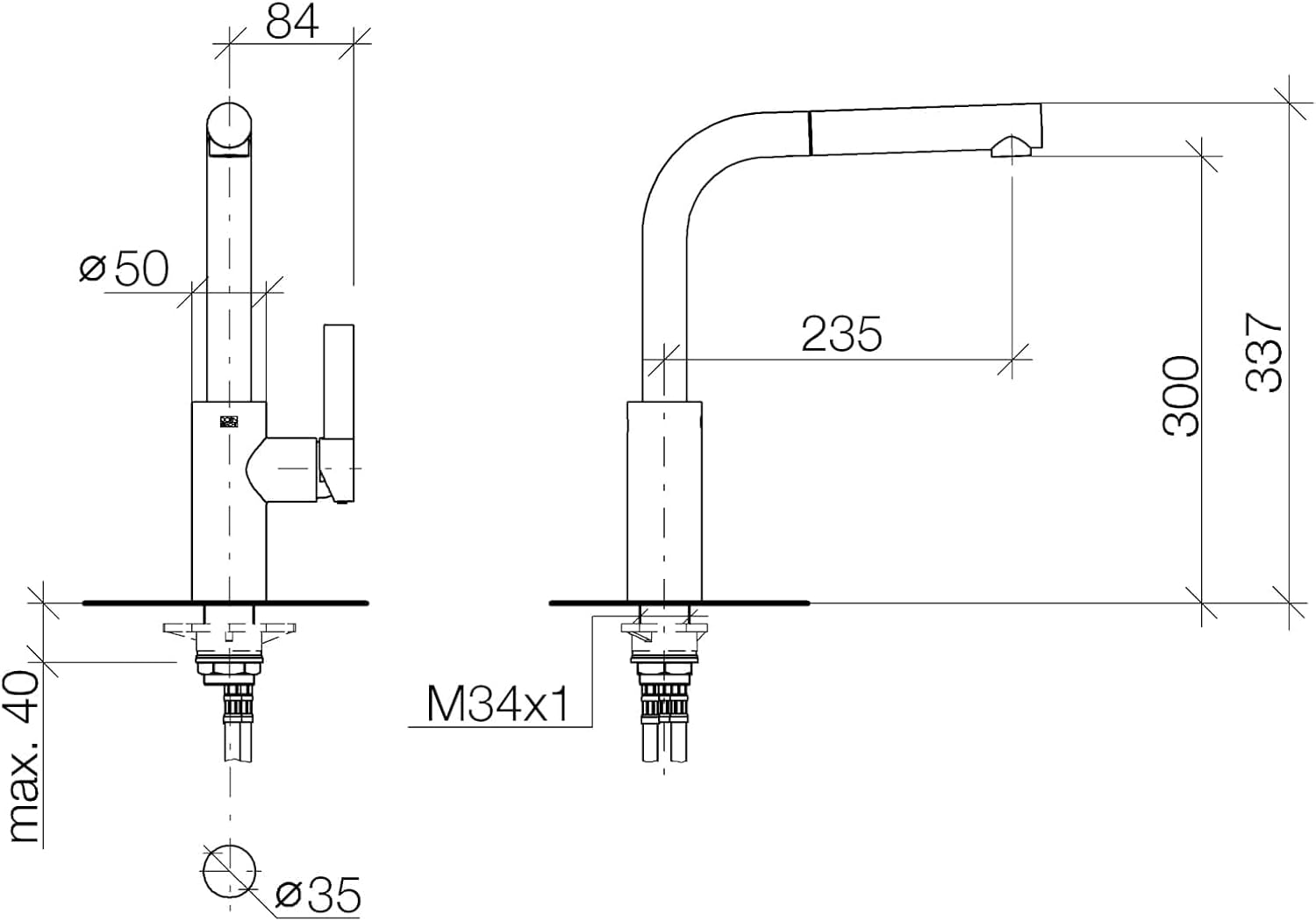

Figure 1: Technical drawing illustrating the dimensions and installation points of the Dornbracht Elio Single Lever Mixer. Note the 35mm hole requirement and maximum 40mm countertop thickness.
Operating Instructions
The Dornbracht Elio features a single lever for controlling both water flow and temperature, along with a convenient pull-out spray function.
- Water Flow and Temperature Control:
The single lever operates the water flow and temperature. Lift the lever to increase water flow. Move the lever to the left for hot water and to the right for cold water. - Pull-Out Spray Function:
Gently pull the spray head from the spout to extend the hose. The spray head will retract automatically when released, thanks to the hose weight.
Figure 2: The Dornbracht Elio faucet demonstrating its pull-out spray feature, ideal for rinsing and cleaning tasks in the kitchen.
Figure 3: The Dornbracht Elio faucet showcasing its elegant, round forms and harmonious design while in operation.
Figure 4: The Dornbracht Elio faucet in a kitchen setting, emphasizing its ergonomic design for comfortable and efficient use.
Maintenance and Care
Proper care will ensure the longevity and appearance of your Dornbracht faucet, which features a Dark Chrome finish.
- Cleaning the Finish:
Clean the faucet regularly with a soft cloth and mild soap and water. Rinse thoroughly with clean water and dry immediately to prevent water spots. Avoid abrasive cleaners, scouring pads, or harsh chemicals (e.g., ammonia, bleach, alcohol-based cleaners) as these can damage the Dark Chrome finish. - Aerator Maintenance:
If water flow decreases, the aerator may be clogged. Unscrew the aerator from the tip of the spout, clean any debris, and rinse under running water. Reattach securely. - General Inspection:
Periodically check all connections for any signs of leaks or wear. Tighten connections if necessary, but do not overtighten.
Figure 5: An overview of Dornbracht surface variants, highlighting the Dark Chrome finish (Dark Chrome 19) of this specific model.
Troubleshooting
Before contacting customer service, please refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator or debris in supply lines. | Clean the aerator. Check supply line filters for debris. Ensure shut-off valves are fully open. |
| Leaking at Faucet Base | Loose mounting nut or damaged O-rings. | Tighten the mounting nut. Inspect and replace O-rings if damaged. |
| Leaking from Handle | Worn cartridge. | Contact Dornbracht customer support for a replacement cartridge. |
| Pull-Out Spray Not Retracting | Hose weight improperly positioned or obstructed. | Ensure the hose weight is correctly attached and has a clear path under the sink. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Dornbracht |
| Model Number | 33840790-19 |
| Recommended Uses | Kitchen |
| Mounting Type | Protruding, Single Hole |
| Finish Type | Dark Chrome |
| Material | Brass |
| Number of Handles | 1 |
| Included Components | Valve |
| Special Feature | Lead Free |
| Item Weight | 10.78 pounds (4.9 Kilograms) |
Warranty and Support
For warranty information and customer support, please refer to the official Dornbracht website or contact your authorized dealer. Keep your proof of purchase for any warranty claims.
Manufacturer: Dornbracht
Contact: Please visit www.dornbracht.com for support and contact details.
