Total TBG15015 15cm 150W Bench Grinder User Manual

1. Introduction

This manual provides essential information for the safe operation, maintenance, and troubleshooting of your Total TBG15015 15cm (6-inch) 150W Bench Grinder. Please read these instructions carefully before using the tool to ensure proper function and to prevent injury or damage. Keep this manual in a safe place for future reference.

2. General Safety Instructions

Always follow basic safety precautions when using electrical tools to reduce the risk of fire, electric shock, and personal injury.

• Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges, and refrigerators.
• Personal Safety: Always wear eye protection. Use a dust mask, non-skid safety shoes, hard hat, or hearing protection for appropriate conditions. Do not overreach. Keep proper footing and balance at all times.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
• Specific Grinder Safety: Ensure grinding wheels are correctly mounted and tightened before use. Inspect wheels for cracks or damage before each use. Never operate without wheel guards in place.

3. Package Contents

Upon unpacking, please verify that all items listed below are present and undamaged. If any parts are missing or damaged, contact your retailer immediately.

• Total TBG15015 Bench Grinder Unit
• Grinding Wheels (2x, pre-installed or separate)
• Adjustable Eye Shields (2x)
• Tool Rests (2x)
• Spark Deflectors (2x)
• Mounting Hardware (bolts, nuts, washers)
• User Manual

4. Product Overview

Familiarize yourself with the components of your bench grinder before operation.

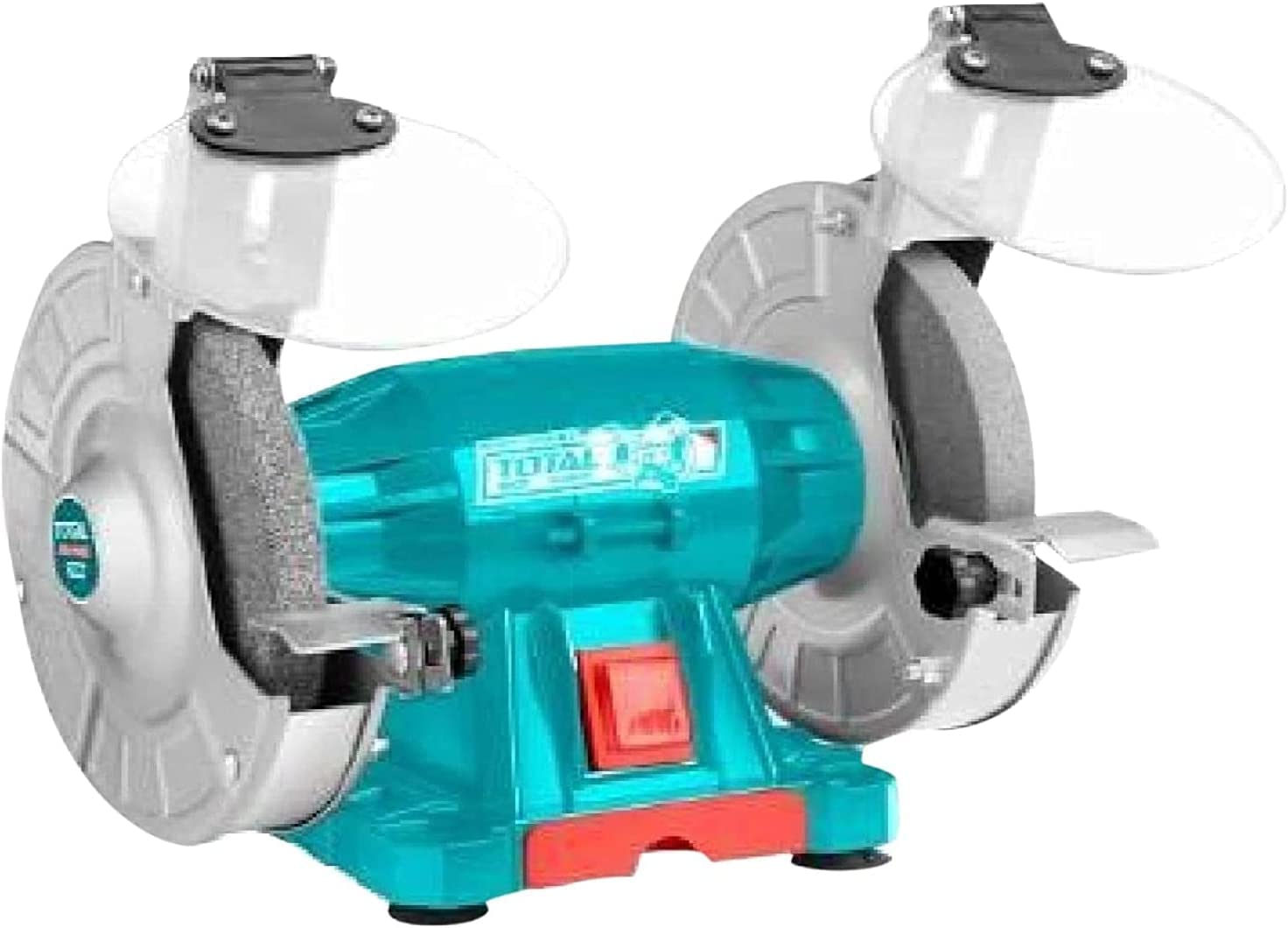

Figure 1: Total TBG15015 Bench Grinder. This image displays the complete bench grinder unit, featuring two grinding wheels, protective eye shields, and adjustable tool rests on either side of the motor housing.

1. Grinding Wheel (Coarse)
2. Grinding Wheel (Fine)
3. Eye Shield
4. Tool Rest
5. Spark Deflector
6. Motor Housing
7. Power Switch
8. Base with Mounting Holes

5. Setup

5.1 Mounting the Grinder

For safe operation, the bench grinder must be securely mounted to a workbench or stand. Use appropriate bolts, nuts, and washers (not always included) through the mounting holes in the base.

• Position the grinder on a stable, level surface.
• Mark the locations for drilling through the base holes.
• Drill appropriate holes and secure the grinder using suitable fasteners.

5.2 Attaching Eye Shields and Tool Rests

Attach the eye shields and tool rests as shown in the product overview. Ensure they are securely fastened and adjusted for optimal protection and support.

• Install the eye shields using the provided screws and nuts. Adjust their position to protect your eyes from sparks and debris.
• Attach the tool rests, ensuring they are positioned approximately 1.5mm (1/16 inch) from the grinding wheel surface. This gap should be maintained to prevent workpieces from jamming.
• Install spark deflectors, if separate, to further minimize spark exposure.

6. Operating Instructions

6.1 Before Starting

• Ensure the grinder is securely mounted.
• Verify eye shields and tool rests are properly adjusted and secured.
• Wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and gloves.
• Check the grinding wheels for any cracks or damage. Replace damaged wheels immediately.

6.2 Starting and Stopping

• To start the grinder, press the ON (I) button on the power switch.
• Allow the wheels to reach full speed before beginning any grinding operation.
• To stop the grinder, press the OFF (O) button on the power switch.
• Wait for the wheels to come to a complete stop before leaving the machine unattended.

6.3 Grinding Techniques

• Always use the tool rest to support the workpiece.
• Apply light, even pressure to the workpiece against the grinding wheel. Avoid excessive force, which can damage the wheel or motor.
• Move the workpiece across the face of the wheel to ensure even wear.
• For sharpening, maintain a consistent angle against the wheel.
• Do not grind on the side of the wheel, as this can cause the wheel to break.
• Allow the workpiece to cool periodically to prevent overheating.

7. Maintenance

Regular maintenance ensures the longevity and safe operation of your bench grinder. Always disconnect the power plug before performing any maintenance.

7.1 Cleaning

• Keep the grinder clean and free of dust and debris. Use a soft brush or compressed air to clean the motor vents.
• Wipe down the exterior with a damp cloth. Do not use harsh chemicals or abrasive cleaners.

7.2 Grinding Wheel Replacement

Replace grinding wheels when they become worn, chipped, or damaged.

1. Disconnect the grinder from the power supply.
2. Remove the wheel guard and any associated hardware (eye shield, tool rest).
3. Hold the opposite wheel to prevent rotation, then use a wrench to loosen the nut holding the wheel. Note that one side may have a left-hand thread.
4. Remove the old wheel, flanges, and spacers.
5. Install the new wheel, ensuring it is the correct size and type for your grinder. Place the flanges and spacers back in the correct order.
6. Tighten the nut securely, but do not overtighten.
7. Reassemble the wheel guard, eye shield, and tool rest.
8. Before use, perform a test run for a minute to ensure the wheel runs smoothly without wobble.

7.3 Wheel Dressing

Over time, grinding wheels can become glazed or out of round. Use a wheel dresser (sold separately) to restore the wheel's cutting surface and shape.

8. Troubleshooting

9. Specifications

10. Warranty and Support

This product comes with a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or contact your retailer.

For technical support, spare parts, or service inquiries, please contact the authorized Total service center or your point of purchase. When contacting support, please have your model number (TBG15015) and purchase date available.

Note: Warranty may be voided if the product is misused, altered, or repaired by unauthorized personnel.
